Key specification for this condenser: 12V, 24V, 48V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Guangzhou Mega Technology Limited Company (8 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Condenser
- Model Number: 9238
- Power Source: Electric
- Voltage: 12V, 24V, 48V
- Material: Plastic
- Blade Material: Plastic
- Frame Material: Copper Pipe
Technical Specifications
| Blade Diameter | 3.346 in |
|---|---|
| Voltage | 12V, 24V, 48V |
| Speed | 2200RPM – 2400RPM |
| Type | Duct Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | mega |
| Model Number | 9238 |
| Frame Material | Copper Pipe |
| Mounting: | Screw |
| Brand Name: | MEGA |
| Air Volume: | 28CFM / 32CFM |
| Speed: | 2200RPM – 2400RPM |
| Current: | 010A – 0.12A |
| Application: | Exhaust Ventilation |
| Bearing: | Ball Bearng |
| Selling Units | Single item |
| Single Package Size | 10X10X4.5 cm |
| Single Gross Weight | 0.9 kg |
Product Details

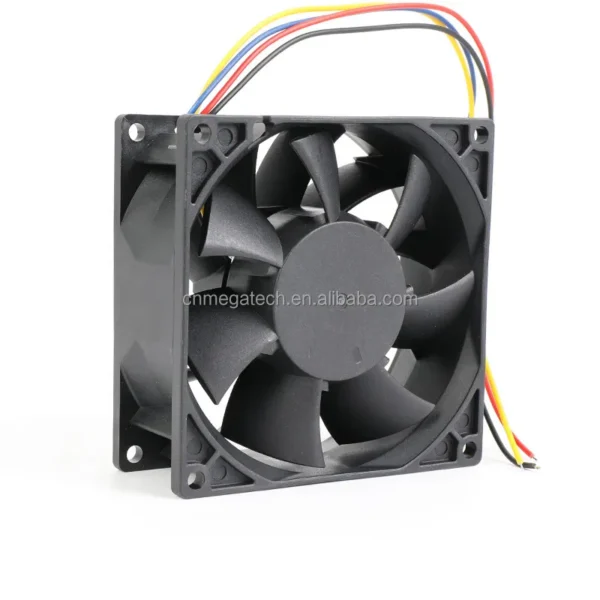

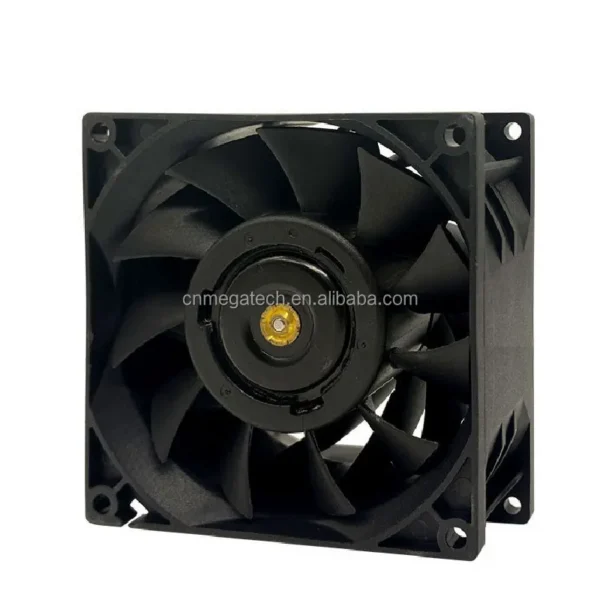

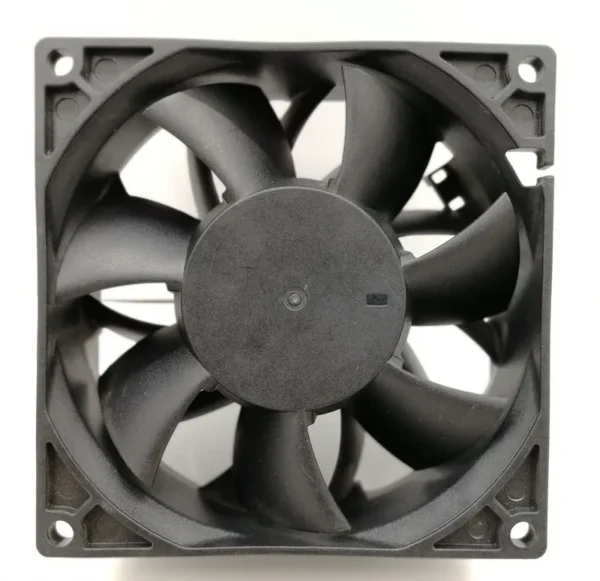

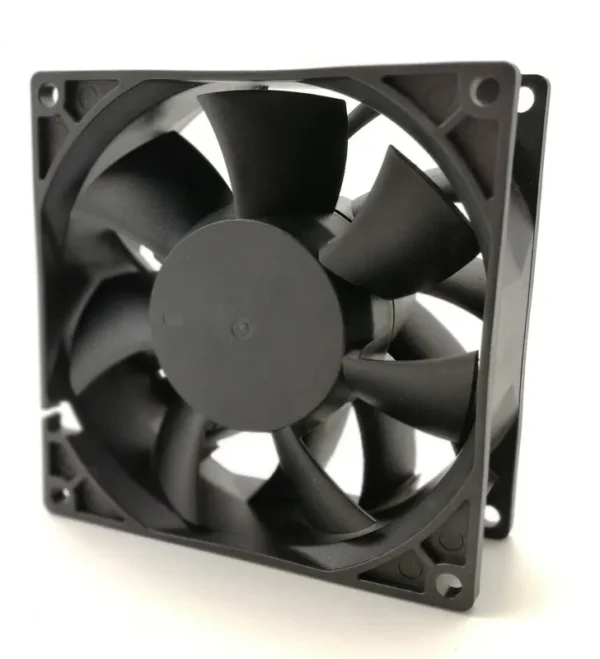

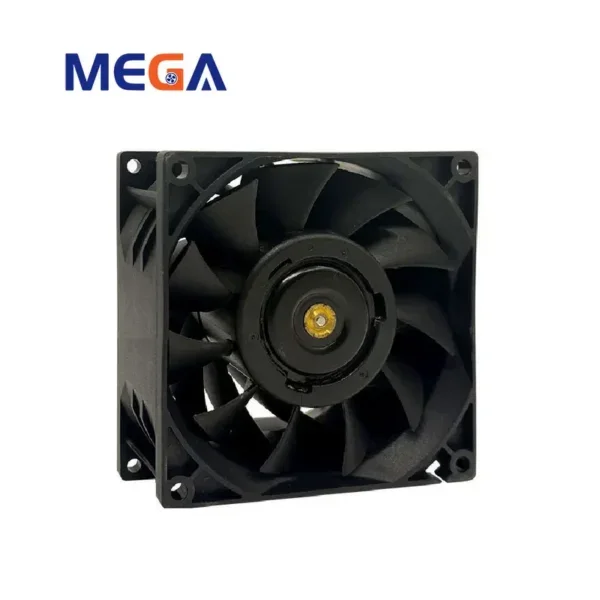

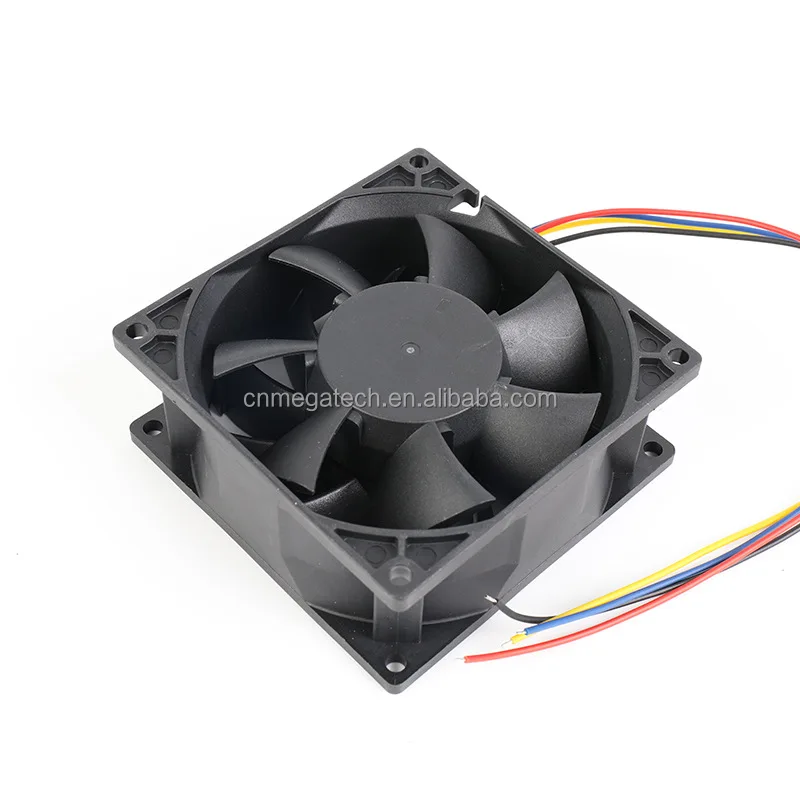

Type | Axial Flow Fan 92*92*38mm |
Customized support | OEM, ODM, OBM, Sample available，Small quantity order Acceptable |
Electric Current Type | DC |
Place of Origin | China |
Certification | CE, RoHS，CCC |
Mounting: | Screw mounting |
Impeller Frame: | BLACK PBT (UL94V-0) standard one Other color available MOQ 3000pieces |
Rated Voltage: | 12V 24V 48V Accept Customized requirement |
Bearing Type: | Sleeve bearing, Hypro Bearing, Ball bearing |
Rate Speed: | 2500~4500RPM Accept Customized requirement |
Air Flow: | 104.7~130.2CFM Accept Customized requirement |
Noise Level: | 53.50dBA – 59.30dBA |
Input Current: | 0.50A – 1.00A |
Static Pressure: | 14.50mmH2O – 22.00mmH2O |
Weight: | 80g |
Warranty: | 1 YEAR |
Function: (optional) | FG, RD, PWM |
Feature:(optional ) | Locked Motor Protection,Auto Restart,Polarity Protection,Soft Start |
Water Proof Standard: | IP 55 (Common one) Acctept Customized requirement IP68 |
Application: | Customized according to Client‘s application |
Warranty: | One Year , Technology Support Lifetime |

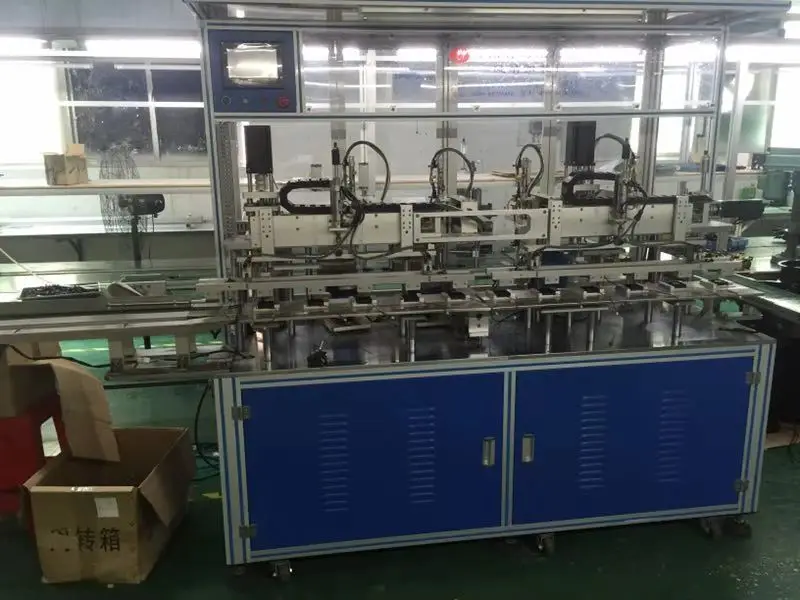

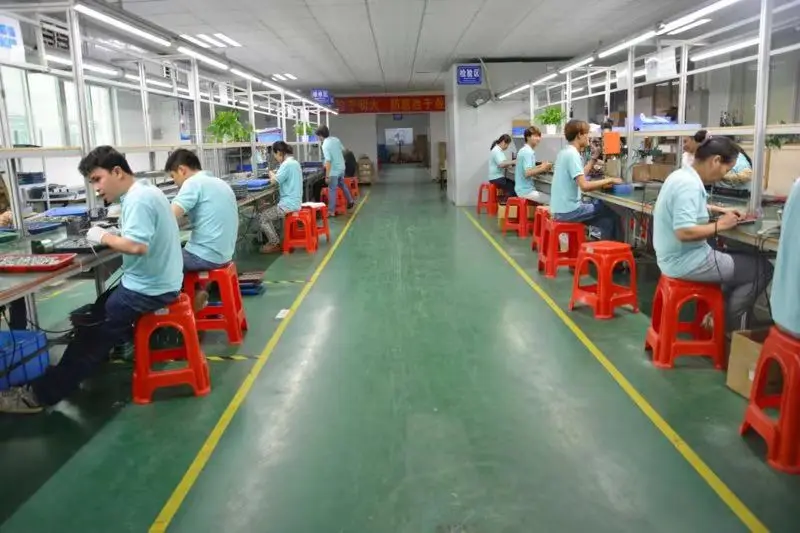

Our monthly capacity is 0.8 million to 1.0 million pieces, we not only guarantee on time delivery on big quantity order, but also have special production line to support clients with small quantity order.
* Your Satisfaction Is Our Aim. Feel free to contact us !
Fan Type, DC/AC
Case Size (Dimensions)
Speed
Air Flow
Noise
Rating Voltage, 3V/5V/12V/48V/115V/220-240V
Bearing, Sleeve/2Ball
Wire, 2 lead wires/3 lead
Wire Length
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
2.How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.
3.Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include axial flow fan,blower fan
4.Do you provide samples? is it free or extra?
A:Yes, sample cost will be returned once place regular order.
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000–4999 piece: US $3.43 / piece
- 5000–9999 piece: US $3.3 / piece
- 10000+ piece: US $3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condenser?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the condenser be supplied for my local voltage?
The standard configuration is 12V, 24V, 48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Mega Technology Limited Company, based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Mega Technology Limited Company range on HVACR Nexus.
