Condenser, Ywf4d-350, Ywf6d-350, 220V, 380V

Key specification for this condenser: 380V/220V, type refrigertor spare part. Everything below is reproduced from the factory data sheet. Made by Guangzhou ZhiGao Freeze Equipment Limited Company (15 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Condenser

• InputPower (W): 150W
• Voltage(V): 380V/220V
• Speed(RPM): 1380
• Warranty: 6 months
• Place Of Origin: Guangdong, China
• Type: refrigertor spare part

Technical Specifications

Product Details

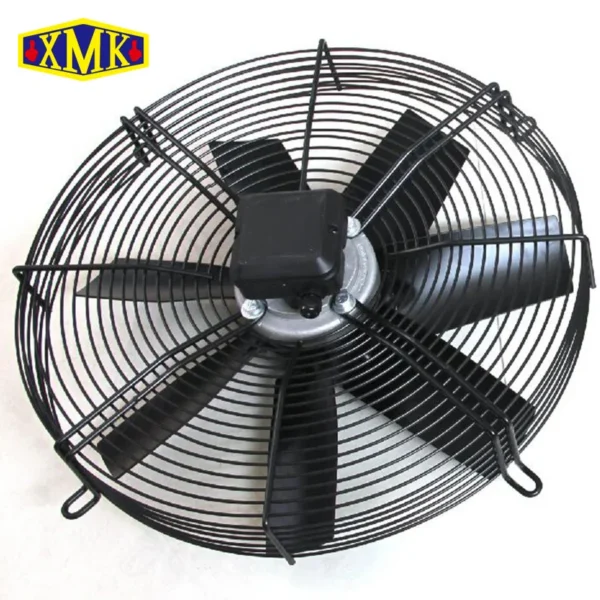

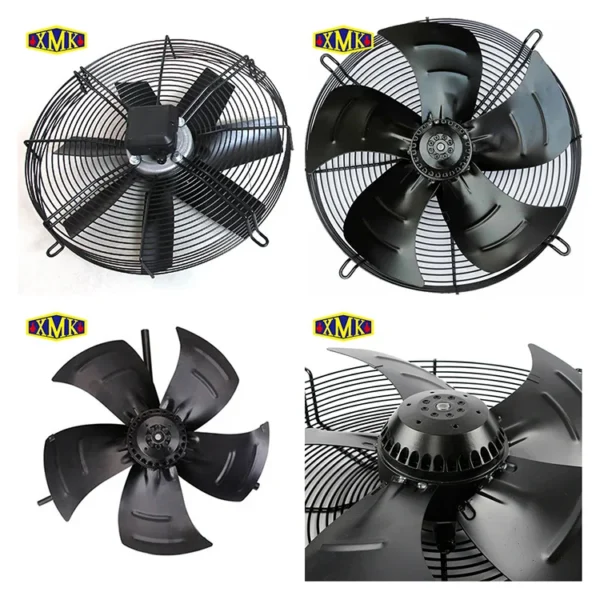

200mm/250mm/300mm/350mm/400mm/500mm/630mm/AC Cooler Axial Fan External Rotor Motor

Product Description

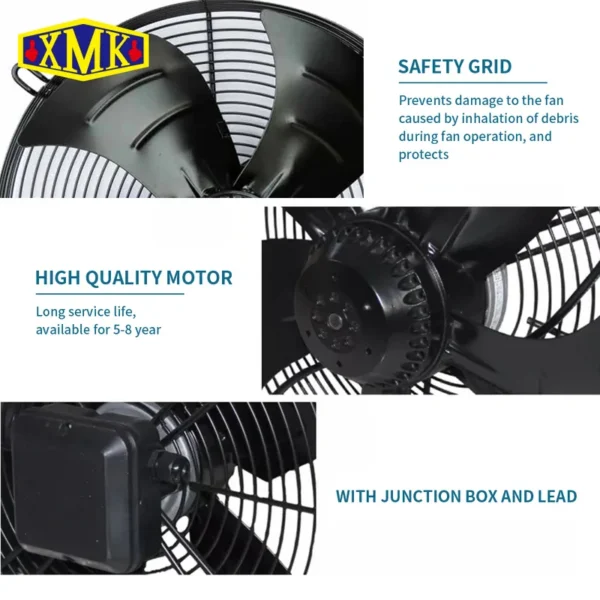

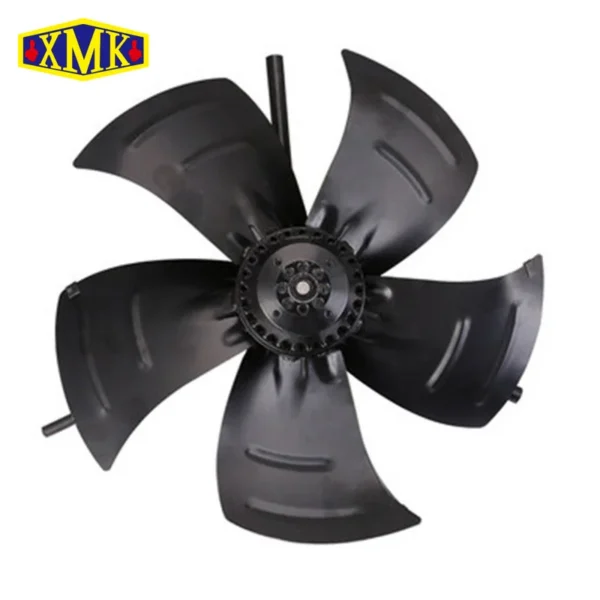

1）The fan rotor is directly welded by rotor and blade, it adopts double-sided dynamic balance, and the dynamic balance achieved G6.3. 2）The fan blade, rotor and grid are all powder sprayed, the surface is smooth, bright and corrosion-resistant.

3）The motor cover is also special handled, which helps the cover free from oxidized.Fan normal ambient temperature:-25°C~+60°C. 4）The current insulation grades supplied are B-class, F-class and H-class, and protection class is IP54.

Model	Diameter(mm)	Voltage（Ｖ）	InputPower （W）	Air Volume Max(m³/h)	Speed(RPM)	Noise(dB)	N.W(Kg)	Quantiy / Pallet
YWF4E-200-E5Z	200mm	380V	35W	385	1465	50	2KG	96units
YWF4D-200-E5Z	200mm	220V	22W	385	1400	50	2KG	96 units
YWF4E-250 -E5L	250mm	380V	50W	915	1450	55	2.7KG	96 units
YWF4D-250 -E5L	250mm	220V	50W	900	1430	55	2.7KG	96 units
YWF4E-300-E5L	300mm	380V	100W	1920	1325	60	3.2 KG	54units
YWF4D-300-E5L	300mm	220V	100W	1950	1360	60	3.2KG	54units
YWF4E-350 -E5L	350mm	380V	150W	2350	1380	65	4.6KG	30units
YWF4D-350 -E5L	350mm	220V	150W	2470	1380	65	4.6KG	30units
YWF4E-400 -E5L	400mm	380V	230W	4015	1350	68	5.2KG	20units
YWF4D-400 -E5L	400mm	220V	240W	3806	1370	68	5.2KG	20units
YWF4E-450 -E5L	450mm	380	280W	4706	1365	70	6.8KG	20units
YWF4D-450 -E5L	450mm	220	270W	4706	1360	70	6.8KG	20units
YWF4E-500 -E5L	500mm	380	460W	6700	1330	70	9.8KG	20units
YWF4D-500 -E5L	500mm	220	480W	6700	1340	70	9.8KG	20units
YWF4D-550-E5L	550mm	380V	600W	8730	1360	70	11.0KG	20units
YWF4E-550-E5L	550mm	220V	650W	8546	1340	70	11.0KG	20units
YWF4D-600-E5L	600mm	380V	760W	10700	1360	75	13.8KG	10units
YWF4E-600-E5L	600mm	220V	830W	10162	1385	75	13.8KG	10units

Use for

Certificate

Series Products

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–19 piece: US $29.91 / piece
  • 20+ piece: US $28.63 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this condenser?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 6 months warranty. Spare parts and technical support remain available after the warranty period.

Can the condenser be supplied for my local voltage?

The standard configuration is 380V/220V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou ZhiGao Freeze Equipment Limited Company, based in China. The company 15 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Guangzhou ZhiGao Freeze Equipment Limited Company range on HVACR Nexus.
