Conditioning unit — capacity 9000-24000, power type AC. The complete factory specification follows. Made by Moyu Technology Co., Ltd. Zhuhai (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Conditioning Unit
- Power Type: AC
- Power Source: Electric
- Power (W): 2200
- Capacity (Btu): 9000-24000
- Cooling Capacity: 2.2-7.1kw
- Heating Capacity: 2.5-7.5kw
Technical Specifications
| Application | Hotel, Car, Garage, RV, Commercial, Household |
|---|---|
| Capacity (Btu) | 9000-24000 |
| Cooling/Heating | Cooling/Heating |
| Refrigerant | R410A |
| Energy Efficiency Rating | Class A+++ |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Recommended Room Size（Square Feet） | 500 |
| Eer | 4.1-6 |
| Feature | Self-cleaning technology |
| Warranty | 5 year |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement |
| Power Type | AC |
| App-Controlled | Yes |
| Remote Control | Yes |
| Timer | Yes |
| Operating Language | English |
| Private Mold | No |
| Power Source | Electric |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand Name | Gree |
| Cop | ≥3.5 |
| Maximum Airflow Rate | 555 m3/h |
| Power (W) | 2200 |

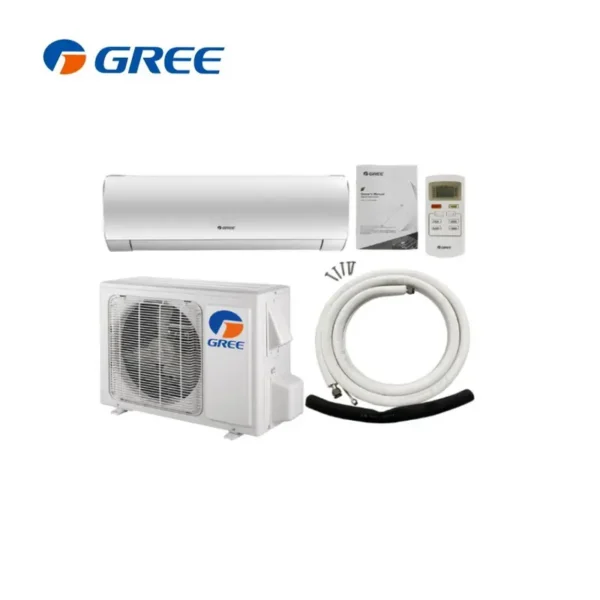

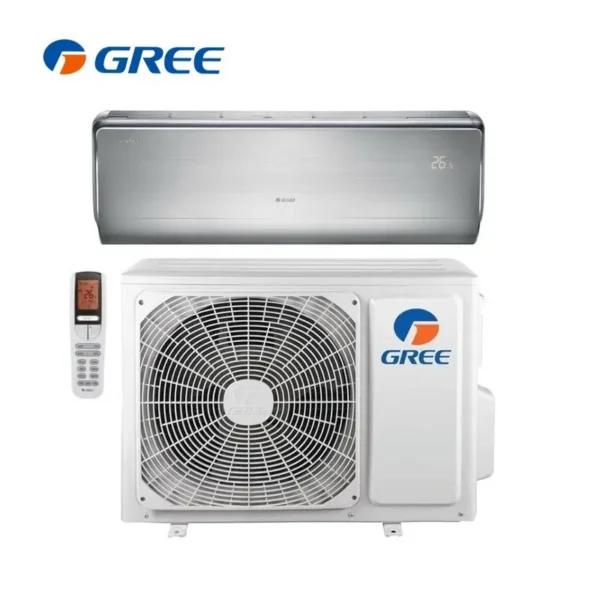

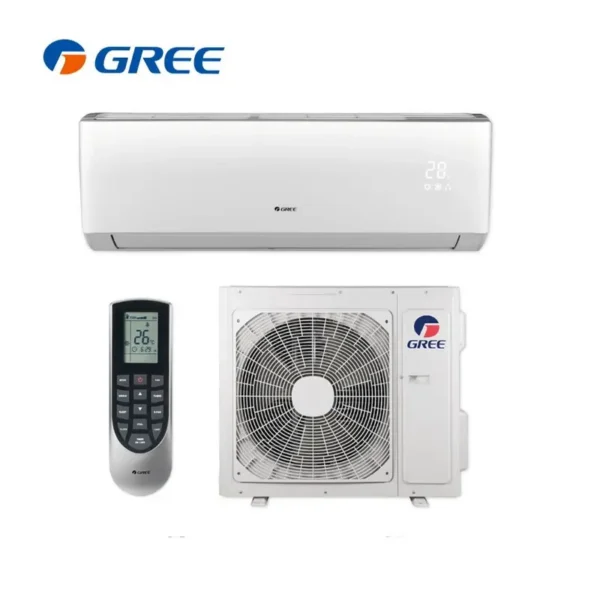

| Product Name | wall type split air conditioner |
| Cooling Capacity | 2.2-7.1kw |
| Heating Capacity | 2.5-7.5kw |
| NOISE LEVEL | 35 DB |
| Function | CoolingHeating |
| Use | Room |
| Condition | New |
| Certification | ce |
| Selling Units | Single item |
Product Details
MODEL | GWH09QB-K3DNB6B | GWH12QC-K3DNB6B | GWH18QD-K3DNB6B | GWH24QE-K3DNB6B |
Function | Cooling/Heating | Cooling/Heating | Cooling/Heating | Cooling/Heating |
Capacity-Cooling/BTU | 9000 | 12000 | 17981 | 22000 |
Capacity-Heating/BTU | 9600 | 13000 | 19005 | 23000 |
EER | 3.21 | 3.21 | 3.21 | 3.21 |
Power Supply | 1PH,220-240V,50HZ | 1PH,220-240V,50HZ | 1PH,220-240V,50HZ | 1PH,220-240V,50HZ |
Power Input-Cooling/W | 825 | 1090 | 1640 | 2010 |
Power Input-Heating/W | 775 | 1050 | 1540 | 1870 |
Rated Current-Cooling/A | 6.3 | 6.9 | 13.5 | 11 |
Rated Current-Heating/A | 6.9 | 7.3 | 13.8 | 12 |
Airflow Volume-Indoor | 560/490/430/330 | 600/540/460/330 | 850/800/700/570 | 1100/1000/950/850 |
Sound Pressure Level-Indoor | 39/36/32/25 | 41/37/33/29 | 47/43/39/35 | 46/44/40/36 |
Outline Dimension-W*H*D/mm | 790*275*200 | 845*289*209 | 970*300*224 | 1078*325*246 |
Package Dimension-W*H*D/mm | 866*357*271 | 921*379*281 | 948*645*420 | 1029*750*458 |
Net Weight/Gross Weight-Indoor/kg | 9/11 | 11/13 | 13.5/16.5 | 16/19.5 |
Sound Pressure Level-Outdoor | 49 | 51 | 55 | 56 |
Piping Connection-Gas/mm | φ9.52 | φ9.52 | φ12 | φ16 |
Piping Connection-Liquid/mm | φ6 | φ6 | φ6 | φ6 |
Outline Dimension-W*H*D/mm | 710*550*318 | 710*550*318 | 899*596*378 | 955*700*396 |
Package Dimension-W*H*D/mm | 774*607*351 | 774*607*351 | 948*645*420 | 1029*750*458 |
Net Weight/Gross Weight-Outdoor/kg | 28/30 | 30/32 | 41/44.5 | 46/50.5 |
Loading Quantity-40'GP/sets | 234 | 225 | 156 | 118 |
Loading Quantity-40'HQ/sets | 270 | 261 | 179 | 131 |
We are based in Guangdong, China, start from 2019,sell to Mid East(30.00%),Africa(25.00%),North America(25.00%),Northern Europe(20.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air conditioner,Refrigerator,Home appliance,Eletrical spare parts,laudry machine
4. why should you buy from us not from other suppliers?
It has three research institutes, is staffed with over 7,000 research and development personnel, and owns over 6,000 technical patents including more than 1,300 invention patents. It is the most powerful company with the most core technologies in air cons.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,Russian,Korean,Hindi,Italian
Ordering and Pricing
- Minimum order quantity: 2 unit
- Volume pricing:
- 2–28 unit: US $230 / unit
- 29–49 unit: US $189 / unit
- 50+ unit: US $149 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this conditioning unit?
The standard minimum order quantity is 2 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this conditioning unit carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Moyu Technology Co., Ltd. Zhuhai, based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Moyu Technology Co., Ltd. Zhuhai range on HVACR Nexus.
