The cooled screw water chiller listed here carries 220 V, 415V, 380 V, 110 V, 240 V, 230 V, cooling capacity 2528-24089Kcal/h, documented exactly as the manufacturer publishes it. Made by Wuxi Jizhou Technology Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooled Screw Water Chiller
- Model Number: YTO-AS
- Power: 1.27KW, 9.9KW
- Power Supply: 3PH-380V/415V/440V/460V/480V-50HZ/60HZ
- Voltage: 220 V, 415V, 380 V, 110 V, 240 V, 230 V
- Cooling Capacity: 2528-24089Kcal/h
- Refrigerant: R-22, R-410A, R407C
Technical Specifications
| Voltage | 220 V, 415V, 380 V, 110 V, 240 V, 230 V |
|---|---|
| Power | 1.27KW, 9.9KW |
| Refrigerant | R-22, R-410A, R407C |
| Compressor Brand | TECUMSEH, Daikin, Hitachi, Copeland, Fusheng, Sanyo, Performer |
| Pump Type | centrifugal pump |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Automatic, High-Accuracy, Easy To Operate, Competitive Price, High Productivity, High Safety Level, Other, Long Service Life, Low Noise Level |
| Plug Type | European Plug |
| Core Components | PLC, Pump, Compressor, Condenser |
| Container Volume | 800 mL, 650 mL, 700 mL, 1000 mL, 2L, 200mL |
| Model Number | YTO-AS |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 60 |
| Brand Name | Arkora |
| Working Temperature Range | -35-30℃ |
| Product Name | Air Cooled Water Chiller |
| Application | Industrial Cooling Solutions |
| Compressor | Semi-Hermetic Scroll |
| Evaporator | Shell-and-Tube |
| Condenser | High Efficient Finned Copper Tube |
| Power Supply | 3PH-380V/415V/440V/460V/480V-50HZ/60HZ |
| Cooling Capacity | 2528-24089Kcal/h |
| Temperature Range | 3~30C |
| Selling Units | Single item |
Product Details

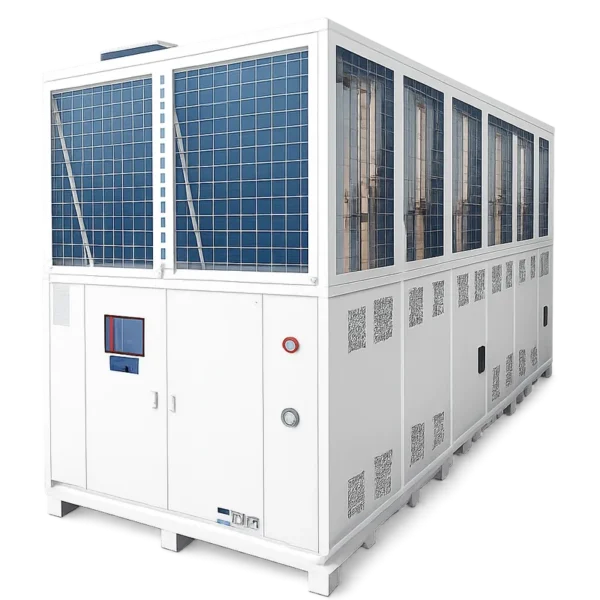

Air-Cooled Scroll Chiller
The Air-Cooled Screw Chiller is a high-performance, integrated temperature control unit that uses air as the heat source/sink and water as the cooling/heating medium. Designed and manufactured to strict national industry standards, it features world-renowned compressors, fans, and refrigerant control components. With a compact, W-shaped coil design and robust outdoor-rated construction, the chiller can be installed directly on rooftops or other well-ventilated outdoor areas, eliminating the need for a dedicated machine room and saving valuable building space.
Ideal for both public facilities (hotels, shopping malls, office buildings, airports, stadiums) and industrial processes
(electronics, pharmaceuticals, biotechnology, textiles, chemicals, metallurgy, power, machinery), the screw chiller delivers reliable, efficient, and low-noise operation even at ambient temperatures as low as -10°C. It is particularly suitable for
water-scarce regions and areas without boiler or central heating systems.
Ideal for both public facilities (hotels, shopping malls, office buildings, airports, stadiums) and industrial processes
(electronics, pharmaceuticals, biotechnology, textiles, chemicals, metallurgy, power, machinery), the screw chiller delivers reliable, efficient, and low-noise operation even at ambient temperatures as low as -10°C. It is particularly suitable for
water-scarce regions and areas without boiler or central heating systems.
Air-Cooled Scroll Chiller
·High Efficiency & Low Noise: Optimized system matching and premium components ensure quiet, energy-saving operation.
·Wide Operating Range: Effectively operates in ambient temperatures down to -10°C, with a chilled water output range from +3°C to
ambient (customizable below 0°C).

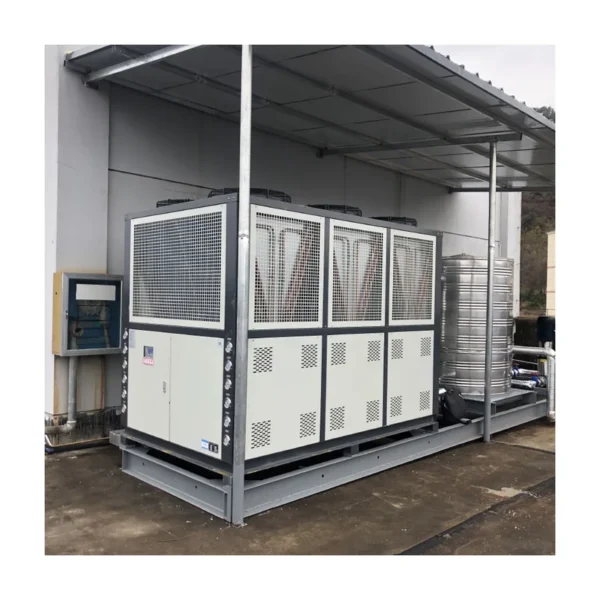

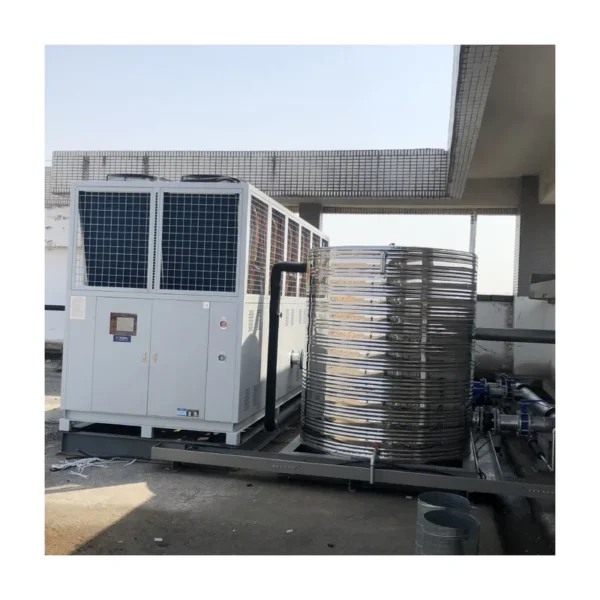

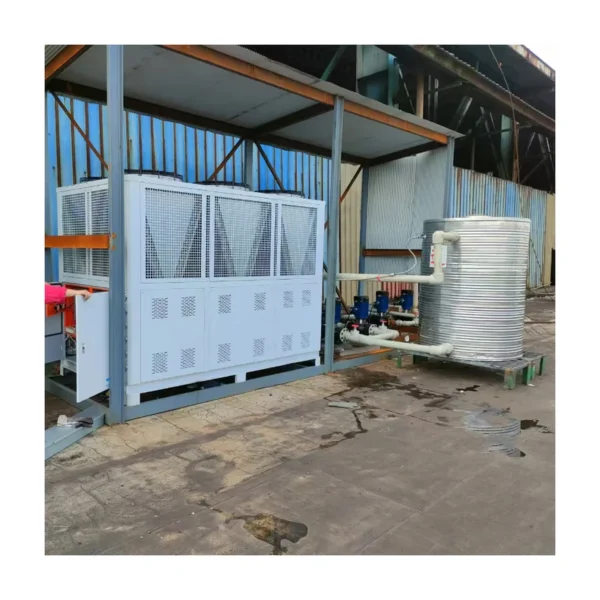

·Space-Saving Design: Weather-resistant W-shaped coil design allows outdoor installation (rooftop or ground level) – no machine
room required.
·Wide Operating Range: Effectively operates in ambient temperatures down to -10°C, with a chilled water output range from +3°C to
ambient (customizable below 0°C).
·Space-Saving Design: Weather-resistant W-shaped coil design allows outdoor installation (rooftop or ground level) – no machine
room required.

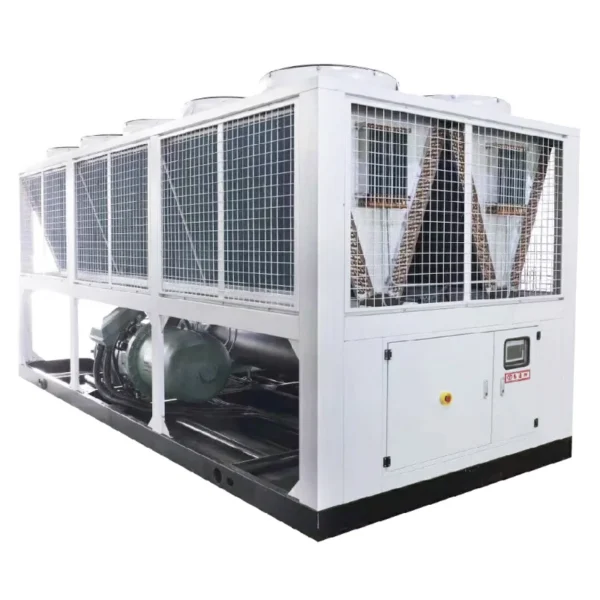

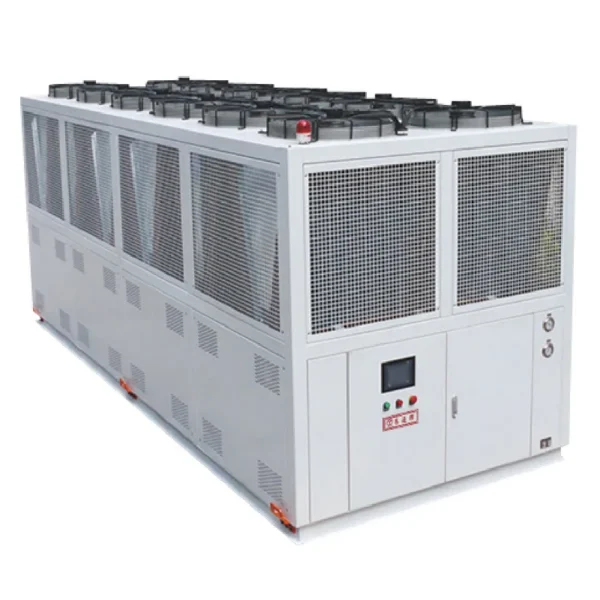

Air-Cooled Screw Chiller
·Complete Safety Protections: Includes thermal protection switch, overload relay, high/low pressure safety switch, three-phase protection, anti-freeze switch, delayed start, oil pressure difference protection, oil level protection, and discharge temperature
protection.
·Precise Control: PLC automatic control with color LCD touch screen for easy monitoring and adjustment.
·High-Quality Components: Features semi-hermetic asymmetric screw compressors, efficient copper tubes with corrugated aluminum fins, and dry shell-and-tube evaporators.
·Energy Adjustment: Stepless or step control (0-33%-66%-100%) to match varying load conditions.
protection.
·Precise Control: PLC automatic control with color LCD touch screen for easy monitoring and adjustment.
·High-Quality Components: Features semi-hermetic asymmetric screw compressors, efficient copper tubes with corrugated aluminum fins, and dry shell-and-tube evaporators.
·Energy Adjustment: Stepless or step control (0-33%-66%-100%) to match varying load conditions.
Air-Cooled Screw Chiller (Single Compressor Series Standard Models @ +7°C) | ||||||||||||||||
Model | Cooling Capacity (KW/h) | Total Power (KW) | Compressor Power (KW) | Water Flow (m³/h) | Pipe DN | Dimensions L×W×H (mm) | Weight (KG) | |||||||||
YTO-100AS | 74.6 | 31.3 | 27.5 | 12.9 | DN65 | 2200×1360×1910 | 1100 | |||||||||
YTO-140AS | 103.2 | 43.6 | 36.4 | 17.8 | DN65 | 2200×1360×1910 | 1200 | |||||||||
YTO-180AS | 135.6 | 52.1 | 45.7 | 23.4 | DN65 | 2500×1600×1980 | 1300 | |||||||||
YTO-200AS | 145.6 | 56.9 | 50.3 | 25.1 | DN65 | 2500×1600×1980 | 1400 | |||||||||
YTO-230AS | 181.0 | 70.1 | 60.2 | 31.2 | DN80 | 2500×1600×1980 | 1550 | |||||||||
YTO-260AS | 194.9 | 77.2 | 65.8 | 33.6 | DN80 | 3350×1700×1980 | 1800 | |||||||||
YTO-300AS | 229.8 | 85.7 | 74.6 | 39.6 | DN80 | 3350×1700×2050 | 2100 | |||||||||
YTO-340AS | 270.4 | 100.4 | 86.5 | 46.5 | DN100 | 3760×1700×2050 | 2350 | |||||||||
YTO-380AS | 291.3 | 107.3 | 93.9 | 50.1 | DN100 | 4760×1700×2100 | 2450 | |||||||||
YTO-410AS | 316.6 | 117.1 | 103.5 | 54.5 | DN100 | 4760×1700×2100 | 2600 | |||||||||
What information do you need to provide us? | ||
Information Category | Specific Information and Explanations Required | |
1. Application Scenario | Specific Use Case: For example: – Plastic Machinery (Injection Molding Machines, Extruders) – Laser Equipment (Laser Cutting, Welding Machines) – Chemical/Pharmaceutical Reactors – Electronics Industry (Test Equipment, PCB Drilling) – HVAC Systems – Laboratory Equipment | |
2. Core Performance Parameters | Cooling Capacity: ______ kW or ______ RT (Refrigeration Tons). Outlet Water Temp.: ______ °C (Temperature of the chilled water supplied by the chiller). Inlet Water Temp.: ______ °C (Temperature of the water returning from the load). Ambient Temp.: ______ °C (The maximum ambient temperature of the chiller installation site, crucial for air-cooled models). | |
3. System & Medium Conditions | Cooling Medium: □ Pure Water □ Ethylene Glycol Solution (Concentration: __%) □ Oil □ Other Flow Rate & Head: – Required Flow Rate: ______ m³/h – Required System Head/Pressure: ______ bar or ______ m Cooling Method: □ Air-Cooled (Standard, dissipates heat via fans) □ Water-Cooled (Requires a cooling tower) | |
4. Installation & Power Conditions | Installation Location: □ Indoor Clean Room □ Outdoor □ High Temperature/Dusty Environment Space & Connections: Any space limitations? Connection port size requirements? Power Supply: □ 380V/3Ph/50Hz (Standard) □ 220V/1Ph/50Hz □ Other (e.g., 420V/60Hz) | |
5. Other Specific Requirements | Control & Precision: Any requirements for temperature control accuracy (e.g., ±0.5°C)? Need remote control? Protection Rating: Any requirements for the IP rating of the electrical cabinet or entire unit (e.g., IP54)? Special Certifications: Are certifications like CE, UL required? | |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooled screw water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooled screw water chiller be supplied for my local voltage?
The standard configuration is 220 V, 415V, 380 V, 110 V, 240 V, 230 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
