Key specification for this cooling fan: 80V-220V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shenzhen City Fengheng Technology Co., Ltd. (7 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Fan
- Model Number: 25489, 254mm
- Power Source: Electric
- Voltage: 80V-220V
- Blade Material: Plastic and aluminum
- Warranty: 5 year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 80V-220V |
|---|---|
| Type | exhaust fan |
| Blade Material | Plastic and aluminum |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 5 year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | Fengheng |
| Model Number | 25489, 254mm |

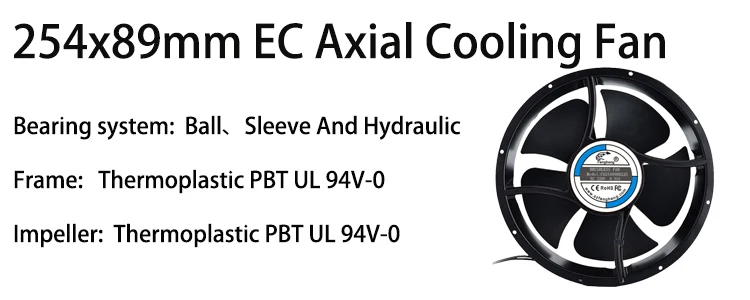

| Product Name | EC Axial cooling fan |
| Application | Charging pile, duct ventilation, floor ventilation, |
| Size | 254x254x89mm |
| Color | Black PBT Plastic |
| Motor Type | EC Brushless Motor |
| Name | Axial Fan 25489 |
| Keyword | Exhaust Fan |
| Feature | Strong Wind Power |
| Usage | Fresh air system, duct ventilation, kitchen ventilation, |
| Selling Units | Single item |
| Single Package Size | 45X35X32 cm |
| Single Gross Weight | 15.0 kg |
Product Details

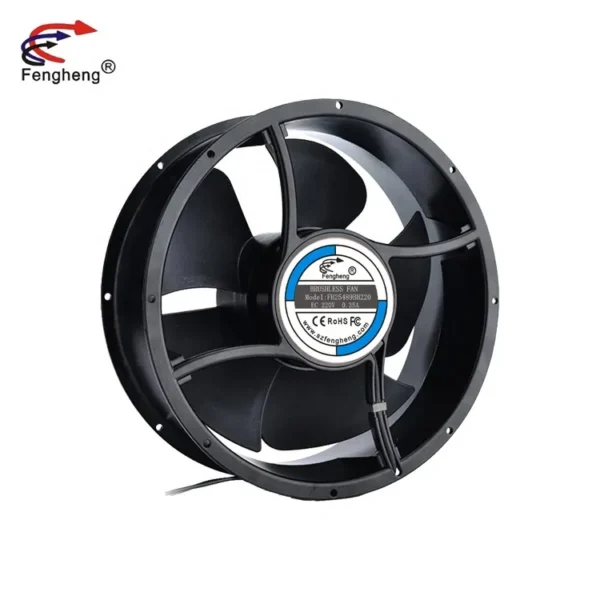

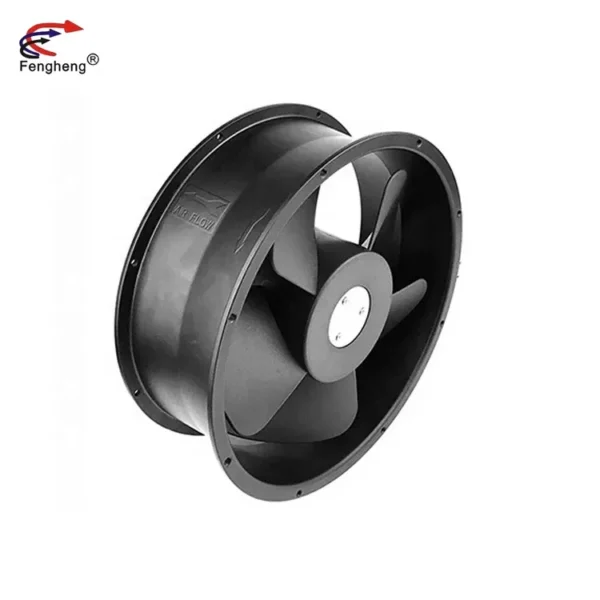

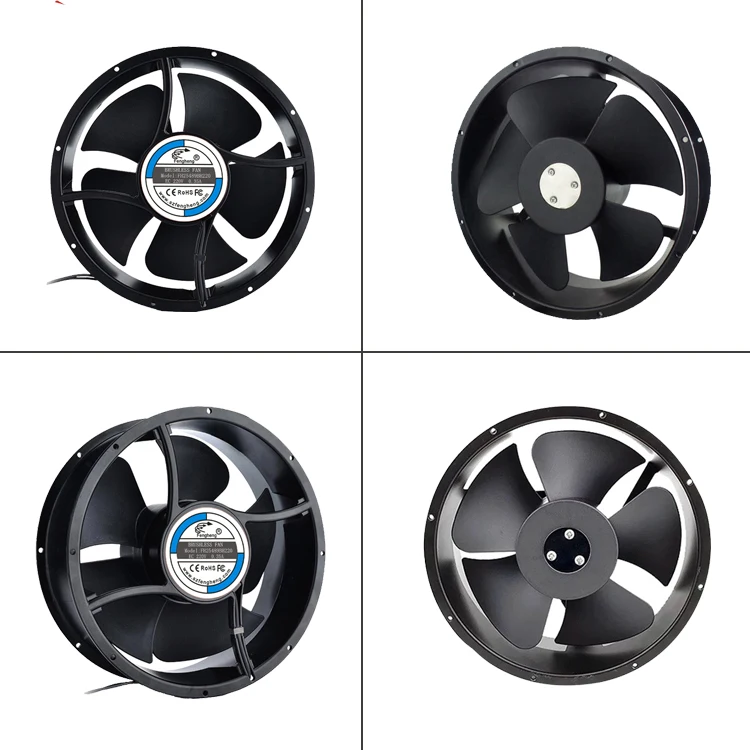

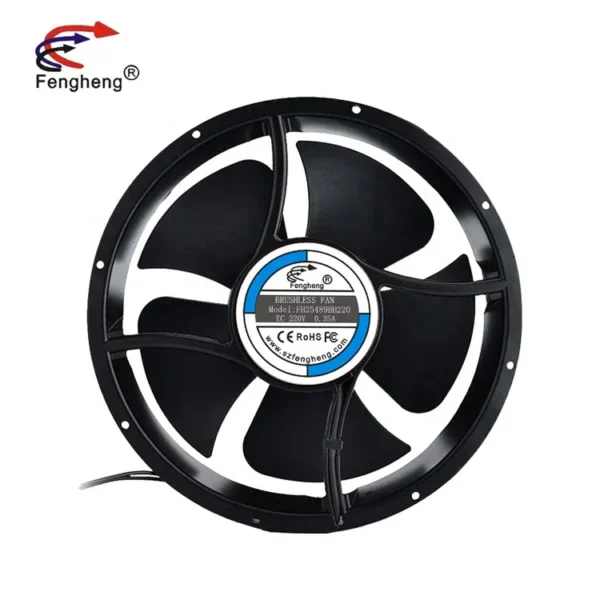

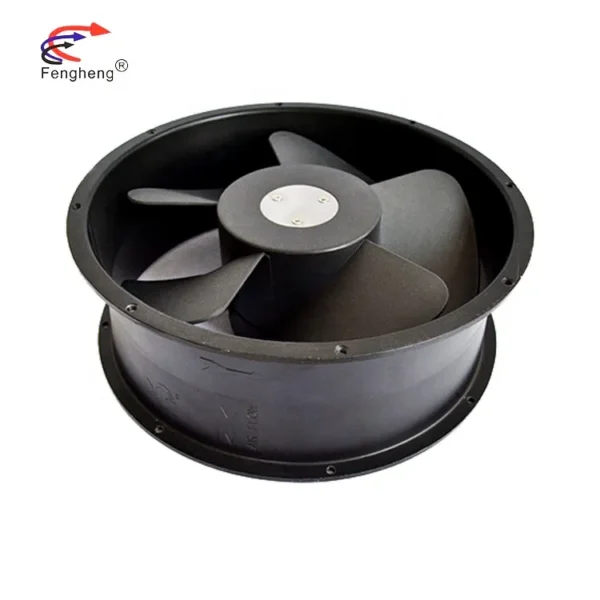

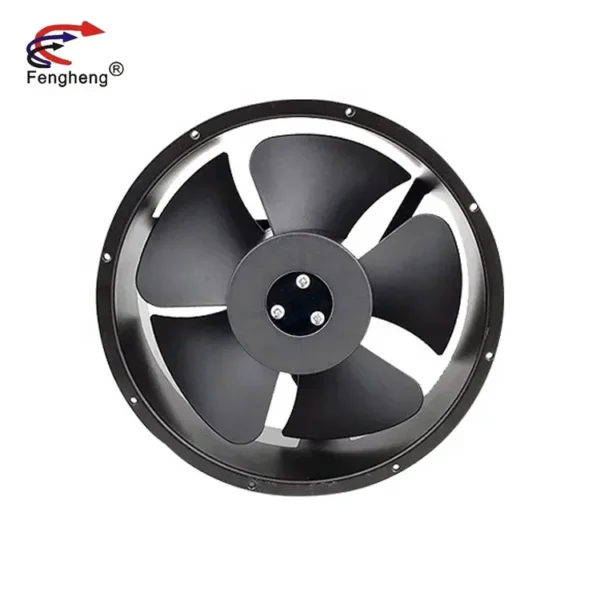

Cooling fan 254x89mm 25489 250mm high efficiency 220v 240v 380v ac ec axial fan factory
| MODEL | FH25489B220V |
| Brand | fengheng |
| Bearing Type | 2-balls |
| Dimensions(lengthxwidthxheight) | 254x89mm |
| Weight | 2600g |
| Certification | CE ROHS FCC PSE |
| Warranty Period | 3-5years |
| Material | Aluminum alloy + plastic |
| Application | Duct ventilation, shopping malls, factories, building ventilation, fresh air system heat dissipation, network cabinet chassis, car charging piles, animal husbandry ventilation, greenhouse plant ventilation… |
| Product alias | duct fan, axial fan, fresh air system fan |
| Whether the manufacturer | yes |
| NO1: Motor Protection | NO2: Signal Out Put | NO3:Speed Control Mode | |||||||||||||
| RP | SS | LP | CL | OVP | FG | RD | RDB | LD | PWM | TC | VC | CC | CS | ||
| ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||
| Model | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Weight | ||
| PART NO. | B/S/Y | VDC | VDC | AMP | WATT | R.P.M | m3/min | CFM | mmH20 | INH20 | DB-A | g |
| FH25489L220v | B | 220 | 180 to 230 | 0.15 | 33 | 1000 | 8.72 | 308 | 12.5 | 0.49 | 51.3 | 2600 |
| FH25489M220V | 220 | 180 to 230 | 0.25 | 55 | 2000 | 16.0 | 565 | 16.4 | 0.65 | 63.8 | 2600 | |
| FH25489H220V | 220 | 180 to 230 | 0.35 | 77 | 2500 | 20.3 | 718 | 25.5 | 1.01 | 68.2 | 2600 | |
If you want another rpm or voltage or functions which one in the list ,please contact with our sales.
Notes: Product have a detail in the approval sheet.
Notes:Specifications are subject to change without notice.

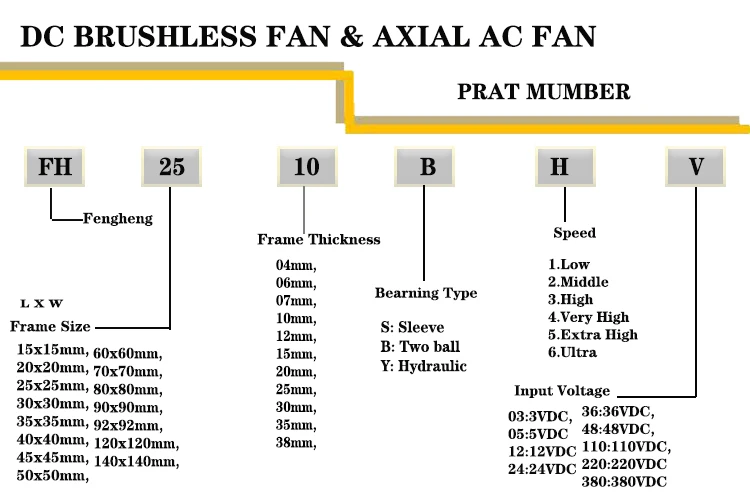

”Fengheng” Cooling Fan How To Choose ?
Size: L x W x H (Thickness(We can produce 15mm to 250mm cooling fan)

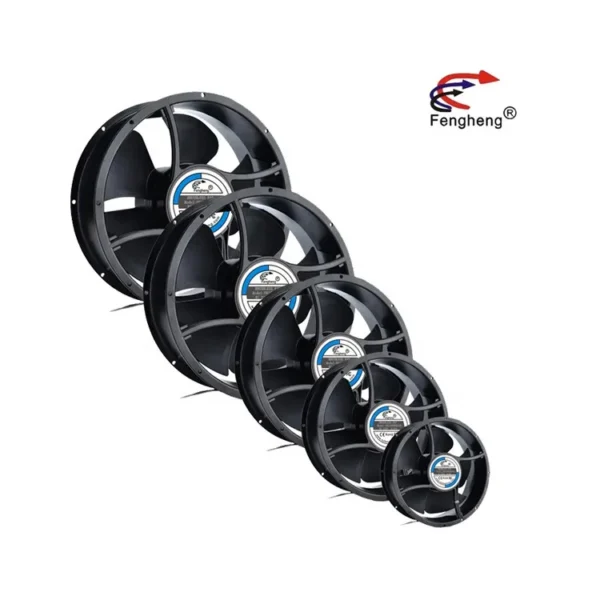

FH1504(15x15x04mm),FH1506(15x15x06mm),FH1508(15x15x08mm),FH1804(18x18x04mm),FH2006(20x20x06mm),FH2010(20x20x10mm),FH2506(25x25x06mm),FH2510(25x25x10mm),FH3006(30x30x06mm),FH3007(30x30x07mm),FH3010(30x30x10mm),FH3015(30x30x15mm),FH3016(30x30x16mm),FH4007(40x40x07mm),FH4010(40x40x10mm),FH4015(40x40x15mm),FH4020(40x40x20mm),FH4028(40x40x28mm)FH5010(50x50x10mm),FH5015(50x50x15mm),FH5020(50x50x20mm) ,FH5025(50x50x25mm),FH6010(60x60x10mm),FH6015(60x60x15mm),FH6020(60x60x20mm),FH6025(60x60x25mm),FH6038(60x60x38mm),FH7010(70x70x10mm),FH7015(70x70x15mm),FH7020(70x70x20mm),FH7025(70x70x25mm),FH7515(75x75x15nn),FH7525(75x75x25mm),FH7530(75x75x30mm),FH8010(80x80x10mm),FH8015(80x80x15mm),FH8020(80x80x20mm),FH8025(80x80x25mm),FH8038(80x80x38mm),FH9020(90x90x20mm)FH9225(92x92x25mm),FH9238(90x90x38mm),FH12025(120x120x25mm),FH12038(120x120x38mm),FH12032(120x120x32mm),FH14025(140x140x25mm),FH15050(150x150x50mm),FH17251(172x175x51mm)FH180215(180x180x25mm),FH18060(180x180x60mm),FH20060(200x200x60mm),FH22060(220x220x60mm),FH25489(254x254x89mm)
Voltage:DC(3V, 5V, 7V, 9V, 12V, 18V, 24V, 48V…) AC(100-125v, 220-240v, 380v Bearing Type: Sleeve Bearing,Cycleseal Bearing Dual Ball Bearing
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $57 / piece
- 500+ piece: US $50 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling fan be supplied for my local voltage?
The standard configuration is 80V-220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen City Fengheng Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen City Fengheng Technology Co., Ltd. range on HVACR Nexus.
