Cooling tower — 380V/50Hz, material Metal. The complete factory specification follows. Made by Wuxi Respect Trade Co., Ltd. (9 years on the platform, typical reply ≤11h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Tower
- Voltage: 380V/50Hz
- Material: Metal
- Sprazy Nozzle Material: ABS
- Warranty: 3 Years
- Certification: CE
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 380V/50Hz |
|---|---|
| Cooling Type | Cross Flow |
| Material | Metal |
| Core Components | Engine, Motor |
| Machinery Test Report | Provided |
| Warranty | 3 Years |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High quality |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 1500 |
| Brand Name | RESPECT |
| Dimension(L*W*H) | depend on your demand |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Name | Closed Cooling Tower |
| Application | Water Treament |
| Color | White |
| Water Flow | 5~300t/h |
| Production Time | Typically 3~4 weeks |
| Sprazy Nozzle Material | ABS |
| Cooling Tower Fill | depend on your cooling tower |
| Certification | CE |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

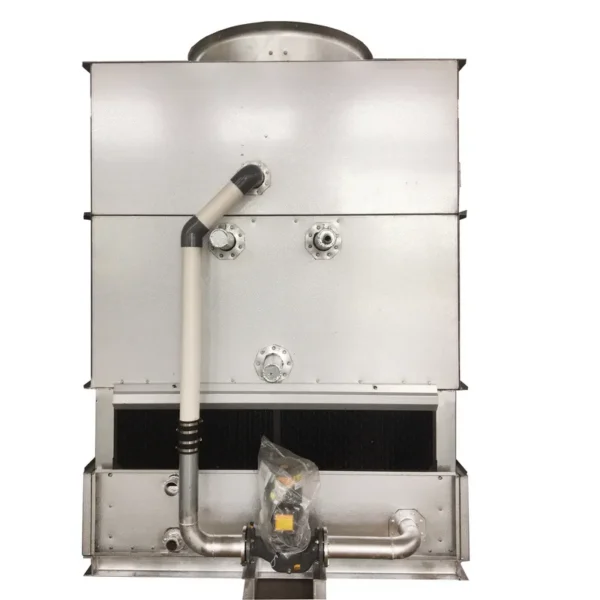

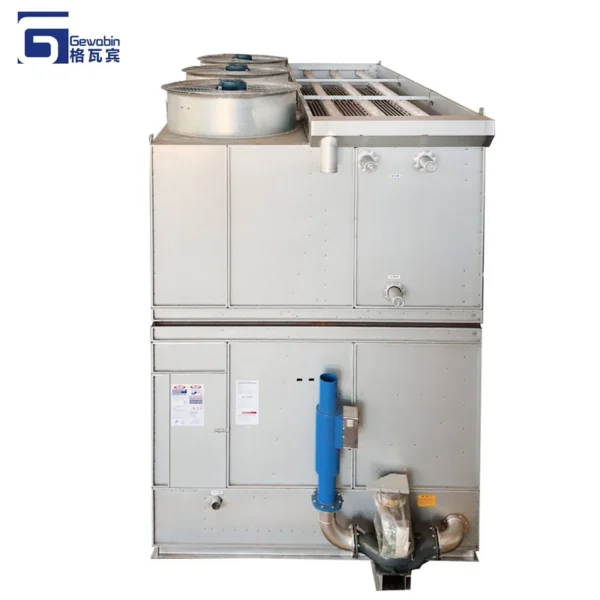

Closed Circuit Combined Flow Cooling Tower Water Cooled Condenser Industrial Close Wet Air Cooled Heat Exchanger

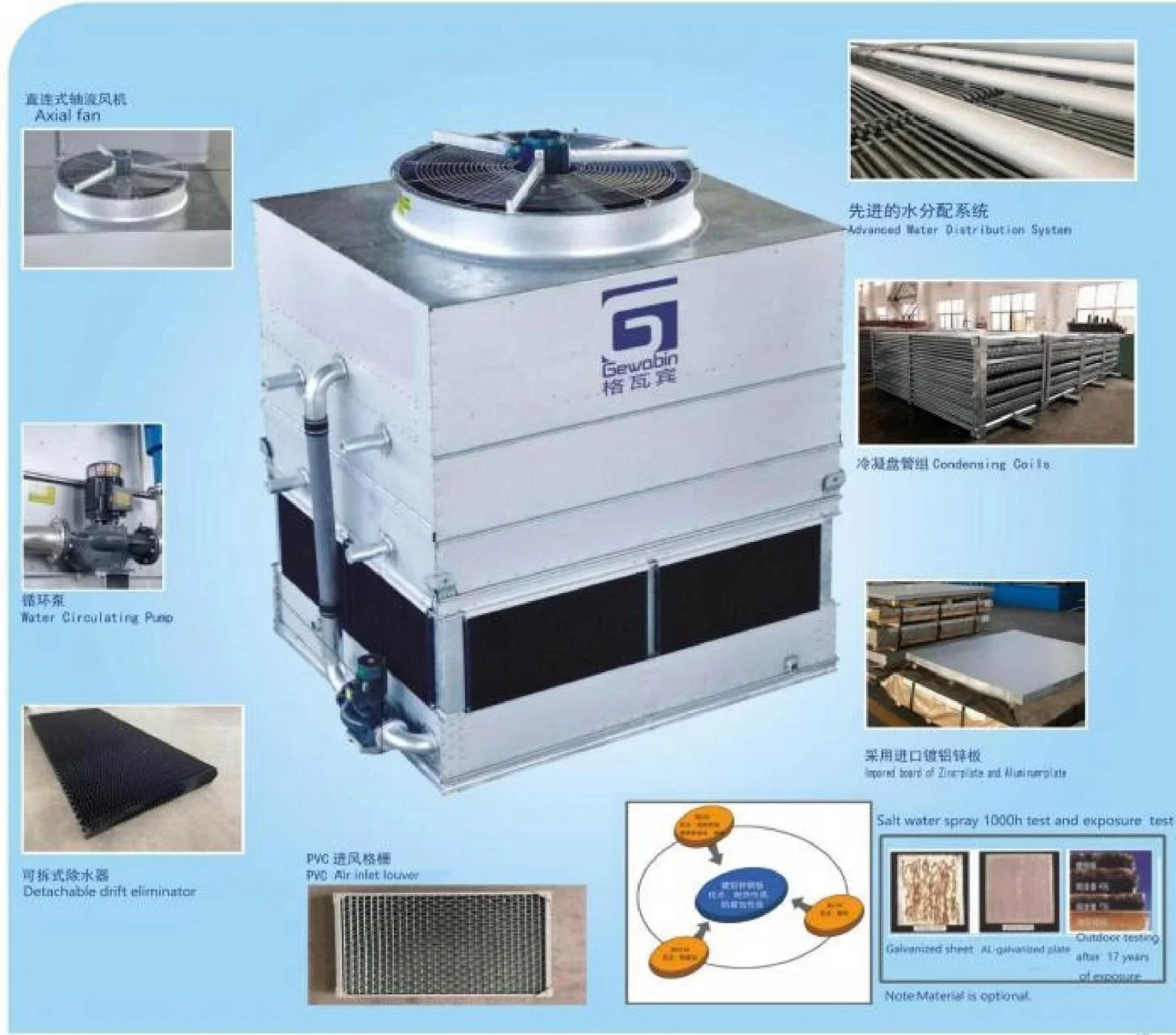

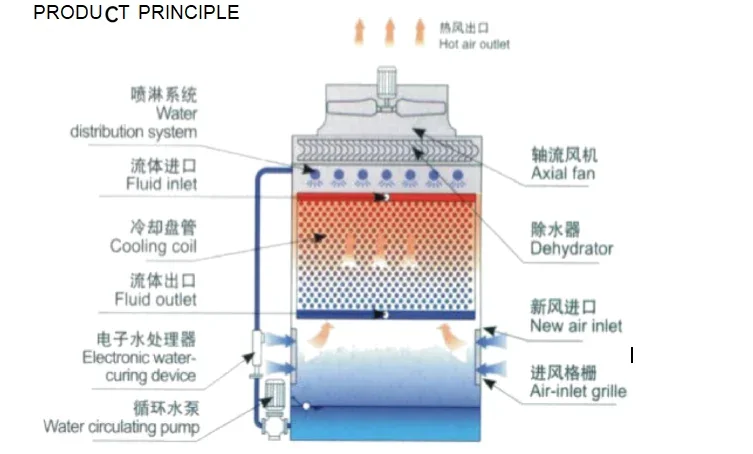

GWB series closed cooling tower uses water and air as cooling medium,they exchanges the heat with high temperature working fluid, the high temperature working fluidrelease heatinto room
temperature fluid. Inside it has a water distribution system,cooling coils,drift eliminator. Out side it has a water
circulating pump,an electronic water curing device.Axial fan on the top of closed cooling tower.The axial fan strengthens the flow of the air and forms negative pressure.When the cooling tower runs, the working cooling water in pumped and then sprayed by water distribution system on the
surface of cooing coils equably. High temperature fluid exchanges the heat with the water and air outside the coil and increases the effect of heat exchange with the help.After absorbing the heat of
refrigerant agent some water outside the tube turns into steam and discharged by axial
fan.Meanwhilethe cooling water that has not been gasified is pumped to the reservoir circularly.
The water level in reservoir is controlled and replenished autom atically by the float ball valve.
For easier discussions, 24 hours on line service available: Yaling is online: skype: tang.yaling
Mob./WhatsApp/Wechat: 8618761578489
Many thanks for your interests, and your inquires are always well attended!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $15000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cooling tower carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi Respect Trade Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wuxi Respect Trade Co., Ltd. range on HVACR Nexus.
