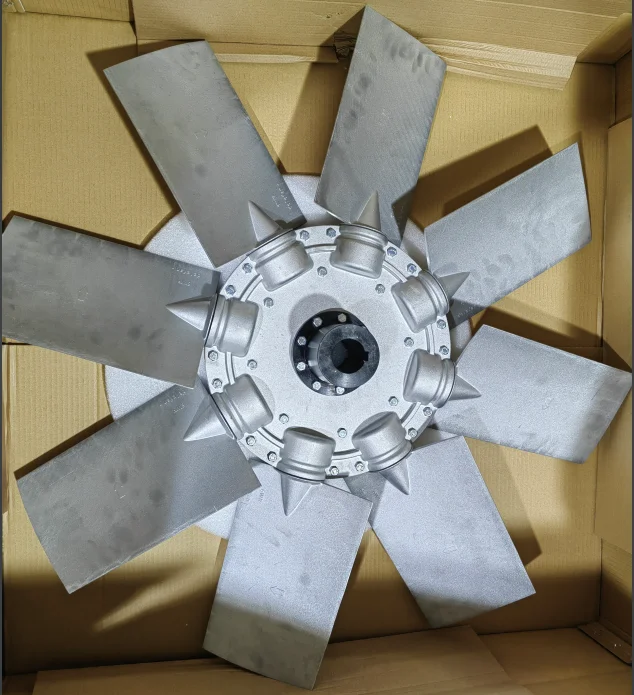

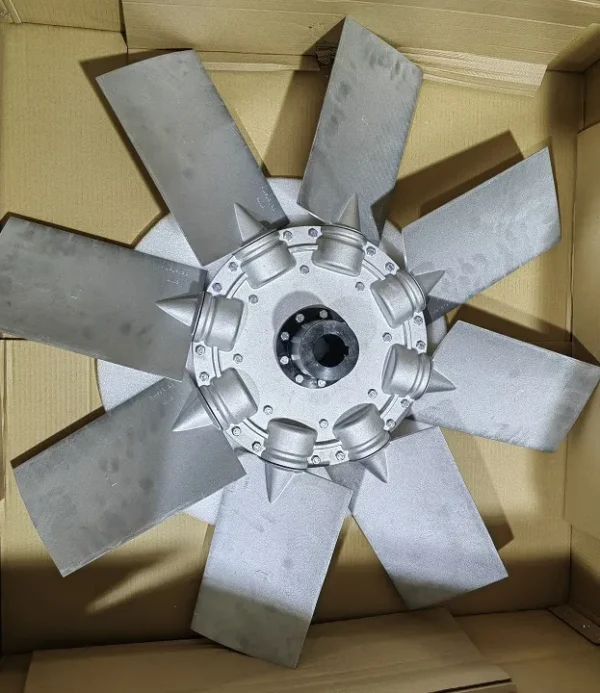

Cooling Tower, 6w, Axial

Cooling tower — voltage consult the merchant, blade material Nylon/ALU. The complete factory specification follows. Made by Nanjing Colorfan Technology Co., Ltd. (3 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Cooling Tower

• Model Number: 6W
• Voltage: consult the merchant
• Blade Material: Nylon/ALU
• Warranty: 1 year
• Place Of Origin: Jiangsu, China
• Application: Cooling Fan

Technical Specifications

Product Details

Product Description

Design features

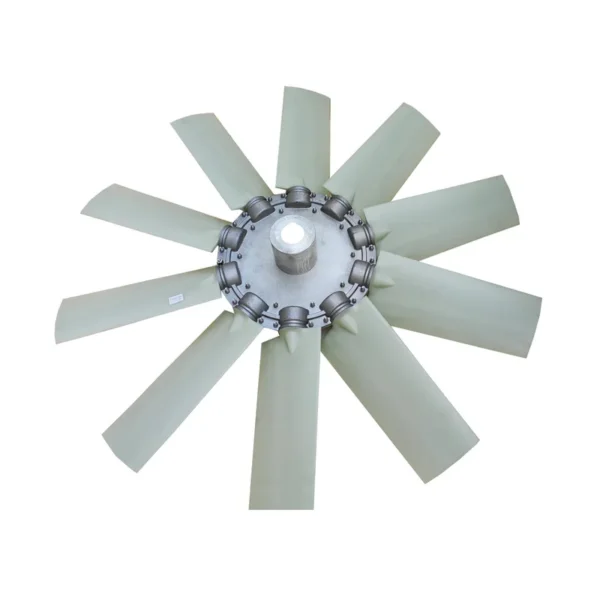

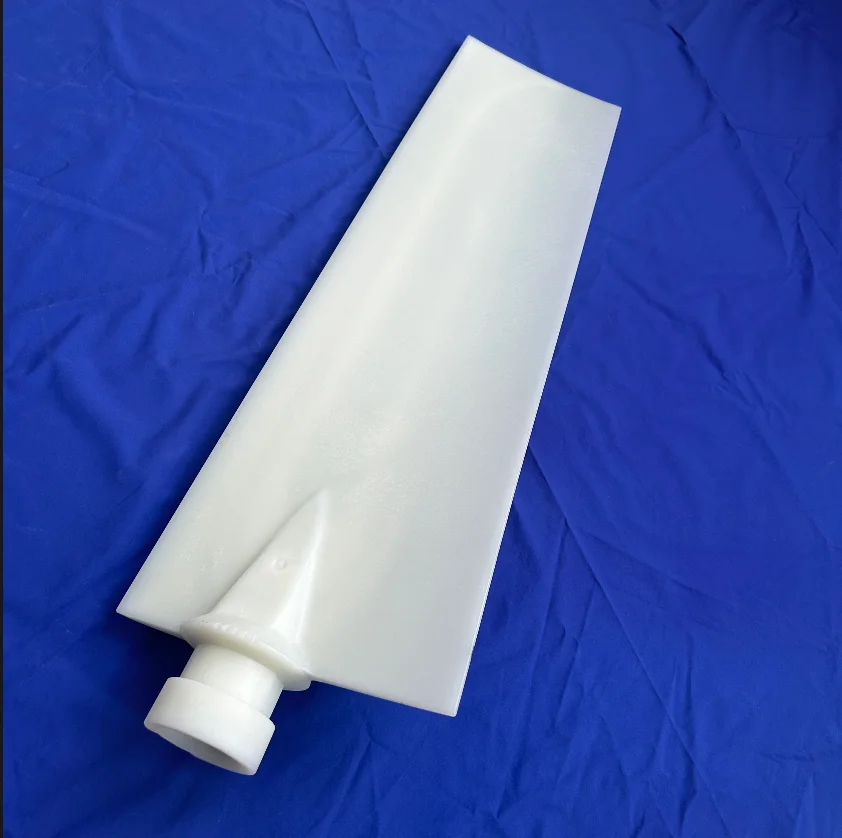

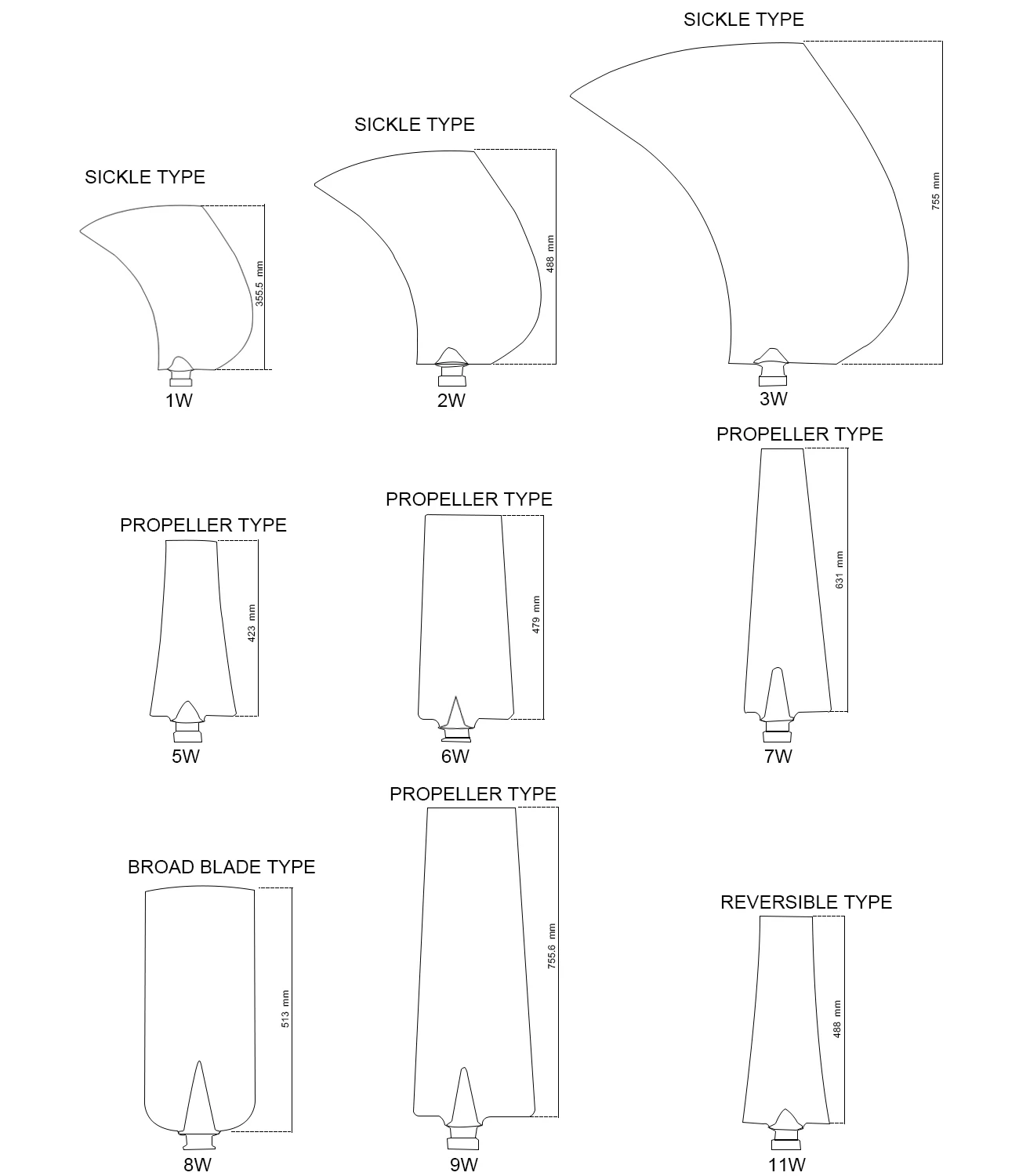

—9 different designs and sizes of blades with adjustable angles

—Unique angle setting, from 20 ° to 50 °, increasing by 1 °
—Most of the blades can rotate both clockwise and counterclockwise

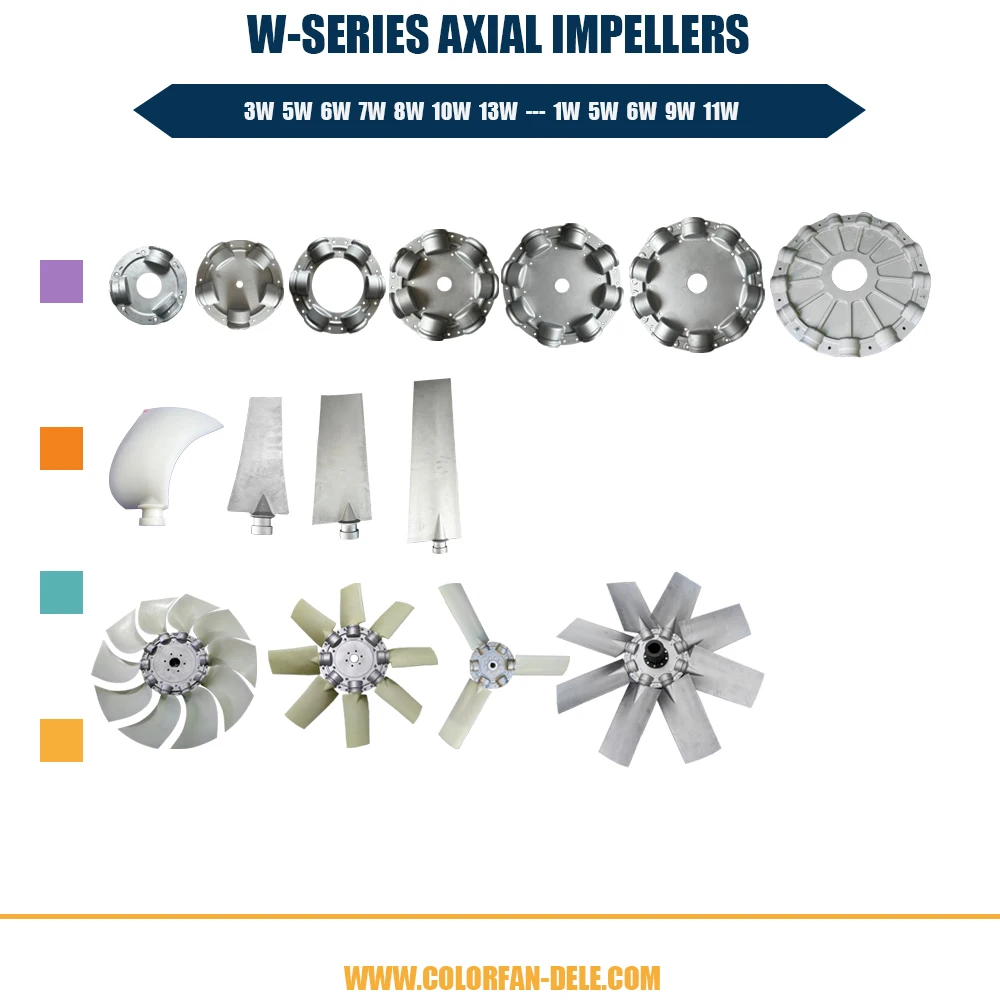

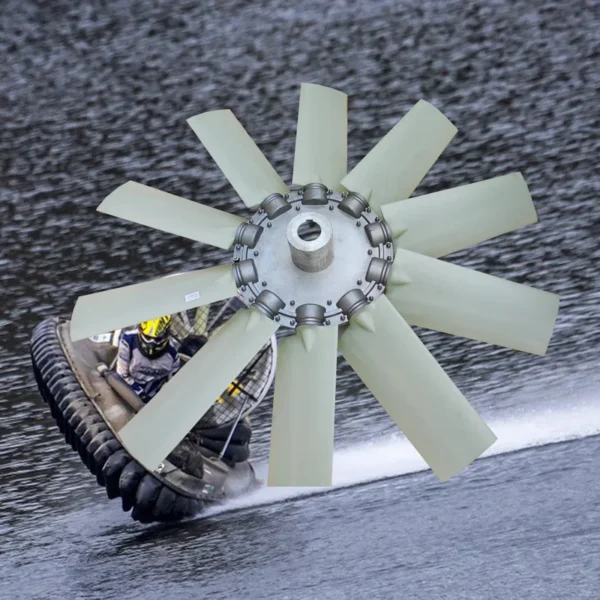

—7 hub sizes (3, 4, 5, 6, 8, 10 and 13 blades can be installed Pieces, symmetrically distributed).Can be bored/fixed mounted

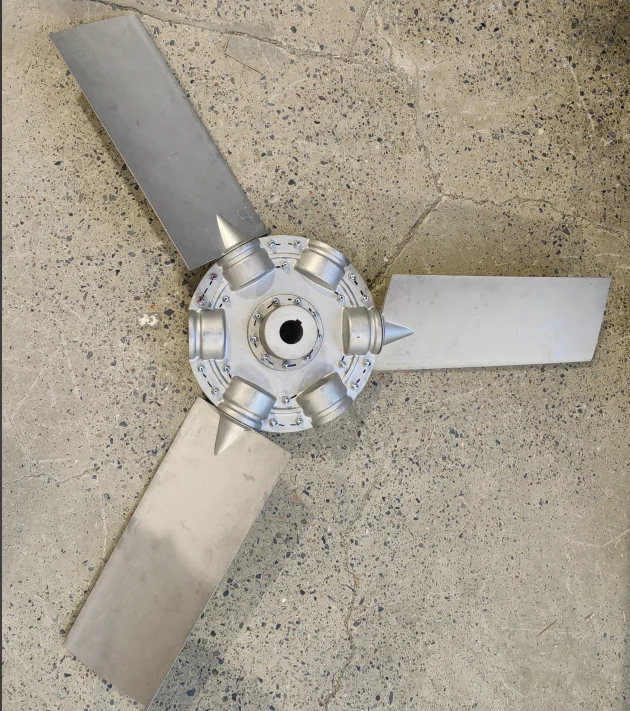

—Aluminum wheel hub (HP) made of special heavy die casting can be used for high temperature. Press

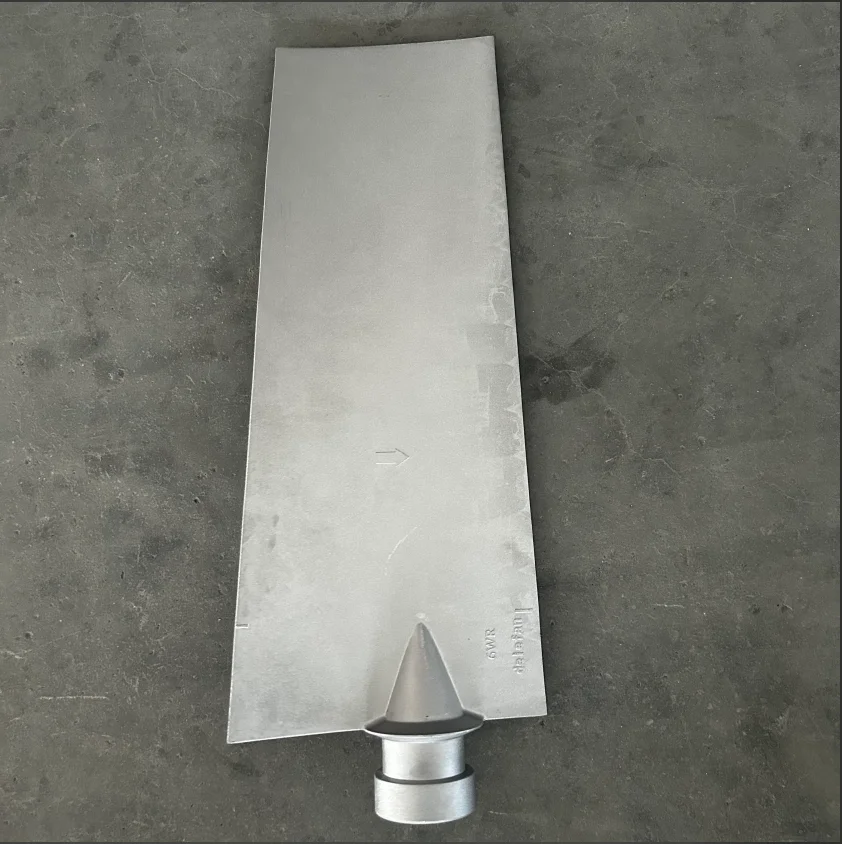

Blade Specs

Symbol	Material	Temperature range	Characteristic	Application
PA	Nylon6,Black	-40ºC-110ºC	Anti-aging	Standard load
PAG	Nylon6,Black and white	-40ºC-110ºC	Anti-aging	Heavy load
PAGST	Nylon6,Black	-40ºC-110ºC	Shock and impact	Strong vilbration occasion
PACAS	Nylon6,Blue-gray	-30ºC-100ºC	Conductivity Fire resistance	Explosive danger
ALU	Die-cast aluminum alloy	-60ºC-245ºC	Large temperature range	High temperature

Blade Number	d1	s	Fan diameter mm (Minimum-Maximum)
						1w	5w	6w	8w	9w	11w
3-5LP	200	8	905-911	–	1158	1226	–	–
6	274	15,4	968-985	1120	1232	1300	1785	1250
6HP	274	15,4	–	1120	1250	–	1600	1250
8	380	15,4	1065-1082	1226	1338	1406	1891	1356
8HP	380	15,4	–	1226	1356	–	1706	1356
10	470	17	1149-1165	1316	1428	1496	1981	1446
10HP	470	17	–	1316	1446	–	1796	1446
13	630	25	1298-1311	1476	1588	1656	2141	1606

Connection versions and specs

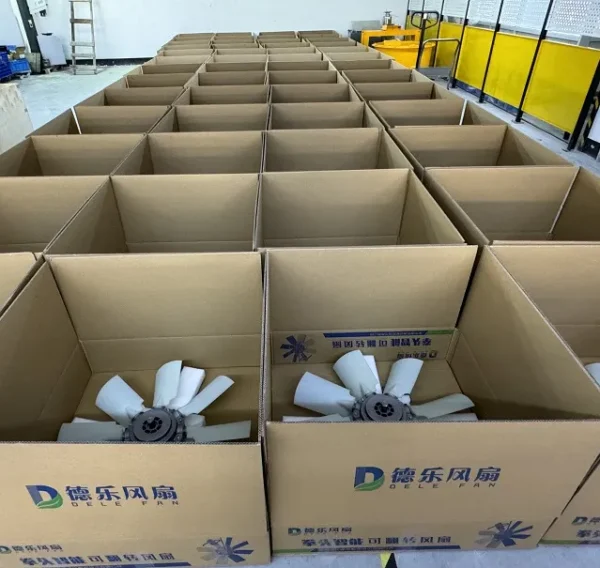

Packaging&Shipping

Company Introduction

Nanjing Colorfan Technology Co.,LTD is specialized in offering axial impellers, which are widely used in construction machinery, agriculture, forestry and plant protection, wind power, plant ventilation, air replacement, fire ventilation, air conditioning equipment, ceramic industry, refrigeration equipment, compressor, condenser, construction machinery, cooling device, dry cooling tower, motor, evaporative cooling tower, forklift, etc.

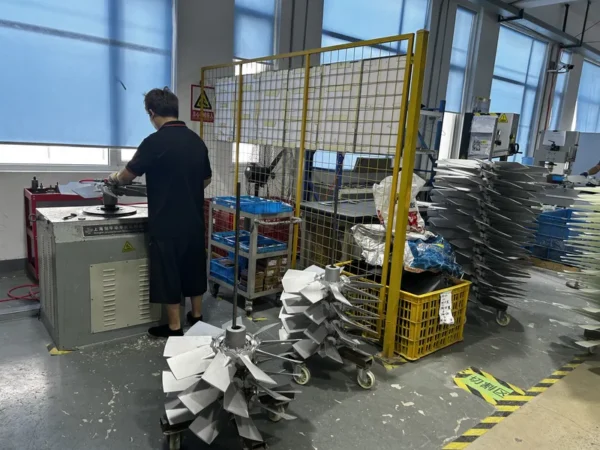

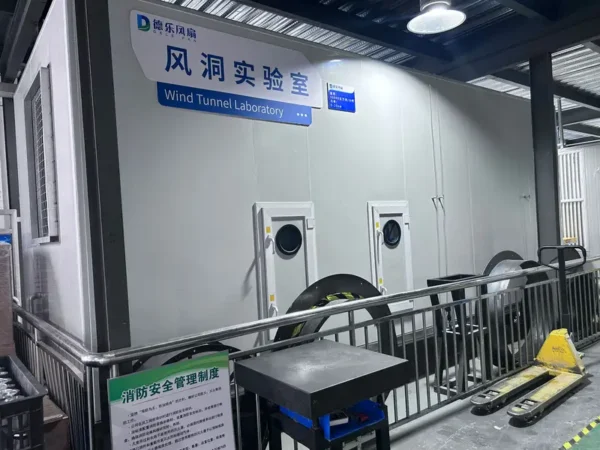

We have over 10 years experienced in producing axial impellers and could always offer the best quality and also the best after-sale services.Our factory has 60 people' team and four departments including fan manufacturing, mould processing, injection molding and wind tunnel test.According to the theory and technology of aerodynamics, the performance of the blade is designed and optimized scientifically. Through many tests, it is ensured that the products provided to all customers could meet their quality requirements.

FAQ

1.How about the dellivery time?

—No matter sample or bulk order, the delivery time would be around 15 days. If you need the customization of the shapeness or color on fan blades, delivery time would be longer accordingly.
2.Can I get a sample piece to test before ordering in a bulk?

—Of course, we support sample service after confirming the detailed blade model, flange and axle sizes and shape. The quality for bulk order would be exactly same as the sample ones.
3.Can you confirm your fan can be replaced on our machines?

—Yes, all fans can be replaced. We can machine the connection holes and bushings, to confirm the fan can be fitted. Besides, we will balance and match the angle to the power speed to ensure its safety.
4.Do you have a factory?

—Yes, our factory is located in Changzhou, JiangSu. We produce and export series of cooling fan, axiel fan, draught fan etc with high-end quality. Our factory has 60 people' team and four departments including fan manufacturing, mould processing, injection molding and wind tunnel test. Products range from fields of engineering machinery, engine, cooling machines, central air-conditioning, refrigeration equipment, screw air compressor, wind power equipment etc.

5.How's your production capacity per year？

—-Annually 300K pieces

6.How to order?

— First, contact our sales, show them the specification or image of what kind of fans you want. Second, our technics will check which model would be most suitable for you. Sales will quote you the detailed price. Third, if all good to you, we will make sample according to your request. Then deal with official order. Our sales will serve you quickly and must reply within 6 hours because of the time difference.

7.Information that customers need to offer.

—

a) Drive mode: motor/engine (offer drawing: power/pole number/rotate speed/axle pole); b) Connection mode: Flange/ Axle (taper bushing); c) Application: For example ventilation, heat ejection, fog gun, graziery; d) Do you want us to install the complete machine (including motor, wind canister etc); e) Your operation point (temperature, height, air volume, air pressure); f) Installation mode: clockwise or anticlockwide g) Blade diameter etc.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cooling tower?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.

Can the cooling tower be supplied for my local voltage?

The standard configuration is consult the merchant. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
