Key specification for this cooling tower: 380V~480V, power Depending on Models. Everything below is reproduced from the factory data sheet. Made by Wuxi Sanjiu Cooling Equipment Co., Ltd. (14 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Tower
- Power(W): Depending on Models
- Voltage: 380V~480V
- Material: Metal
- Warranty: 12 Months
- Warranty Of Core Components: 1 Year
- Certification: CE;ISO9001:2008
Technical Specifications
| Voltage | 380V~480V |
|---|---|
| Cooling Type | Cross Flow |
| Power(W) | Depending on Models |
| Material | Metal |
| Core Components | Motor |
| Machinery Test Report | Provided |
| Warranty | 12 Months |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly |
| Place Of Origin | Jiangsu, China |
| Brand Name | SANJIU |
| Dimension(L*W*H) | Depending on Models |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Application | Cooling Tower |
| Product Name | cooling tower fan |
| Certification | CE;ISO9001:2008 |
| Marketing Type | Ordinary Product |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Energy & Mining |
| Showroom Location | None |
| Warranty Of Core Components | 1 Year |
| Condition | New |
| Weight | 500 |
| Selling Units | Single item |
| Single Package Size | 20X20X20 cm |
| Single Gross Weight | 50.0 kg |
Product Details
The tower enclosure is made in special alloy (Mg-Al-Zn) coated steel panels, originally imported from Nippon Steel or Posco. These panels exhibit superior corrosion resistance, and self-heal when scratched during the service period. The panels are bolted and sealed for water tightness. The casing is complete with maintenance access doors for internal inspection convenience.
DRIFT ELIMINATORS
The Drift Eliminator is vacuum formed from PVC sheets into a special shape allowing minimum water carry-over, with negligible pressure drop. The eliminator is formed by sections that can be easily handled.

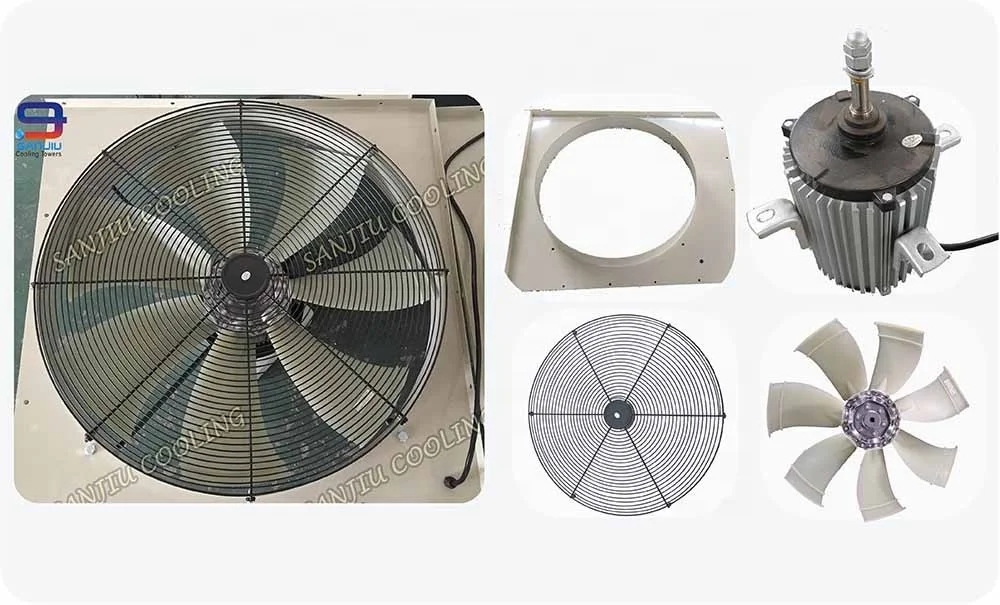

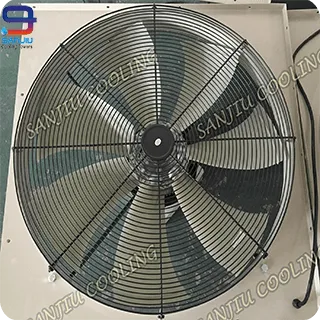

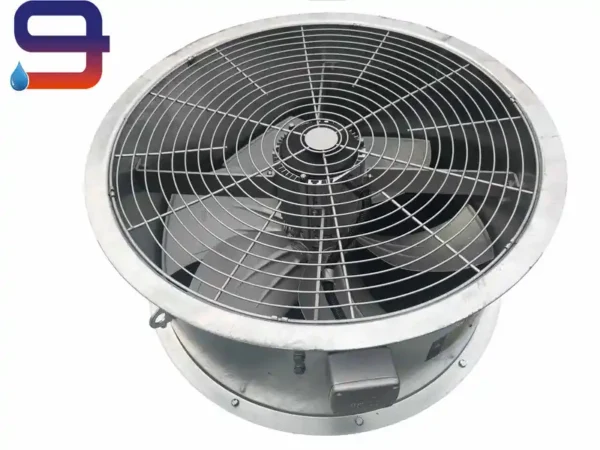

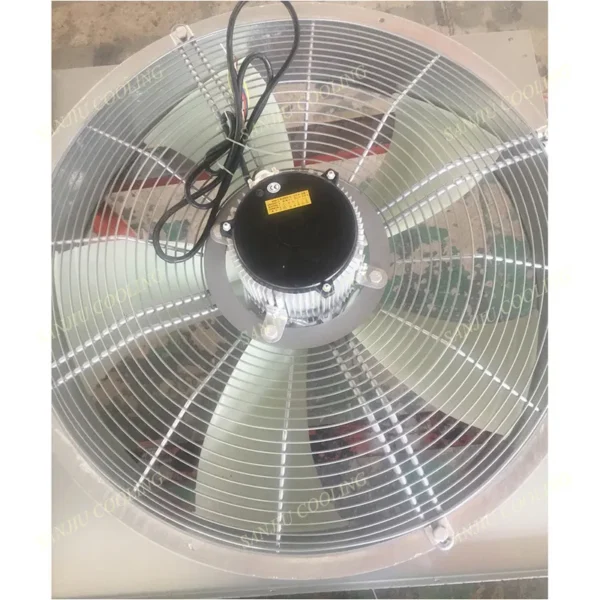

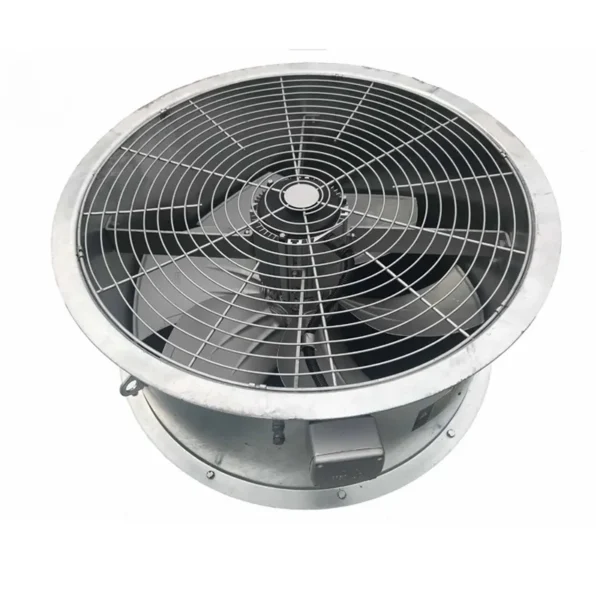

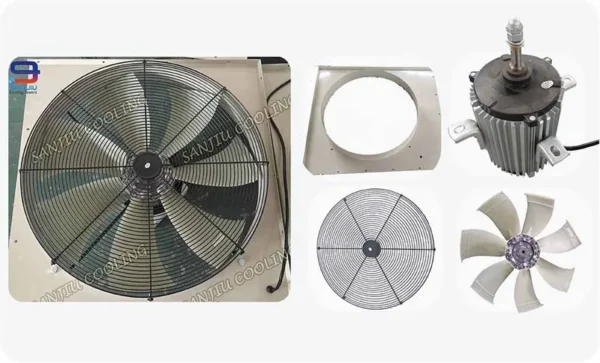

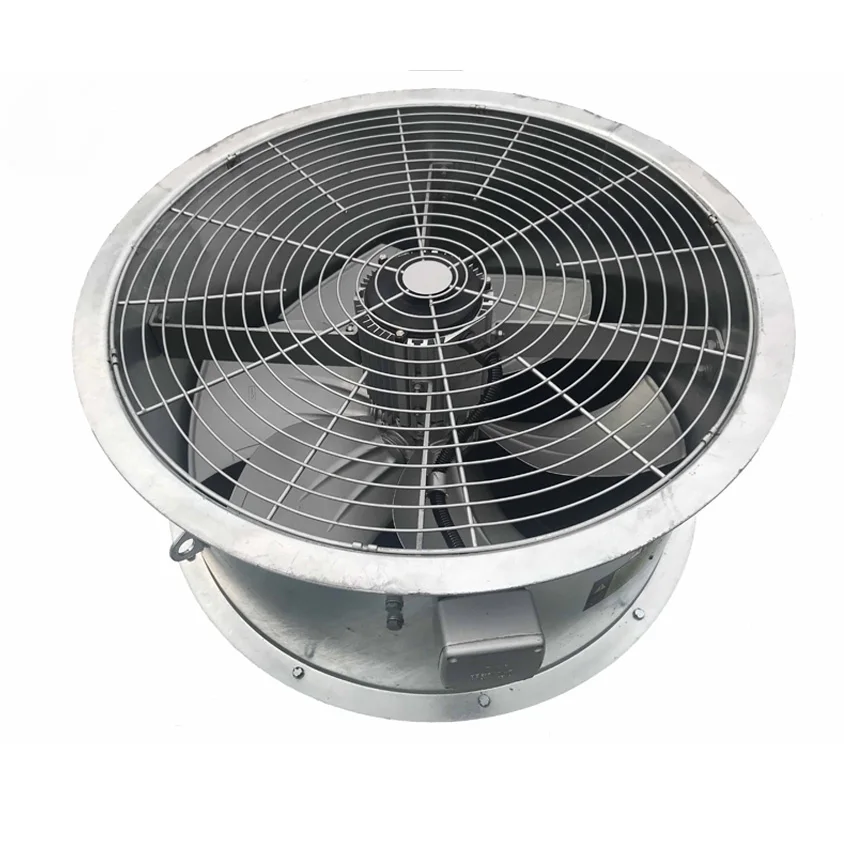

AXIAL FAN SECTION
The axial fans have light weight al-alloy blades perfectly balanced and coupled to a weather proof electric motor. The fan casing is a steel cylinder to draw the air vertically and avoid the risk of recirculation. The tip speed of the impeller is limited to keep the noise level within acceptable limits.
WET DECK FILL
The fill is formed inflame-retardant PVC sheets with a shape specially designed to optimise the turbulence of the counter current fluids. For medium fouled waters we can supply a fill with enlarged grids. All the raw materials are of virgin grade from approved suppliers.
WATER DISTRIBUTIONSYSTEM
The main header(s) – one to three depending on the model – is fabricated in steel and hot dip galvanized. Secondary headers are made in PVC and use non-clogging spray nozzles in special rubber compound or in resin, depending on the model.
WATER BASIN
Water basin is constructed in the same alloy coated steel, for the collection of cooled water, complete with:
– water outlet with an easily accessible filter,
– drain and overflow connections,
– make up water connection complete with float valve,
– air inlet and wind protective grids in PP honeycomb, with low pressure drop.
– bleed off pipe with regulating valve to prevent salt concentration in water.
FINISH
The standard cooling tower is delivered in alloy coated steel finish without any additional painting, unless other color is
ordered as an optional item.
Application: | (Explanations: Where the cooling towers will be used for? e.g. for HAVC system, Air Compressors, Melting Furnaces, etc.) | |||
* Water Flow Rate: | m³/h | (Explanations: How many Tons of water required per hour?) | ||
* Inlet Water Temp.: | °C | (Explanations: Temperature of hot water to be cooled) | (also descriped as "water temperature drop") | |
* Outlet Water Temp.: | °C | (Explanations: Temperature of cooled water, usually it shall be at least 3~4 °C higher than the wet-bulb temp.) | ||
* Ambient Temp.: | °C | (Explanations: Highest wet ambient temp. of the location/area or city to install the tower is essential to know to evaluate the size of towers) | ||
* Power Supply: | (Explanations: 380V/3 Phases is standard, which we could have in stock, but for customized towers, the delivery time could be longer) | |||
Many thanks for your interests, and your inquires are always well attended!
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5+ set: US $450 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12 Months warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cooling tower carry?
It is supplied with CE;ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380V~480V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi Sanjiu Cooling Equipment Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Wuxi Sanjiu Cooling Equipment Co., Ltd. range on HVACR Nexus.
