This dc brushless motors is published with the manufacturer’s full specification — voltage 100/110/220/240V, power range 30 / 50 W. Made by Foshan Brespalin Co., Ltd (10 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Dc Brushless Motors
- Model Number: GZM24V30W
- Power Range: 30 / 50 W
- Voltage: 100/110/220/240V
- Place Of Origin: Guangdong, China
- Type: Fan Parts
- Single Gross Weight: 0.0 kg
Technical Specifications
| Type | Fan Parts |
|---|---|
| Place Of Origin | Guangdong, China |
| Brand Name | BRESPALIN / OEM |
| Model Number | GZM24V30W |

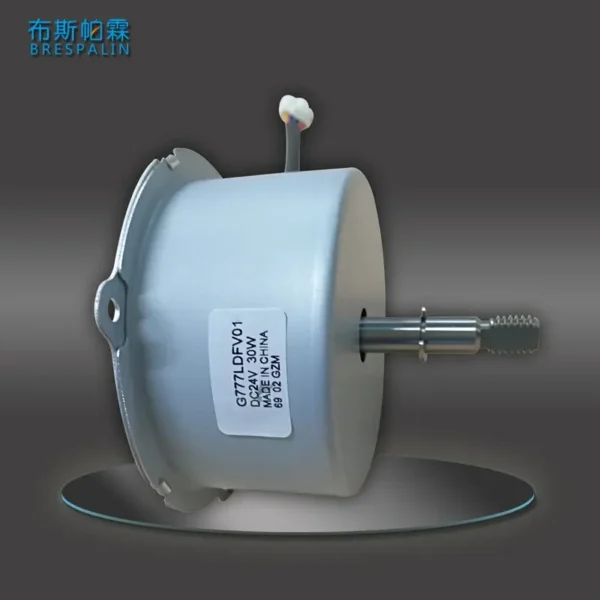

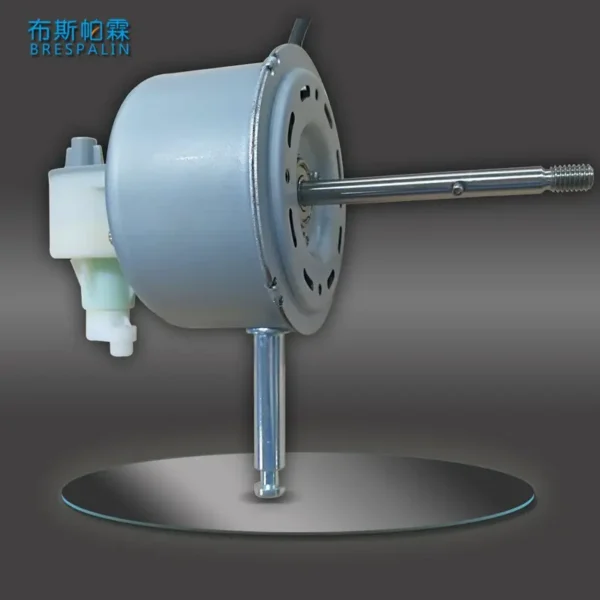

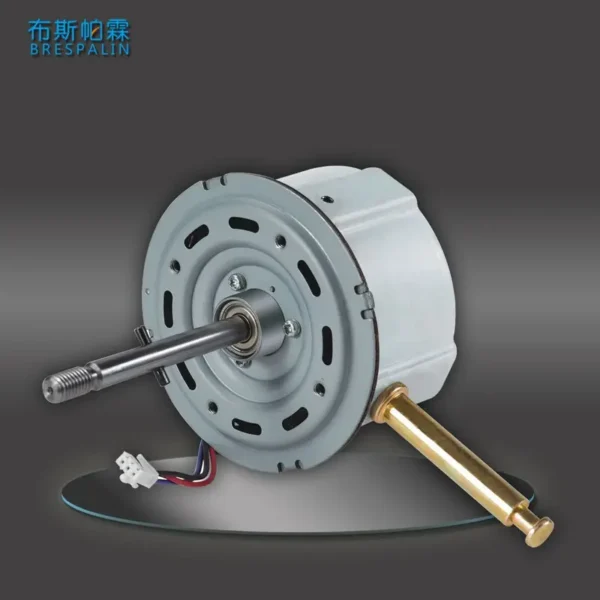

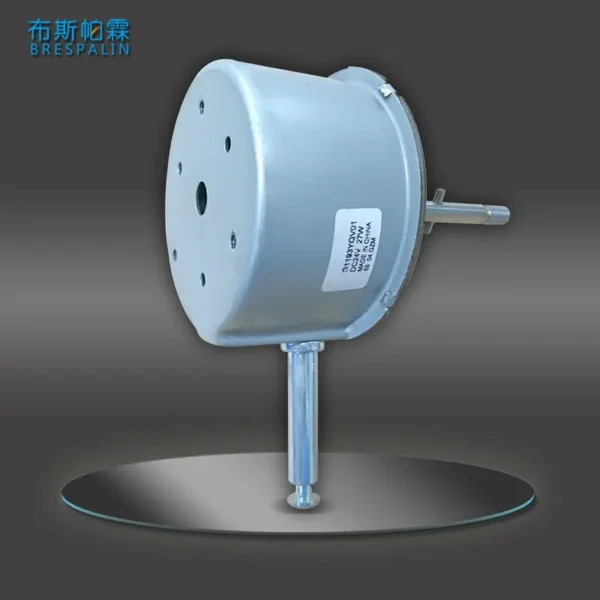

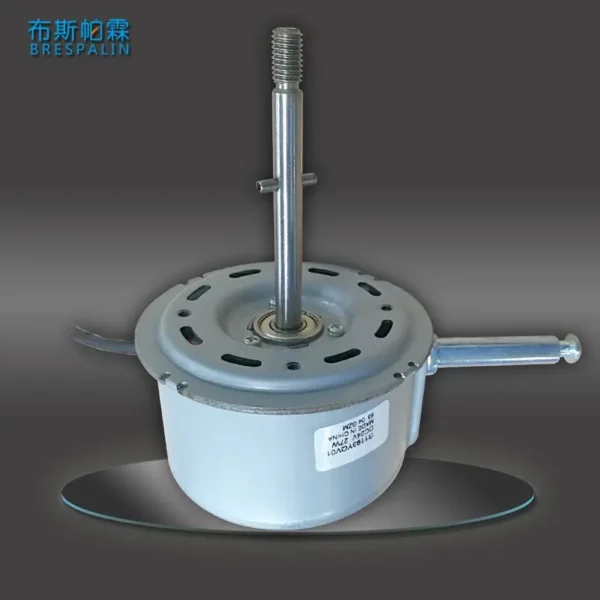

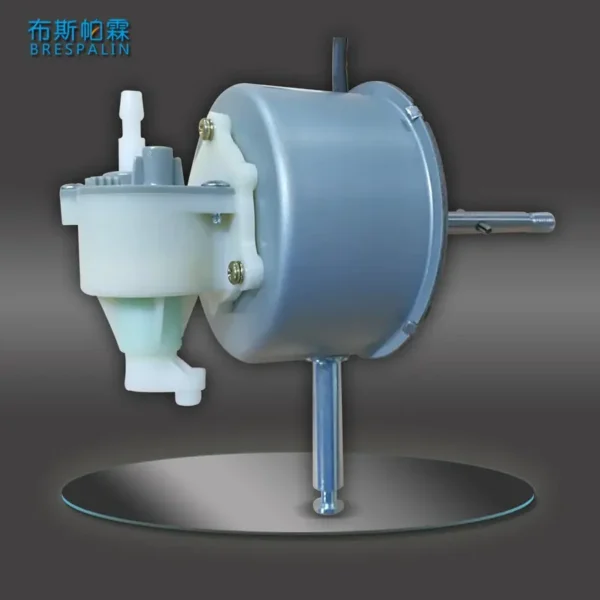

| Product Name | 24V BLDC Motor 50W for Family Tower Fan |
| Power Range | 30 / 50 W |
| Voltage | 100/110/220/240V |
| Frequency | 50/60 Hz |
| Drive Mode | PWM (15.6KHz) |
| No-Load Rotation | 2500RPM |
| Rated Rotation | 1300RPM |
| Rated Current | 1.25 / 2.08 A |
| Rated Torque | 154.2 / 257.2 mN.m |
| Noise | ≤35 / 40 dB |
| Packaging Details | Carton |
| Port Of Dispatch | Foshan |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 2000 pieces per Day |
Product Details
**This Motor is customized. Please contact us to get information for your own specifications. Thank you!**
Customized Motor, we give you a solution for all kinds Household Electric Appliances.
Applications:
♦ Cooling Fan
♦ Home use Tower Fan
♦ Air Purifier
♦ Air Humidifier
♦ Range Hood
♦ Water Booster Pump
♦ Fresh Air Ventilation System
♦ Inline Duct Fan
♦ Robot
Features:
♦ High Efficient, higher than 80%
♦ Ultra low vibration, under 120 µm
♦ Super quiet, under 45dB
♦ Stepless speed adjustment, simple driving
♦ Small starting current and big torque
♦ Safe operation, protection for locked-rotor, overspeed, overcurrent, overtemperature, and so on.
♦ Long life for over 10 years
Outline Dimensional Drawing
Specifications
| Product Name | 24V Brushless DC Motor 50W for Floor Fan | ||||
| Power Range | 30 / 50 W | Voltage | 100/110/220/240V | Frequency | 50/60 Hz |
| Drive Mode | PWM (15.6KHz) | No-load Rotation | 2500RPM | Rated Rotation | 1300RPM |
| Rated Current | 1.25 / 2.08 A | Rated Torque | 154.2 / 257.2 mN.m | Noise | ≤35 / 40 dB |
Quality control that you can feel only from the photos.
We control every step of your order to make sure the goods arrive your side with good situation on time without any worry.
Strict testing for new products, OEM/ODM products, or customized products.
Our own molding factory (90T-1600T) provide us best cost, delivery time, quality for our Air Purifier, Anion generator, UV sterilizer, Fresh Air System, Exhaust Fan, Bathroom Fan, Heat Recovery Ventilator, Inline Duct Fan and so on.
Our own motor production line (two different department separated for different usage of motor.) provide us best cost, delivery time, quality for our own products.
Strictly required 5S workshop, regular staff training, in-process and final inspection, make sure every tiny mistake is stopped before delivery.
Specialized staff gives you an eye on your products. From our detailed loading report, you will know how are the products loaded. What you see will be what you received.
Ordering and Pricing
- Minimum order quantity: 500 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this dc brushless motors?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the dc brushless motors be supplied for my local voltage?
The standard configuration is 100/110/220/240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Brespalin Co., Ltd, based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Brespalin Co., Ltd range on HVACR Nexus.
