Key specification for this desiccant wheel core motor: air flow 1000~20000CMH (customized cap.), type Air Handling Unit. Everything below is reproduced from the factory data sheet. Made by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. (10 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Desiccant Wheel Core Motor
- Cooling Capacity: 10~120kW (customized cap.)
- Humidifying Capacity: 4~30Kg/h
- Air Flow: 1000~20000CMH (customized cap.)
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Laboratory, Cleanroom, Hospital, Office
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Floor Standing |
| Compressor Brand | as requested |
| Fan Motors Type | EC |
| Key Selling Points | Energy Saving |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 800 |
| Brand Name | Telewin |
| Dimension(L*W*H) | 2020*2020*2200mm |
| Application | Laboratory, Cleanroom, Hospital, Office |
| Function | Cooling, Heating, Humidifying, Filtration, Ventilation |
| Air Flow | 1000~20000CMH (customized cap.) |
| Cooling Capacity | 10~120kW (customized cap.) |
| Humidifying Capacity | 4~30Kg/h |
| Filtration | G4~H13 filter, Gas phase filter and Zeolite filter |
| Refrigerating System | DX/ Chilled water |
| Fan Type | EC fan/ Centrifugal fan |
| Cabinet | Thermal insulation double skin panel 25/50mm |
| Certificate | ISO9001:2008 |
| Selling Units | Single item |
| Single Package Size | 500X220X150 cm |
| Single Gross Weight | 800.0 kg |
Product Details

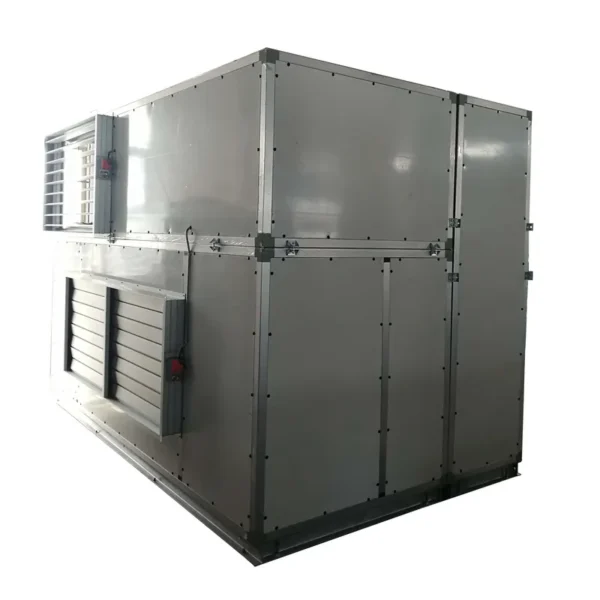

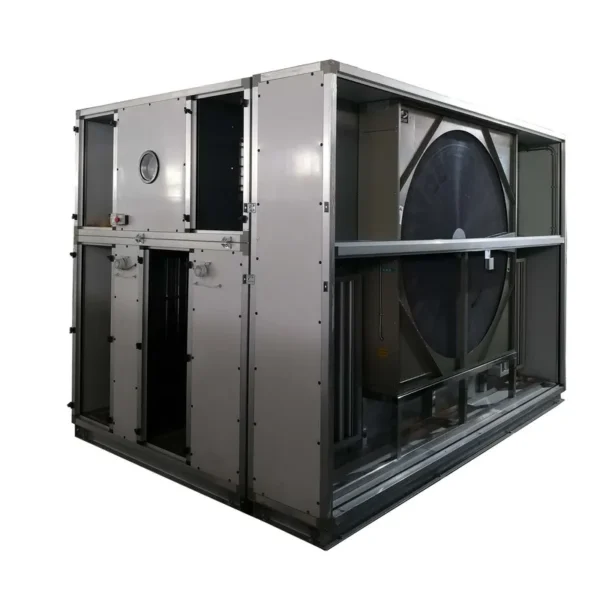

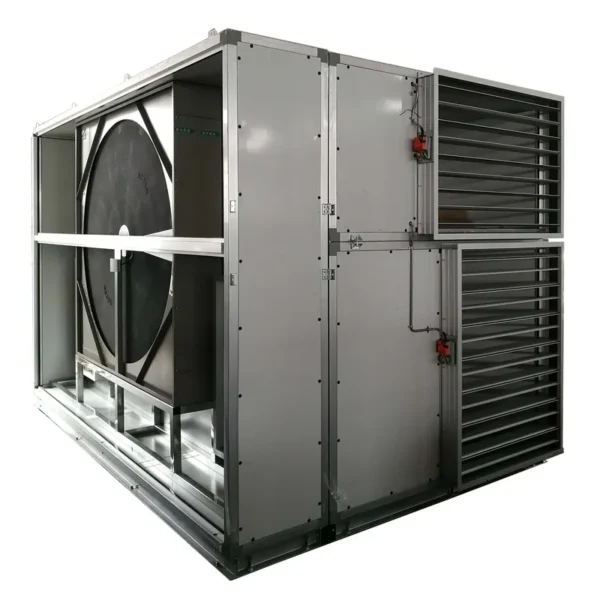

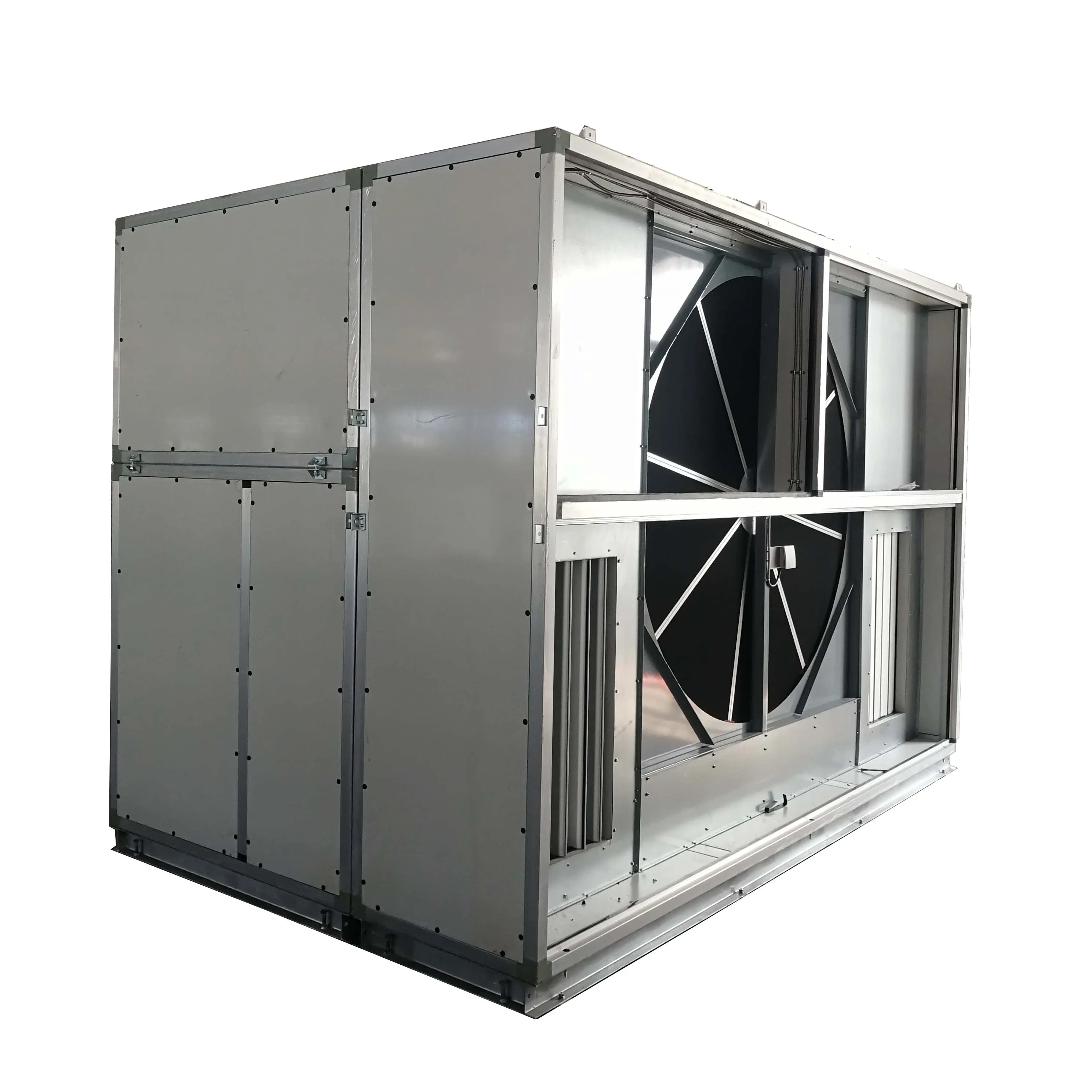

100% fresh air dehumidifying ahu Industrial central air conditioning system with full heat recovery wheel and desiccant wheel
Main Features
Accurate humidity control.
Heat recovery wheel recycles energy from exhaust air.

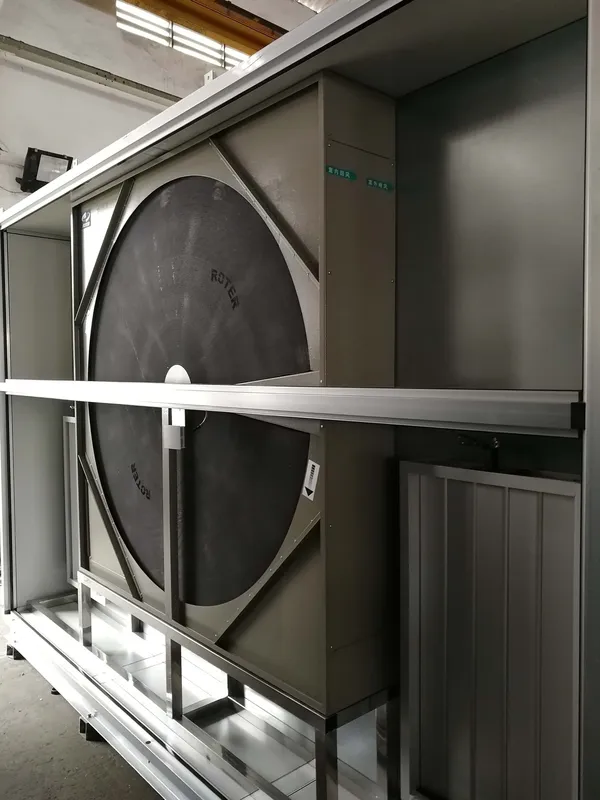

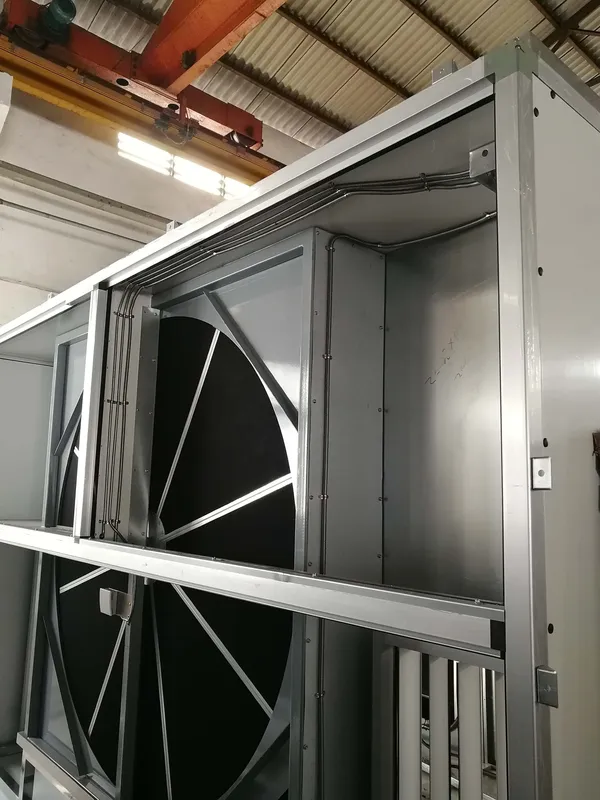

Desiccant wheel runs on low temperature heating for reactivation.
Pre-cooling helps deeply dehumidify the air and ease burden on desiccant wheel.
Post-cooling runs on high temperature chilled water.
Casing panel(double-skinned) | Deep cooling coil | Fan & motor selection |
Color steel | pre-cooling (dx) | Belt-driven centrifugal fan |
powder coated GI | cooling (chilled water) | plug fan |
stainless steel | post-cooling (chilled water) | EC fan (with motor) |
Frame
• Penta-post extra heavy gauge aluminium profiles and strong fiber-reinforced PE corner connection forming the structural frame
• superior mechanical strength and rigidity to the unit frame and to prevent any buckling or deformation
• Thermal bridge free design, the profiles filled with polyurethane foam for insulation
• Anodizing surface treatment for profiles, corrosion-resistant
• Stainless steel frame available
Panel and Insulation
• Double skin construction is provided by sandwich type panels comprising inner and outer painted steel skins and polyurethane foam with minimum 48kg/m3 density, providing a good thermal and acoustical performance
• The gasket liner between the panels and frame ensures the air leakage rate to comply with GB/T 14294 clean air conditioning requirement
• The factory painted steel sheet covered with 6 insulation coatings, complies to 500h salt spray testing, showing an excellent corrosion protection performance

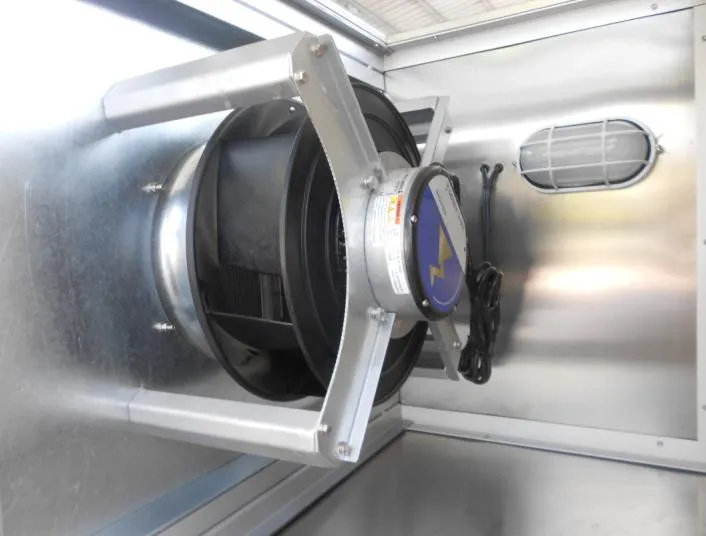

Famous Brand Blower and Motor
• ZIEHL-ABEGG brushless DC motor
• Built-in intelligent control modular
• Energy saving & High efficiency
• Less vibration & Low noise
• Maintanence-free & Long service life
High Efficiency Cooling and Heating Coil
• All coils calculation and selection is done by selection software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 2.76MPa pressure underwater 24 hours
• Various corrosion resistance coils for option:
-Cooper tube with cooper fins coil
-Epoxy coated fins coil
-Electrophoresis fins coil
-Heresite coated coil
Stainless Steel Drain Pan
• Slope type design, no drain water and keep the pan dry
• Avoid the micro-organisms growth inside the drain pan
• SS201, SS304, SS316 for option upon application
• Antimicrobial drain pan available
-SteriTouch technology Drip Pan Coating
-Antimicrobial surface
-Good corrosion resistance
-Good chemical resistance
-Excellent adhesion
-Non-toxic
High Efficiency Special Filter
• Self-developed multi sections filter improves indoor air quality
• High efficiency, low air resistance and stable
• Gas Phase Filter to adsorb mositure and VOCs
• Zeolite Filter to adsorb mositure, filter toxins, remove odors
• Various sizes available
Electrode Humidifier
• Cylinder monitor system ensures more efficiency, better energy saving and stable result
• Drainage pump ensures the humidifying process accurate and stable
• Clog protection system ensures to avoid water overflow
• Water temperature control system makes sure the drainage pipe won't be damaged by hot water
• Anti-electric leakage system makes operation and maintenance safe and secure
Telewin AHUs sell well both in domestic market and oversea markets
• Stable and timely supply guaranteed
• Carton box and wooden case packing available
• Customized packing acceptable
Solutions
Telewin offers One Stop Solutions for
•Pharmaceuticals industry
•Electronics industry
•Automobile industry
•Printing and food industry
•Commercial building
•VOC treatment and environment protection
•Indoor air quality
•Marine ventilation
Services
•Consultancy
•System Design
•Technical support
•Customized manufacturing
•General testing before delivery
•Spare parts supply according to order quantity
•Long warranty period
•OEM service available
Welcome co-operation of energy saving products development
1.Are you a factory?
— Yes, we are a professional AHU manufacturer for more than 20 years.
2.How do you check the goods?
— We inspect all the materials when they arrive, and have spot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
—The parameters above is just for your reference. We need you to provide us the air flow, ESP or TSP, cooling capacity, heating capacity or application for our team to design the suitable unit for you.
4.How and when can I get the quotation?
— Send us the inquiry or leave us message. We will get back to you within 1 hour during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
— Usually we accept T/T or LC. 30% deposit. Other payment terms can be discussed when orders confirmed.
6.Where is your factory Located? How can I visit there?
— We located in Foshan, Guangdong Province, which is near Guangzhou Baiyun International Airport and Guangzhou South Railway Station. We can pick you up from the airport or railway station. You are warmly welcome to visit us!
7.Do you provide OEM service?
— Yes! We provide OEM and ODM service.
8.What's the lead time for your goods?
— Normally 25 workdays. For urgent orders, we can make special arrangement to fulfill your request.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $2000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this desiccant wheel core motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this desiccant wheel core motor carry?
It is supplied with ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. range on HVACR Nexus.
