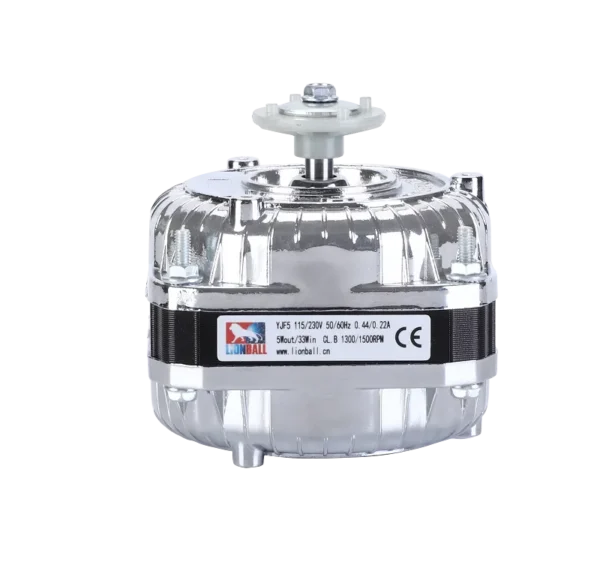

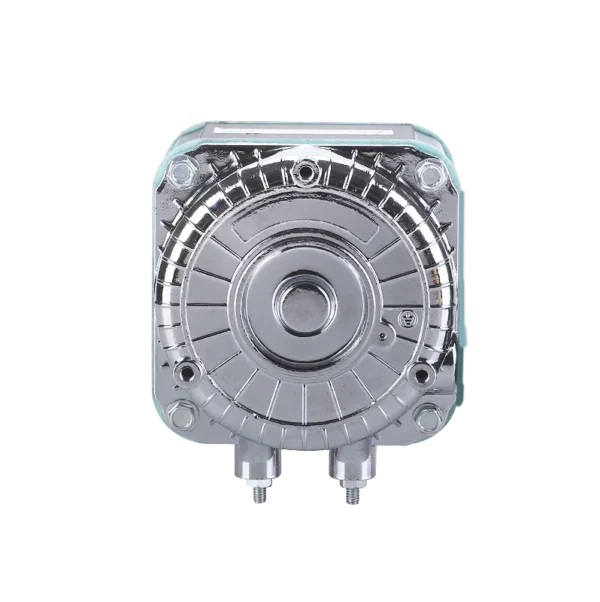

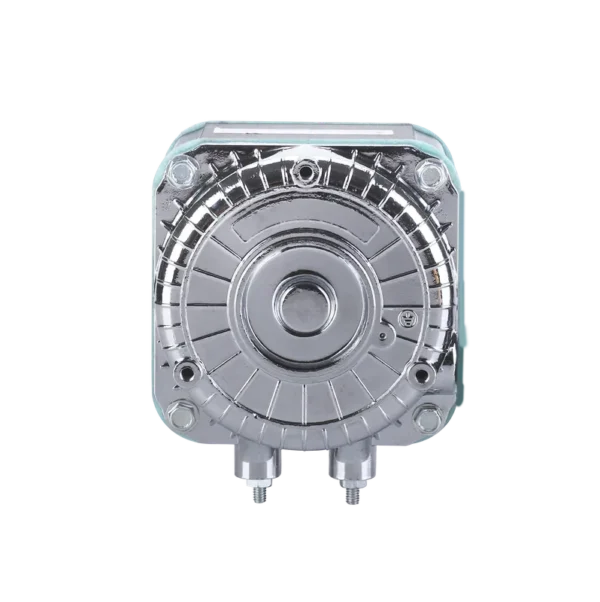

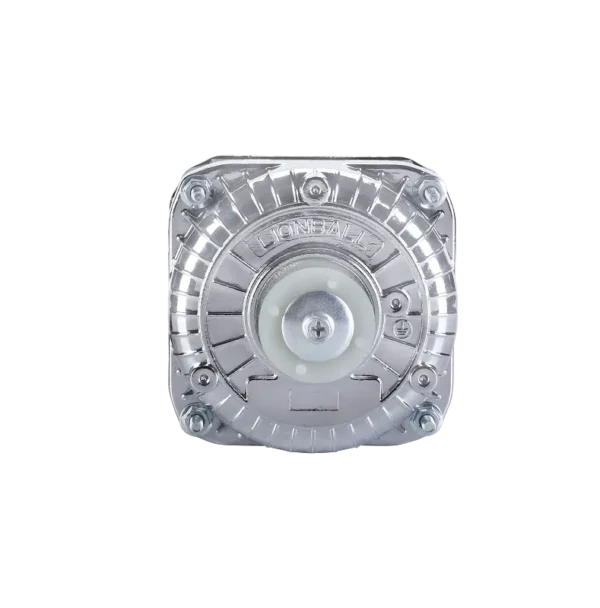

Key specification for this ec motors: rated voltage 100-240V, type Micro Motor. Everything below is reproduced from the factory data sheet. Made by Ningbo Lionball Ventilator Co., Ltd. (22 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Ec Motors
- Model Number: ECQ08A110
- Rated Power: 10
- Rated Voltage: 100-240V
- Voltage: 115V,220/240V
- Speed Rpm: 1500 RPM
- Speed(RPM): 1450
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Voltage | 100-240V |
| Rated Power | 10 |
| Speed Rpm | 1500 RPM |
| Speed(RPM) | 1450 |
| Efficiency | IE 2 |
| Type | Micro Motor |
| Construction | Permanent Magnet |
| Frame | NO |
| Motor Mounting Type | Foot Mount |
| Protect Feature | Drip-proof |
| Usage | Boat, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, commercial |
| Warranty | 1 year |
| Continuous Current(A) | 1.5A |
| Model Number | ECQ08A110 |
| Place Of Origin | Zhejiang, China |
| Brand Name | LIONBALL |
| Model | EC08 |
| Foot Mounting | 26mm |
| Type Of Protection | IP54 |
| Insulation Class | B |
| Mode Of Operation | S1 contibuous operation |
| Bearings | ball bearings |
| Motor Protection | via electronic |
| Voltage | 115V,220/240V |
| Frequency | 50/60Hz |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
At LIONBALL, Our factory owns a group of high quality and high-tech professional designers and staff members.
NEW! Factory supply wheelchair motor of by superior products with preferential prices
WHY CHOOSE US?
1.Factory
2.Leading professional manufacturer of wheelchair motor.
3.Our factory owns a group of high quality and high-tech professional designers and staff members.
Our major products are as below:
Motor and fan products (Shaded pole motor,Axial fan with external rotor motor,Unit bearing motor,EC energy saving motor,Centrifugal fan,Duct fan) (All for export)
CLICK HERE,BACK TO HOMEPAGE,YOU WILL GET MORE INFORMATION OF US!
PRODUCT CATEGORIES
Axial Fan With External Rotor Motor
Shaded Pole Motor
ECM Energy Saving Motor
Unit Bearing Motor
Centrifugal Fan
Circular Duct Fan
Cross Flow Fan(Tangential fan)
external rotor motor
Capacitor Motor
Our competitive Advantages of wheelchair motor
A) Cost advantage
We have our own workshop, metalprocess workshop and many other advanced machines. Key production parts are manufactured by ourselves.
B) Technological advantage
Our R&D center is provincial R&D Center. There are 4 Professor grade engineers and 6 senior engineers in our company.
C) Substantial experience and good service
We professionally produce motors and fans for more than 33 years. And we have done international trade for more than 10 years. So we can supply high quality products and services.
D) High cost performance
We have cost advantage, technological advantage and substantial experience. So our products have high cost performance. You can take the same cost purchase more better goods, or spend less for the same product.
Welcome to the world of motors and fans (Ningbo Lionball Ventilator Co., Ltd)
A)Have a glance at our Manufacturing facility of wheelchair motor
We have our own high speed punching machine, digital control machine, grinding macine, automatic coil winding machine, injection machine,and many other advanced equipments. Key production parts are manufactured by ourselves.
For more information, welcome to visit our company at any time.
General Parameter
| index | type | parameter | unit | remark |
| Parameter of electric | ||||
| 1 | Input voltage | AC200-240 AC90-125 DC24 | V | 50/60HZ |
| 2 | Output power | 8-28 | W |
|
| 3 | Temperature of the thermal protection | 150 | ℃ | Unrecoverable |
| 4 | Over current value | 1.5 | A | Continuous 60s |
| 5 | Speed | 1300 1500 1800 double speed Variable speed | Rpm |
|
| 6 | Work temperature | -40—+55 | ℃ |
|
| 7 | Direction | CW/CCW |
|
|
| 8 | Lock rotor re-start time | 5 | Seconds |
|
| Parameter of machinery | ||||
| 9 | Fan blade | 154–300 | Mm |
|
| 10 | Housing of motor | aluminum |
|
|
Parameter of function
| Index | type | Voltage(V) | Frequency(Hz) | Speed(rpm) | Input output(w) | Mass(Kg) |
| 1 | ECQ08A230 | 198-242 | 50/60 | 1300/1550 | 8/5 | 0.5 |
| 2 | ECQ08A110 | 90-125 | 50/60 | 1300/1550 | 8/5 | 0.5 |
| 3 | ECQ12A230 | 198-242 | 50/60 | 1300/1550 | 22/15 | 0.6 |
| 4 | ECQ12A110 | 90-125 | 50/60 | 1300/1550 | 22/15 | 0.6 |
| 5 | ECQ20A230 | 198-242 | 50/60 | 1300/1550 | 30/20 | 0.7 |
| 6 | ECQ20A110 | 90-125 | 50/60 | 1300/1550 | 30/20 | 0.7 |
We have our own workshop, metal processing workshop and many other advanced machines. Key production parts are manufactured by us.
Our R&D center is provincial R&D Center. There are 4 Professor engineers and 6 senior engineers in our company.
We professionally produce motors and fans for more than 33 years. And we have done international trade for more than 10 years. So we can supply high quality products and services.
We have cost advantage, technological advantage and substantial experience. So our products have high cost performance. You can take the same cost purchase more better goods, or spend less for the same product.
We have gotten VDE approval in Germany, UL approval in American, CE and ROHS approval in European, CCC safety certificate in China and ISO 9001:2008 certificate.As a promising company that has long history, our company has established well relationship with many renowned manufacturers and distributors. We expect to cooperate with more enterprise and believe that our high quality products and good service well bring win-win benefit between us.
Q:Why choose LIONBALL?
A: LIONBALL is a leading manufacturer of fan motors in China since 1980. LIONBALL’s factory occupied area of 26000 square meters and there are about 300 employees in the manufacturer. Main of the fan motors are UL, VDE, CE, ROHS, CCC, SASO, BV approval. LIONBALL is a qualified supplier for EMERSON, CARRIER and ELECTROLUX. As a 35 years history company, LIONBALL has a dream to be a century-old enterprise and constantly devoted to achieve.
Q:Are you a manufacture factory?
A: Yes, we are the leading manufacturer of fan motors in China since 1980.Our factory occupied area of 26000 square meters, located in Ningbo yinzhou district. We have more than 300 employees. Welcome to visit us!
Q: What about our company’s advantage?
A:
1. Technological advantage Our R&D center is provincial R&D Center. There are 12 engineers in our technological team, one is Germany engineer.
2. Quality advantage We have our own workshop, metal processing workshop and many other advanced machines. Key production parts are manufactured by us. We keep the Quality Control on every piece and control all the quality of raw material.
3. Substantial experience and good service We professionally produce motors and fans for more than 33 years. And we have done international trade for more than 10 years. So we can supply high quality products and services. Our main customers are EMERSON, CARRIER and ELECTROULUX.
Q: Which product certification do you have?
A: Our products are approved VDE certificate, UL certificate, CE certificate, ROHS certificate, CCC certificate, SASO certification and BV certification.
Q: How about our company’s quality control system?
We have gotten ISO9001:2008 certificate (SGS).
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–1999 piece: US $8 / piece
- 2000+ piece: US $7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ec motors?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the ec motors be supplied for my local voltage?
The standard configuration is 100-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Lionball Ventilator Co., Ltd., based in China. The company 22 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Ningbo Lionball Ventilator Co., Ltd. range on HVACR Nexus.
