Key specification for this ec motors: rated voltage Dc 24V, type Brushless Motor. Everything below is reproduced from the factory data sheet. Made by Ningbo Shenghe Zhilian Electric Motor Co., Ltd. (2 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Ec Motors
- Model Number: 60
- Rated Power: 200 W
- Rated Voltage: Dc 24V
- Speed Rpm: 3 000 RPM
- Speed(RPM): 3000r/min
- Warranty: 1 Year
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Voltage | Dc 24V |
| Rated Power | 200 W |
| Speed Rpm | 3 000 RPM |
| Speed(RPM) | 3000r/min |
| Efficiency | IE 2 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Frame | 60 mm(2.36in) |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Other |
| Usage | Boat, Car, Electric Bicycle, Home Appliance, Fan, Cosmetic Instrument, Smart Home |
| Warranty | 1 Year |
| Continuous Current(A) | 1-3.7 A |
| Model Number | 60 |
| Torque | Up to 120+N.m |
| Place Of Origin | Zhejiang, China |
| Brand Name | NBSHZL |
| Selling Units | Single item |
| Single Package Size | 25X15X15 cm |
| Single Gross Weight | 4.0 kg |
Product Details
| item | value |
| Speed(RPM) | 3000r/min |
| Continuous Current(A) | 1-3.7 A |
| Efficiency | IE 2 |
| Warranty | 1 Year |
| Place of Origin | China |
| – | Zhejiang |
| Brand Name | SHZL |
| Use | Other |
| Type | Brushless Motor |
| Torque | Up to 120+N.m |
| Construction | Permanent Magnet |
| Commutation | Brushless |
| Protect Feature | Other |

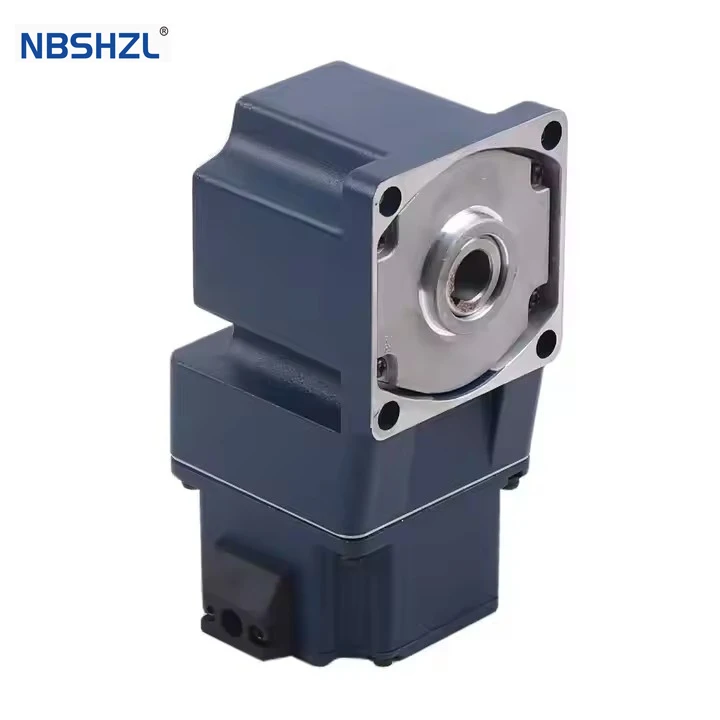

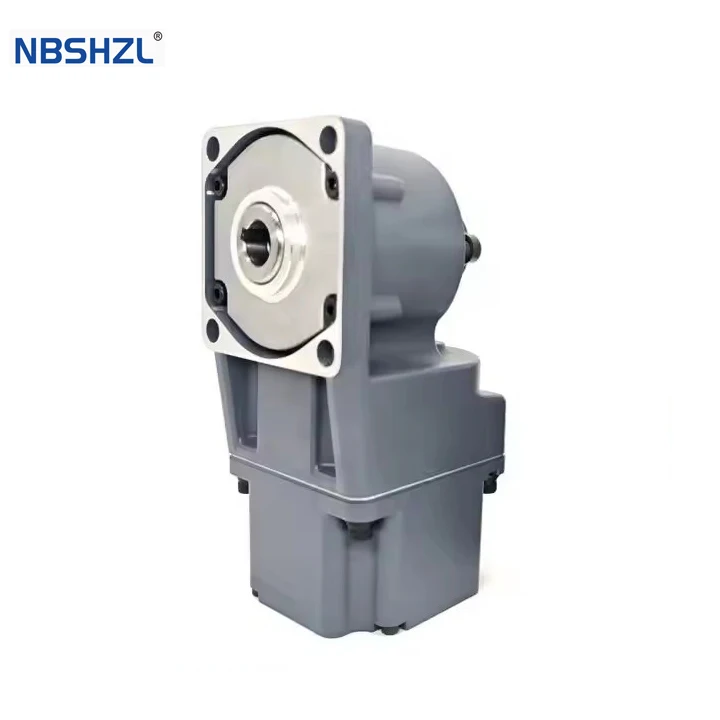

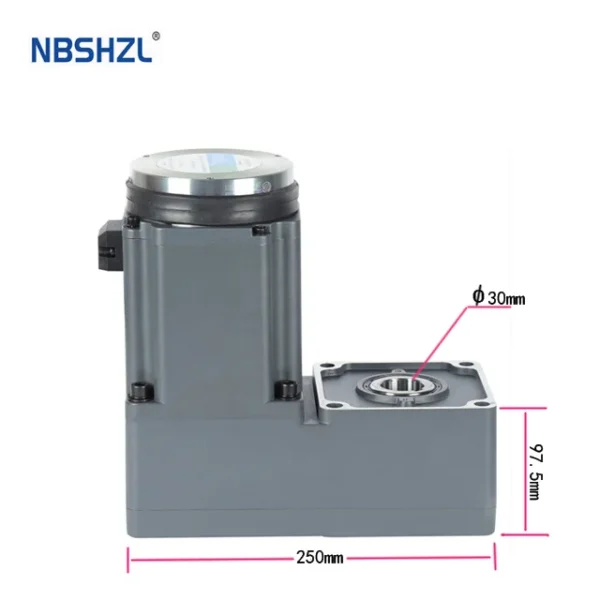

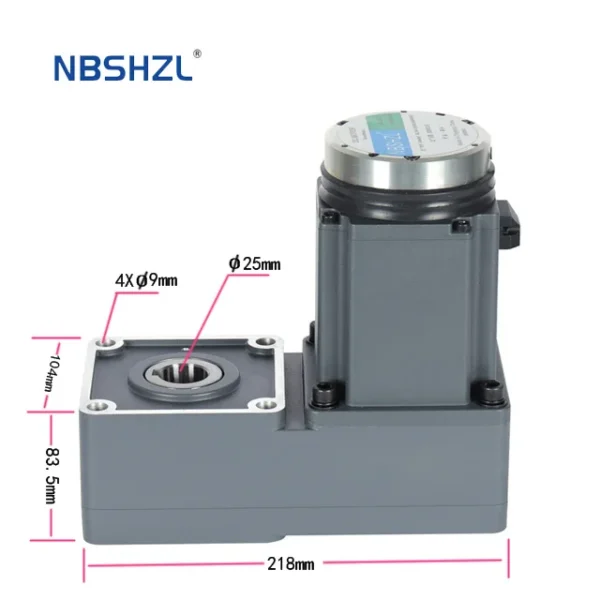

1.The ZD Motor 60-104mm BLDC Brushless DC Geared Motor is a high torque, right angle motor that offers excellent performance in a compact and efficient design.
2.With a wide range of rated voltage options (24v, 48v, and 110v/220v), the motor can be easily adapted to meet specific power requirements.
3.The rated power range is extensive, from 15W to a maximum of 400W, providing ample power for various applications.
4.The motor is built to last, with a CE certified and RoHS compliant construction that guarantees quality and safety.
5.With a wide gear ratio range of 3-200K, the motor can be easily adjusted to meet specific speed requirements, making it suitable for a wide range of applications.
6. The motor is Brushless DC (BLDC) and Permanent Magnet, offering low noise and energy efficiency.
7. The motor is support UL certification as well.
8. It has continuous current of 1-3.7A and max torque up to 120N.m.
9. One-year warranty service provided.

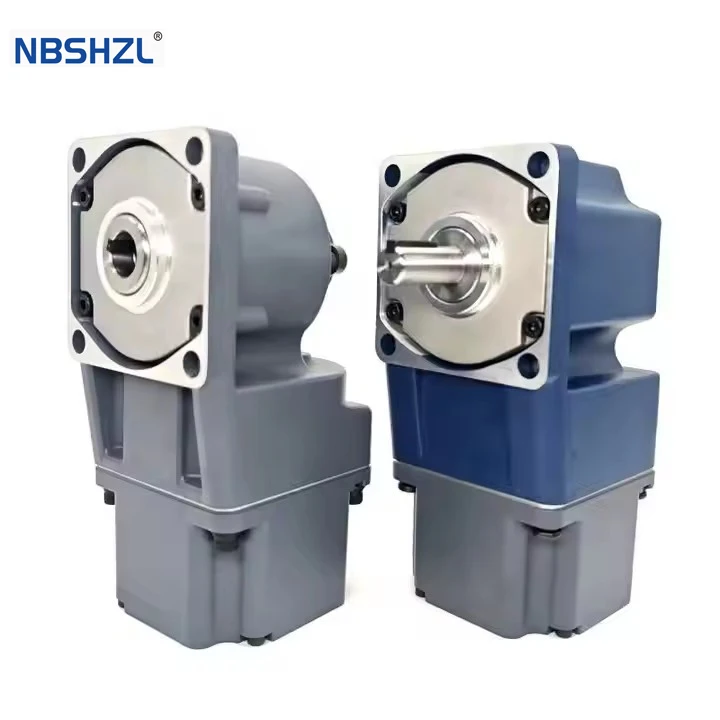

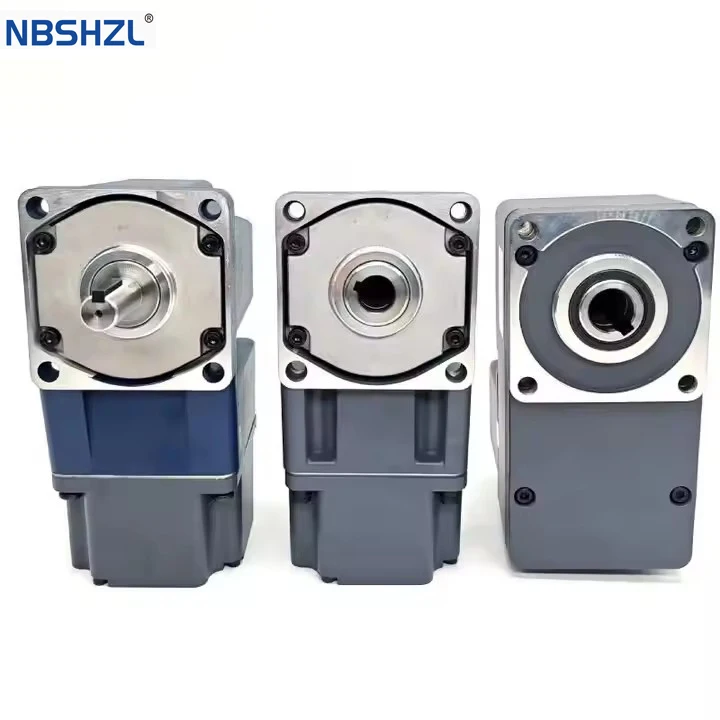

10. The motor is compatible with Square, L-type, and Right Angle gearbox configurations, increasing its versatility and utility in various applications.
1. who are we?
We are based in Zhejiang, China, start from 2022,sell to -. There are total about – people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
–
4. why should you buy from us not from other suppliers?
–
5. what services can we provide?
Accepted Delivery Terms: -;
Accepted Payment Currency: -;
Accepted Payment Type: -;
Language Spoken: –
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–49 piece: US $160 / piece
- 50–99 piece: US $155 / piece
- 100+ piece: US $150 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ec motors?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ec motors be supplied for my local voltage?
The standard configuration is Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Shenghe Zhilian Electric Motor Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Ningbo Shenghe Zhilian Electric Motor Co., Ltd. range on HVACR Nexus.
