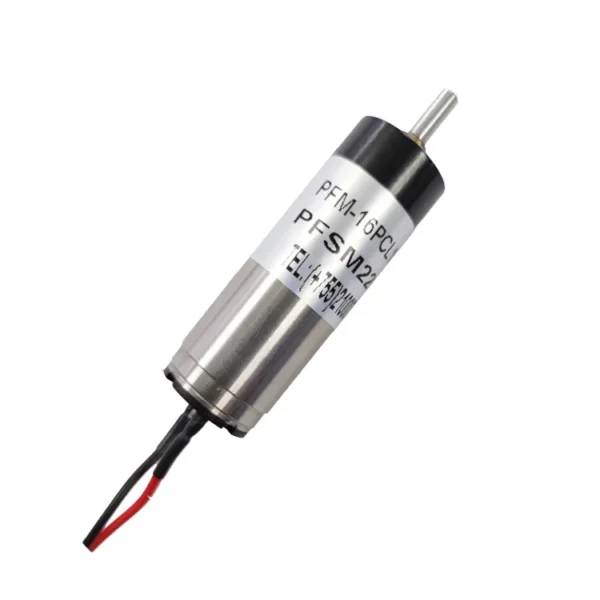

Ec Motors, Brushless, AMAX, PFM-16P

This ec motors is published with the manufacturer’s full specification — rated voltage Dc 12V, type Gear Motor. Made by Shenzhen Panfeng Motor Co., Ltd (8 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of These Ec Motors

• Model Number: PFM-16P
• Rated Power: 10W
• Rated Voltage: Dc 12V
• Speed Rpm: 1500 RPM
• Speed(RPM): 10-1000rpm
• Rated Speed: 1400~3650 R/min

Technical Specifications

Product Details

Products Description

Coreless Brushless Dc Motor Maxon Faulhaber AMAX EC Planetary Gear Nema 17 Servo Motor PFM-16P Used for Grinder

Customzied request is available

Details Images

Technical Specifications

Gearbox Reduction Ratio
Stage	Reduction Ratio					Nominal Torque	Max Momentary Torque	Efficiency	Length(mm)
1	3.75	4.67	5.4	1kg.cm	3.5kg.cm	94%	12.8
2	14.06	17.50	20.25	2kg.cm	4.5kg.cm	88%	16.5
		21.78	25.2					29.16
3	52.73	65.62	75.94	3kg.cm	6.5kg.cm	83%	20.2
		81.66	94.5					109.35
		101.63	117.6					136.08
		157.46
4	197.75	246.09	284.77	5kg.cm	8kg.cm	78%	23.9
		306.24	354.37					410.06
		381.09	440.99					510.29
		590.49	474.24					548.78
		635.02	734.82					850.31
Gearbox Material					Plastic, Carbon Steel			Radial Load	≤1.5kgf
Backlash					≤3°			Axial Load	≤0.5kgf
Bearing					Sleeve, Ball bearing			Shaft End Play	≤0.03
Work Temperature Range					-10℃~+60℃			Working Humidity Range	10%~80%
Customized specs and shaft are available.

Company Profile

Shenzhen Panfeng Motor Co., Ltd. is specialized in designing, developing and production of miniature DC geared motor, planetary geared motor, worm geared motor, coreless and brushless motors, etc.The products are widely used in household appliances, automotive automatic facilities, robots, power tools, massage equipment,medical equipment, smart devices, financial instruments, office automation and other products, as well as other occasions where drive control is required.

Committed to developing customized DC gear motors, the company is superior to having the ability to innovate and integrate up to date technical resources. At present, the products independently researched and developed focus on gear motors from 12mm to 60mm miniature precision gear reduction motors.

Strictly product quality control Coupled with rich production experience, the product upgrades promptly, especially for

micro-small gear motors, which manifest as high torque, small backlash and low noise level. For new projects, we have a

professional team to response promptly to the various requirements of customers. The company is managed by scientifically and professionally, which is strictly accordance with the ISO9001 management system.

Collaborating with flexible and successful solutions make us a qualified and excellent supplier in international market.

Why Choose Us

Adopting ERP system to proceed the orders and strictly implement ISO9001 quality management system requirements, 100% control the quality before shipment.

Quality system

IPQC work flow

IQC work flow

Experienced engineer take part in customers application design and provide professional advice. Products widely used in verious industries including but not limited to:

Delivery

Cost-Effective transport selected to ship the goods to customers as soon as possible.

FAQ

1.Can you make customized gear motor?

Yes, we are willing to do it.

2. Can you provide gear motor datasheet before sample?

Yes, we can, we will offer a datasheet according to the requirements.

3. Can you provide samples?

Yes, sample is available

4. What is your MOQ?

Our MOQ is 1000pcs, however, we can support customer to start with small qty orders.

5. What is the payment method?

T/T, L/C, Western Union, Paypal accepted.

6. What is the lead time?

Sample lead time is around 7 days, bulk order is 25 to 30days.

7. Can we visit your factory?

Yes, warmly welcome to visit us at any time.

Ordering and Pricing

• Minimum order quantity: 100 piece
• Volume pricing:
  • 100–499 piece: US $19 / piece
  • 500–999 piece: US $10 / piece
  • 1000+ piece: US $3 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ec motors?

The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3Years warranty. Spare parts and technical support remain available after the warranty period.

Can the ec motors be supplied for my local voltage?

The standard configuration is Dc 12V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Panfeng Motor Co., Ltd, based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Panfeng Motor Co., Ltd range on HVACR Nexus.
