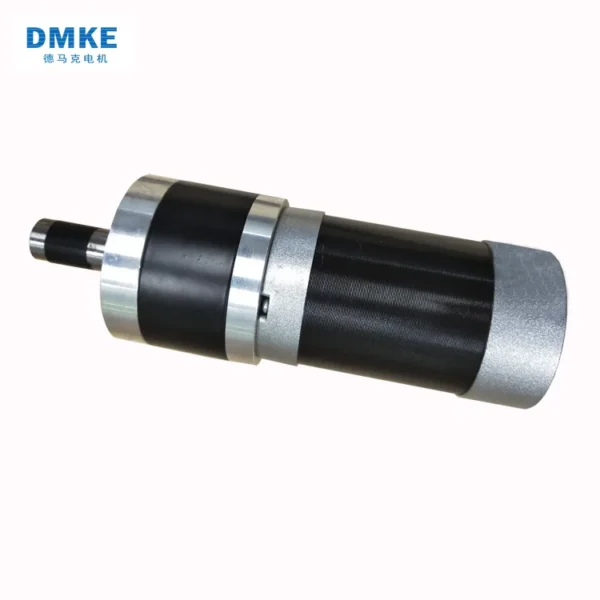

Ec motors — 12V, 24V, 36V, 48V,310V, type brushless dc motor. The complete factory specification follows. Made by Guangzhou Dmke Motor Co., Ltd. (12 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Ec Motors
- Model Number: 57DMW60H+56
- Rated Power: 50W, 75W,100W
- Voltage(V): 12V, 24V, 36V, 48V,310V
- Speed(RPM): 1500rpm
- Rated Speed: 1500R/min
- No Load Speed: 2200R/min
Technical Specifications
| Commutation | Brushless |
|---|---|
| Speed(RPM) | 1500rpm |
| Efficiency | IE 2 |
| Type | brushless dc motor |
| Construction | Permanent Magnet |
| Protect Feature | Totally Enclosed |
| Usage | solar panels cleaning robot, Automatically machine |
| Warranty | 13 months |
| Continuous Current(A) | 7A |
| Model Number | 57DMW60H+56 |
| Torque | 0.47N.M(0.35lb.ft) |
| Place Of Origin | Guangdong, China |
| Brand Name | DMKE |
| Rated Power | 50W, 75W,100W |
| Rated Current | 3.91A based on 24V |
| Voltage(V) | 12V, 24V, 36V, 48V,310V |
| Rated Torque | 0.47N.m |
| Rated Speed | 1500R/min |
| No Load Speed | 2200R/min |

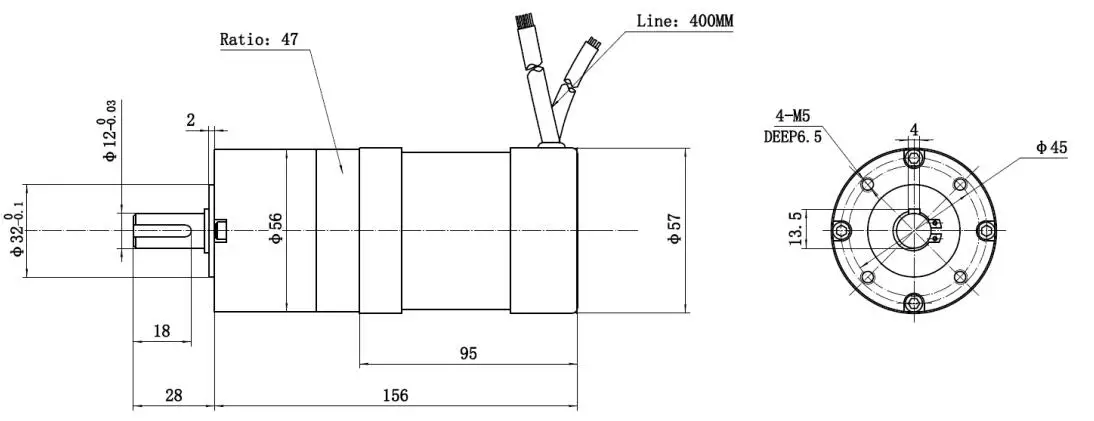

| Motor Diameter | 57mm |
| Shaft Diameter | 8mm |
| Direction Of Rotation | CW/CCW |
| Certificates | CCC, CE, ROSH, LVD, EMC |
| Packaging Details | According to the size of the motor for safe packing. 1pcs 12 volt 12v 24v 36v 48vdc 310v magnet bldc brushless dc fan motor kit will be packed in 1 carton |
| Port Of Dispatch | Guangzhou |
| Selling Units | Single item |
| Single Package Size | 30X15X15 cm |
| Single Gross Weight | 4.0 kg |
| Supply Ability | 20000 pieces per Month |
Product Details
After-sales service policy：
A. High power range from 5W to 20KW
B. Rich stock and fast shipping time in 10 working days
C. Easy for speed & direction adjustment
D. 16mm to 220mm size range with low noisy
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
Model | 57DMW60H-56 |
Power W | 100 |
Voltage V | 24 |
No load speed rpm | 2200 |
Rated speed rpm | 1500 |
Rated current A | ＜7 |
Rated torque N.m | 0.47 |

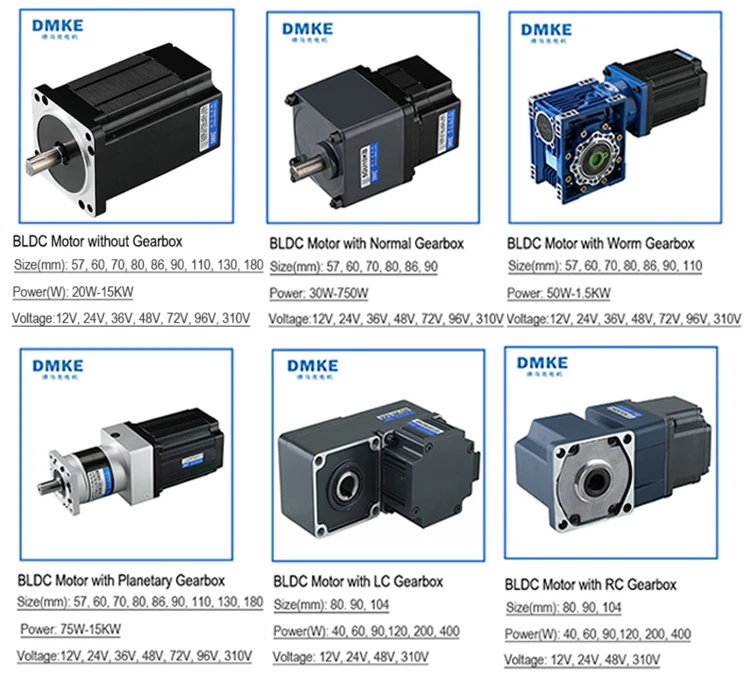

A1: For now, we mainly provide permanent magnet brushless dc motor, dc gear motor, micro dc motor, planetary gear motor, dc servo
motor, brush dc motors, with diameter range from 16 to 220mm,and power range from 5W to 20KW.
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 10% to 30% difference
than bulk price based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and
shaft diameter etc. The price also varies according to different order qty. So it’s difficult for us to provide a price list. If
you can share your detailed specification and order qty, we’ll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different
wire connection.
Q5: Is it possible for you to develop new motors if we provide the tooling cost?
A5: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make
our evaluation to see if we can arrange or not.
Q6:How about your delivery time?
A6: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the
order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales
confirmation for final reference.
Q7:What's your warranty terms?
A6: One year
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–99 piece: US $92 / piece
- 100+ piece: US $80 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ec motors?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 13 months warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ec motors carry?
It is supplied with CCC, CE, ROSH, LVD, EMC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ec motors be supplied for my local voltage?
The standard configuration is 12V, 24V, 36V, 48V,310V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

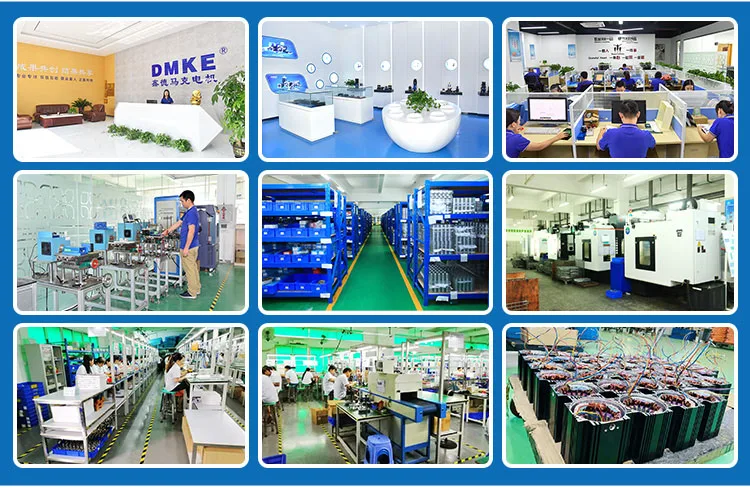

About the Manufacturer
