Electric motor — 12V/24V, 500RPM. The complete factory specification follows. Made by Nantong R&x Energy Technology Co., Ltd. (13 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Electric Motor
- Model Number: RX
- Rated Power: 100W
- Rated Voltage: 12V/24V
- Speed: 500RPM
- Warranty: 5 Years
- Place Of Origin: Jiangsu, China
Technical Specifications
| Place Of Origin | Jiangsu, China |
|---|---|
| Brand Name | R&X |
| Model Number | RX |
| Rated Voltage | 12V/24V |
| Speed | 500RPM |
| Frequency | 50/60hz |
| Rated Power | 100W |
| Application | Electricity Generation |
| Generator Type | Disc Coreless Permanent Magnent Generator |
| Warranty | 5 Years |
| Selling Units | Single item |
| Single Package Size | 20X20X20 cm |
| Single Gross Weight | 5.5 kg |
Product Details

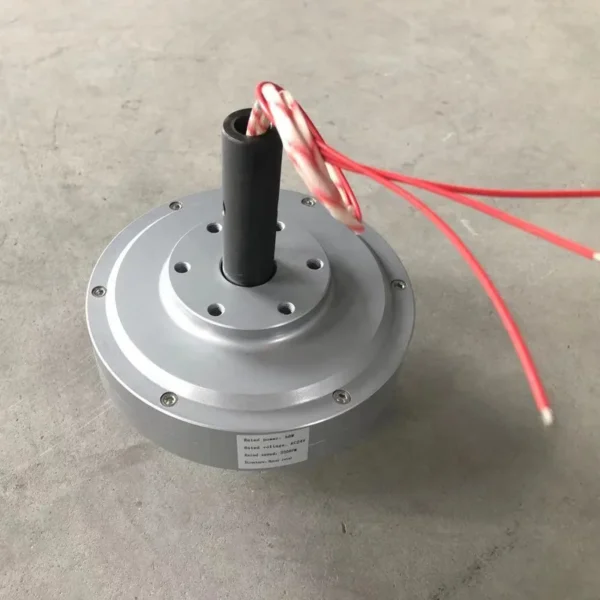

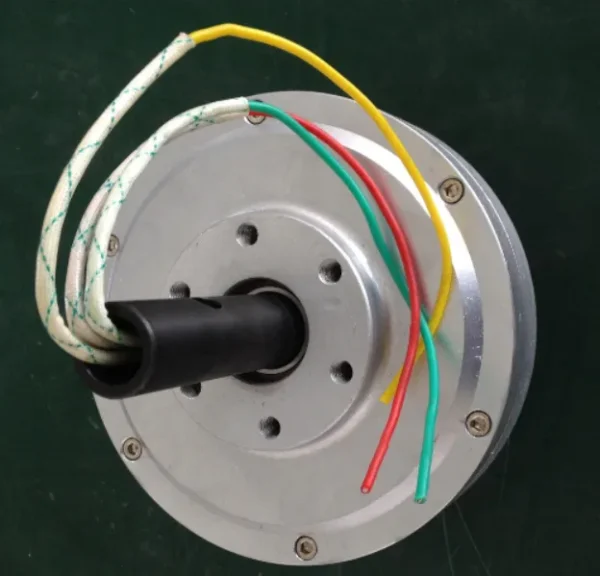

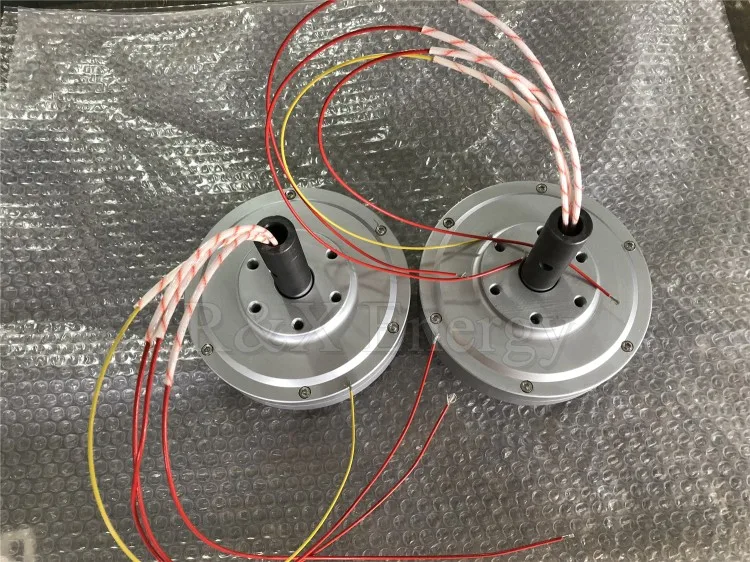

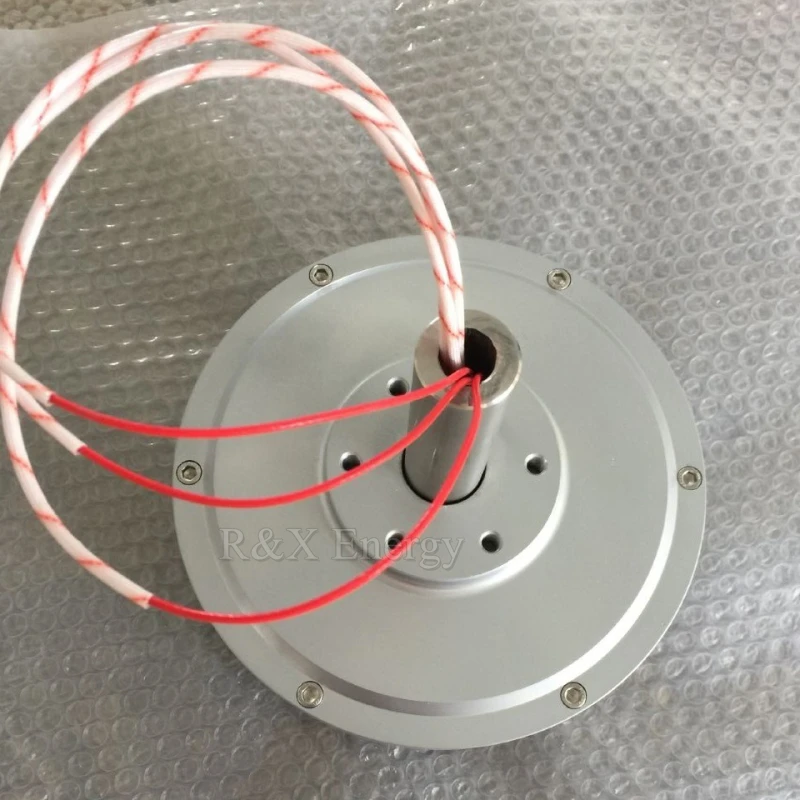

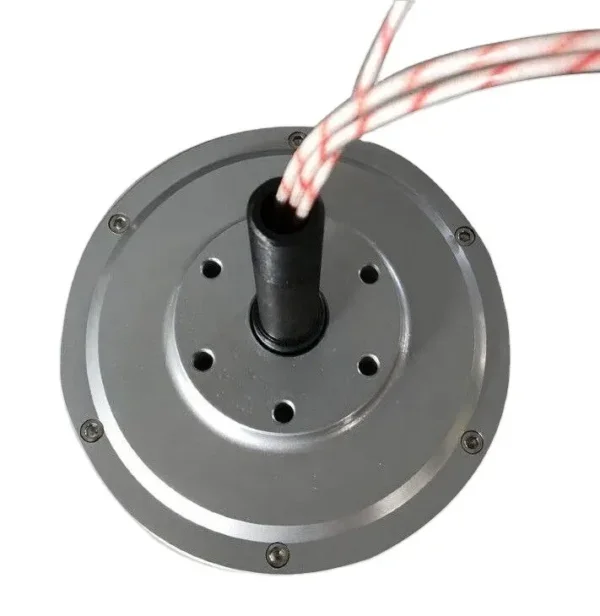

Electric Motor 100W Permanent Magnet Generator 500RPM Outer
Rotor Coreless PMG For VAWT
Our disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure, High efficiency etc.
1. Coreless, anhysteresis, slotless, have low starting torque.
2. No iron loss, have high efficiency
3. Adopt unique coreless precision winding technology design precision coil
4. Adopt the rare earth permanent magnet, which is multiple, mean gap, high power density and high output power.
5. Low speed direct driving, no torque fluctuations
6. Compact structure, high ratio of power to volume
7. No iron loss, low calorific value, small temperature rise
8. Simple structure, easy to install
9. The brushless structure, free maintenance
10. Application for vertical axis wind turbine, gasoline generators, hydroelectric generator

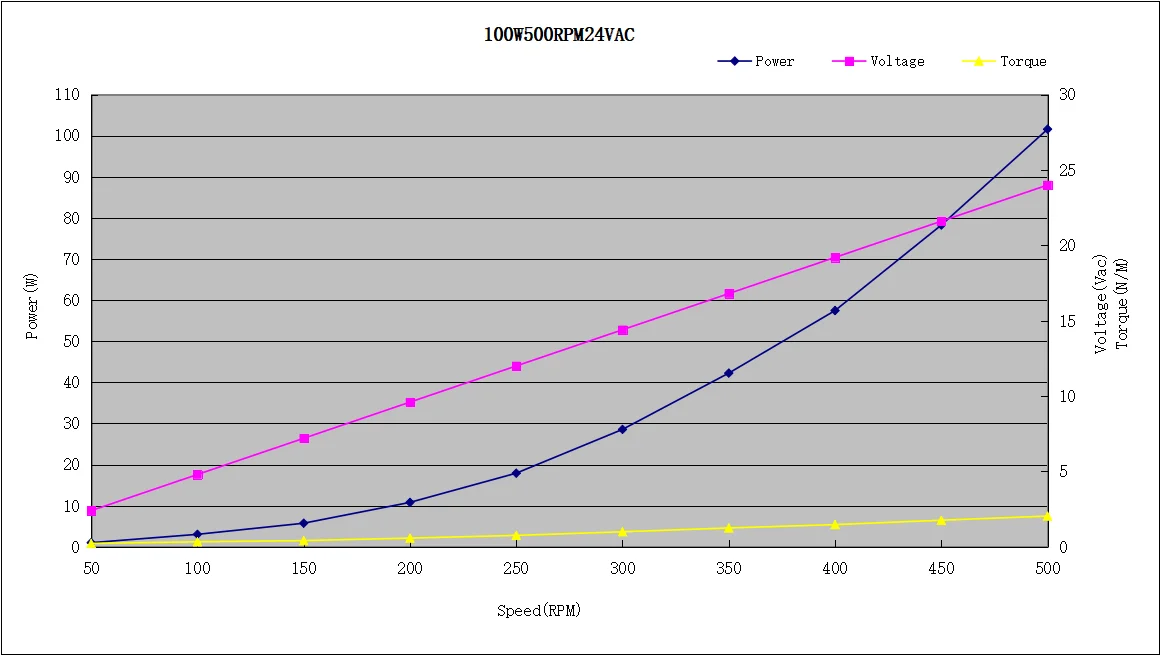

Rated Power | 100W |
Rated RPM | 500 |
Rated Voltage | 24V |
Rated Current | 7.2A |
Efficiency | >95% |
Resistance (Line-Line) | – |
Winding type | Y |
Insulation Resistance | 100Mohm Min(500V DC) |
Leakage level | <5 ma |
Start torque | <0.1NM |
Phase | Three Phase |
Structure | Outer rotor |
Stator | Coreless |
Rotor | Permanent magnet type (outer rotor) |

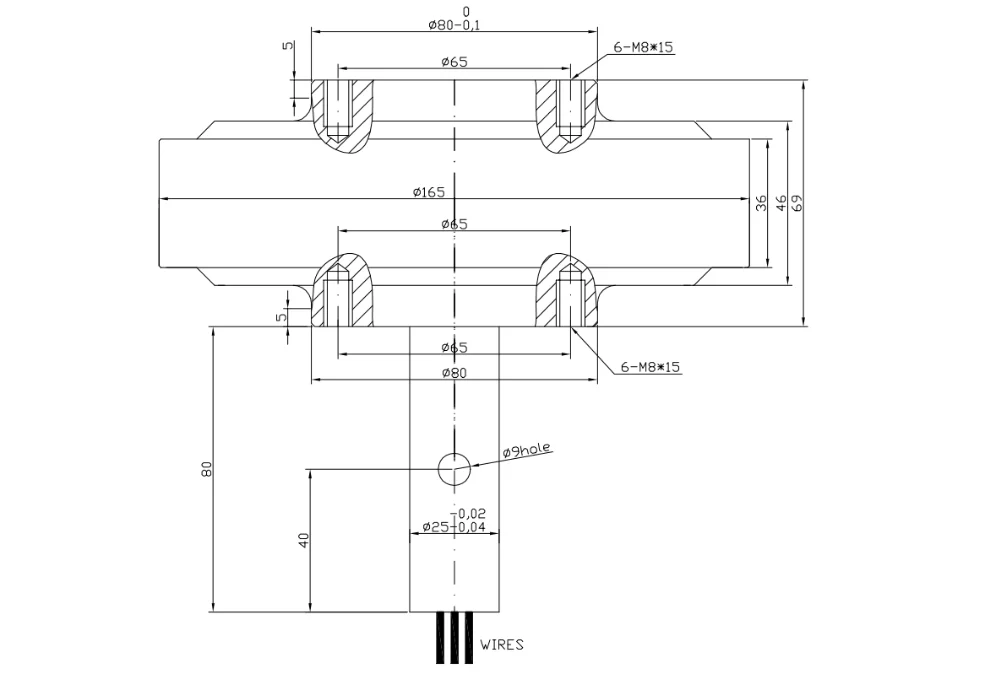

Permanent magnet type (outer rotor) | 152mm |
Gen. Length | 169mm |
Gen. Weight | 4.0kg |
Shaft. Diameter | 20mm |
Housing Material | Aluminum ( Alloy ) |
Shaft Material | Steel |
Note | We can customize any voltage and any rpm according to customers' requirement |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $179 / set
- 10–49 set: US $150 / set
- 50–99 set: US $109 / set
- 100+ set: US $85 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the electric motor be supplied for my local voltage?
The standard configuration is 12V/24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
