This electric refrigeration fan is published with the manufacturer’s full specification — type Asynchronous Motor, 1550RPM. Made by Zhongshan Powerstar Motor Manufacturing Co., Ltd. (17 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Electric Refrigeration Fan
- Model Number: YDK-65-4
- Rated Power: 1/12HP
- AC Voltage: 115/208-230
- Rated Speed: 1500RPM
- Speed: 1550RPM
- Warranty: 1 year
Technical Specifications
| Phase | Single-Phase |
|---|---|
| AC Voltage | 115/208-230 |
| Rated Power | 1/12HP |
| Rated Speed | 1500RPM |
| Type | Asynchronous Motor |
| Frame | No Frame |
| Motor Mounting Type | Housing |
| Protect Feature | open |
| Efficiency | IE 4 |
| Warranty | 1 year |
| Model Number | YDK-65-4 |
| Brand Name | POWERSTAR |
| Place Of Origin | Guangdong, China |
| Frequency | 50/60Hz |
| Shaft Diameter | 8mm |
| Insulation | F |
| Wire | 100% copper |
| Pole | 4 pole |
| Bearing | ball |
| Rotation | reversible |
| Speed | 1550RPM |
| Usage | Refrigeration Fan/ Condenser fan/ Ventilation fan/ Power Tools |
| Body DIA | 3.3 inch |
| Selling Units | Single item |
| Single Package Size | 30X25X19 cm |
| Single Gross Weight | 5.0 kg |
Product Details

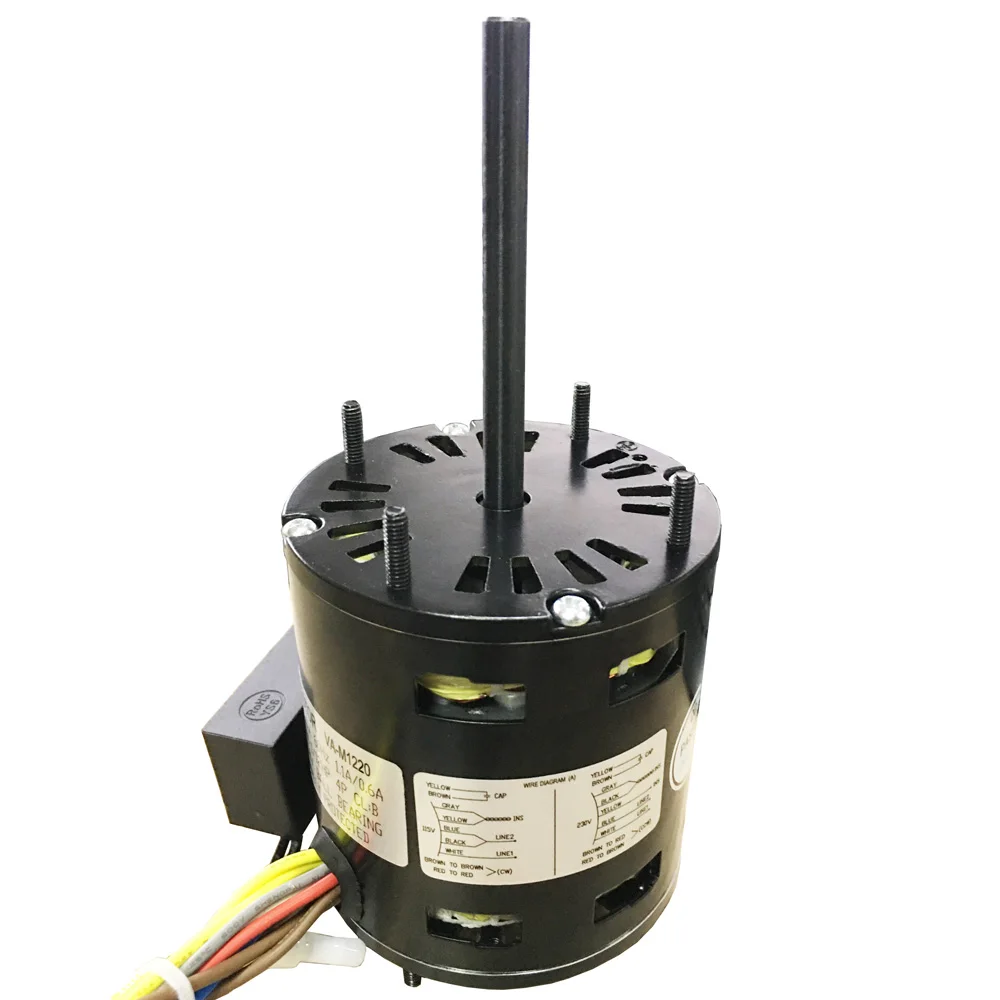

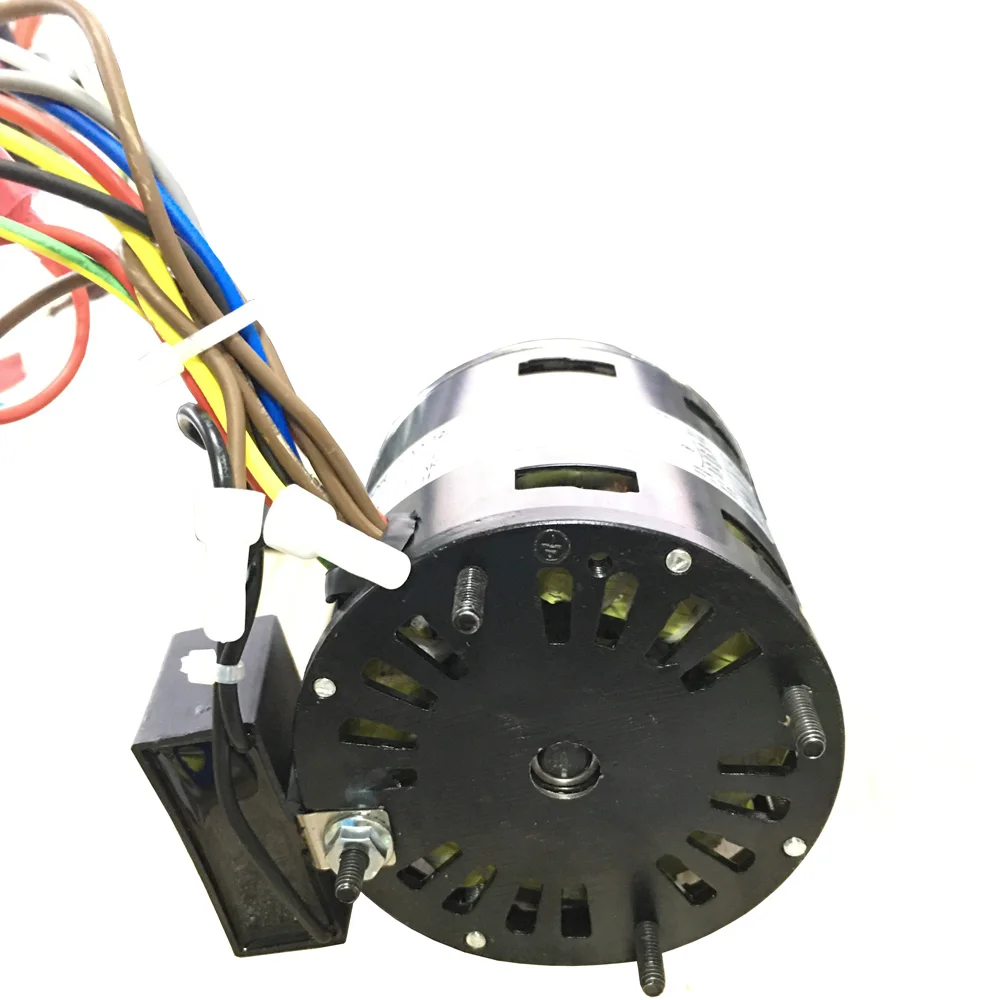

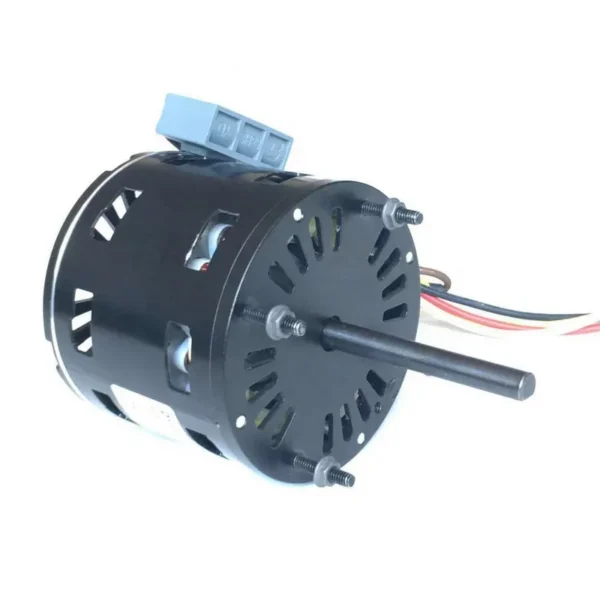

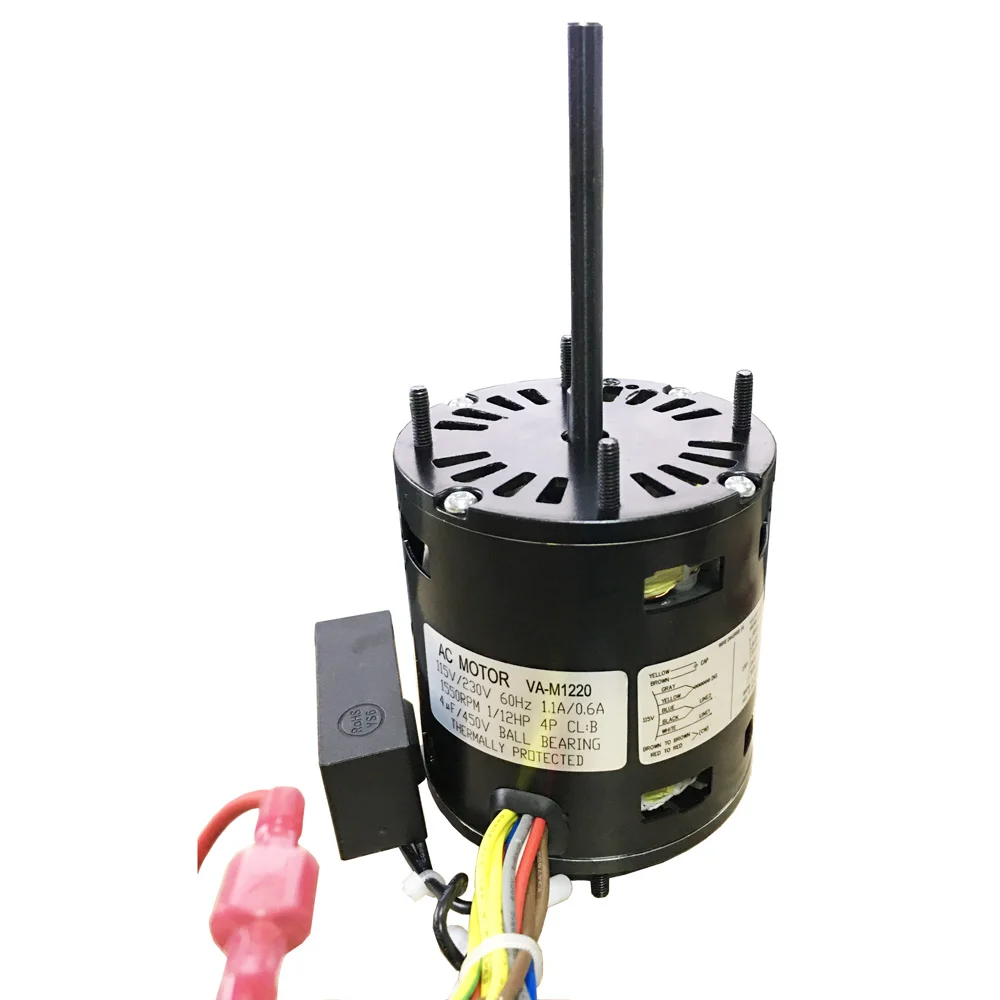

Dual Voltage Reversible Single phase 3.3'' 1/12HP Fasco D1127 A.O. Smith 9721 Electric Refrigeration Fan Motor
H.P. 1/12-1/15-1/20, Speeds 1, Amps 1.10/0.60, Rotation Reversible, Capacitor Furnished, RPM 1550, Bearings Ball, Diameter (In.) 3.375, Enclosure Open, Mounting Stud, Service Factor 1.00,, Shaft Length (In.) 3, Motor Type Permanent Split Capacitor (Capacitor Included),, Frame 3.3, Overload Protection Automatic, Phase 1, Shaft Diameter (In.) 5/16, Shafts 1,, Hertz 60/50, Shaft Dimension (In.) 5/16 x 3-1/4, Length Less Shaft (In.) 3-5/8, Voltage 115/208 – 230. Replacement for numbers Keeprite 1043336, 1043766, Larkin 253-1194, 253-1195, Heatcraft 25309101, Bohn 5008S, 5008T, GE 5KSM59ES2001, 5KSM59JS5036S, 5KSM59JSK1435, 5KSM59LS2262AS, Fasco 7163-2113, 7163-3371, 7163-8722, 7163-8861, 7190-0442, 7190-2084, 7190-2255, 7190-2285, 7190-2969, D1101, D1103, D1122, D1123, D1124, D1124, D1126, D1127, D1152, D1154, Emerson US Motors, Century AO Smith9650, 9651, 9652, 9653, 9656, 9656, 9664, 9664, 9721
Features:
- Class F Insulation
- Extra mounting nuts for quick installation
- Energy efficient
- Quiet operation
- Ball bearing
- Dual voltage 115/230 voltage
- Automatic overload
- Operating temp -10-43 degree
- High efficiency,High reliability,Little vibration,Low noise Thermal protection
- Usage Air over duty
-
3.3 inch motor Model power(Hp) voltage(V) frequncy(Hz) pole speen(rpm) rotation shaft bearing DIA protect feature insulation calss YDK-180-2 1/4 115/208-230V 50/60 2 3300 reversible 8X80 ball 3.3" enclosed F YDK-120-2 1/6 115/208-230V 50/60 2 3300 reversible 8X80 ball 3.3" enclosed F YDK-75-2 1/10 115/208-230V 60 4 3300 reversible 8X80 ball 3.3" enclosed F YDK-60-2 1/12 115/208-230V 60 2 3300 reversible 8X80 ball 3.3" enclosed F YDK-50-2 1/15 115/208-230V 60 2 3300 reversible 8X80 ball 3.3" open F YDK-37-2 1/20 115/208-230V 60 2 3300 reversible 8X80 ball 3.3" open F YDK-30-2 1/25 115/208-230V 60 2 3300 reversible 8X80 ball 3.3" open F YDK-25-2 1/30 115/208-230V 60 2 3300 reversible 8X80 ball 3.3" open F YDK-60-4 1/12 115/208-230V 60 4 1550 reversible 8X80 ball 3.3" open F YDK-50-4 1/15 115/208-230V 60 4 1550 reversible 8X80 ball 3.3" open F YDK-37-4 1/20 115/208-230V 60 4 1550 reversible 8X80 ball 3.3" open F YDK-30-4 1/25 115/208-230V 60 4 1550 reversible 8X80 ball 3.3" open F YDK-25-4 1/30 115/208-230V 60 4 1550 reversible 8X80 ball 3.3" open F
| Packing details | 30000 piece/pieces per Month |
| Delivery Time | 25-35 days upon receipt of deposit |
| Payment Terms | L/C ,T/T |
| Shipping | DHL , UPS , FEDEX , TNT , EMS , by air , by sea , China post , any way you think is suitable |
Ordering and Pricing
- Minimum order quantity: 200 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric refrigeration fan?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the electric refrigeration fan be supplied for my local voltage?
The standard configuration is 115/208-230. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhongshan Powerstar Motor Manufacturing Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhongshan Powerstar Motor Manufacturing Co., Ltd. range on HVACR Nexus.
