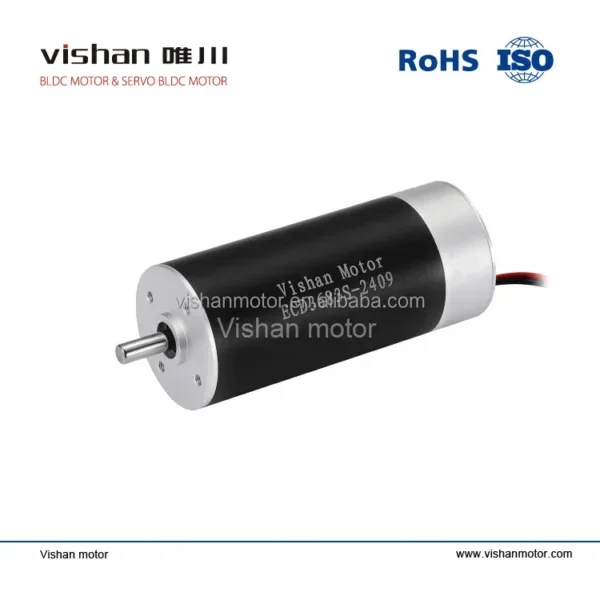

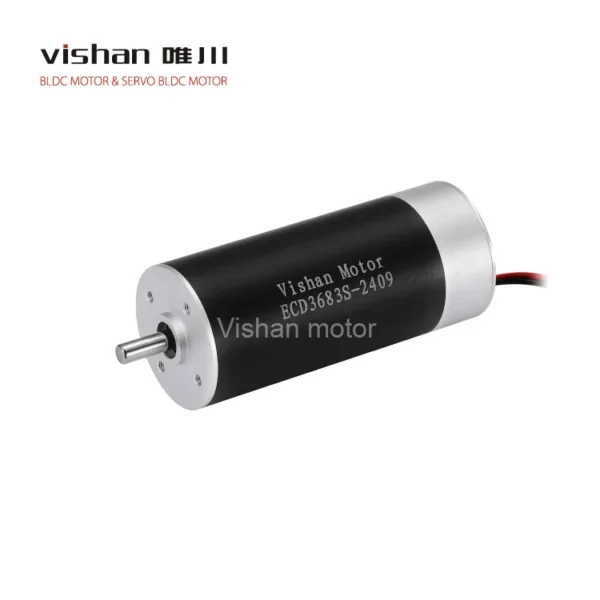

36mm controller built-in slotless brushless DC motor, Sensorless/Sensor ECD3683S
_____________________________________________________________________
Characteristics:
– Controller built-in version
– The stator windings is cup-shaped winding, without cogging effect, the torque fluctuationis very small
– Nd-Fe-B Magnet, high power density
– Aluminum alloy shell, better heat dissipation, lower temperature rise
– NMB & NSK ball bearing
– Novel structure for the covers and frame Combination,ensure the installation precision
– Hall sensor inside, easy to drive
_____________________________________________________________________ Specifications:
| Dimensions | : | Φ36 X 83 | mm |
| Shaft Diameter | : | Φ5 | mm |
| Input Voltage | : | 12V/24V | V DC |
| Bearing | : | NMB | |
| Life | : | 10000 | h |
| Weight | : | 366 g | g |
| Operation Temperature | : | -30 to 85 | °C |
| Storage Temperature | : | -30 to 105 | °C |
| Number of Pole Pairs | : | 1 | |
| Number of Phase | : | 3 | |
| Electrical Connection | : | 2/5 lines |
_____________________________________________________________________

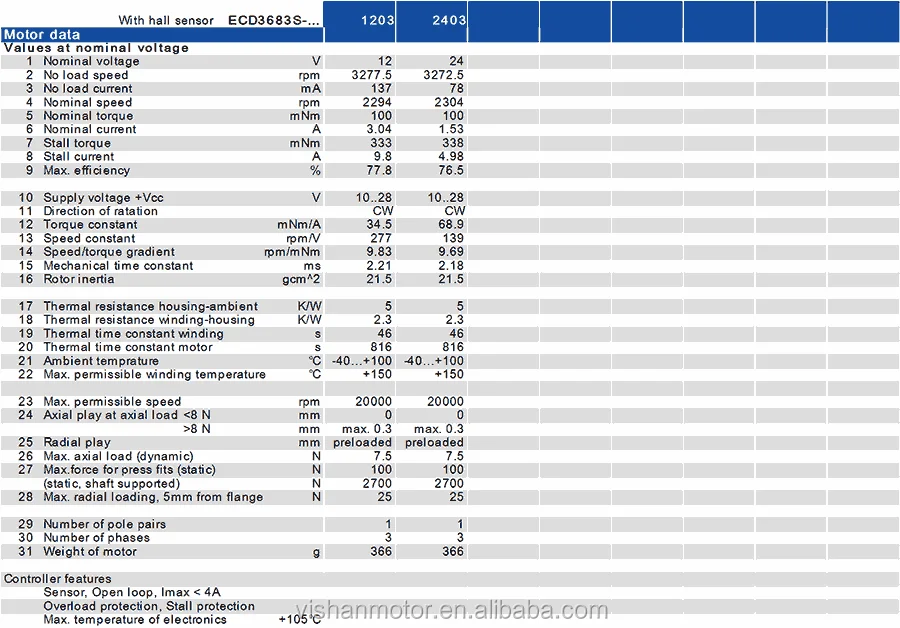

Performance Data:
_____________________________________________________________________

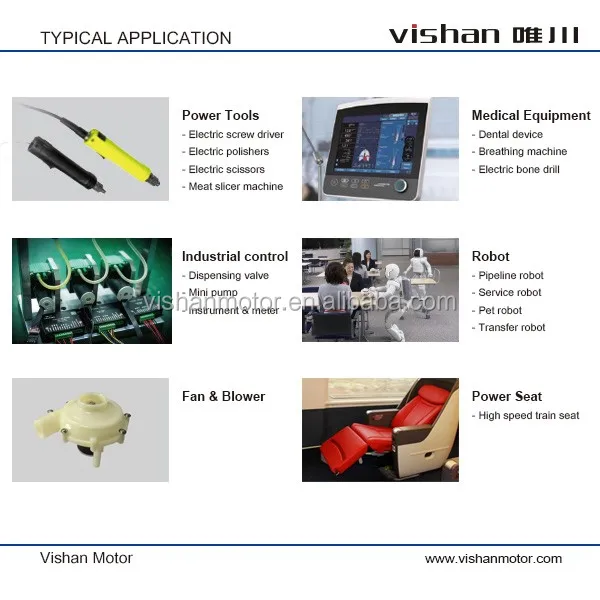

Application Examples:
Micro Pumps, Mini Fan, Airmodel ,Electrical power tools
_____________________________________________________________________

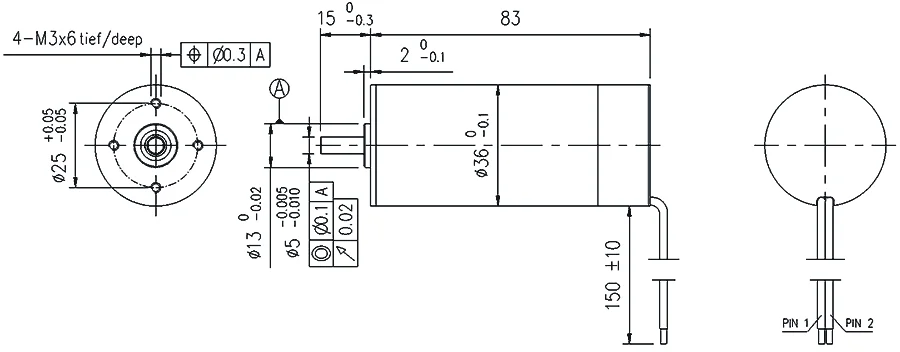

Drawing:
_____________________________________________________________________

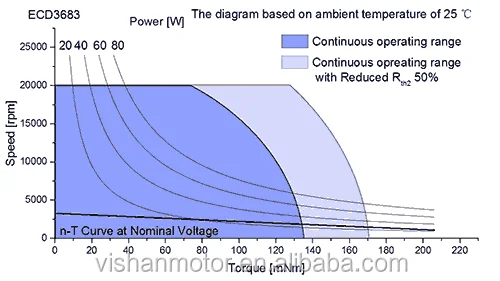

Operating Range:
_____________________________________________________________________

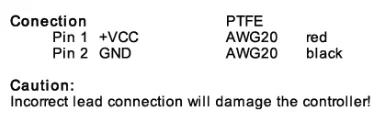

Connection :
_____________________________________________________________________
Configuration :
– Function: On&Off/Direction/Speed control/Brake
Speed closed&open-loop Control/Speed feedback
– Performance: Customized in the continuous operating range
– Ball bearing: Preload
– Flange: Standard frange front&back/customize the frange
– Shaft: Length/Diameter/Cut face
– Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length
– Connector: JST/MOLEX/TE
More:
Please contact our sales engineers
