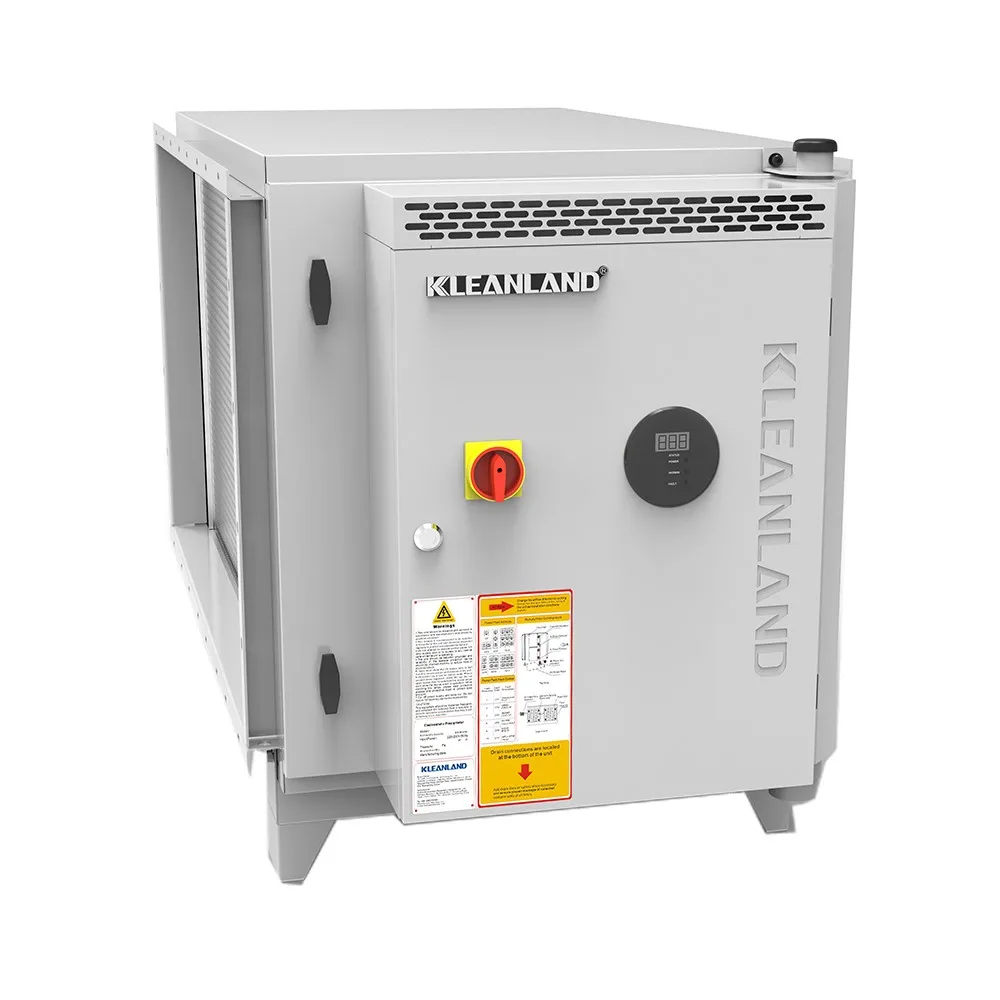

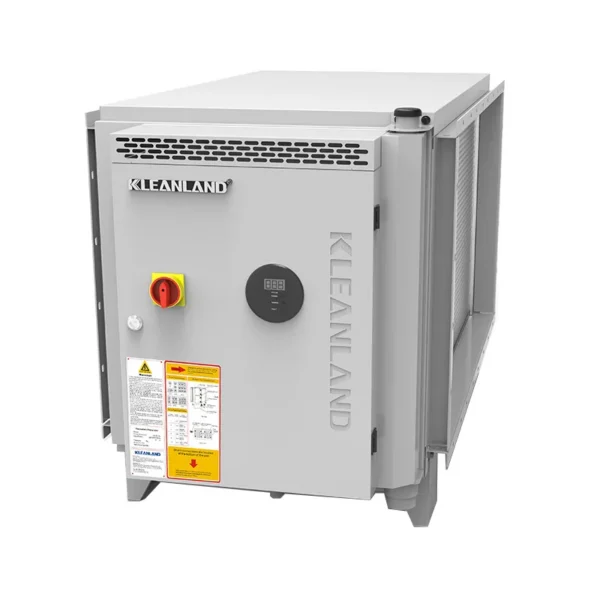

Electrostatic air ecology unit — power 698. The complete factory specification follows. Made by Klean Environmental Equipment Co., Ltd. (8 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Electrostatic Air Ecology Unit
- Power (W): 698
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Flange Size (Mm): 557.5×701.5
- Weight(Kg): 107.2
- Dimension (Mm): 735x924x943
Technical Specifications
| Warranty | 1 Year |
|---|---|
| Purify Efficiency | Up to 95% |
| Place Of Origin | Guangdong, China |
| Brand Name | KLEAN |
| Applicable Industries | hotels, Food & Beverage Factory, Restaurant, Food Shop |
| After-Sales Service Provided | Online support |
| Color | Silver |
| Dimension (Mm) | 735x924x943 |
| Power (W) | 698 |
| Drain Diameter (Inch) | 1 |
| Flange Size (Mm) | 557.5×701.5 |
| Weight(Kg) | 107.2 |
| Packaging Details | Plywood Case |
| Port Of Dispatch | FOSHAN |
| Selling Units | Single item |
| Supply Ability | 1000 sets per Month |
Product Details
Features:

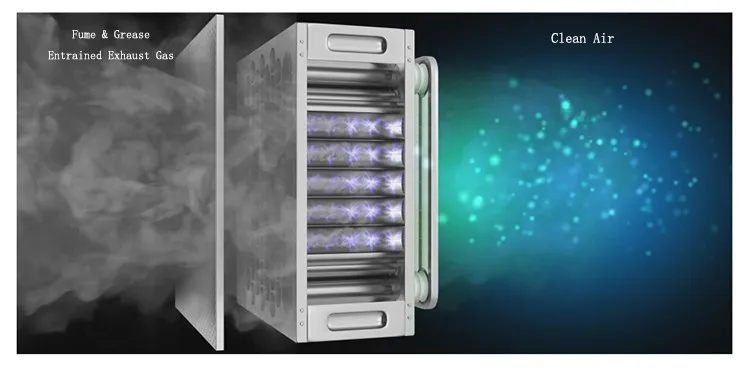

*Fume & mist elimination efficiency: >95%
* High-end high-frequency high-voltage solid-state transformer with epoxy resin encapsulation,driven by half-bridge switching converter,and is powerful,stable and energy-saving.

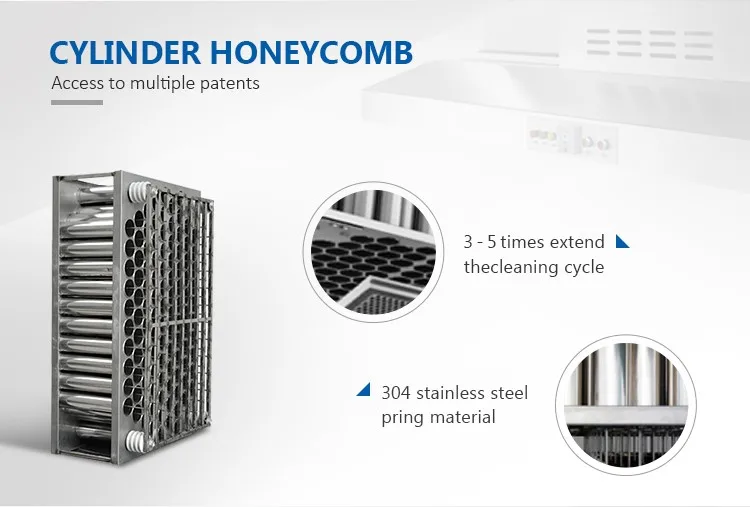

*Patented cylindrical honeycomb structure filter cell,ensuring extremely high efficiency of fume&mist elimination.
*Multiple protection functions such as electrostatic discharge protection,power over-loading protection and transformer over-heated protection,making it safe and reliable of our facility.
Q1: How does the auto-clean device work
A1:Enclosed please kindly check the diagram.The auto-clean device consist of solenoid value,water pipe,roated nozzles and Water-heating Auto-clean Tank.The water-heating auto-clean tank consist of Programmable Logic Controller (PLC),water pump and water tank.The roated nozzles are controlled by solenoid valves.
Q2:Whether detergent consumption is needed during cleaning?
A2:As oil mist is very easy to clean with hot water for our honeycomb filter cells.Detergent is no need in our auto-clean proces.The water in the tank will be heated and used to wash the filter cells.
Q3:What is the washing cycle?
A3: Washing period depends on your setting as well as the washing time.Generally the ESP has to be washed every three to four weeks by auto-clean device.If your fume is heavy,you can shorten the washing period.
Q4: Please advice the drain connection.
A4: Please kindly check the attached introduction for the structure and connections details. With the auto-clean device,the ESP can operate maintenance-free for along time,thus your time,cost and trouble of frequent manual cleaning can be saved.
Q5: Installation.
A5: You can install our product inside your kitchen,shown in the attached image.For installation,you can some kind of ventilation engineering company who is specialized in ventilation installation and knows well the local law about kitchen air filter's installation.You can get answers or advices from this ventilation engineering company about how to install our product with permission of the law
Q6: Whether there is blanking plate?
A6: Enclosed pls kindly find attached flange image.A blanking plate will be added between the flanges.Otherwise,the total air leakage factor of the whole ESP system is about 15%.With trials and researches carried by our professional technicians,the air leakage factor is reliable and workable for purification efficiency as well as running.
Q7: All product certifications&other marketing materials.
A7: The certificates are show in the catalogue(refer to Catering Catalogue Page 17&18).The most requested certificate(CE)is attached.Our ESP gets 33patents,and the design is unique.There are many videos which can help your marketing.They shows the company image,scale,technical;efficiency of filter and some maintenance of the products.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electrostatic air ecology unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Klean Environmental Equipment Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Klean Environmental Equipment Co., Ltd. range on HVACR Nexus.
