Key specification for this end suction centrifugal pump: power source Electric, material STAINLESS STEEL. Everything below is reproduced from the factory data sheet. Made by Hebei Minerco Machinery Co., Ltd. (1 year on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This End Suction Centrifugal Pump
- Power Source: Electric
- Material: STAINLESS STEEL
- Warranty: 1 year
- Place Of Origin: Hebei, China
- Application: Mining Industry
- Single Gross Weight: 0.0 kg
Technical Specifications
| Application | Mining Industry |
|---|---|
| Structure | Centrifugal Pump |
| Max Flow Rate | 400m3/h(14125.87ft3/h) |
| Power Source | Electric |
| Displacement | 400m3/h(14125.87ft3/h) |
| Material | STAINLESS STEEL |
| Control Method | Electric |
| Motor | electric |
| Warranty | 1 year |
| Customized Support | OEM, odm |
| Pressure | 1~12.5bar(14.50~181.30psi) |
| Flow Meter Specification | 400m3/h(14125.87ft3/h) |
| Place Of Origin | Hebei, China |
| Brand Name | Minerco |
| Flow Rate | 400m3/h |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

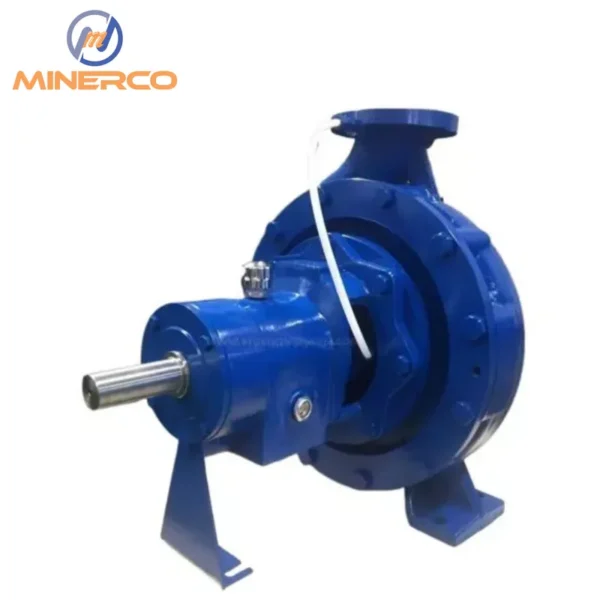

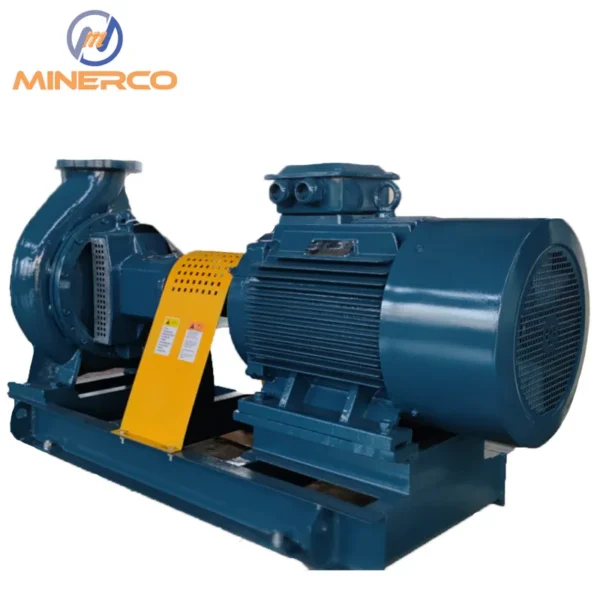

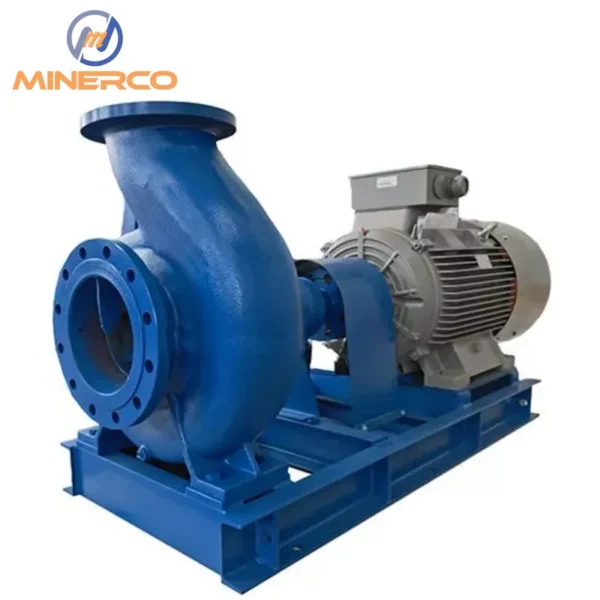

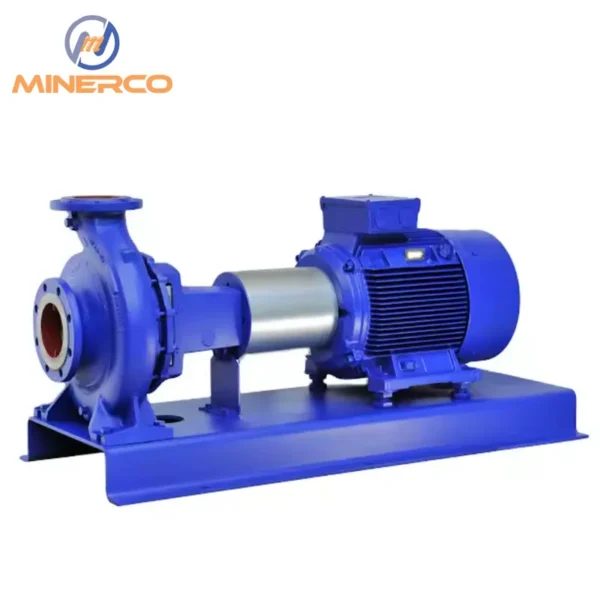

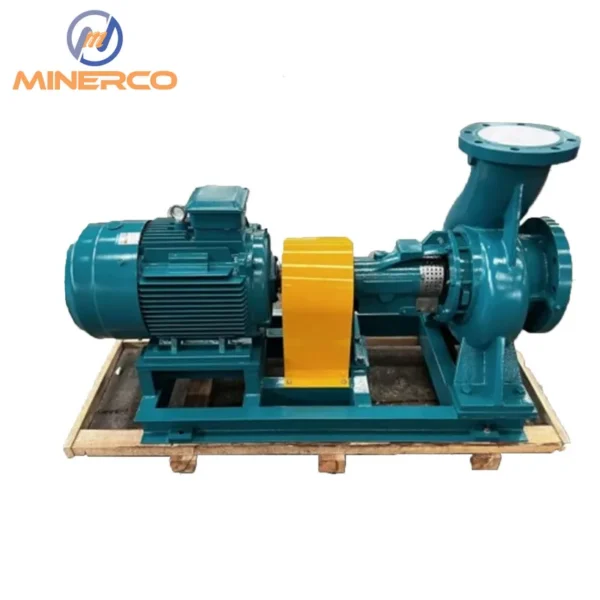

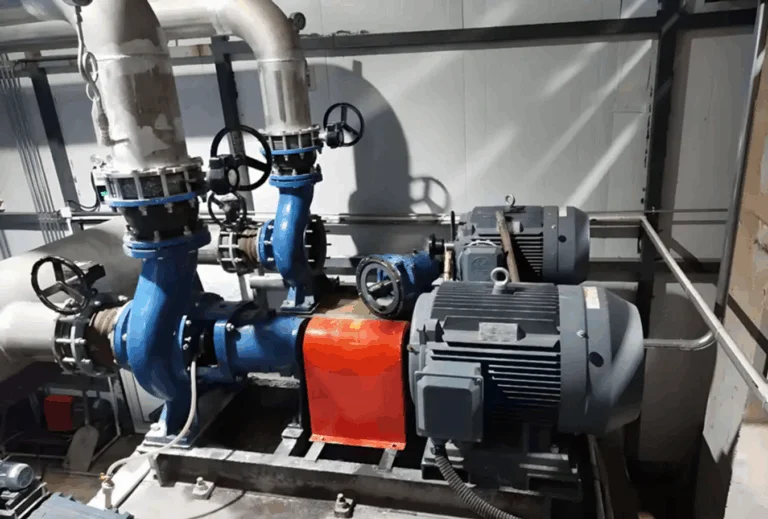

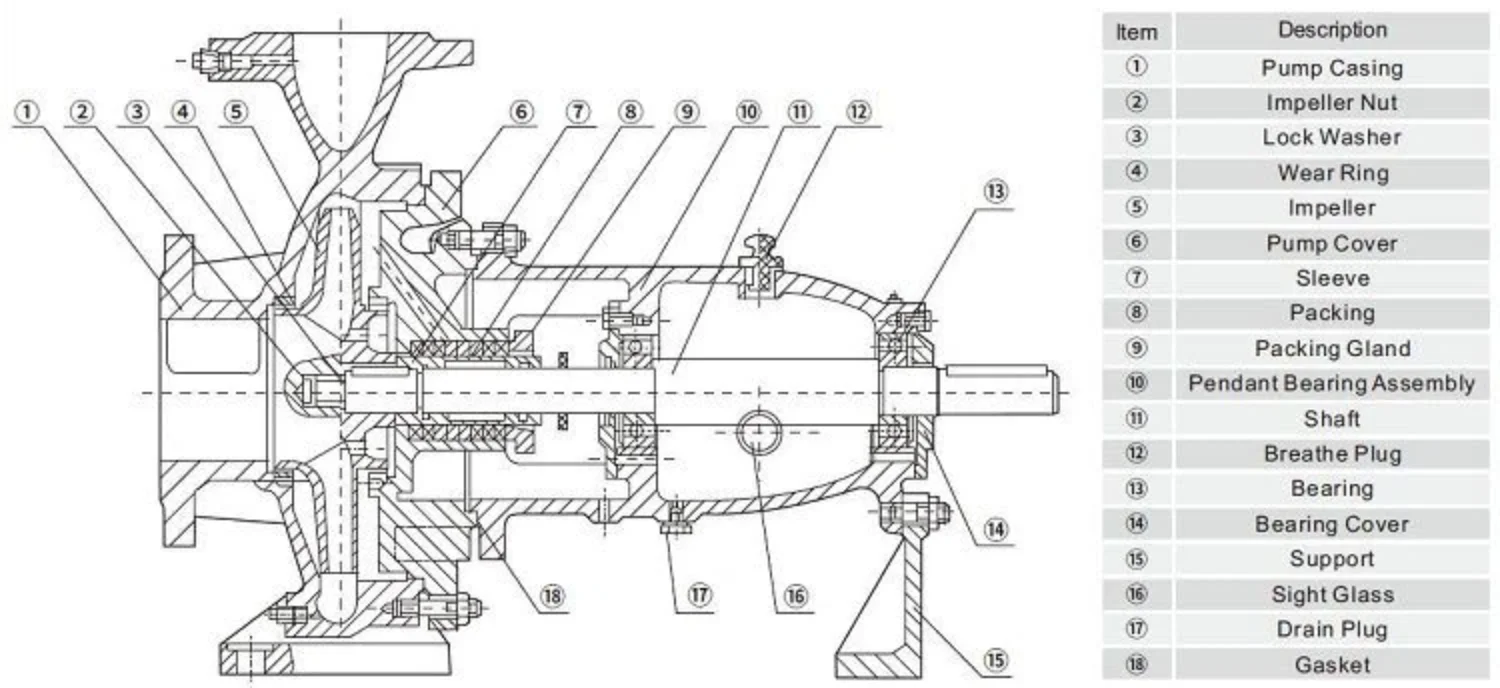

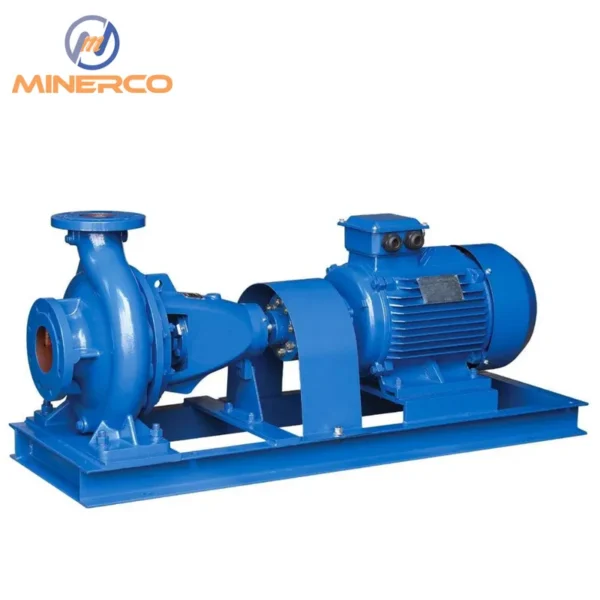

- The XA type horizontal single-stage end suction centrifugal pump is a versatile water pump with a simple structure, reliable performance, and compact size. It is mainly used to transport clean water and liquids with physical and chemical properties similar to water, without solid particles. This pump has good anti cavitation performance, low power consumption, and easy maintenance. Its performance parameters (such as flow rate and head) can be customized and adapted by cutting the outer diameter of the impeller. It is widely used in fields such as factories, mines, building water supply and drainage, fire protection, and municipal water supply. The medium temperature range of XA type pump is -10 ° C to 85 ° C, the conventional working pressure does not exceed 1.0 MPa, and the standard flange pressure rating is PN 1.6.
Specification | Impeller Φ (mm) | Flow Rate Q (m³/h) | Head H (m) | Efficiency η (%) | Power P (kW) | NPSHr (m) | Matched Motor (kW) | Flange Dia. (mm) |
XA50/200 | Max: 214 | 52.0 | 60.0 | 66.0 | 14.8 | 2.5 | 18.5 | 80/50 |
Mid: 190 | 47.0 | 48.0 | 65.5 | 11.0 | 2.0 | 15.0 | 80/50 | |
Min: 165 | 40.0 | 36.0 | 64.0 | 8.0 | 1.8 | 11.0 | 80/50 | |
XA80/260 | Max: 264 | 185.0 | 81.0 | 74.0 | 56.1 | 3.5 | 75.0 | 125/80 |
Mid: 240 | 170.0 | 68.0 | 73.0 | 44.2 | 3.0 | 55.0 | 125/80 | |
Min: 215 | 150.0 | 54.0 | 70.0 | 33.7 | 2.8 | 45.0 | 125/80 | |
XA100/260 | Max: 264 | 295.0 | 86.0 | 76.0 | 87.8 | 4.0 | 110.0 | 125/100 |
Mid: 240 | 275.0 | 70.0 | 75.0 | 69.8 | 3.5 | 90.0 | 125/100 | |
Min: 215 | 240.0 | 55.0 | 73.0 | 50.8 | 3.2 | 75.0 | 125/100 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $355 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this end suction centrifugal pump?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer

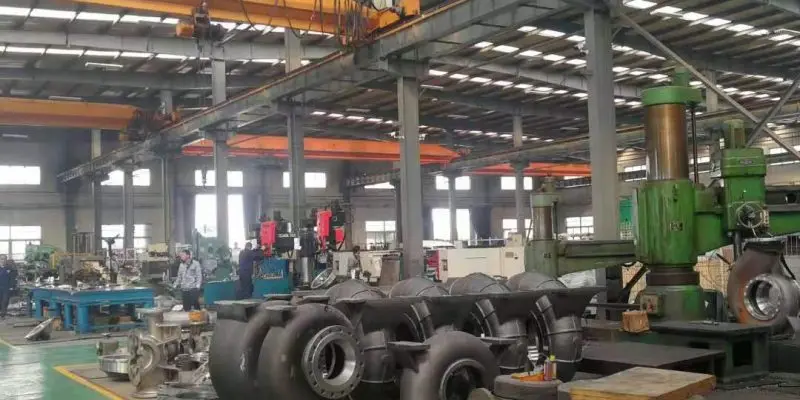

This product is produced by Hebei Minerco Machinery Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hebei Minerco Machinery Co., Ltd. range on HVACR Nexus.
