External rotor motor — power input 30. The complete factory specification follows. Made by PENPOS Technology Co., Limited (5 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This External Rotor Motor
- Power Input: 30
- Place Of Origin: Guangdong, China
- Mounting Type: hvac
- Weight: 4.8kg
- Single Gross Weight: 0.0 kg
- Manufacturer Part Number: cooling system
Technical Specifications
| Manufacturer Part Number | cooling system |
|---|---|
| Description | air conditioning |
| Mounting Type | hvac |
| Place Of Origin | Guangdong, China |
| Diameter | 200 |
| Weight | 4.8kg |
| Noise | 50-60 |
| Color | Black |
| Power Input | 30 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

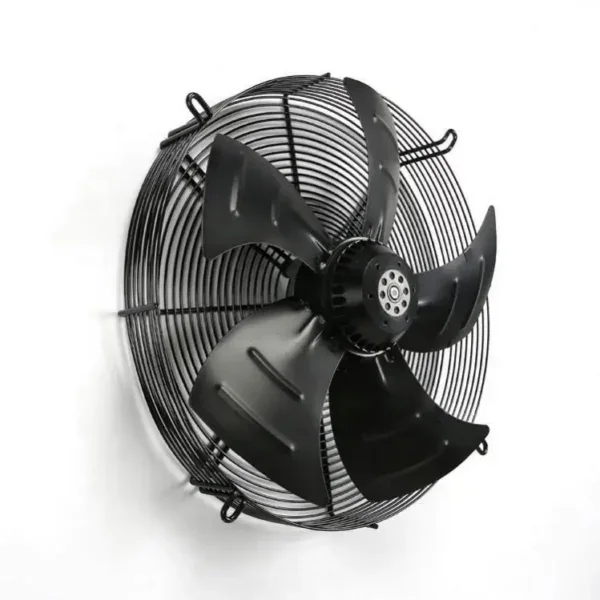

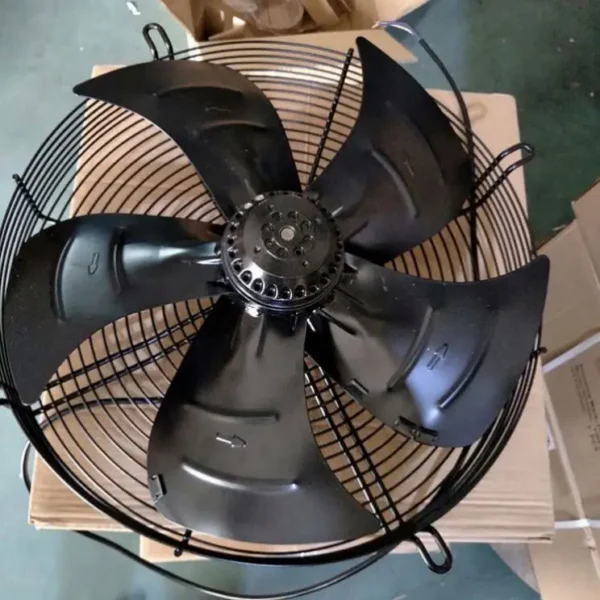

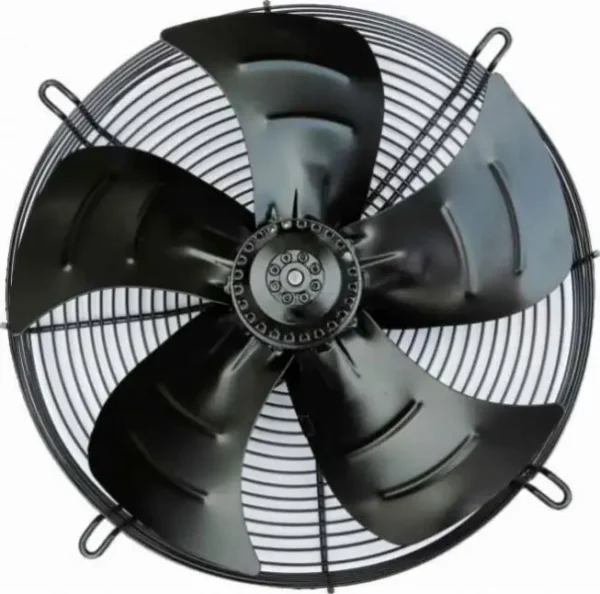

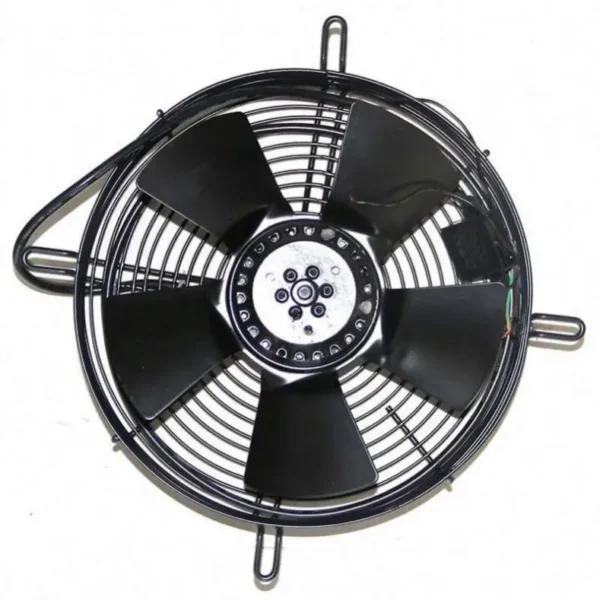

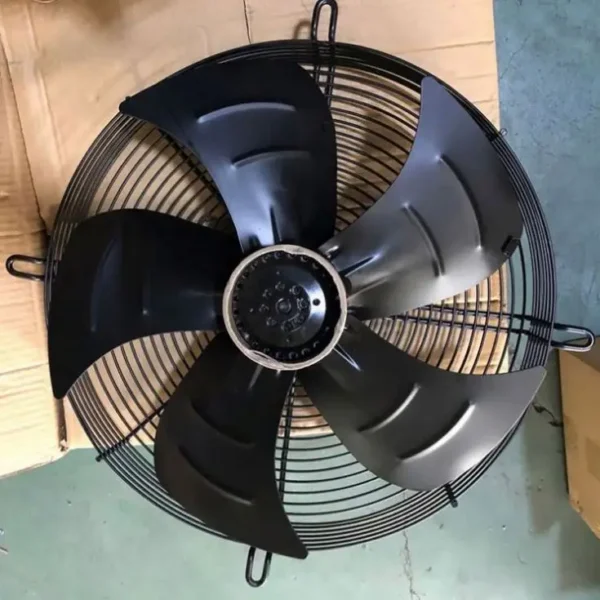

200mm 220v External Rotor Motor AC Axial Cooling Fan
PRODUCT INTRODUCTION:

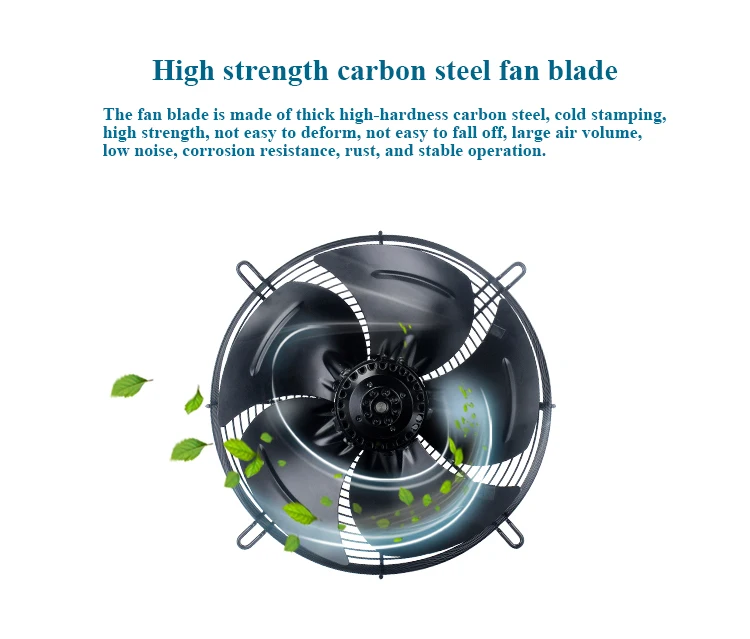

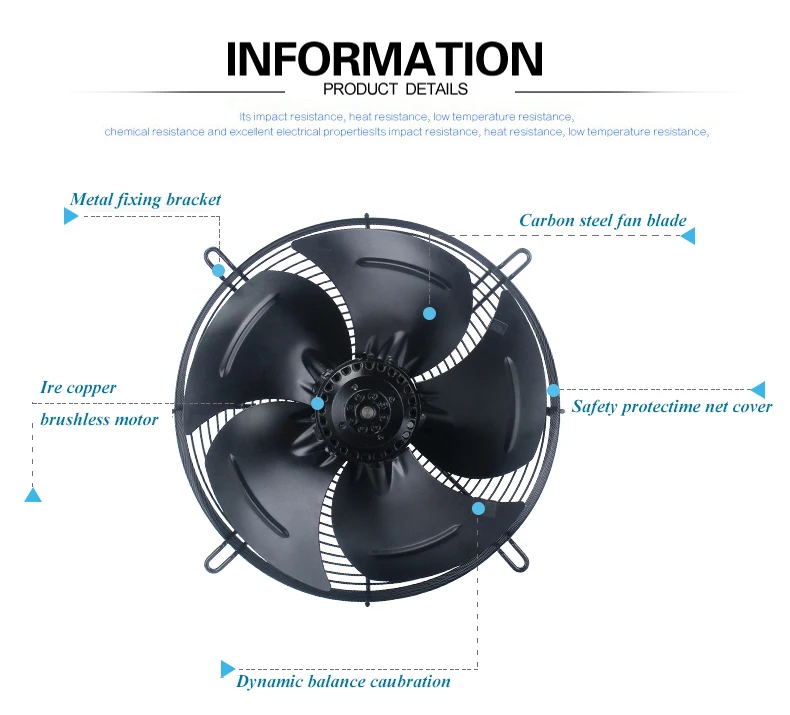

1, The fan blade is designed with advanced aerodynamics, which makes the fan artistic and efficient. The fan rotor adopts double-sided dynamic balance. The dynamic balance achieves G6.3.

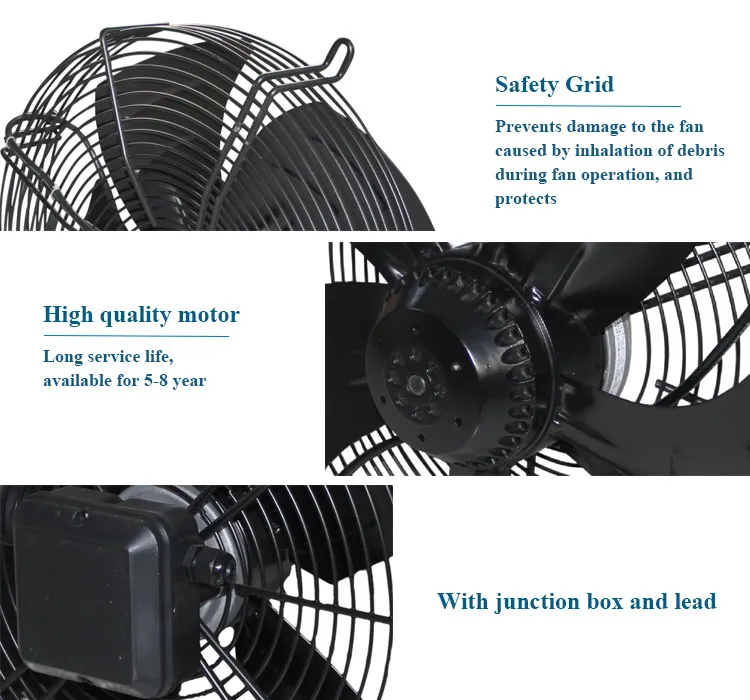

2, The fan blade rotor and grid are all powder sprayed are all powder sprayed. The surface is bright artistic and corrosion-resistant. The cover of the motor is also specially treated, which protects it from being oxidized and discolored.
3, The normal ambient temperature for the fan is -25 ℃ to 60℃. If the operating temperature exceeds this range, we can customize per customer’s requirements.
4, Currently, the insulation class we supply is B and F, and the protection class is IP54. The other available operating temperature is -40 ℃ to +60℃, -25℃ to +80℃. The motor can be equipped with thermal overload protector. We have launched axial fans with IP56 recently, whose structure was authorized the national patent. The new structure makes the fan applicable to high humid and poor working conditions.
5, we have two kinds of fan motors: single phase and three phase fan motor. For single-phase fan motor 220V/50Hz and 220V/60Hz are applicable. For three phase fan motor, 380V/50Hz and 380V/60Hz are applicable. Moreover, we can supply motors with special requirements, such as special voltage, dual voltage, etc.

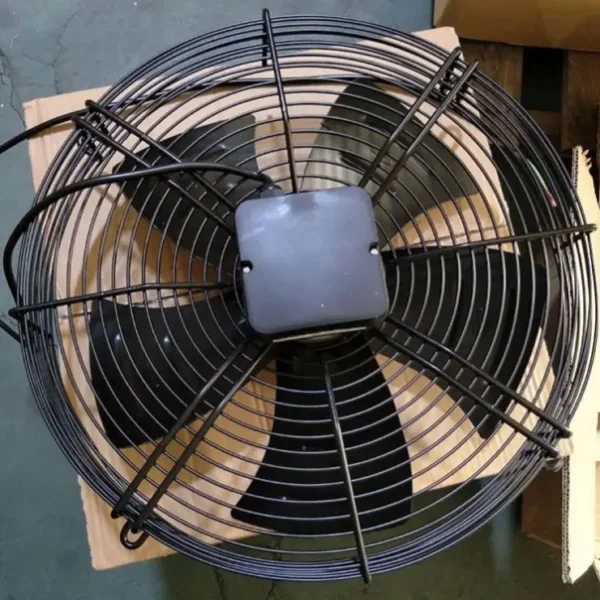

6. The wire of the fan can be directly leaded out, or we can also provide various kinds of water-proof connection box for customer’s selection.
| Axial Fan Motor | ||||||||
| Model | Diameter (mm) | Voltage (V) | Frequency (Hz) | Electri current (A) | Input power (W) | Rated speed r/min | Rated Airflow m³/h | Noise dBA |
| YWF4D-350 | 350 | 220/380 | 50 | 0.35 | 150 | 1390 | 3150 | 64 |
| YWF4E-350 | 220 | 50 | 0.7 | 150 | 1390 | 3080 | 64 | |
| YWF6D-350 | 220/380 | 50 | 0.31 | 93 | 940 | 2020 | 53 | |
| YWF6E-350 | 220 | 50 | 0.37 | 75 | 910 | 2110 | 52 | |

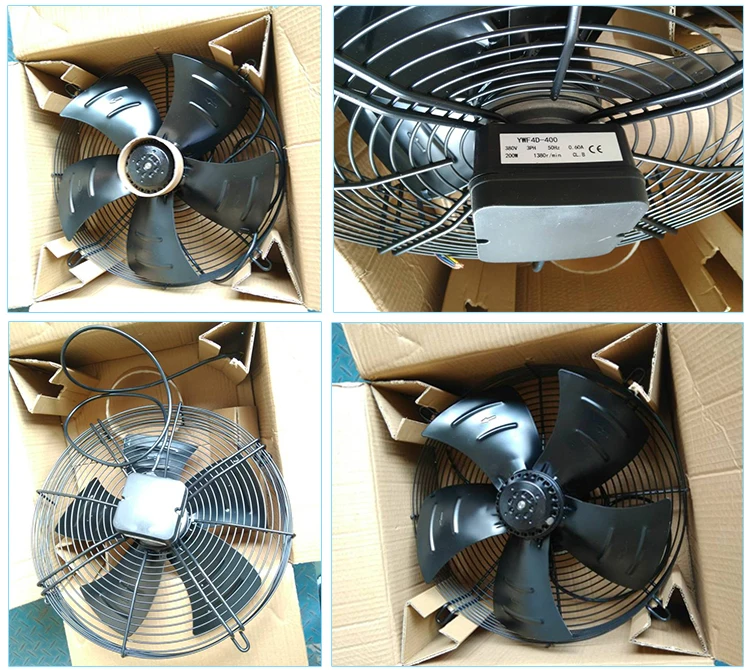

| YWF4D-400 | 400 | 380 | 50 | 0.49 | 180 | 1400 | 4200 | 68 |
| YWF4E-400 | 220 | 50 | 0.8 | 180 | 1400 | 4225 | 69 | |
| YWF6D-400 | 220/380 | 50 | 0.38 | 112 | 920 | 3250 | 58 | |
| YWF6E-400 | 220 | 50 | 0.45 | 110 | 930 | 3260 | 56 | |
| YWF4D-450 | 450 | 380 | 50 | 0.58 | 250 | 1300 | 5380 | 68 |
| YWF4E-450 | 220 | 50 | 1.45 | 320 | 1350 | 5600 | 73 | |
| YWF6D-450 | 220/380 | 50 | 0.42 | 155 | 900 | 4700 | 60 | |
| YWF6E-450 | 220 | 50 | 0.85 | 165 | 950 | 4670 | 60 | |
AIR FLOW TEST METHOD:
The air flow curves of our fans are strictly measured with the wind room developed and provided by the Air-cooling technology Institution of Shanghai Jiao Tong University. The data is accurate and reliable, conforming to GB/T 1236-2000 and <<Industrial fans-performance testing using standardized airways>> in ISO 5801-2007 standards. Customers need to take into consideration loss of flow based on the installation of the fans, when choosing models.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by PENPOS Technology Co., Limited, based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full PENPOS Technology Co., Limited range on HVACR Nexus.
See more in External Rotor Motors on HVACR Nexus.
