This external rotor motor is published with the manufacturer’s full specification — 12V, type Brushless Motor. Made by Shenzhen Lc Dynamics Technology Co., Ltd. (3 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This External Rotor Motor
- Model Number: PM2806
- Rated Power: 9.7W
- Rated Voltage: 12V
- Speed Rpm: 950RPM
- Speed(RPM): 950RPM
- Maximum Rotational Speed: 950RPM
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | 9.7W |
| Speed Rpm | 950RPM |
| Speed(RPM) | 950RPM |
| Efficiency | IE 1 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Frame | YES |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Drip-proof |
| Usage | Camera, drone, camcorder, gimbal |
| Warranty | 3 Months |
| Continuous Current(A) | 0.81A |
| Model Number | PM2806 |
| Torque | 0.06N.m |
| Place Of Origin | Guangdong, China |
| Brand Name | LC |
| Product Name | PM2806 brushless DC motor |
| Rated Voltage | 12V |
| Current Rating | 0.81A |
| Maximum Rotational Speed | 950RPM |
| Stall Current | 1.22A |
| Motor Type | BLDC Brushless Motor |
| Typical Applications | Camera, gimbal, camera, handheld device |
| Encoder Type | AS5048A/AS5600 |
| Motor Weight | 45g |
| Working Temperature | 20~80℃ |
| Selling Units | Single item |
| Single Package Size | 15X14X7 cm |
| Single Gross Weight | 0.15 kg |
Product Details

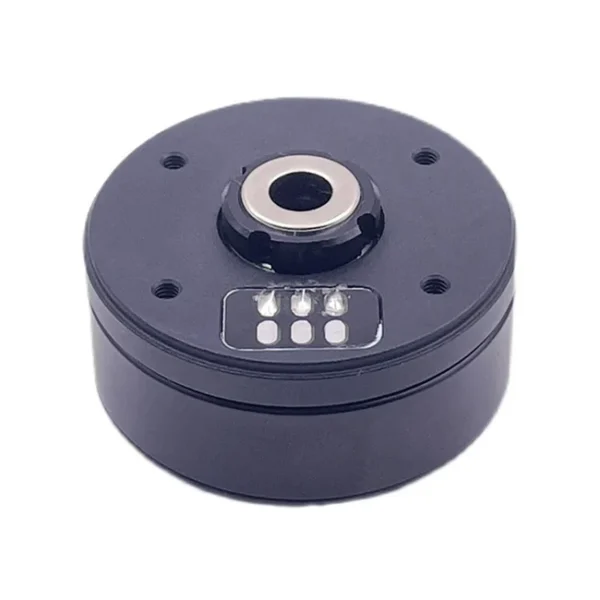

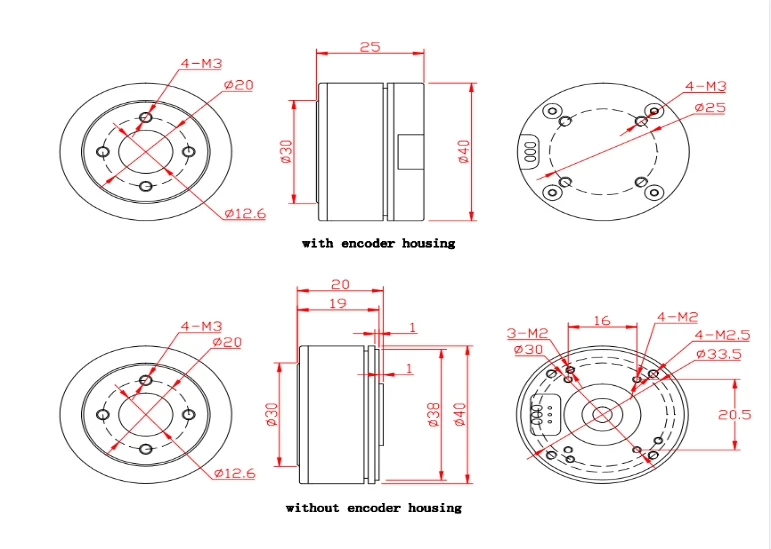

—PM2806 gimbal motor with a micro size of 40 * 25mm: designed specifically for compact gimbal frames with limited space.
—Lightweight: The motor without an encoder weighs 45g, while the one with an encoder weighs 55g, which helps to reduce the overall weight of the installation equipment.
—Can be equipped with encoder: AS5048A (14Bit)/AS5600 (12Bit) encoder can be equipped to achieve more accurate control and feedback of motor position and speed.
application：
1、Camera gimbal: A handheld or mounting camera gimbal suitable for use with miniature digital SLR cameras, GoPro action cameras,and other small imaging devices. It helps to maintain camera stability during the shooting process, achieving smooth and shakefree lenses.
2、Drone gimbal: In small and medium-sized drones, it can stabilize onboard cameras or other payloads, ensuring high-quality aerialphotography and videography.
3、Robots: Achieve precise and stable motion in some small robotic arms or gimbal mechanisms.

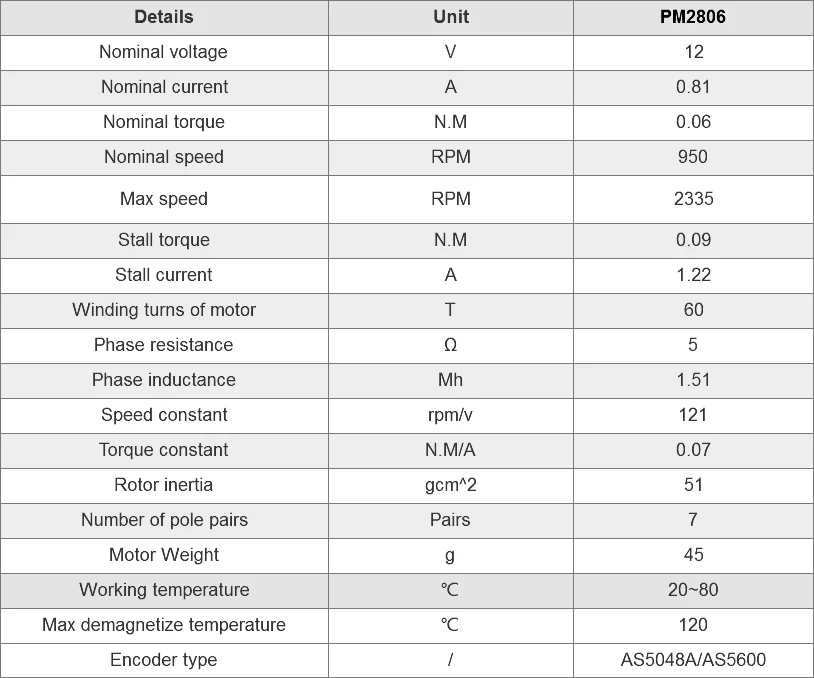

item | value |
Nominal voltage | 12V |
Nominal current | 0.81A |
Nominal torque | 0.06N.M |
Nominal speed | 950RPM |
Max speed | 2335RPM |
Stall torque | 0.09N.M |
Stall current | 1.22A |
Winding turns of motor | 60T |
Phase resistance | 5Ω |
Phase inductance | 1.51mH |
Speed constant | 121rpm/v |
Torque constant | 0.07N.M/A |
Rotor inertia | 51gcm^2 |
Number of pole pairs | 7Pairs |
Motor Weight | 45g |
Working temperature | 20~80° |
10+YEARS INDUSTRIAL EXPERIENCE
With over a decade of industrial expertise, we are committed to delivering scientific, reliable, and cost-optimized motion
solutions for global clients.
Core Competencies
* Deep Industry Knowledge: 10+ years in R&D, sales, and service of DC motors.
* End-to-End Solutions: From design to after-sales support, tailored to your needs.
* Collaborative Approach: Grow with customers through win-win partnerships.
Main products:
*Robotic Joint Motors
*Custom Motor Drivers
*Magnetic encoders for position/speed feedback…
Warmly welcome customers all over the world to grow up with us,win-win cooperation and create brilliance.
Contact:
Bela Li
lcdynamics667@163.com
Whatsapp/Wechat:18123644937
Tel:86 0755 89661875
A After price confirmation, you can require for samples to check our product's quality. If you just need a blank sample to check
the design and quality. We will provide you sample for free as long as you afford the express freight.
Q What can I get the price?
A We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your
email so that we will regard you inquiry priority.
Q What is your term of delivery?
A We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choosethe one which is the most convenient or cost effective for you.
Q What about the lead time for the mass production?
A Honestly, it depends on the order quantity and the season you place the order.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor motor?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Months warranty. Spare parts and technical support remain available after the warranty period.
Can the external rotor motor be supplied for my local voltage?
The standard configuration is 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
