The external rotor motors listed here carries 48V, power range 500~1000w, documented exactly as the manufacturer publishes it. Made by Guangzhou Ruibao Electrical Co., Ltd. (18 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These External Rotor Motors
- Model Number: 50BLDC-0022
- Power Range: 500~1000w
- Rated Voltage: 48V
- Speed(RPM): 3000 rpm
- Warranty: 3 months ~ 1 year
- Place Of Origin: Guangdong, China
Technical Specifications
| Commutation | Brushless |
|---|---|
| Speed(RPM) | 3000 rpm |
| Efficiency | IE3 |
| Type | Micro Motor |
| Construction | Permanent Magnet |
| Protect Feature | – |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 9A |
| Model Number | 50BLDC-0022 |
| Torque | – |
| Place Of Origin | Guangdong, China |
| Brand Name | RB |
| Product Name | electric motor/ bldc motor |
| Motor Type | BLDC Brushless Motor |
| Rated Voltage | 48V |
| Keywords | DC+Motor |
| Power Range | 500~1000w |
| Weight | 0.468 KG |
| Motor Diameter | 50mm Round shape |
| Diameter | 50mm*50mm |
| Color | Black |
| Noise | Quiet |
| Packaging Details | foam + box, safty package |
| Port Of Dispatch | Huangpu Port |
| Selling Units | Single item |
| Single Package Size | 8X8X10 cm |
| Single Gross Weight | 0.6 kg |
| Supply Ability | 6000 pieces per Month |
Product Details
Motor Name: 50BLDC
Motor size: 50mm*50mm

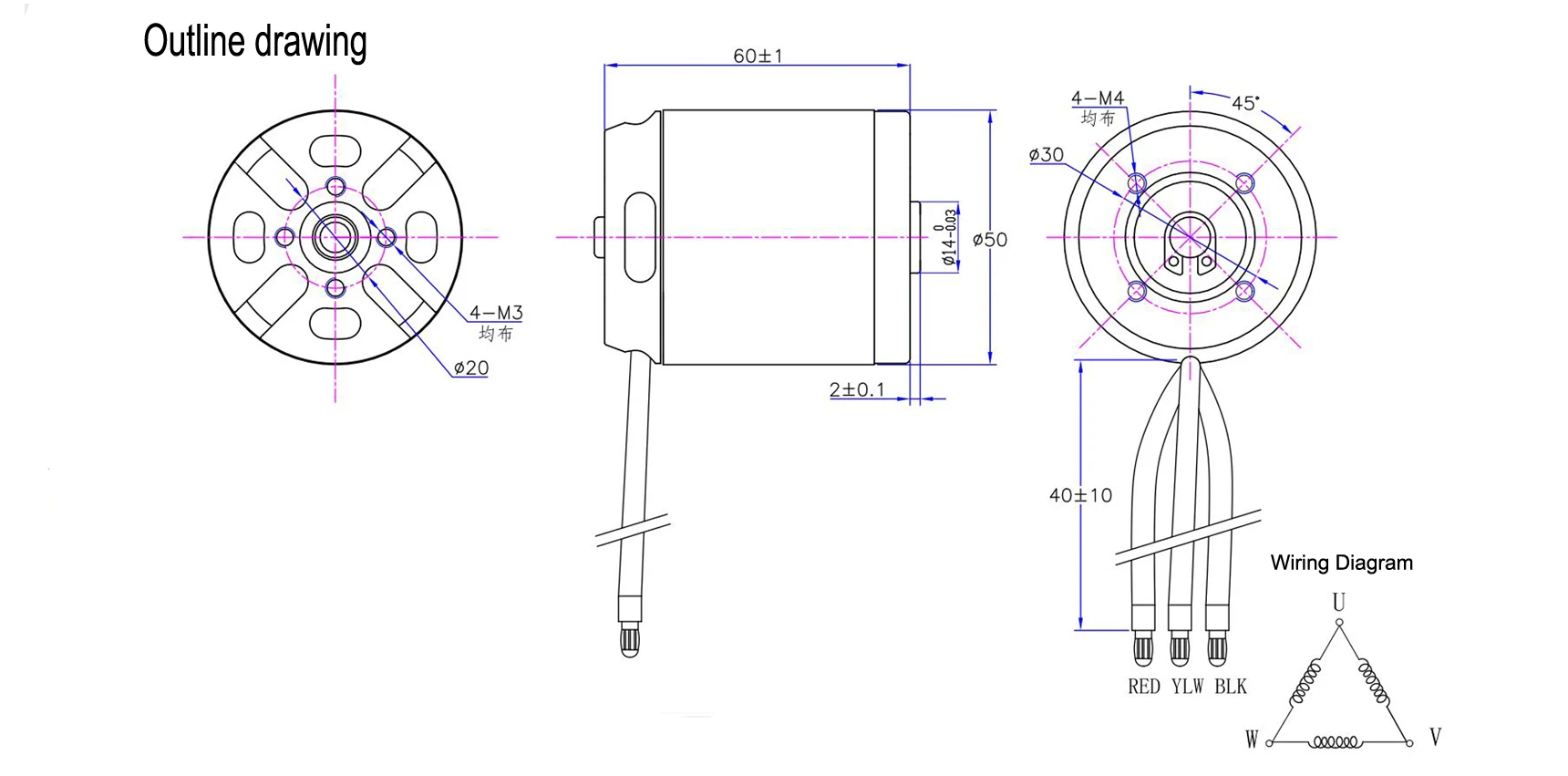

The Outline Drawing of this DC+motor:
Technical Parameter of this DC+Motor
|
Model No.
|
Rated Voltage
|
Winding Resistance/phase(20℃)
|
Winding Inductance/phase(1KHz)
|
Unloaded Speed
|
Back-EMF
|
Rated Torque
|
Rotor Inertia
|
number of pole-pairs
|
Body length
|
|
Unit
|
DC V
|
Ohm ±20%
|
mH ±20%
|
RPM
|
Vrms/Krpm
|
N.m
|
g.cm²
|
mm
|
|
|
50BLDC6001
|
48
|
0.04
|
0.03
|
3000
|
5.6
|
–
|
603
|
7
|
60
|

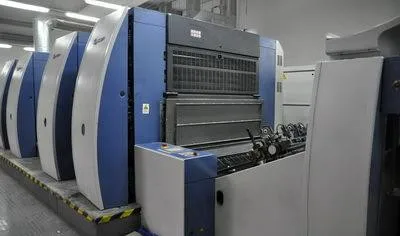

Widely applied to large printing equipment, aeromodelling, industrial industry, food processing equipment, household appliances and drone.

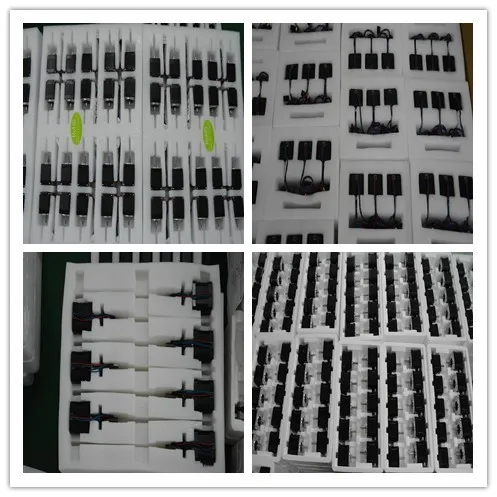

Our most professional packaging according the size of our stepper motor
Stable and safety carton box
Safety transportation
ISO9001 RoHS CE CE
Q: Can i get more details and a better price?
A: Yes, please contact us firstly, thanks!
Q: Are you a trading company or manufacturer ?
A: We are a motor manufacture owned a over 10,000 square meters factory in Guangzhou, China.
Q: How long will the delivery time take?
A: Generally it will spend 5~12 days for samples and 15-25 days for production. it is according to the quantity you need.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we need to charge the sample cost and shipping fee, but a benefit can be given in your formal order. For example, $50 sample fee+ $30 shipping fee, $50 the most can be a benefit and be deducted in your formal order.
Q: What is your terms of payment ?
A: Sample order finish payment totally before shipment;
30%-50% payment when formal order confirmed and balance before shipment.
Q: How can I place a order?
A: Please contact us firstly, we need to confirm the details and provide a outline drawing which included the technical parameter to you to check first, then we will arrange to produce after your approval.
We will give you the reply within 4 hours in work day, please do not hesitate to contact us!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $42 / piece
- 100+ piece: US $37 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor motors?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the external rotor motors be supplied for my local voltage?
The standard configuration is 48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
