The extractor listed here carries 220V, air flow 190m³/h, documented exactly as the manufacturer publishes it. Made by Shenzhen Hongguan Mechatronics Co., Ltd. (14 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Extractor
- Model Number: HMA-100A
- Power Source: Electric
- Power: 45W
- Voltage: 220V
- Air Flow: 190m³/h
- Blade Material: Plastic
Technical Specifications
| Fan Type | Centrifugal Fan |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Voltage | 220V |
| Blade Material | Plastic |
| Material | Plastic |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Control Methods | / |
| Customized Support | OEM, ODM |
| Mounting Type | Wall Fan |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | Hon&Guan |
| Model Number | HMA-100A |
| Power | 45W |
| Current | 0.4A |
| Frequency | 60Hz |
| Speed | 900RPM |
| Air Flow | 190m³/h |
| Air Pressure | 178Pa |
| Color | White |
| Selling Units | Single item |
| Single Package Size | 45X40X28 cm |
| Single Gross Weight | 5.0 kg |
Product Details
Product Description

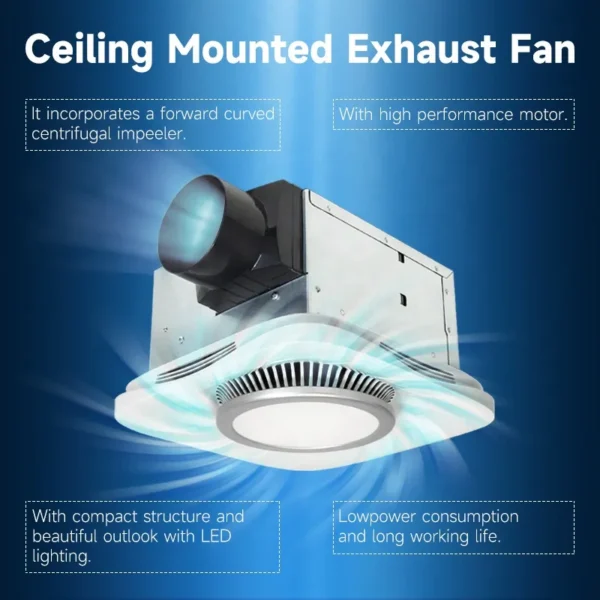

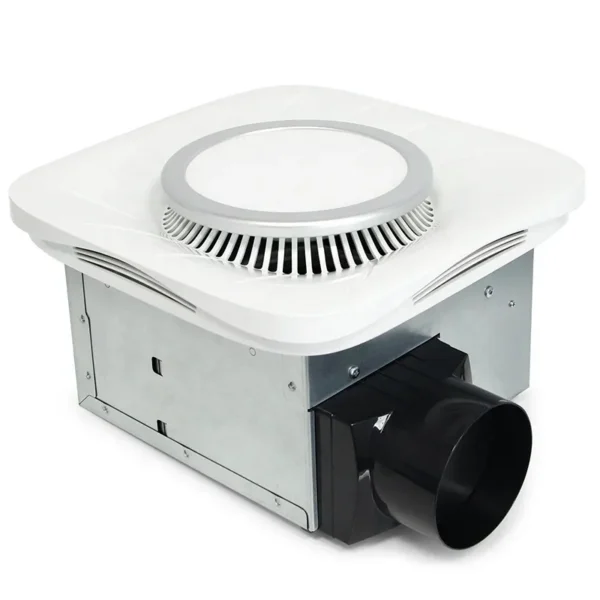

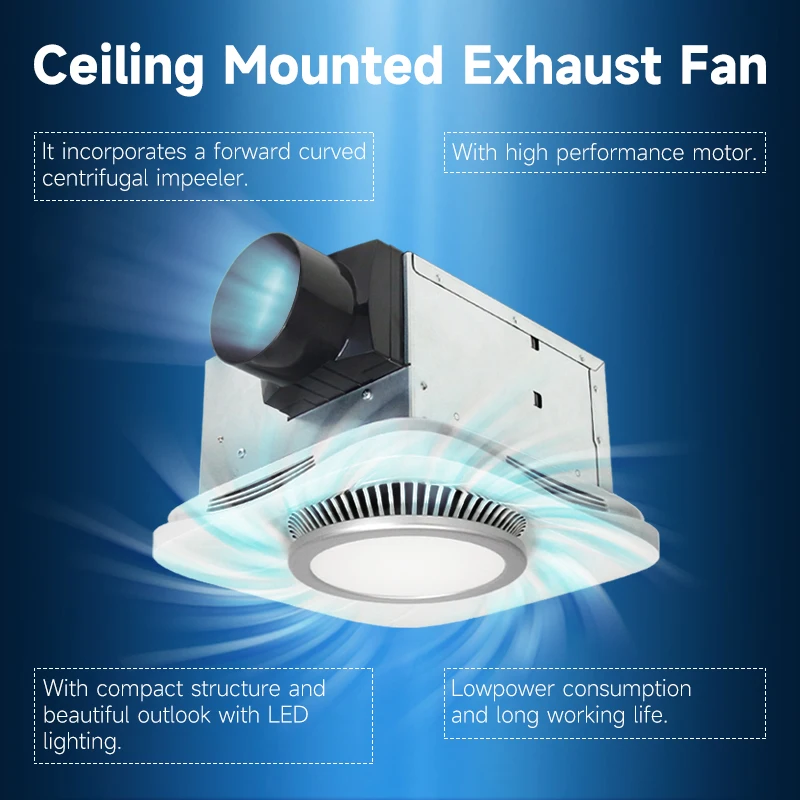

Ceiling mounted exhaust fan
1.This fan is with compact structure and beautiful outlook with LED lighting.

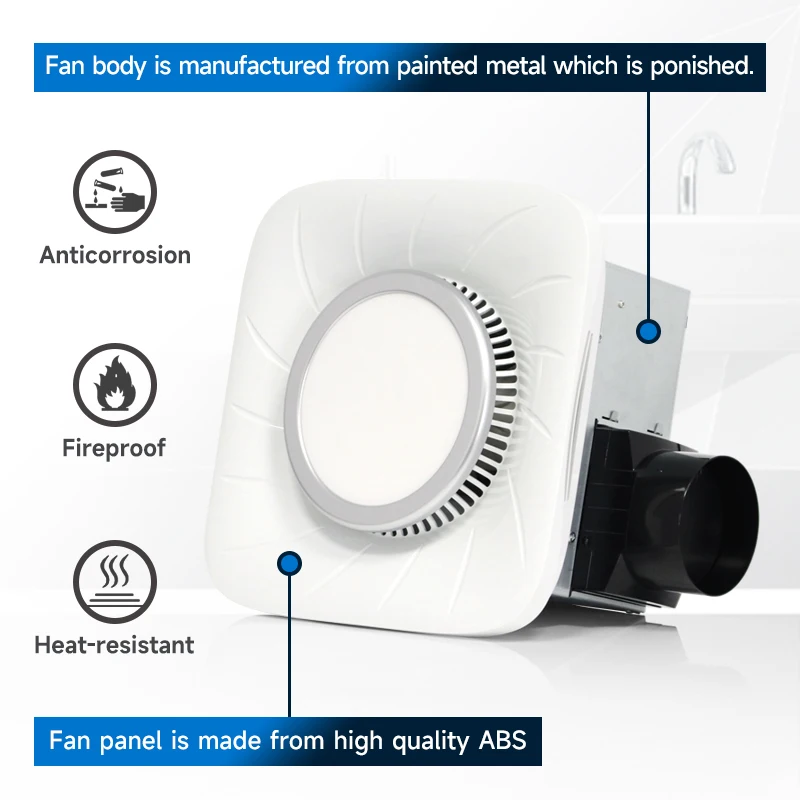

2.The fan body is manufactured from painted metal which is polished,anti corrosion, fireproof and heat-resistant.Fan panel is made from high quality ABS,with light weight but good strength,double insulation.
3.It incorporates a forward curved centrifugal impeller,with high performance motor,low power consumption and long working life.

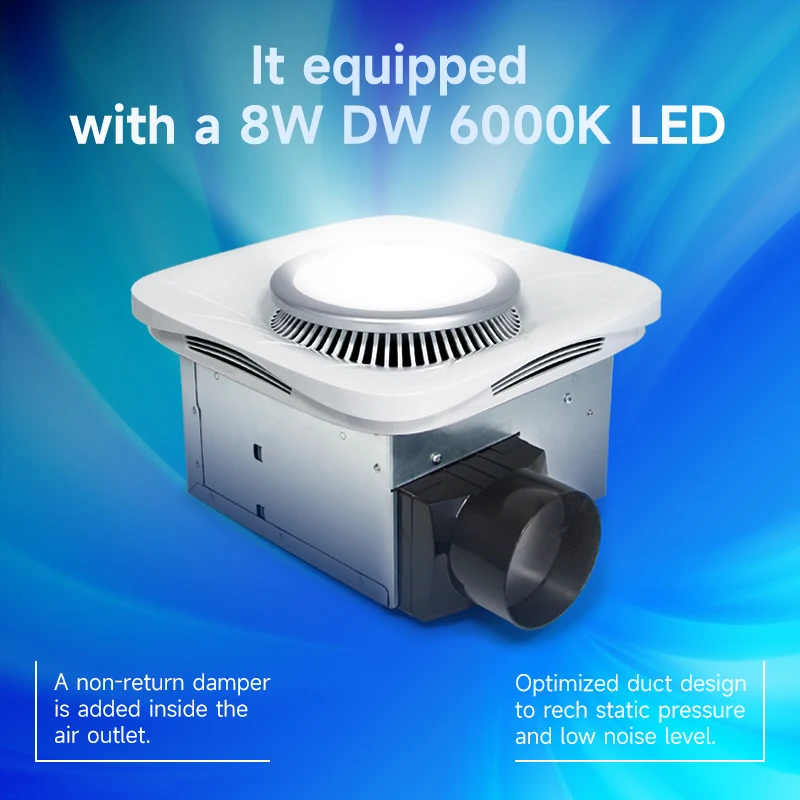

4.It's equipped with a 8W DW 6000K LED.
5.Optimized duct design to reach static pressure and low noise level.
6.A non-return damper is added inside the air outlet.

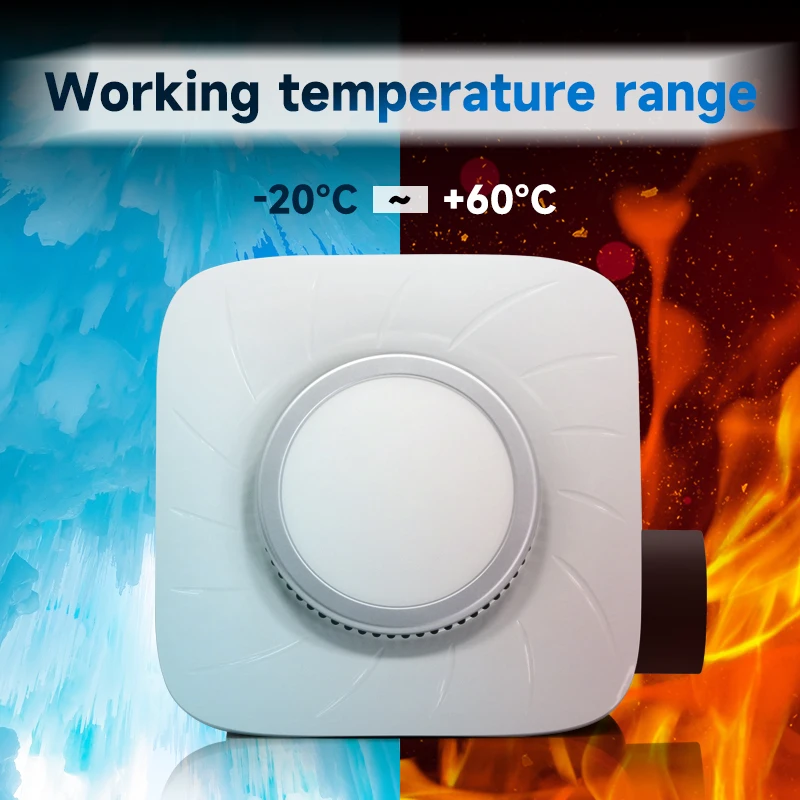

7. working temperature range:-20℃+60℃.
Adapted to bathroom,meeting room,dining-hall,shopping mall,hotel,restaurant or other residential, comerical buildings where ventilation is requested.
Product Parameters
Model No | Voltage/Frequency(V/Hz) | Current(Amps) | Power(W) | Speed(RPM) | Airflow(m³/h) | Air Pressure (Pa) | Noise(dB) | Net Weight (kgs) |
HMA-100A | 110/60 | 0.4 | 45 | 900 | 190 | 178 | 35 | 0.8 |
Why Choose Us
1. Product Material Quality Assurance
Our product materials are more advanced or durable than other manufacturers' products, using environmentally friendly plastic. 2. Long product life cycle Our fan has a service life of over 50000 hours, Japanese NMB bearing. 3. Energy conservation and environmental protection Our products have the advantages of energy conservation and environmental protection, such as low energy consumption, low noise, and effective reduction of air pollution. 4. Customization The advantage of customized services is to customize air volume, voltage, etc. according to customer needs. 5. Safe and reliable If the product has high safety and reliability, such as using special anti-corrosion, explosion-proof materials or high-quality components.OEM Service
Can I customize other parameter specifications?
Please send us an inquiry and let us know the specifications you need. We are a factory that accepts customization. OEM/ODM.
About us
HongGuan pursues the most cost-effective solutions to meet market demands. Our quality as well as each technical performance index reaches an advanced level in the world. The products have many properties, such as nice appearance, compact structure, finely processed, high wind pressure, large air flow, light weight, thin in depth, low noise, long service life, high adaptability to environment, low price and good reliability, which are favored by customers. They are very popular in Europe, North America and South Asia. Our products are widely used in computer information industry, network communication industry, industrial production equipment, medical equipment, home appliance, etc.
HongGuan advocates and tries to practice the modern enterprise management idea, to own the most advanced production and testing equipment, to build the first-class management, research and development and sales teams, and to achieve the goal of "a great variety of goods, reliable quality, timely delivery and good service".
HongGuan regards "Quality First" as the management policy, and always adhere to the idea of "Customers First and Service First" to build HongGuan Mecchatronics brand. Your satisfaction is always HonGuan's pursuit.
HongGuan's service tenet: Good faith cooperation to create interest. Your satisfaction is our pursuit.
3D Showroom
VR
Packing & Delivery
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(55.00%),North America(15.00%),Eastern Europe(10.00%),Oceania(10.00%),Western Europe(10.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Ventilation Fans,Duct Fans,Exhaust Fans,Fresh Air System
4. Why should you buy from us not from other suppliers?
Leading manufacturer of fans, including inline duct fan, ac fan and dc fan. The in line duct fan has been patented.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2010,sell to Domestic Market(55.00%),North America(15.00%),Eastern Europe(10.00%),Oceania(10.00%),Western Europe(10.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Ventilation Fans,Duct Fans,Exhaust Fans,Fresh Air System
4. Why should you buy from us not from other suppliers?
Leading manufacturer of fans, including inline duct fan, ac fan and dc fan. The in line duct fan has been patented.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Ordering and Pricing
- Minimum order quantity: 5 piece
- Volume pricing:
- 5–49 piece: US $55 / piece
- 50–99 piece: US $50 / piece
- 100+ piece: US $45 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this extractor?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the extractor be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
