Fan, 3-Row, 1200CFM, 11.2kw, 3-speed

The fan listed here carries power supply 220-240v /1ph/50Hz, airflow 172-2380m³/h, documented exactly as the manufacturer publishes it. Made by Beijing Midea Overseas Engineering&technology Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Fan

• Power Supply: 220-240v /1ph/50Hz
• Power Input: 23-291W
• Operating Voltage: 220-240V
• Cooling Capacity: 1.5-13Kw
• Heating Capacity: 2.15-22.16Kw
• Airflow: 172-2380m³/h

Technical Specifications

Product Details

Product Presentation

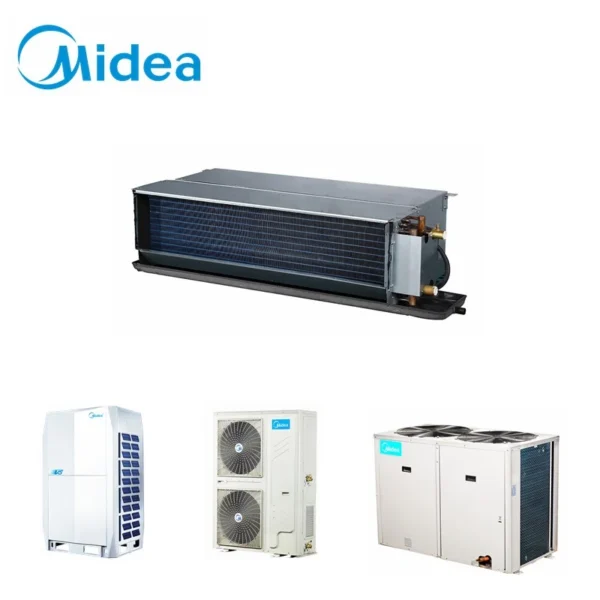

Midea HVAC Building Technologies Heat Pump for small to large buildings

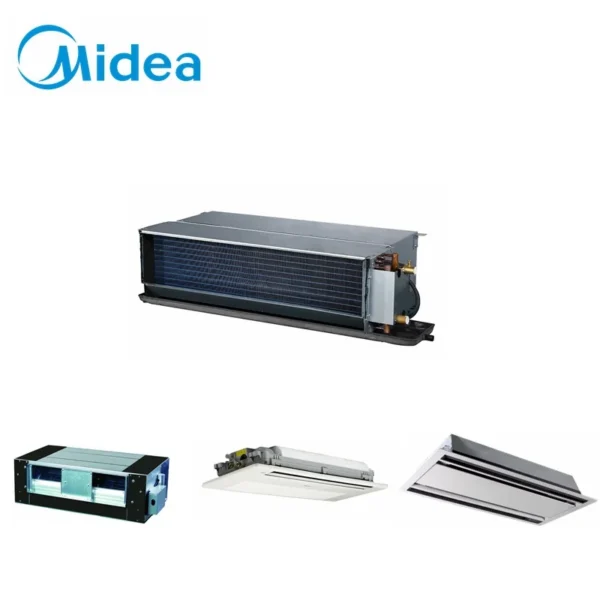

Fan coil units Duct series

Midea fan coil units are divided into ceiling exposed type, ceiling concealed type, wall-mounted type and floor-standing type according to their structure, design and installation method. The air volume ranges from 150CFM to 2200CFM
(255m3 /h~3740m3 /h). It is a highly versatile product suitable for hospitals, office buildings, hotels, airports and
various other applications.

Why Choose Us

1.Experience

Over 50-years Experience in Air

Conditioning/HVAC System. With more than 50 years of experience, we have successfully completed dozens of large-scale HVAC projects and have a deep understanding of global HVAC projects.

2.Professional design

We have a professional design team, can provide you with a suitable AC plane design according to your architectural plan, we will provide you with the most suitable design

scheme.

3.Professional selectoion

According to the different design scheme, we will choose the most suitable design scheme for you from a more professional perspective.

4.Providing One-Stop Solution of HVAC System

We can provide one-stop service, which will save you a lot of money and time. Indoor units and outdoor units, control system, installing accessories, tools and Supply HVAC all materials, including air conditioners, ventilation, installation accessories, etc.

5.Technical Support

We can provide HVAC commissioning service. Air conditioner project engineers can guide and supervise product installation on site.

6.After-sales service

We have Global After-Sales System with expertise installation service. Ensure your after-sales worry-free.

Product Line

Produc name	Fan coil units AC/DC 2-Pipe/4Pipe Duct series
Type	2-Pipe  (2/3/4 Row ) Duct			4-Pipe Duct
Power supply	220-240V/1Ph/50Hz			220-240V/1Ph/50Hz
Air flow(H/M/L)	170-2380m³/h     100-1400CFM			170-2380m³/h      1001400CFM
Heating capacity	2.37-21Kw			2.22-15.5Kw
Cooling capacity	1.52-21Kw			1.52-11.5Kw
Ciol row	2/3			2/3

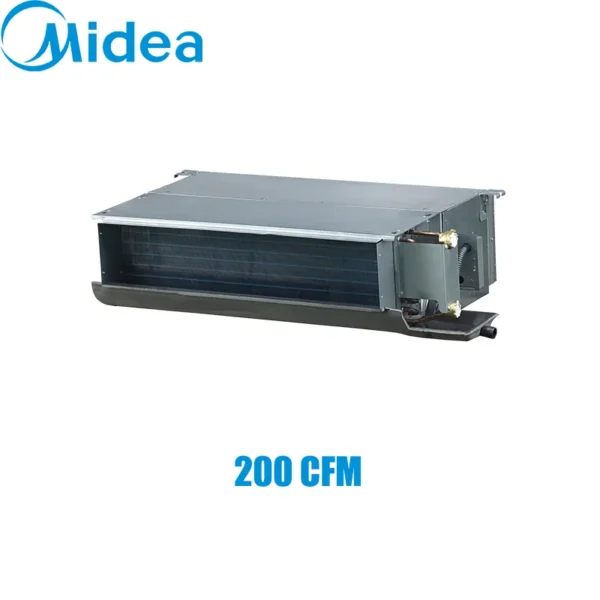

Duct series

—Slim, compact design for limited space with duct distribution to the indoor space.

Features

—2, 3 or 4 row for 2-pipe system and 3 row can be customization for 4-pipe system.
—Versions for standard, A4 and large difference temperature type.
—Washable filter: Iron frame filter is standard, and aluminum frame filter can be customized.
—Compatible with two types of air return: Back return is standard, bottom return is optional.
—Left or right hand piping connections are easily change in filed.
—Available for fresh air intake.
—EAH is optional (for 2-Row, 3-Row, 4-Row Duct).

1.Flexible Installation

—Left and right hand piping connections are optional, flexible installation

2.Compact Size

—All the units are 241mm hight, easy for limited space to installation.

3.Flexible Air Inlet Port Installation

—To provide the flexibility to adapt to differing installation situations, the air inlet may be positioned either on the under side or the rear of the unit.

––pan are optional to protect the ceiling from moisture.

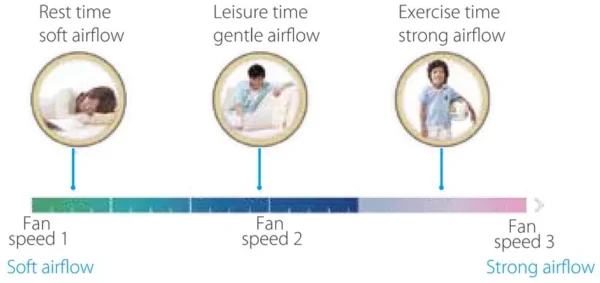

4.Multiple Fan Speeds

—The AC/DC Series comes with 3 fan speed option to meet the needs of different indoor conditions.

5.Control solutions

—The duct series controlled by Wired controller, Central controller or BMS need to be customization FCU KIT.

6.Fresh Air Intake

—A reserved outside air intake port allows outdoor air to be induced directly into the unit, negating the need for a separate ventilation system.
—Knock out hole is available in the unit.
—Accessories such as booster fan must be supplied on field and installed.

7.Washable filter

—Iron frame filter is standard, and aluminum frame filter can be customized.
—Air outlet flange and multi-direction pull-out filter can be customized.

7.Certifications and Authorization

IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification

How to get a quick quotation?

Information needed Midea Group's management system before prepare quotation details for you.

1.Project name :building name or building type, such as ××× office project, residential house project etc.

2.Project accurate address;

3.Your company contact information ＆ address；

4.Please provide product list or engineer drawing with product type marked.

5.When you expect to process purchase ＆ logistics for this project?

6.Is it tender project or not? Because tender project you may need our authorization letter.

Product packaging

We will use cartons and wooden cases to protect your goods from shock and try our best to ensure that your goods will not be damaged during transportation.
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container

Midea Product Show

We have a lot of successful project experience, you can trust to give the project to us.

Company Profile

Contact US

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–19 set: US $2400 / set
  • 20–29 set: US $1800 / set
  • 30+ set: US $1200 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 4 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the fan be supplied for my local voltage?

The standard configuration is 220-240V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Beijing Midea Overseas Engineering&technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Beijing Midea Overseas Engineering&technology Co., Ltd. range on HVACR Nexus.
