Fan — voltage – breakdown Not Applicable, type Polypropylene Film Capacitor. The complete factory specification follows. Made by Shantou Xin Hua Xiong Electronics Industry Co.,Ltd. (9 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan
- Model Number: CBB61
- Voltage – Breakdown: Not Applicable
- Voltage – Rated: 500VAC
- Rated Voltage: 200-500VAC
- Place Of Origin: Guangdong, China
- Application: FAN, fan capacitor
Technical Specifications
| Model Number | CBB61 |
|---|---|
| Brand Name | HBC KAY |
| Place Of Origin | Guangdong, China |
| Application | FAN, fan capacitor |

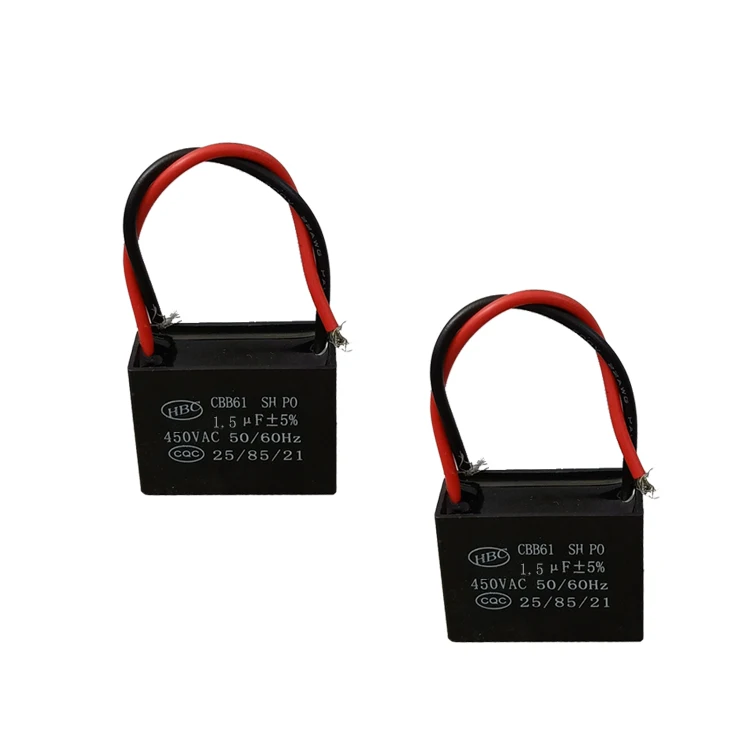

| Product Name | cbb61 1.5uf 450vac capacitor |
| Capacitance Tolerance | ±5% |
| Reference Standards | GB/T 3667.1 (IEC60252-1) |
| Climatic Category | 40/70/20, 40/85/21 |
| Class Of Operation | Class B (10000h) Class C (3000h) |
| Insulation Resistance | ≥3000MΩ.μF(100Hz,20℃,1min) |
| Capacitance | 0.4-20μF, 1.5UF |
| Type | Polypropylene Film Capacitor |
| Supplier Type | Original manufacturer |
| Media Available | datasheet |
| Package Type | Through Hole |
| Circuit Type | Not Applicable |
| Voltage – Breakdown | Not Applicable |
| Operating Temperature | -40°C- +85°C |
| Specifications | 1.5UF 450VAC |
| Applications | fan capacitor |
| Tolerance | ±5% |
| Voltage – Rated | 500VAC |
| Temperature Coefficient | +85°C |
| Rated Voltage | 200-500VAC |
| ESR (Equivalent Series Resistance) | ≥3000 |
| Current – Leakage | 450VAC |
| Capacitance Range | 0.4UF-20UF |
| D/C | 20200505 |
| Impedance | ≥3000 |
| Packaging Details | Customized carton |
| Selling Units | Single item |
| Single Package Size | 4X2X3 cm |
| Single Gross Weight | 0.014 kg |
Product Details

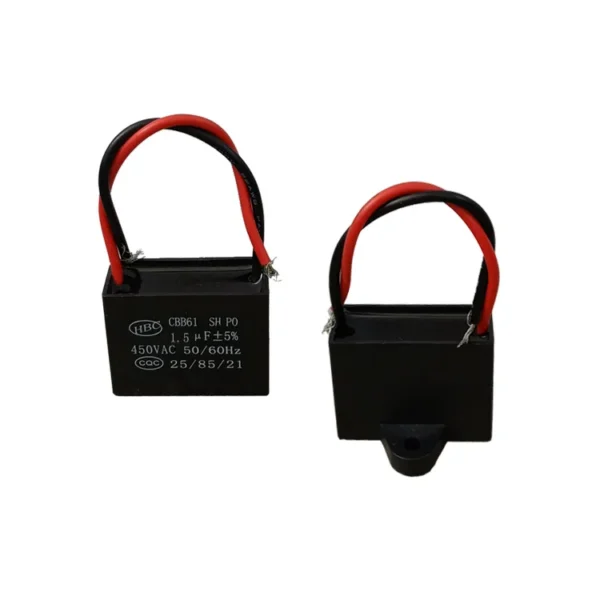

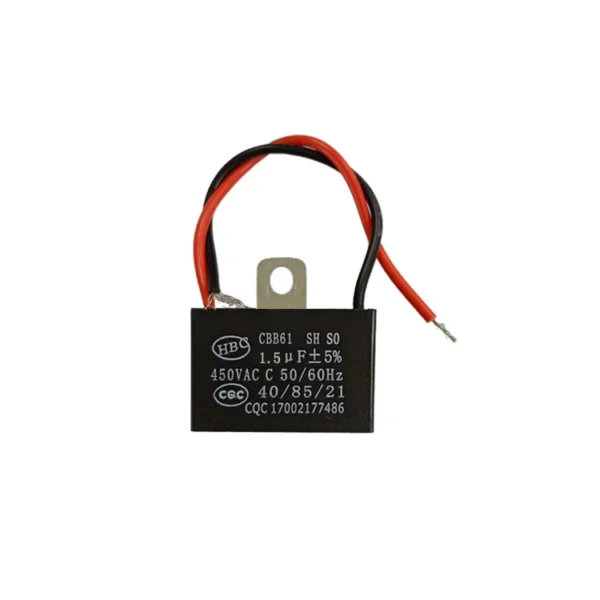

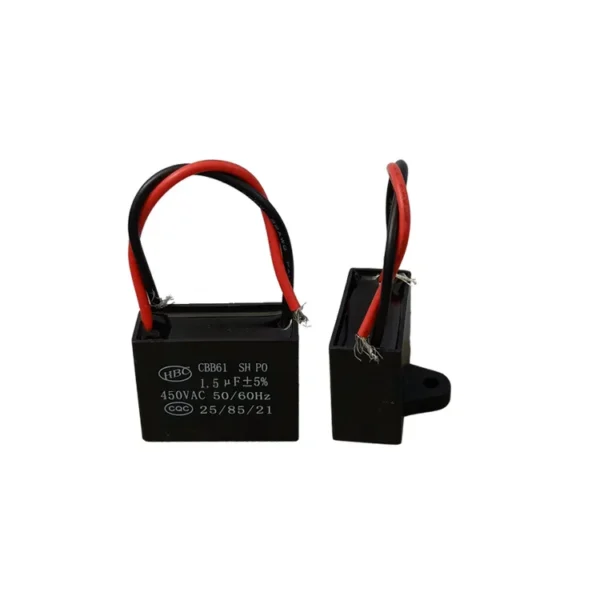

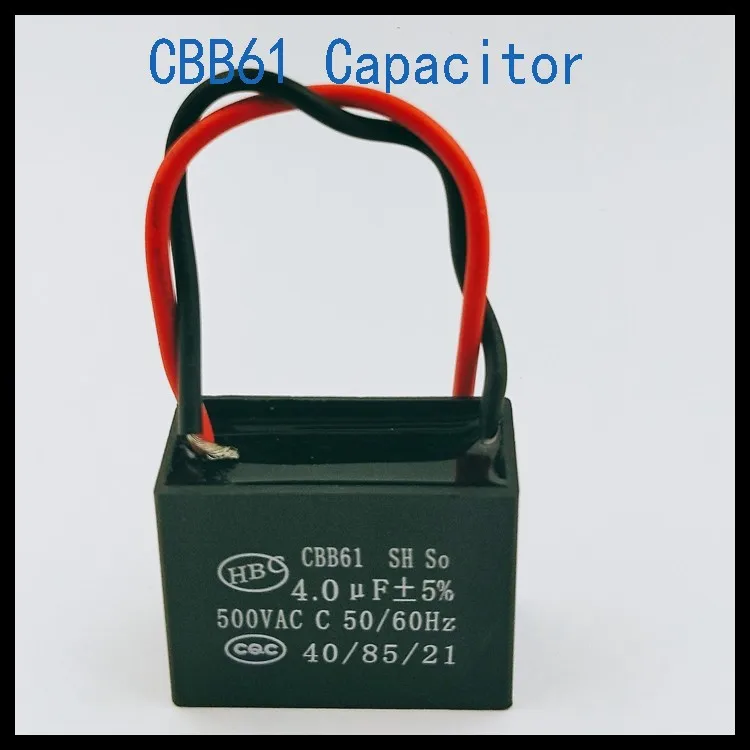

CBB61 COHERER POLYPROPYLENE CAPAClTORS SERlES
Main Feature:Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
Applications:
Used widely in washing machine,water pump,air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.
Rated Voltage | 400VAC/450VAC 50/60Hz |
Class of operation | Class C |
Capacitance Range | 0.4µF~20µF |
Climatic Category | 40/85/21 |
Voltage Proof Between Terminals | 2.0UN(2S) |
Voltage Proof Between Terminals And Case | 2.0UN+1000VAC≤2000VAC(60S) |
Capacitance Tolerance | ±5% ±10% |
Dissipation Factor | ≤0.0020 ( 20℃ 100HZ) |
Insulation Resistance | ≥3000 S |
Maximum Permissible Voltage | 1.1UN |
Maximum Permissble Current | 1.3 IN |
Class of safety Protection | S0 (P0) |
Which type you need?
Q: Are you trading company or manufacturer ?
A: We are the professional factory in China.
Q: What is the material of your products?
A: The material is metallized film for capacitors used Grade A+. We can also choose material as customers' requirement.
Q: How can us get some samples?
A: We are honored to offer you samples. if you need!
Q: How does your factory do regarding quality control?

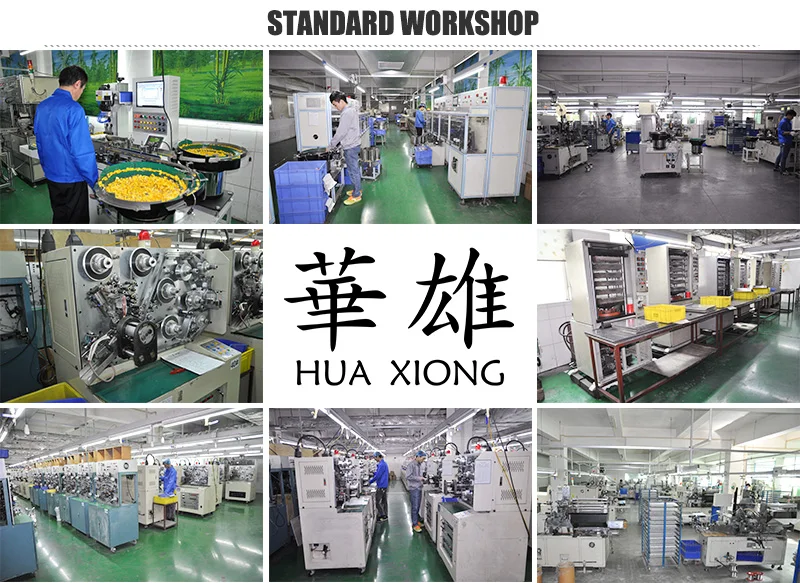

A: "Quality is priority. All people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9000;SGS authentication,We are the National High-Tech Enterprise.We have the professional technical personnel team,advanced equipments;Skilled production technology by fifteen years.
Q: What is the delivery time?
A: Normally,the time is 7~30days as we can;we must do our best to do it much quickly.
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–999 piece: US $0.17 / piece
- 1000+ piece: US $0.15 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the fan be supplied for my local voltage?
The standard configuration is Not Applicable. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
