The fan listed here carries 5V~48V, airflow 6.3~14.5CFM, documented exactly as the manufacturer publishes it. Made by Shenzhen Ambeyond Technology Co., Ltd. (16 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Fan
- Model Number: AV-F7515HS/HB, AV-F7515MS/MB, AV-F7515LS/LB
- Voltage: 5V~48V
- Rated Voltage: 5v/12V/24V/48V
- Airflow: 6.3~14.5CFM
- Blade Material: Plastic
- Speed: 3000~6000RPM
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 5V~48V |
| Blade Material | Plastic |
| Electric Current Type | DC |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | AMB |
| Model Number | AV-F7515HS/HB, AV-F7515MS/MB, AV-F7515LS/LB |
| Product Name | 75x75x15 mm fan 12v |
| Size | 75x75x15mm |
| Rated Voltage | 5v/12V/24V/48V |
| Speed | 3000~6000RPM |
| Airflow | 6.3~14.5CFM |
| Bearing Type | Sleeve/Hydraulic/Two Ball |
| Function | 2PIN,3PIN,4PIN with FG,PWM,locked function |
| Application | projector,detector,filter,air purifier,led lights |
| MOQ | 1pcs 75x75x15 mm fan 12v |
| Packaging Details | 42x35x26cm, 150pcs, 14kg Double cartons with knife card or foam |
| Port Of Dispatch | shenzhen, shanghai, ningbo, guangzhou, beijing, qingdao, hongkong |
| Selling Units | Single item |
| Single Package Size | 7.5X7.5X1.5 cm |
| Single Gross Weight | 0.065 kg |
| Supply Ability | 3000000 pieces per Month 75mm blower fan |
Product Details

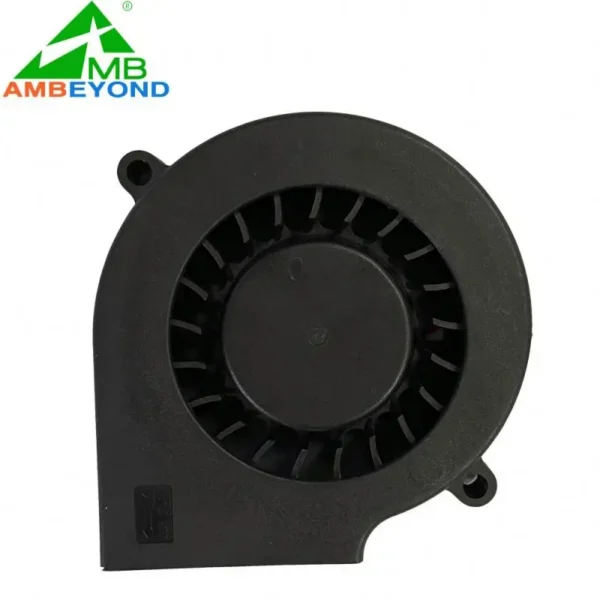

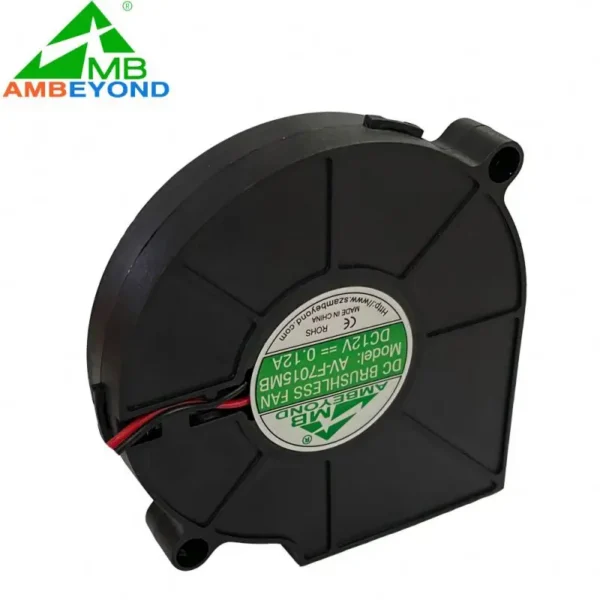

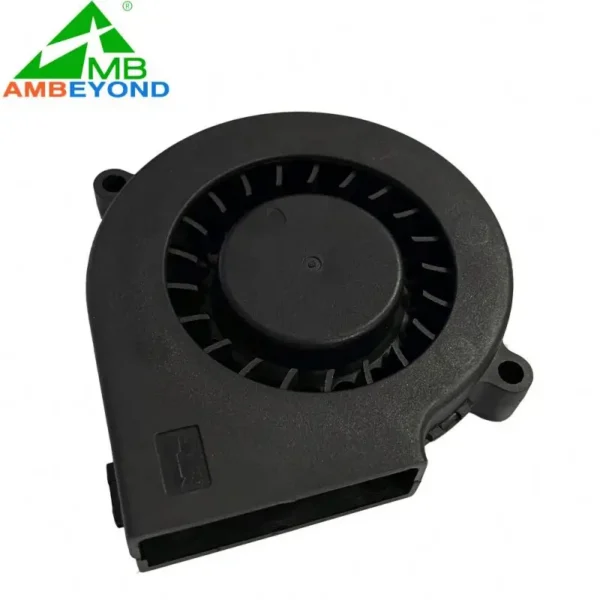

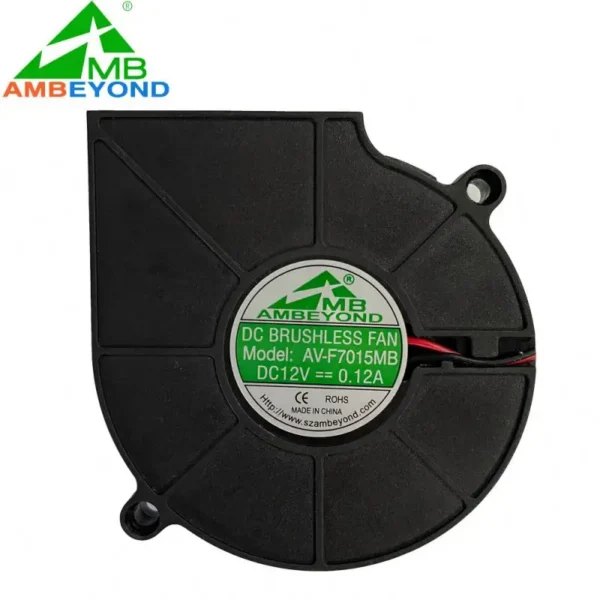

Fans 5515 Plug Dc Blower 5v 24v 7515 75mm Air Meter 75x75x15 Mm Fan 12v
Normal Performance Specification
1. Category: 75x75x15 mm fan 12v
2. Frame Size: 75x75x15mm, 75mm, 7.5cm of 75x75x15 mm fan 12v
3. Frame Material: PBT Plastic, UL94V-0
4. Blade: 7 Blades, PBT Plastic, UL94V-0
5. Bearing Type: Dual-Ball Bearing/Sleeve Bearing/Hydraulic bearing
6. Lead Wire: 200±10mm, AWG#26 UL1007 (+)Red (-)Black
7. Motor: 4 Poles DC Brushless Motor
8. Motor Protection: Impedance Protected, Reverse Polarity Protected, Thermal Protected (Auto Restart)
9. Weight: 240G of 75x75x15 mm fan 12v
10. Insulation Standard: Class A of 75x75x15 mm fan 12v
11. Waterproof Level: IP55, IP65, IP68
12. Insulation Resistance: Above 100MΩ, DC500V 60Hz one minute (Between Lead Wire and Frame)
13. Operating Temperature: -10°C~70°C (35%~85%RH)
14. Storage Temperature: -40°C~70°C (35%~85%RH)
15. Life Expectancy: (Dual Ball Bearing) 50000hrs at 25 degree
Life Expectancy: (Sleeve Bearing) 30000hrs at 25 degree
16. Available Function: FG, RD, PWM, Waterproof, Thermal Control, Auto-Restart
18. Application: 1. Home appliance 2. Kitchen 3. Car industry 4. Telecom 5. Medical Equipment 6. UPS Power 7. LED Lighting 8. Computer Case 9. CPU 10. Safty Equipment 11. Office Electrics 12. SUP Power 13. Communication 14. Printing Equipment…
19. OEM Service: Acceptable of 75x75x15 mm fan 12v
20. Sample Service: Sample Can Be Free, but are Suggestsd Paying For Freight.
21. Quality Assurance: 24 Months
22. Item Condition: Brand Original New
| Model | Bearing Type | Rated Voltage/VDC | Current /A | Speed /RPM | Airflow /CFM | Noise /dBA | Weight /g |
| AV-F7515HS/HB05 | sleeve/two ball | 5 | 0.60 | 5000 | 10.5 | 42 | 65 |
| AV-F7515MS/MB05 | sleeve/two ball | 5 | 0.40 | 4000 | 8.8 | 37 | 65 |
| AV-F7515LS/LB05 | sleeve/two ball | 5 | 0.15 | 3000 | 6.4 | 30 | 65 |
| AV-F7515HS/HB12 | sleeve/two ball | 12 | 0.50 | 5000 | 10.5 | 42 | 65 |
| AV-F7515MS/MB12 | sleeve/two ball | 12 | 0.25 | 4000 | 8.8 | 37 | 65 |
| AV-F7515LS/LB12 | sleeve/two ball | 12 | 0.10 | 3000 | 6.4 | 30 | 65 |
| AV-F7515HS/HB24 | sleeve/two ball | 24 | 0.24 | 5000 | 10.5 | 42 | 65 |
| AV-F7515MS/MB24 | sleeve/two ball | 24 | 0.12 | 4000 | 8.8 | 37 | 65 |
| AV-F7515LS/LB24 | sleeve/two ball | 24 | 0.08 | 3000 | 6.4 | 30 | 65 |
| AV-F7515HH | two ball | 5/12/24 | 0.40~0.80 | 6000 | 15 | 48 | 65 |
High Performance Specification1
Fans 5515 Plug Dc Blower 5v 24v 7515 75mm Air Meter 75x75x15 Mm Fan 12v

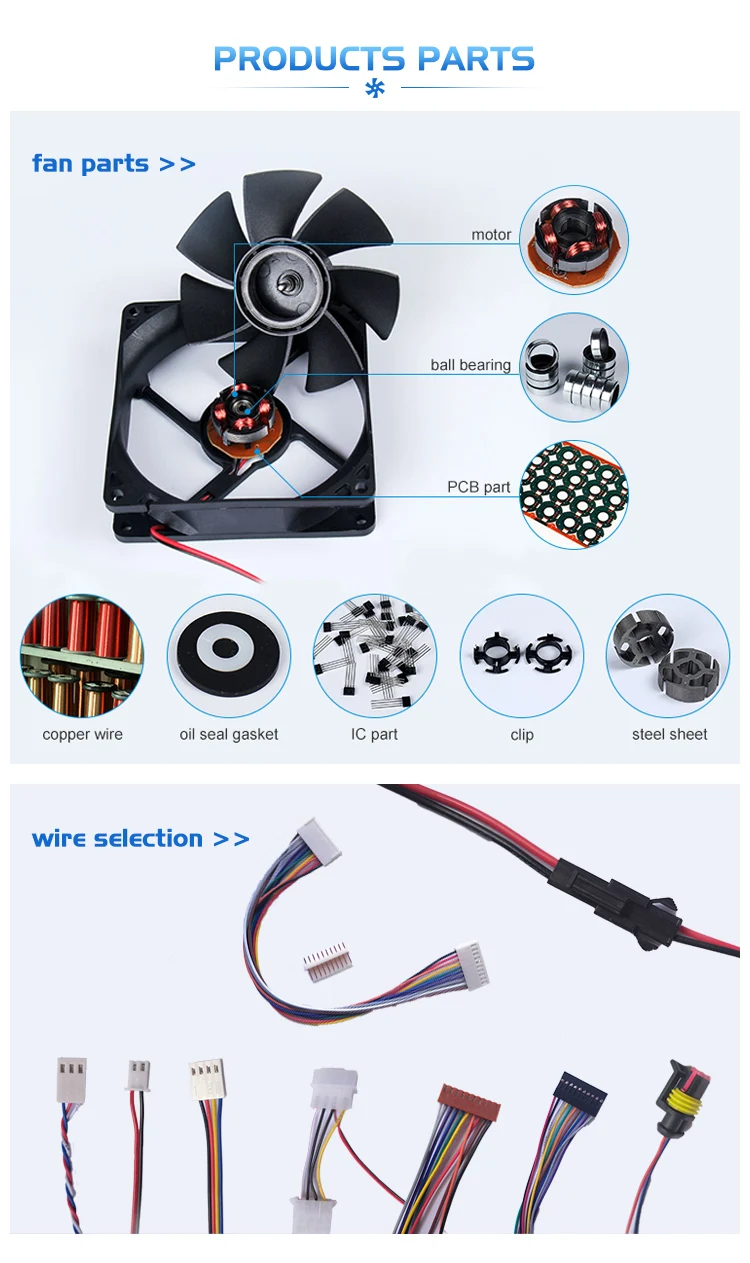

Internal structure:
Application:
Shenzhen Ambeyond Technology Co., Ltd was established in 1998.
We are professional in designing and developing kind of moulds for AC Cooling Fans, Brushless DC Cooling Fans, EC cooling fans, Plastic Injection Molding and Finished Electronic products assembly for an integrated enterprise.

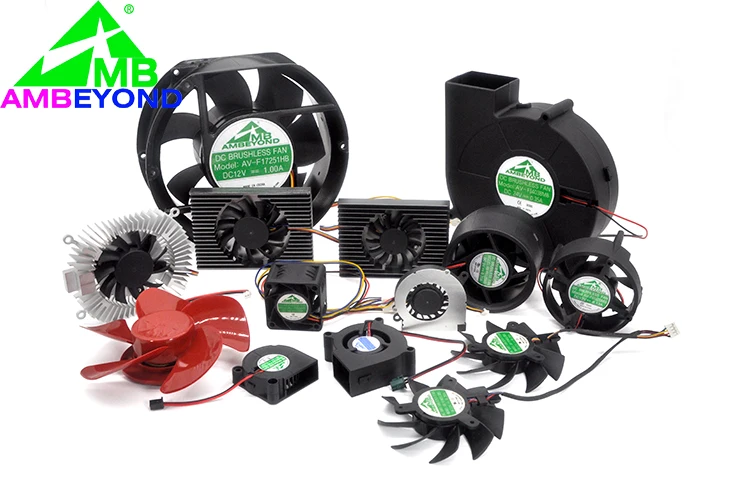

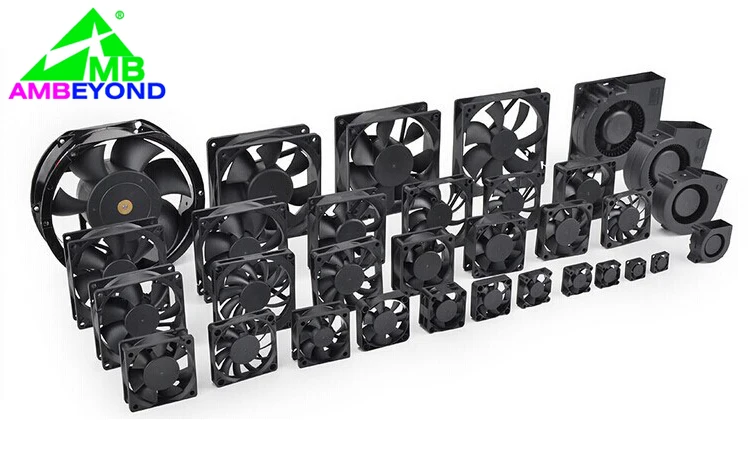

The main product line of AMBEYOND has AC Fan(6-25cm), DC Fan(2-25cm), EC Fan(2-25cm) and all kinds of Radiator, Plastic Parts, Electronic Wire, Hardware Acessories, etc.
Customers are able to customize all kinds of non-stand Cooling Fan with specific functions, such as temperature cintrol, constant temperature, manual setting, automatic protection, etc.
The company's operation principle: quality oriented,customer first, strive for excellence,share success.
Packing and shipment
Brand strength: AMB brand, has cooperated with more than 500 foreign customers, a stable cooling fan supplier of Korean LG.
Honor: Won the title of Shenzhen Innovation Enterprise etc. Ingenuity quality: 16 years of cooling fan production experience, the pursuit of gradual rise in stability,
Technology R&D: Equipped with a dedicated R&D department to meet various customization needs of customers
Intimate service: the staff responds in a timely manner and can communicate anytime, anywhere
1. Are you a factory?
Factory wholesale 20~220mm AC/DC/EC cooling fan, blower fan
Send your Inquiry Details in
the below message box and Click
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–199 piece: US $3 / piece
- 200–999 piece: US $2 / piece
- 1000–9999 piece: US $1.4 / piece
- 10000+ piece: US $1 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the fan be supplied for my local voltage?
The standard configuration is 5V~48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
