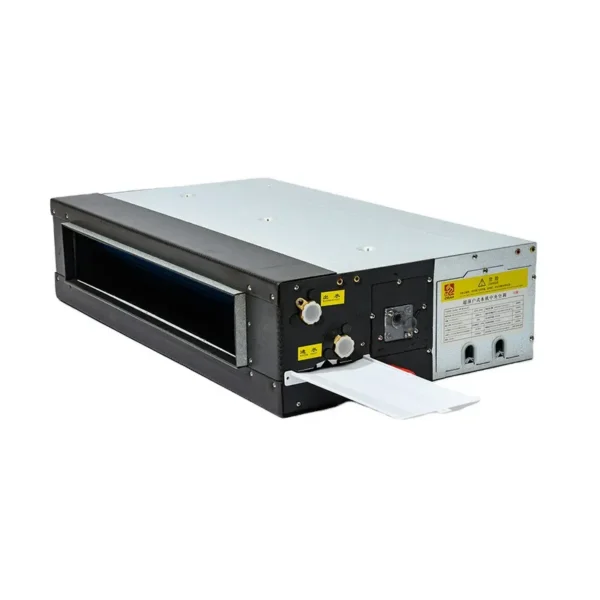

Fan Coil Unit, 2-pipe, HVAC

Fan coil unit — 220V/1P/50Hz, 850 m3/h. The complete factory specification follows. Made by Baoding Yuexin Heating And Cooling Equipment Manufacturing Co., Ltd. (7 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Fan Coil Unit

• Power: 37-228 W
• Operating Voltage: 220-240 VAC
• Voltage: 220V/1P/50Hz
• Cooling Capacity: 1.8-12.6 kw/h
• Heating Capacity: 2.7-18.9 kw/h
• Airflow: 850 m3/h

Technical Specifications

Product Details

Products Description

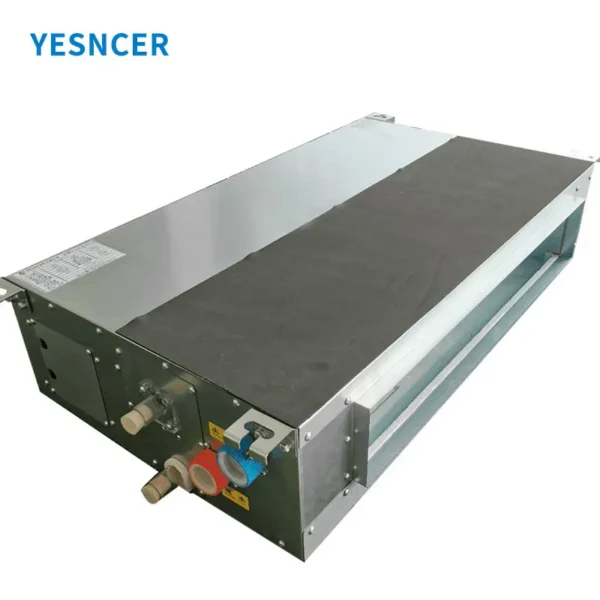

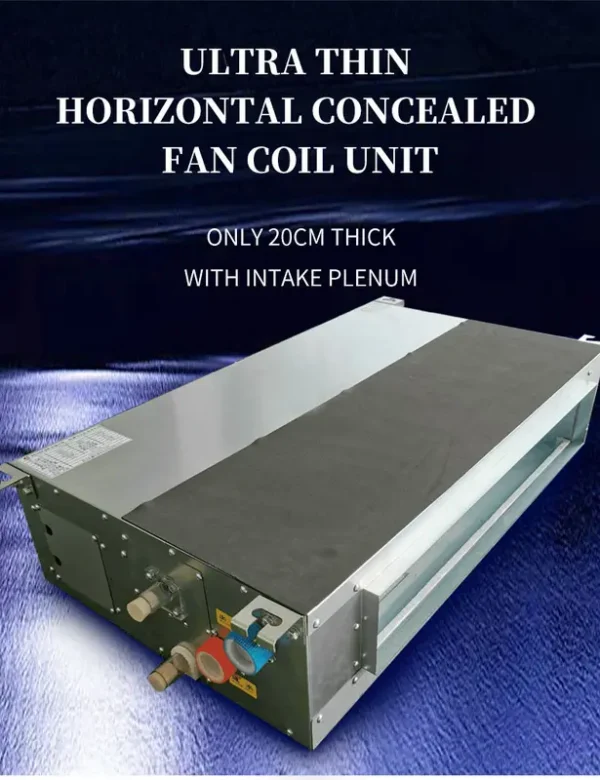

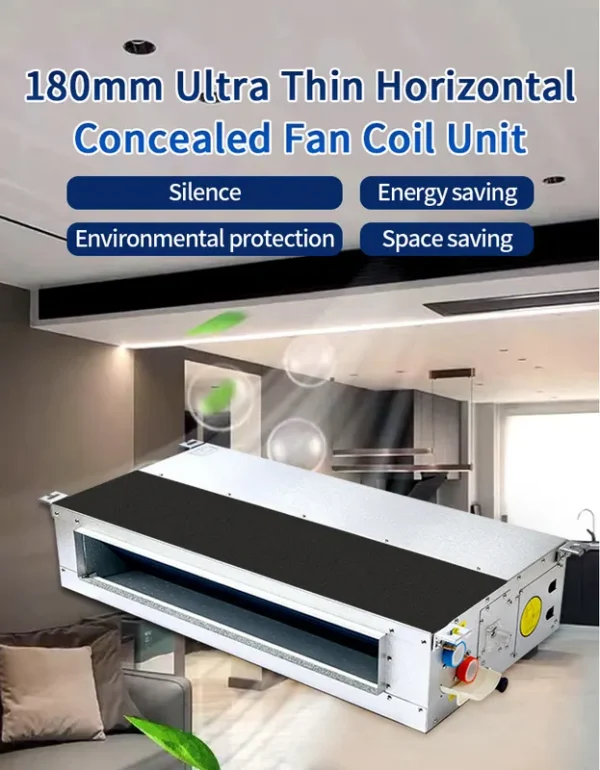

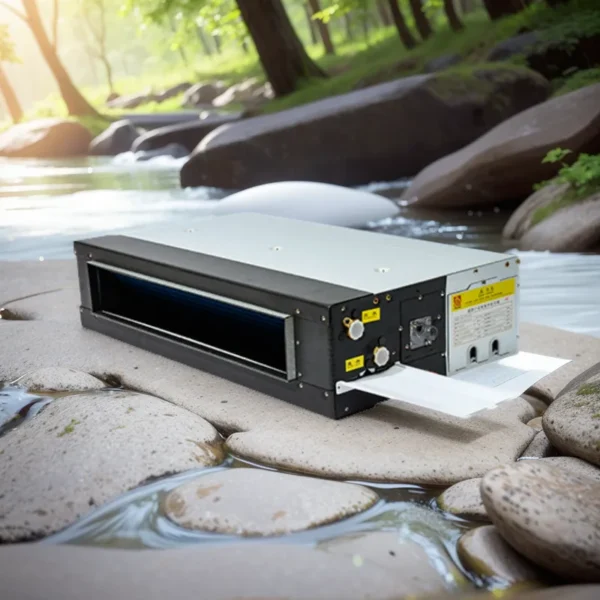

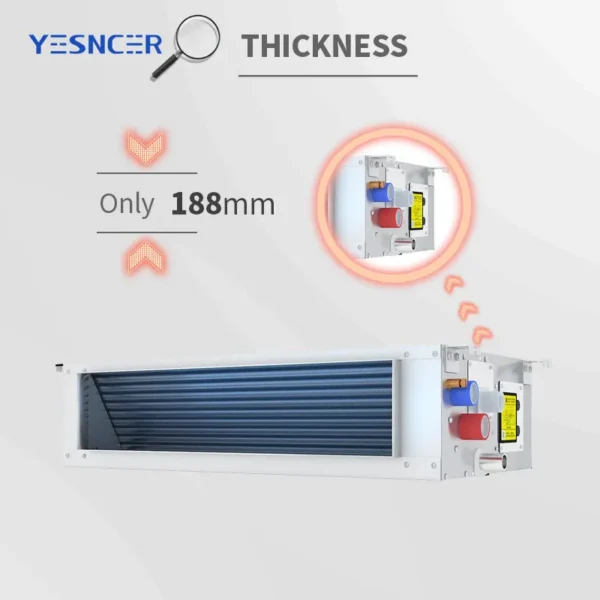

190mm Duct Fan Coil Units

Fan coil unit is commonly known as "upgraded version of household split air conditioner". Fan coil unit is more beautiful than traditional wall-mounted air conditioner, cheaper than central air conditioner of VRF system, and saves space than air conditioner cabinet.

Details Images

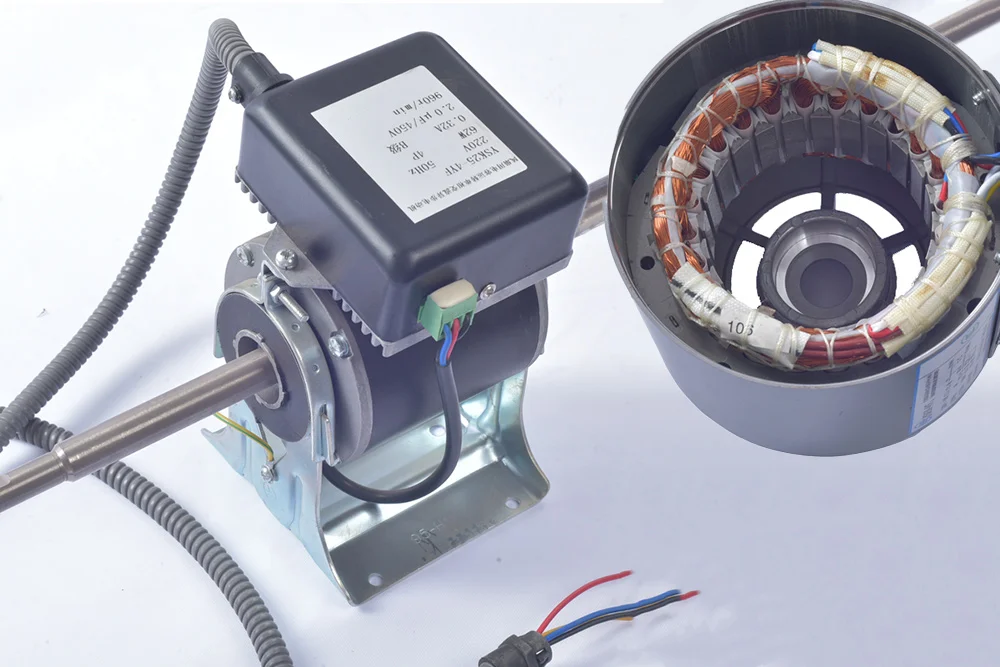

DC Brushless Motor

1.Three gears for wind speed adjustment.2.Brushless motor, quiet and stable operation, low noise.
3.Motor manufacturers have cooperated for more than 10 years, the quality is guaranteed, and the warranty is 3 years.

Air Conditioner Blower Wheel

1.Direct drive no belts and pulleys Energy saving up to 30% Improve air exchange Coefficient of Performance.

2.Long and maintenance free service life，No abrasion, less filtering required. No vibration,extremely low noise of fan coil unit.

3.Pittsburgh-style meshing is adopted between the main board and the side board of the air shell.
Optional: ABS material, galvanized material.

The performance of ABS material is better than that of galvanized material.

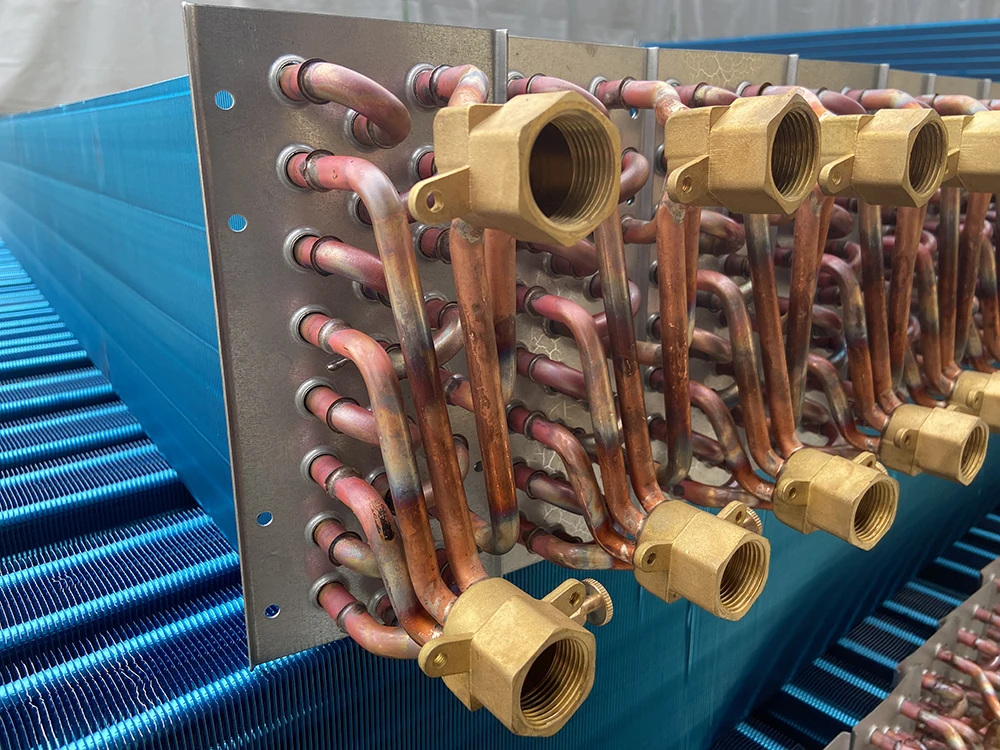

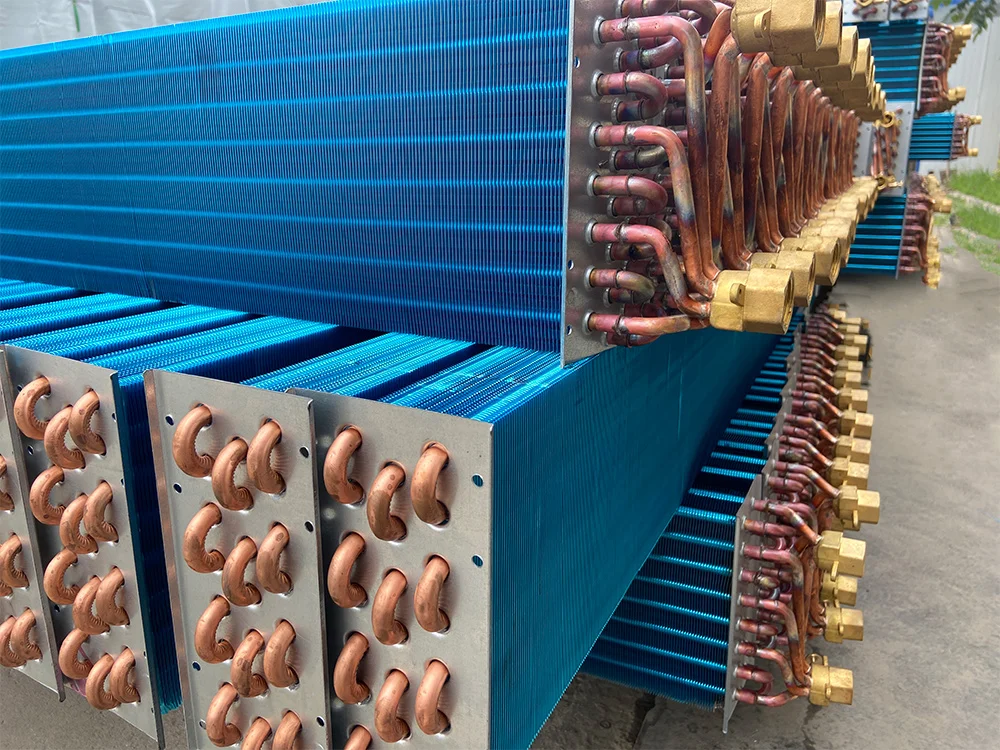

Condenser Evaporator Coil

a.3 groups horizontally, 24 copper tubes vertically, φ7mm, thickness 0.28mm.

b.High-density hydrophilic aluminum foil, spacing 1.3mm, thickness 0.105mm.
c.24 copper tubes and high-density hydrophilic aluminum foil design with 1.3mm spacing, so as to increase the cold and heat exchange area, and the heat exchange rate can generally be increased by 10%-15%.
d.Most condenser evaporator coils last 10 to 15 years.

Water Steam Distributor

DN20 copper large gram header Distributor,The distributor adopts four water inlets and four water outlets to improve the heat exchange efficiency of the condenser
evaporator coil.
Note: As a cold medium, please inject pure water, or boil tap water to reduce impurities and minerals in the water, thereby
reducing scale and prolonging the use time

Fan Coil Unit Condensate Drain Pan

0.8mm sheet metal high-gloss spraying process, anti-corrosion. External paste 7mm thick rubber and plastic insulation.

The drain pipe can be tightly connected with the outlet of the Drain Pan to effectively prevent leakage and facilitate drainage. Sides and corners provide extra sturdiness.

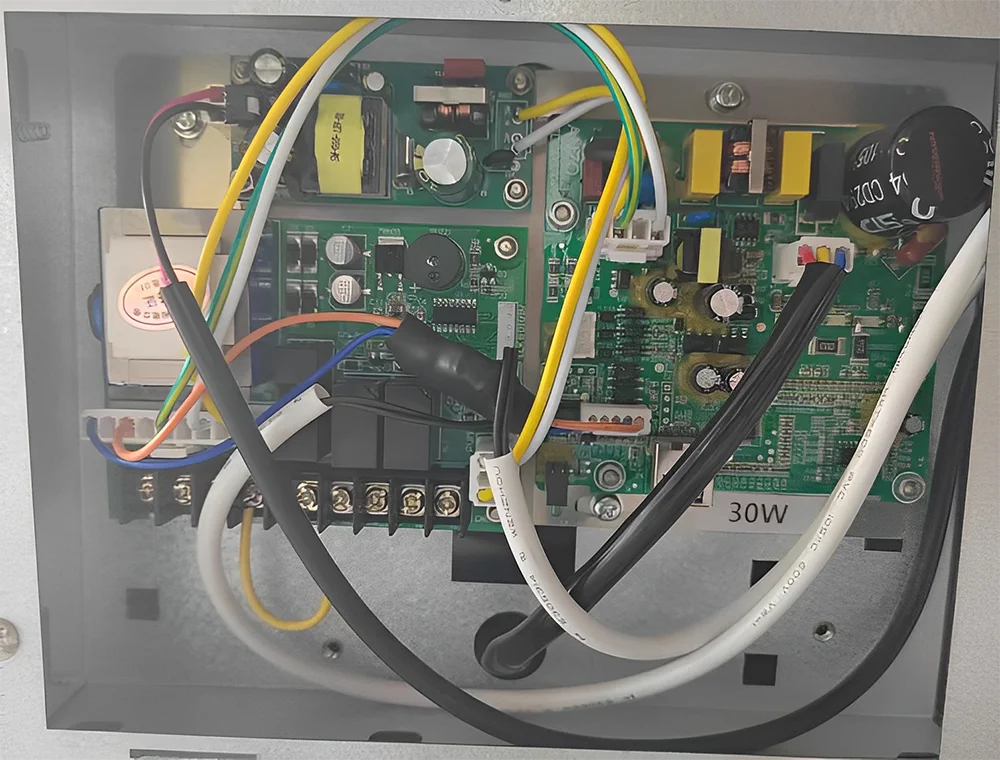

FR-4 PCB (Printed circuit board)

FR-4 PCB,it still has high mechanical strength at room temperature of 150°C, good electrical performance in dry and wet states, and flame retardant.

PCB for 0-10v thermostat: This kind of PCP could connect the 0-10V thermostat for 5 speed adjustable Also could be connect the 3 speed thermostat Optional:WiFi connection.

Product Paramenters

Parameter for Standard(AC motor)
Model			FP-51	FP-68	FP-85	FP-102	FP-136	FP-170
Motor power (w)			12	12	25	25	25+25	40+40
Power input (w)			48	55	72	90	129	148
Motor Qty.			1							2
Blower Wheel Qty.			1	2					3	4
Static Pressure (Pa)			12
Air flow (m³/h)			530	700	875	1030	1360	1750
Cooling capacity (kw)			2.95	3.8	4.8	5.6	7.4	9
Heating capacity kw (60 ℃ hot water)			4.4	5.7	7.1	8.4	11.1	13.5
Heating capacity kw(45℃ hot water)			2.9	3.6	4.5	5.4	7.2	8.9
Noise dB(A)	H	39	41	43	45	46	48
		M	36	38	41	42	43	45
		L	33	35	36	38	39	40
Water Pressure Drop (kPa)			30	30	30	40	40	40
Weight (kg)			13.5	15.1	16.4	18.8	25.4	26.7
Condenser evaporator Coil length (mm)			500	650	760	900	1330	1330
Condenser evaporator Coil width (mm)			210
Condenser evaporator Coil thickness (mm)			39

Parameter for upgrade (0-10v DC motor) adjustable power, static pressure and noise
Model	S.P.	12Pa			30Pa			50Pa
FP-51	Voltage adjustable	2V	5V	3V	6V	4V	7V
		Air Flow(m³/h)	160	530	190	540	180	540
		Noise(dBA)	17.9	35.5	20.5	40.5	28.3	42
FP-68	Voltage adjustable	2V	5V	3V	6V	4V	7V
		Air Flow(m³/h)	256	690	270	710	285	680
		Noise(dBA)	21.8	40.7	25.5	42.8	29	44.7
FP-85	Voltage adjustable	2V	5V	3V	7V	4V	8V
		Air Flow(m³/h)	340	860	350	900	370	870
		Noise(dBA)	22	41.9	27	44	29	46.5
FP-102	Voltage adjustable	3V	6V	4V	7V	5V	8V
		Air Flow(m³/h)	450	1100	460	900	480	870
		Noise(dBA)	22	42.7	30	45.2	33	48
FP-136	Voltage adjustable	2V	5V	3V	6V	5V	7V
		Air Flow(m³/h)	680	1480	640	1380	730	1400
		Noise(dBA)	24.4	43.3	32	46	38	48.8
FP-170	Voltage adjustable	3V	6V	3V	7V	5V	8V
		Air Flow(m³/h	750	1720	640	1750	730	1730
		Noise(dBA)	28.2	45.5	32	47.5	38	51.4

Parameter for Advanced (0-10vDC motor)
Model	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170
Motor power (w)	30	30	30	30	90	90
Power input (w)	30	35	40	53	75	86
Motor Qty.	1							2
Blower Wheel Qty.	1	2					3	4
Cooling capacity kw(7℃ chilled water)	2.95	3.8	4.8	5.6	7.4	9
Heating capacity kw(60℃ hot water)	4.4	5.7	7.1	8.4	11.1	13.5
Coil length mm	500	650	760	900	1330	1330
Coil width mm	210
Coil thickness mm	39

Company Profile

About YESNCER

Baoding Yuexin Heating & Cooling is the manufacturer of air source heat pumps(ASHP), air-cooled chillers, water-cooled chillers,
rooftop packaged ac units, fan coil units, air handling units, etc. Our advantages: Strong R&D capability, Provide OEM/ODM service
10+ years of experience 24-hour online service Our products are exported to Europe, the Middle East, North America, Australia,
Southeast Asia, and other countries and regions. Please trust us. We hope to achieve a win-win situation with you.

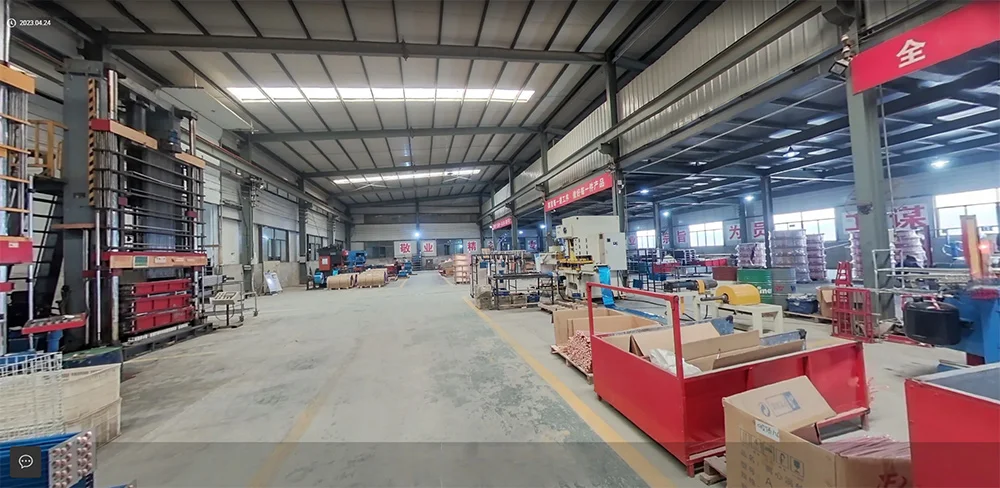

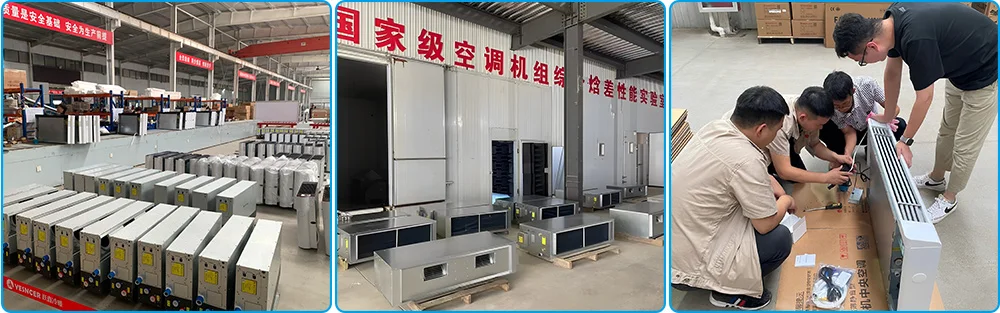

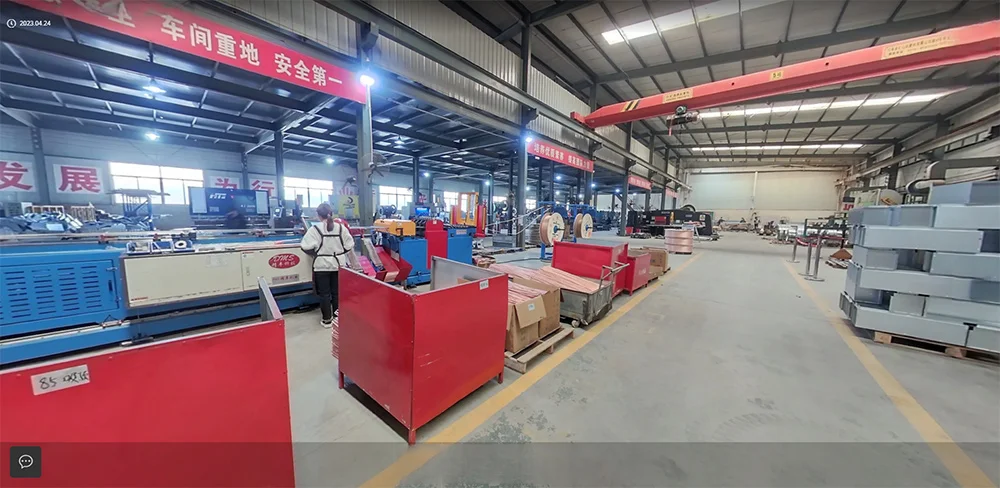

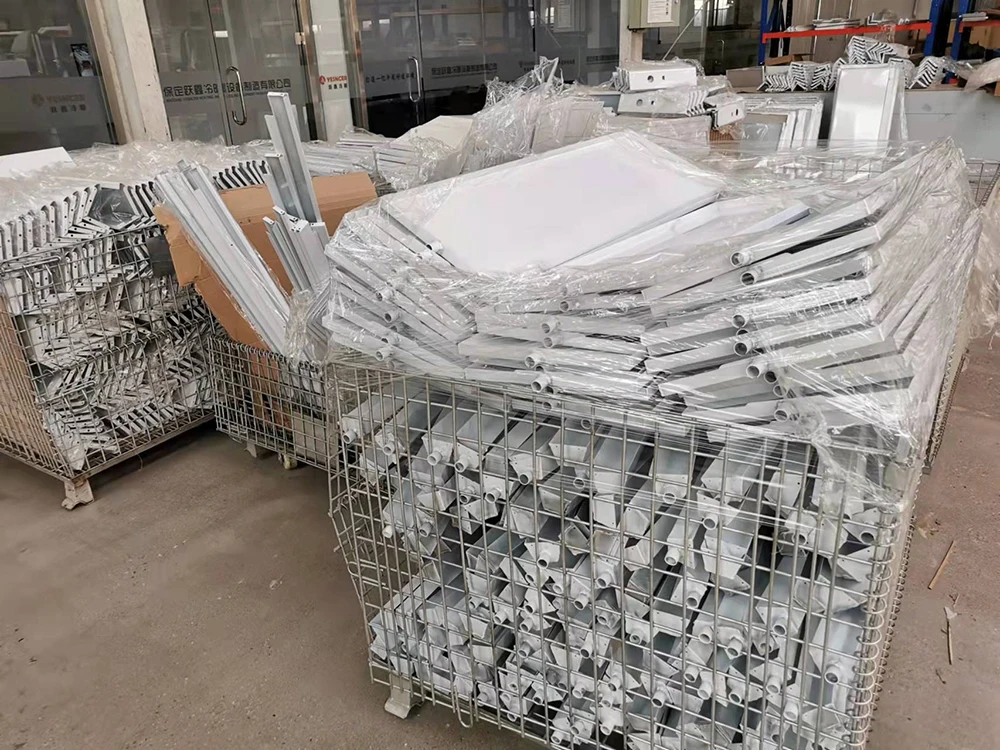

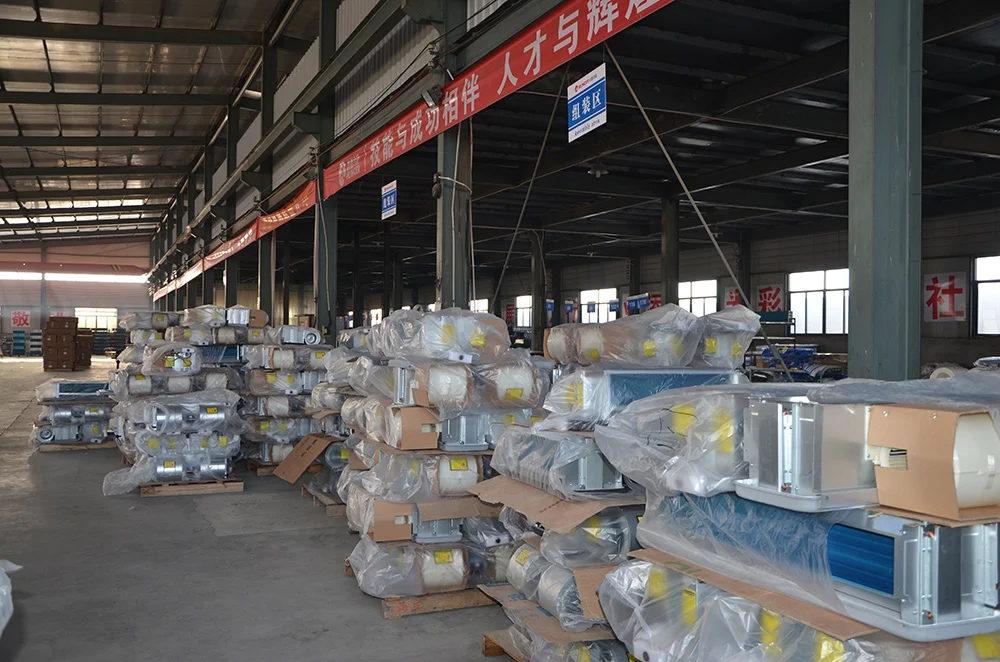

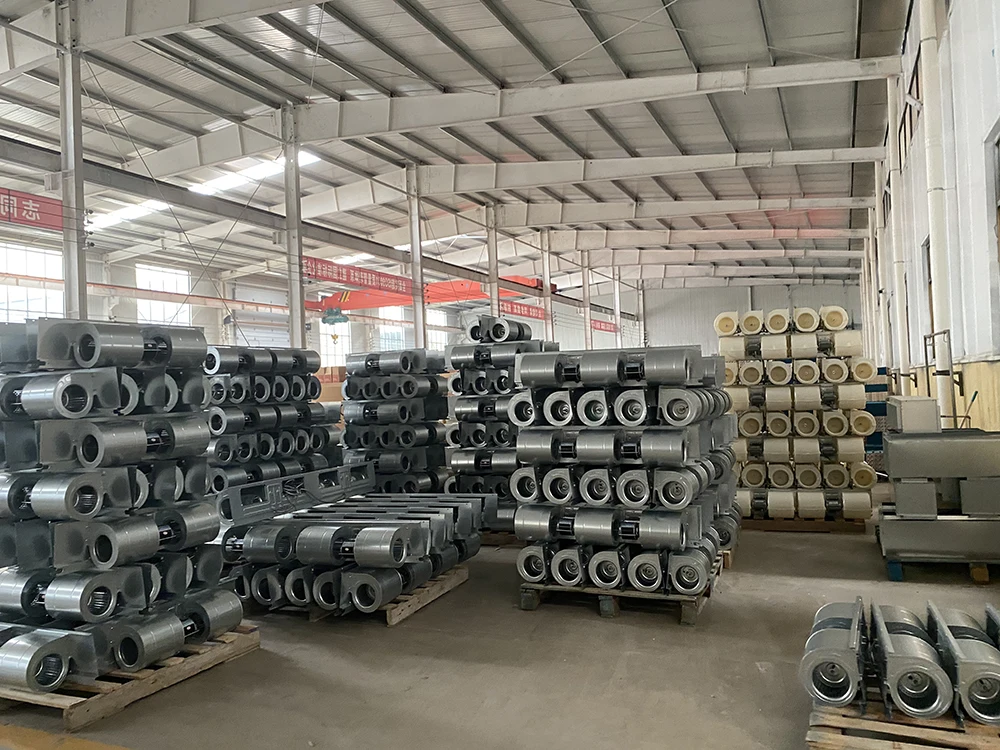

Factory Workshop

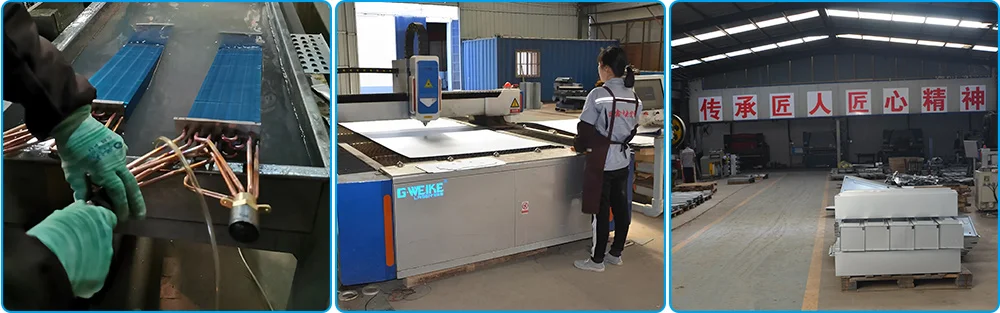

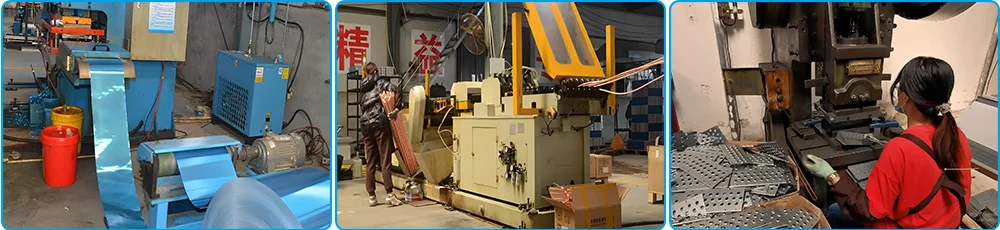

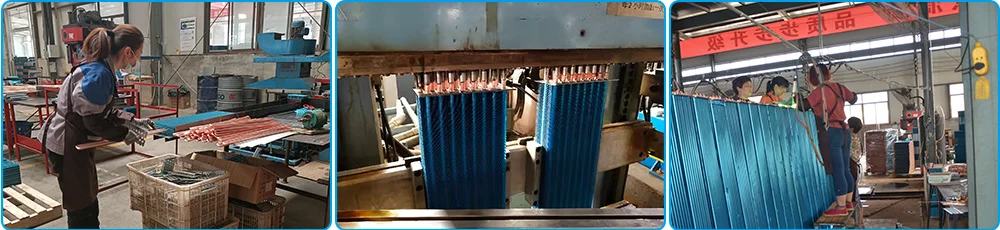

Manufacturing Technique

1. Evaporators Fin stamping

2. Copper pipe straightening

3.Sheet Metal Stamping

4.Evaporators Assembling			5.Copper Tube Expander	6.Welding

7.Air tightness test

8.CNC Laser Cutting

9.Shell Assembly

10.Fan Coil Assembly

11.HVAC Enthalpy Lab

12.QC

13.warehouse

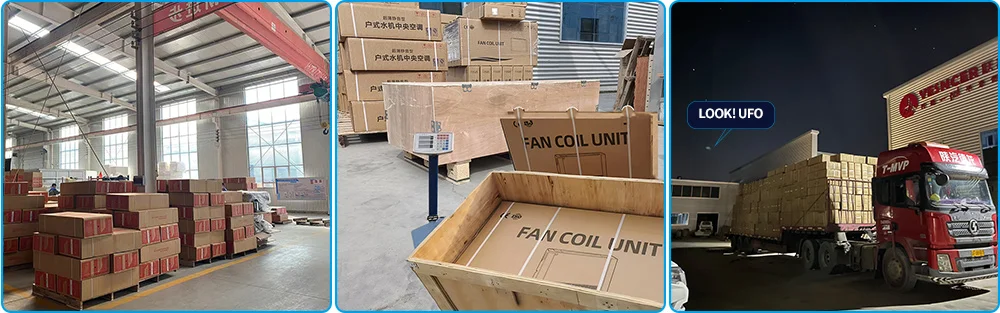

14.packaging

15.shipping

Certifications

If necessary, please contact me and I will send it to you.Thank you.

Exhibition

Customer Photos

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $116.92 / piece
  • 50–99 piece: US $115.75 / piece
  • 100–199 piece: US $114.59 / piece
  • 200+ piece: US $113.44 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fan coil unit?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the fan coil unit be supplied for my local voltage?

The standard configuration is 220-240 VAC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
