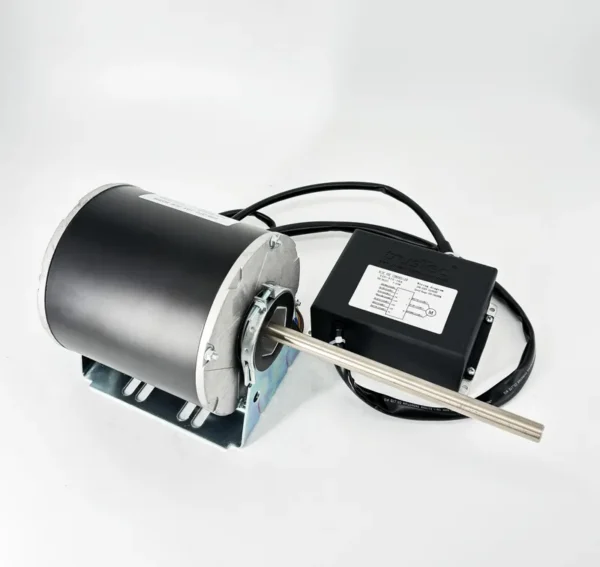

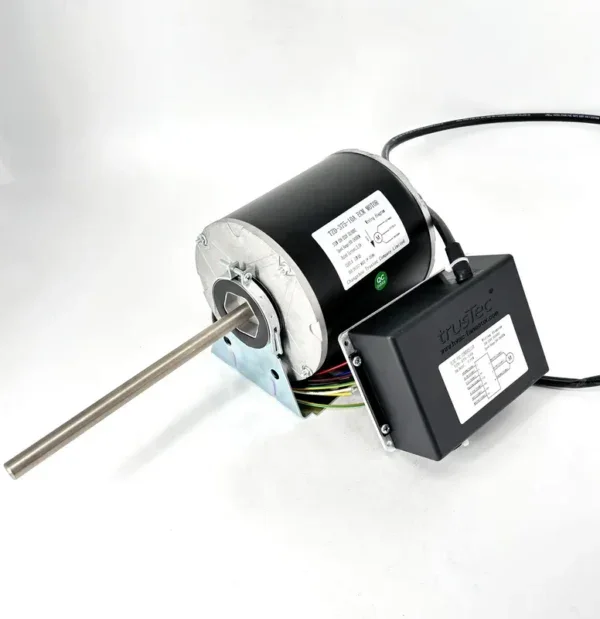

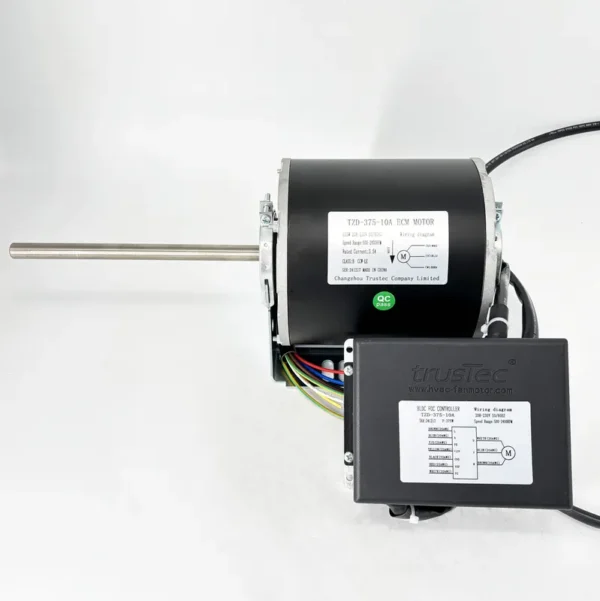

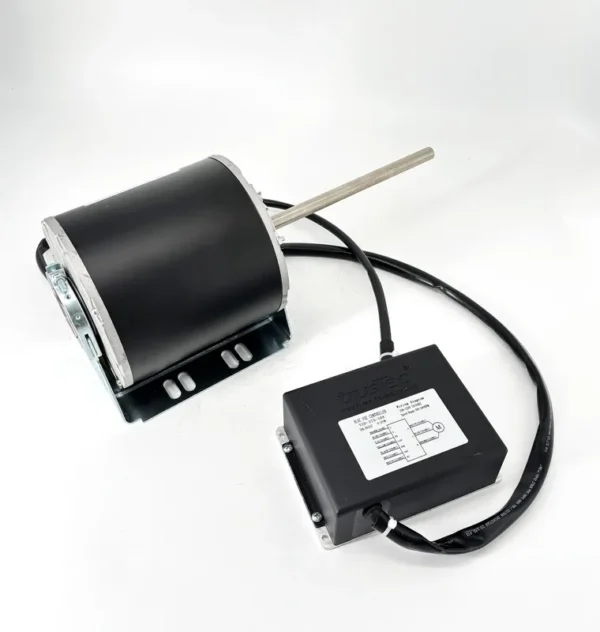

Key specification for this fan coil unit: rated voltage 208-230V, speed rpm 500-2400RPM. Everything below is reproduced from the factory data sheet. Made by Changzhou Trustec Company Limited (15 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan Coil Unit
- Model Number: TZD-375-10A-UMG
- Rated Power: 375W
- Rated Voltage: 208-230V
- Speed Rpm: 500-2400RPM
- Speed(RPM): 500-2400RPM
- Warranty: 24 months
Technical Specifications
| Rated Voltage | 208-230V |
|---|---|
| Rated Power | 375W |
| Speed Rpm | 500-2400RPM |
| Speed(RPM) | 500-2400RPM |
| Efficiency | IE3 |
| Frame | 144mm(5.67in) |
| Motor Mounting Type | bracket mount |
| Warranty | 24 months |
| Continuous Current(A) | 3.5A |
| Model Number | TZD-375-10A-UMG |
| Place Of Origin | Jiangsu, China |
| Brand Name | trusTec |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product | Electronically Commutated Motor |
Motor Type | Fan Coil Unit Motor |
Enclosure Type | TEAO(Totally Enclosed Air Over) |
Thermal Overload | Equipped With An Automatic Thermal Overload |
Phase | Single Phase |
Mounting | Bracket |
Bearings | Ball Bearing |
Mounting Orientation | All Angle |
Supply Voltage | 208-230V |
Supply Frequency | 50/60HZ |
Current | 3.5A |
Output Power | 375W |
Rated Speed | 500-2400RPM |
Frame Size | 5.67" / 144mm |
Shaft Diameter | 0.5" / 12.7mm |
Shaft Length | 8.2"/208.5mm |
Flat Length | 4.72"/120mm |
Motor Shell Length | 5.19"/132mm |
Lead Length | 15.74"/400mm |
Max. Ambient Temperature | 40℃/104℉ |
Control Mode | VSP 0-10V |
Poles | 10P |
Rotation | CCW-LE |
Insulation Class | Class B |
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200–499 piece: US $86.5 / piece
- 500–999 piece: US $85.4 / piece
- 1000+ piece: US $83.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 24 months warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is 208-230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Trustec Company Limited, based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Changzhou Trustec Company Limited range on HVACR Nexus.
