Key specification for this fan coil unit: type Fan Coil Unit. Everything below is reproduced from the factory data sheet. Made by Dongying Qinghua Trading Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan Coil Unit
- Operating Voltage: 220V
- Warranty: 5 year
- Place Of Origin: Shandong, China
- Type: Fan Coil Unit
- Mounting Type: Floor Standing
- Single Package Size: 46X32X192 cm
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Mounting Type | Floor Standing |
| Key Selling Points | Competitive Price |
| Warranty | 5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 45 KG |
| Dimension(L*W*H) | 45*30*190 |
| 2 Pipe Or 4 Pipe | available |
| Cooling And Heating | available |
| Operating Voltage | 220V |
| Selling Units | Single item |
| Single Package Size | 46X32X192 cm |
| Single Gross Weight | 50.0 kg |

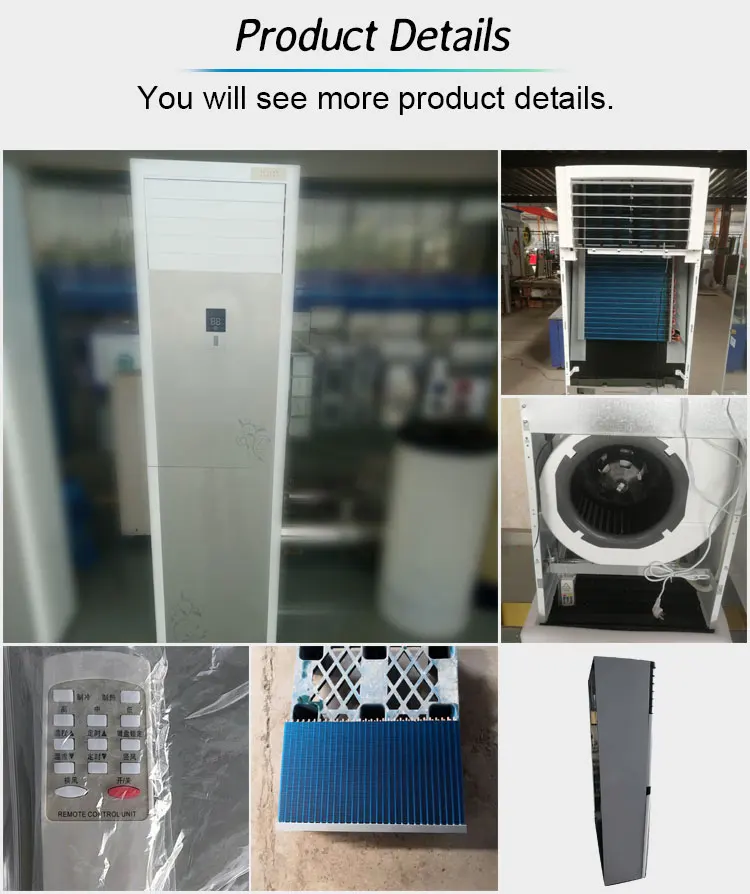

Product Details

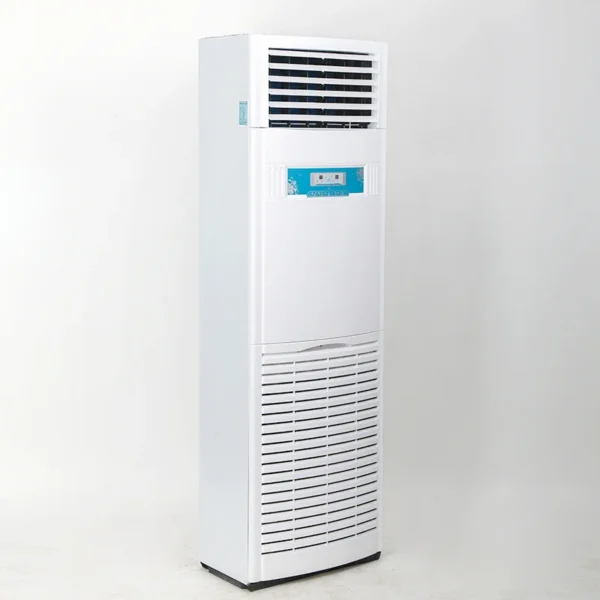

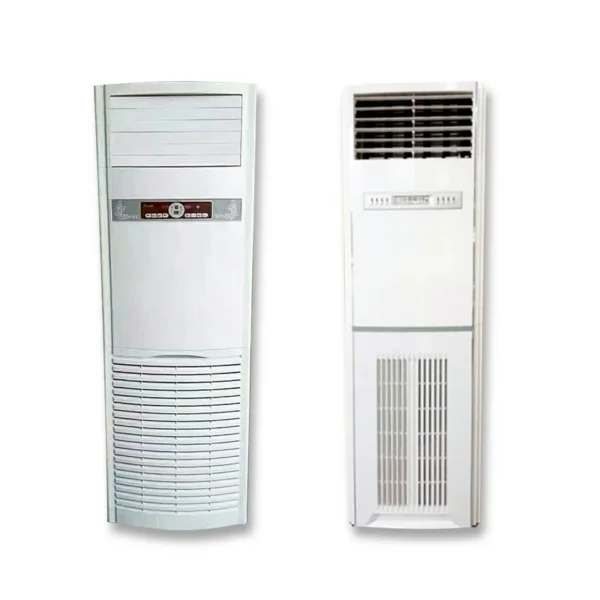

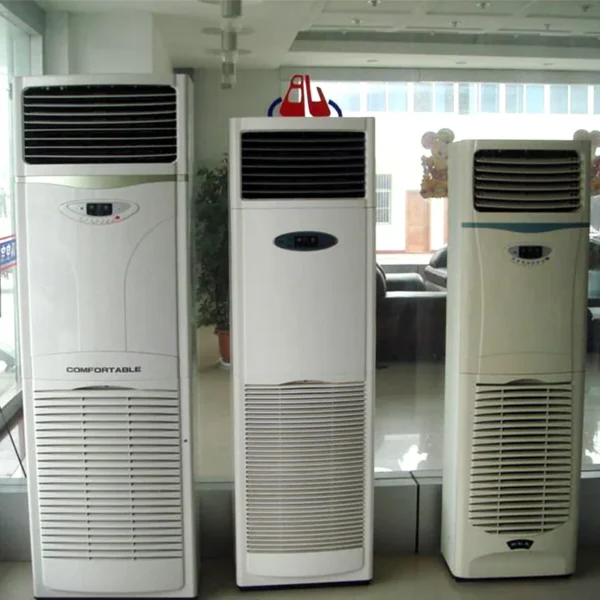

Cabinet Fan Coil
1. Blue efficient radiator.
2. The body is made of 0.7mm thick sheet metal, which reduces the vibration noise caused by the fan.
3. The entire product can be customized within a reasonable range.
Main Feature:
1.This product model number is 60F-168F.
2. Efficient heat sink cooler.
3. HD LCD panel.
Main Feature:

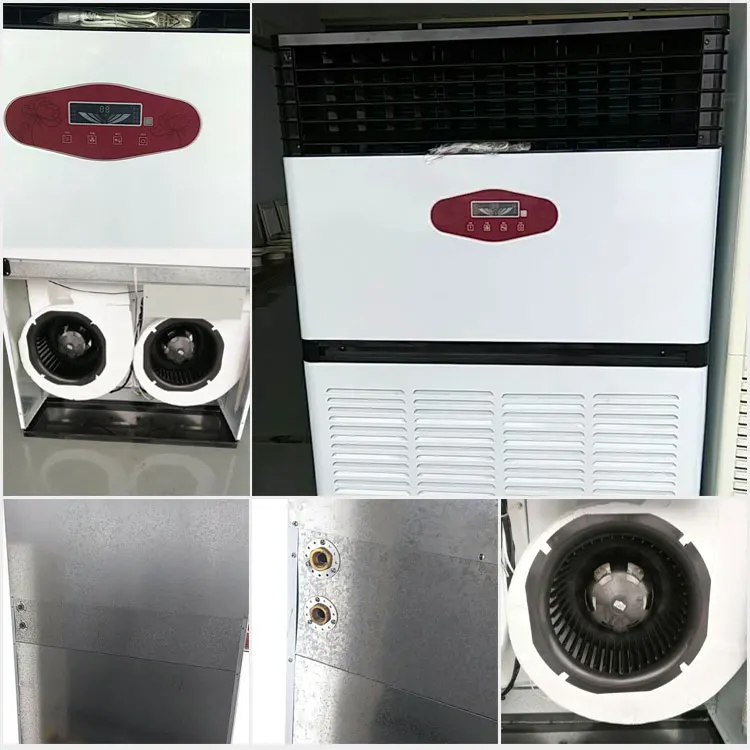

1.This product model number is 10P.
2. Dual fan design can provide greater cooling capacity.
3. Suitable for use in large public places such as train station waiting rooms.
All the parts of the product are processed by ourselves, and we can guarantee the quality of our products ourselves.

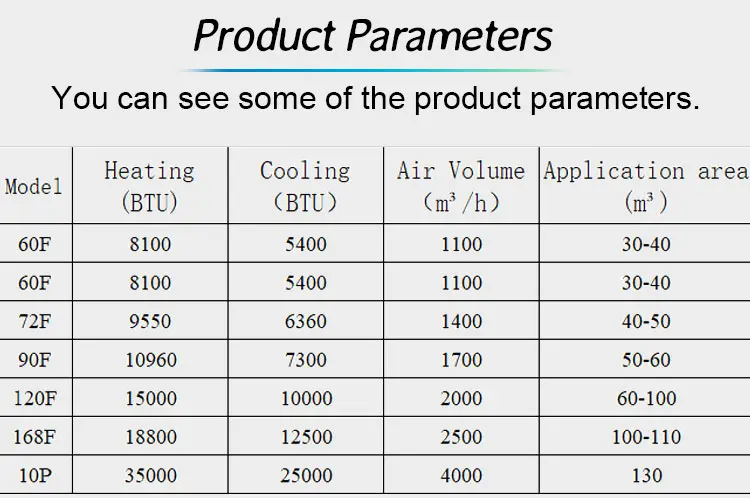

| Model | 60F | 72F | 90F | 120F | 168F | 10P | |
| Air volume | H | 1100 | 1400 | 1700 | 2000 | 2500 | 4000 |
| (m³/h) | M | 900 | 1200 | 1500 | 1740 | 2100 | |
| L | 600 | 900 | 1200 | 1420 | 1700 | ||
| Cooling capacity | H | 5400 | 6360 | 7300 | 10000 | 12500 | 25000 |
| M | 5000 | 5500 | 6280 | 9000 | 11250 | ||
| L | 4000 | 4300 | 5160 | 7000 | 8750 | ||
| Heating capacity | H | 8100 | 9550 | 10960 | 15000 | 18800 | 35000 |
| M | 7300 | 8260 | 9420 | 12000 | 15500 | ||
| L | 6100 | 6450 | 7740 | 10000 | 13000 | ||
| Noise db (A) | 47 | 50 | 56 | 56 | 56 | 55 | |
| T of chilled water | 7℃ to 12℃ | ||||||
| T of hot water | 60℃ to 50℃ | ||||||
| Power source | 220V /50Hz, 110V/60Hz, AC | ||||||
| Water pipe | ZG 3/4“ | ||||||
| Dimension(mm) | 500×285×1750 | 600×380×1900 | 600×380×1900 | 600×380×1900 | 600×380×1900 | 1180×400×1830 | |
| Adopted area(m³) | 30-40 | 40-50 | 50-60 | 60-70 | 100-110 | 130 | |
| Carton box(mm) | 530×320×1770 | 620×410×1920 | 620×410×1920 | 620×410×1920 | 620×410×1920 | 1200×450×1860 | |
| Input power(W) | 100 | 150 | |||||
Delivery
TIME OF DELIVERY:within 35 days after receiving deposit .
Payment
1) Support T/T , L/C
2) TERMS OF PAYMENT : 30% in advance,70% before shipment.
Warranty
1) The whole machine for 1 years.
After-sale
During the warranty period, machines which cannot run due to quality problems,Choose the following options.
1) Free replacement of all parts and related parts at the fault place, freight deducted from next order
2) The new machine will be replaced for free in the next order.
Agent support
1) The consultation of other local customers will be forwarded to you, and you will become the exclusive agent for our local business negotiations.
2) No longer set up the same level of agents in any local area.
3) If a local retailer purchases from us, the local agency commission will be given.
Promotion Method
1) After receiving the goods, the evaluation video feedback will give a 0.5% discount on the next order.
2) 2% discount on full payment in one lump sum.
3) Promote our products at local stores, or introduce other local sellers to give 3% discount on the next order.
Ordering and Pricing
- Minimum order quantity: 100 set
- Volume pricing:
- 100–199 set: US $160 / set
- 200+ set: US $155 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 100 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongying Qinghua Trading Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Dongying Qinghua Trading Co., Ltd. range on HVACR Nexus.
