This fan coil unit is published with the manufacturer’s full specification — power supply 200-240V/1/50Hz, 1.98kw/h to 12.6kw/h. Made by Yuexin (tianjin) Artificial Environment Engineering Technology Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan Coil Unit
- Model Number: FP-34, FP-51, FP-68, FP-85, FP-102, FP-136, FP-170, FP-204, FP-238
- Power: 50w to 198w
- Power Supply: 200-240V/1/50Hz
- Cooling Capacity: 1.98kw/h to 12.6kw/h
- Heating Capacity: 2.98kw/h to 18.9kw/h
- Air Flow: 345m3/h to 2380m3/h
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Refrigerant | Water |
| Mounting Type | Ceiling Mount |
| Compressor Brand | none |
| Fan Motors Type | DC |
| Motor Type | DC Motor |
| Filter Type | Regular Filter |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump |
| Place Of Origin | Hebei, China |
| Weight (Kg) | 35 |
| Brand Name | YESNCER or OEM |
| Model Number | FP-34, FP-51, FP-68, FP-85, FP-102, FP-136, FP-170, FP-204, FP-238 |
| Dimension(L*W*H) | 580*580*300MM |
| Product Name | Cassette Fan Coil Unit |
| Cooling Capacity | 1.98kw/h to 12.6kw/h |
| Heating Capacity | 2.98kw/h to 18.9kw/h |
| Air Flow | 345m3/h to 2380m3/h |
| Noise | 34dB(A) to 44dB(A) |
| Power | 50w to 198w |
| Power Supply | 200-240V/1/50Hz |
| Water Inlet Pipe | DN20 |
| Water Outlet Pipe | DN20 |
| Function | Heating Cooling |
| Selling Units | Single item |
| Single Package Size | 60X60X32 cm |
| Single Gross Weight | 20.0 kg |
Product Details

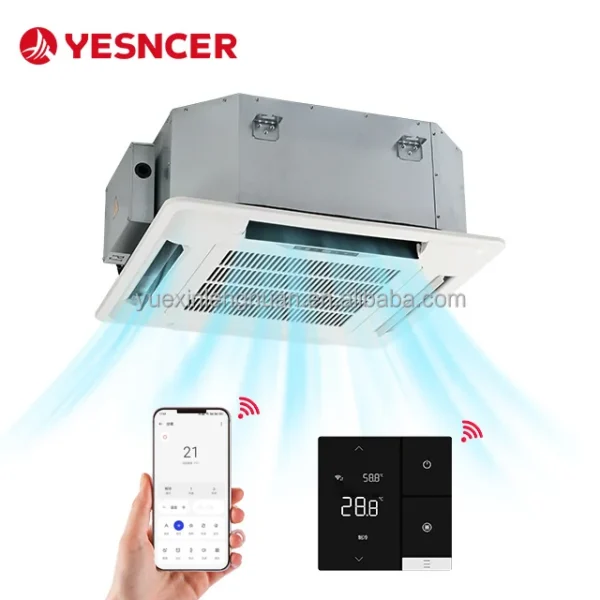

4 Way Cassette Fan Coil Unit
4 Way Cassette Fan coil is composed of condenser and wind turbine motor, indoor fan coil part and no compressor to participate in the work, fan coil internal copper pipe circulated by the heat pump to provide cold water or hot water, through the wind turbine motor operation, will produce the cold and heat blown indoors, so as to achieve the effect of refrigeration and heating, such a way of working is more energy-saving and environmentally friendly, in full compliance with the modern low-carbon energy saving trend, at the same time, the water system working principle, on the one hand, to ensure that meet the cold and heat under the premise, humidity can also be a good complement to make the living environment more comfortable. At the same time, due to the working principle of the water system, on the one hand, under the premise of ensuring that meets the cooling and heating, humidity can also be a good supplement, so that the living environment is more comfortable. High-end Cassette Fan coil thickness of only 300 mm, built-in drainage lifting pump and WIFI module, support for RS485 protocol and automatic swing wind, taking into account the product needs of a variety of people and different projects, we also support private customization (according to the demand for confidentiality agreements), if you have a relevant interest, welcome to consult, large quantities at a good price.
4-way cassette fan coil unit is one of the most popular fan coil units, because of the high efficient performence and beautifulappearance. 4 air outlets make the supply air softer and people feel more confortable.It is widely applicated in hotels,restaurants, bars, schools, offices and other commercial places
Upgraded model Cassette Fan Coil support customized four-pipe control
Installation & Application
Cassette fan coil unit is suitable for installation in hotel lobbies, hospital corridors, large offices and large exhibition halls. Because its special four-outlet structure can quickly adjust the room temperature, it is deeply loved by major engineering companies and is also suitable for installation. Because of its unique structure, this product has certain requirements for theheight of the room.
Product Parameters
Parameters of ordinary cassette fan coil unit | ||||||||||||||||||
model | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | FP-238 | |||||||||
Air volume range(m²/h) | 345 | 510 | 690 | 875 | 1035 | 1375 | 1705 | 2045 | 2380 | |||||||||
Cooling Ca. (kw)(Water in 7°C) | 1980 | 2980 | 3680 | 4980 | 5400 | 7200 | 9900 | 10800 | 12600 | |||||||||
Heating Ca. (kw)(Water in 60°C) | 2970 | 4800 | 5480 | 7200 | 8100 | 10800 | 14500 | 16200 | 18900 | |||||||||
Power Input(w) | 50 | 50 | 58 | 72 | 92 | 126 | 128 | 152 | 198 | |||||||||
Noise range(dB) | 37 | 39 | 41 | 43 | 45 | 46 | 47 | 49 | 52 | |||||||||
weight(kg) | 20.7 | 20.8 | 21.1 | 28.8 | 29.2 | 29.9 | 38 | 38.1 | 40 | |||||||||
Company Profile
Yuexin (tianjin) Artificial Environment Engineering Technology Co., Ltd.
Yuexin (tianjin) Artificial Environment Engineering Technology Co., Ltd. specialized in the research, development, sale and
service of fan coil unit, air handling unit, air source heat pump, air cooled chiller, rooftop packaged unit, fresh air
ventilation, air curtain. We also welcome OEM/ODM orders. We have obtained CE, ROHS, ISO9001, ISO14001, ISO45001 certificates. Our
products are exported to clients in such countries and regions as Europe, North America, Mid East, Southeast Asia.
service of fan coil unit, air handling unit, air source heat pump, air cooled chiller, rooftop packaged unit, fresh air
ventilation, air curtain. We also welcome OEM/ODM orders. We have obtained CE, ROHS, ISO9001, ISO14001, ISO45001 certificates. Our
products are exported to clients in such countries and regions as Europe, North America, Mid East, Southeast Asia.
National Comprehensive Enthalpy Difference Performance Laboratory of Air Conditioning Units
The company's local factory has a national standard laboratory. Every data indicator of the products sold is accurate data obtained through rigorous testing to ensure that the products can meet national standards and meet customer needs, and truly achieve Let the data speak for itself and don’t make false propaganda.
Salt spray testing laboratory
The purpose of this laboratory is to test the corrosion resistance of the outer surface of the product. Put the product to be tested into the machine, add prepared salt water to simulate the salt spray environment, and adjust the anti-corrosion treatment of the product appearance after a week of observation.
Operating power monitoring wall
The purpose of the construction is to run the machine 24 hours a day without interruption for one year to obtain actual power and electricity consumption data, provide real and effective data, and reflect the excellent characteristics of energy saving.
Semi-anechoic laboratory
The purpose of the experiment is to detect the actual noise value of the product in a quiet environment. In order to ensure a good user comfort experience, all data are true and valid, and are controlled within the noise decibel suitable for human body acceptance, in line with national standards.
Production workshop environment
The company's local factory has more than 100 workers. Each worker undergoes strict professional skills training and assessment before taking up the job to ensure that they can complete production work skillfully and conscientiously, and that they can complete production tasks on time while ensuring the quantity of products. The factory also has professional automation equipmentfor producing various components of fan coil units, which greatly improves production efficiency. It can produce an average of20W+ fan coil units per year, which can fully meet the needs of major projects.
Partial display in the factory
We welcome friends from all over the world who have engineering needs to visit the factory. I believe we can become a good partner.
We have a strong foreign trade team that can help you solve product problems you encounter. At the same time, our team is young and energetic, with excellent professional skills. I believe we will become good friends.
Many foreign customers and friends who don’t know us have tried to communicate with us, and they all found that their decision was correct. Maybe we only need one face-to-face communication. We welcome you to our beautiful China and our factory. , I believe you will be very impressed by us
In April 2023, we will have our own booth at the Shanghai International Refrigeration Exhibition. I believe friends who have been there have seen us. We brought our newly developed products and our best-selling products to this exhibition, and many customers came here because of it. Come, we will participate in more exhibitions in the future and bring more of our more creative products.
I hope you can come then, my friend.
I hope you can come then, my friend.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $190 / piece
- 5–9 piece: US $185 / piece
- 10+ piece: US $180 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is 200-240V/1/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
