Fan Coil Unit, HAVC, FCU, Ceiling

Fan coil unit — refrigerant Water, type Fan Coil Unit. The complete factory specification follows. Made by Hebei Langri Heating And Cooling Equipment Co., Ltd. (3 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Fan Coil Unit

• Model Number: fp-51
• Refrigerant: Water
• Warranty: 1 Year
• Warranty Of Core Components: 1.5years
• Place Of Origin: Hebei, China
• Application: Hospital, Hotel, Home, Warehouse, Office, School, Plant

Technical Specifications

Product Details

19cm Slim Fan Coil Unit

1.Low noise operation

2.Energy conservation

3.Efficient multi sided air outlet

4.190MM SliM Body Give life more possibilities

5.Automatic swing function High quality motor Gree of the same quality

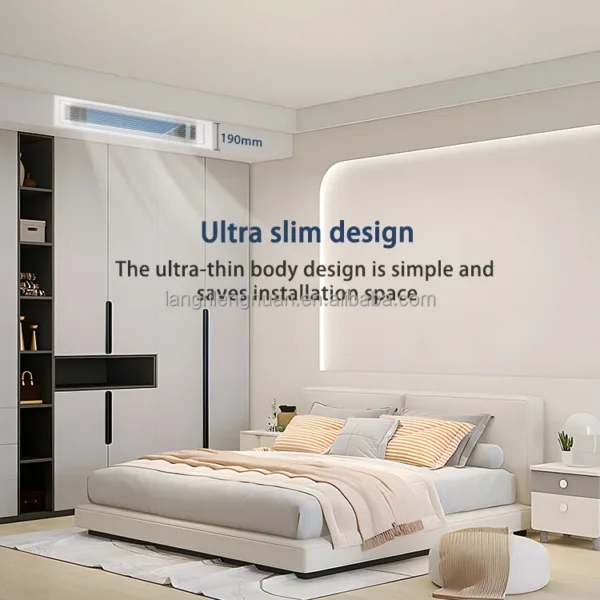

Slim body Design

Ultra thin body design, saving ceiling installation space, combined with lifting pump, beautiful and efficient

Wind wheel

Using ABS material for the wind wheel.Compared to iron wind wheel,
it has lower noise,
corrosion resistance,
longer lifespan, and higher efficiency.

Surface cooler

Hydrophilic aluminum foil, with a thickness of 0.105MM.
Multiple inlet and outlet collection heads can accelerate water circulation and increase water flow.
Efficient heat transfer with a spacing of 1.6-1.8mm.

Copper water head

Pure brass collector head with high corrosion resistance and pressure resistance, 0.3mm thick copper tube,
7mm diameter for optimal heat transfer efficiency

Water tray

The steel water tray adopts high gloss spray coating,with a smooth surface that does not stick to dust and is corrosion-resistant.
It is equipped with insulation cotton to isolate condensed water.

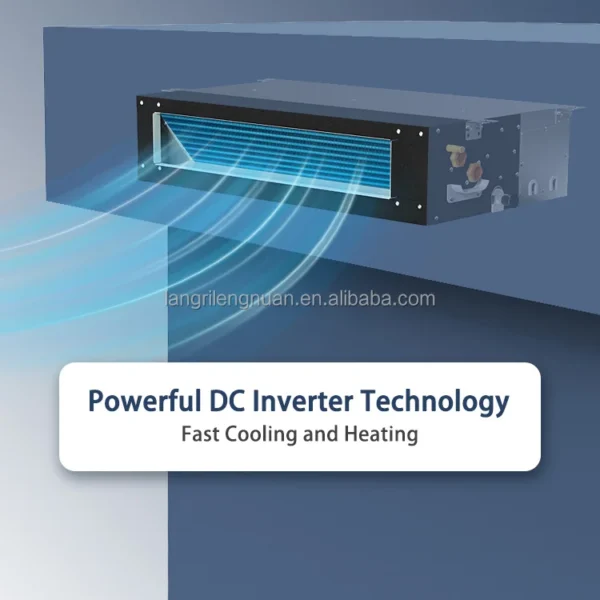

Motor

Yong'an DC brushless motor.In terms of noise life efficiency, it is superior to AC motors.Fixed position upgrade and
strengthened board.

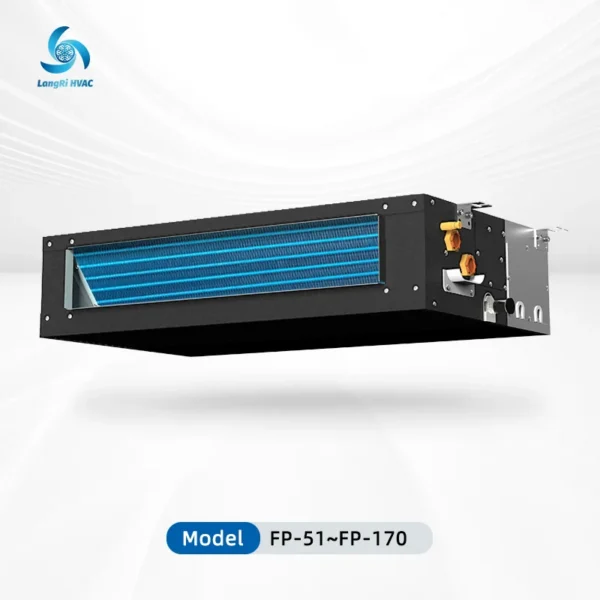

Model	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170
Air Volume (m³/H)	510	680	850	1020	1360	1700
Cooling Capacity (KW/H)	2.9	3.8	4.8	5.6	6.5	8.1
Heating Capacity (KW/H)	4.5	5.6	7	8.6	11	13.6
Net Weight (KG)	13.8	15	16.5	19	25	27
Packing Weight (KG)	15.8	17	18.5	21	27	29
Net Size (mm)	913*495*190	913*495*190	1163*495*190	1163*495*190	1593*495*190	1593*495*190
Packing Size (mm)	1013*595*290	1013*595*290	1263*595*290	1263*595*290	1693*595*290	1693*595*290

Customer Photos

Manufacturing Technique

1.Fin stamping

2.Fin collection

3.Copper pipe cutting

4.Copper tube bending

5.Copper tube expansion link fins

6.Welding water inlet

7.Air pressure and water leakage testing

8.Collect and stack

9.Laser cutting shell

10.Machine bending shell

11.Assemble the outer shell and inner unit

12.Power on test

13.Airflow testing

14.Packaged products

15.Warehouse shipment

Company Profile

Hebei Langri Heating And Cooling Equipment Co., Ltd

Hebei Langri Heating and Cooling Equipment Co., Ltd. is a manufacturer that integrates design, manufacturing, production and sales. Our company mainly provides fresh air exchange units, fan coil units, ventilation equipment, water air conditioning and other heating and cooling equipment. During this period, we have been focusing on the development of the heat pump industry and continuously absorbing advanced technologies from various regions, as well as representative cases of various projects.

Why Choose Us

Certifications

Q:Are you a manufacturer or a distributor? A:I'm Langri, a manufacturer.

Q:What is your price term? A:Ex-factory, FOB, CIF

Q:What is the minimum order quantity? A:The MOQ is 5pcs/model, We accept lpc as sample order for testing.

Q:What is the term of payment?

A:T/T or L/C. Also, we accept the order to be placed via Alibaba

Q:How long is the lead time? A:25-30 days for sample order For smaller models under 8KW, 25 days for containerorder For models 9KW and above, 35 days for container order, We have stocks for popluarmodels,which can be dellvered at once.

Q:How long warranty does Langri provide?

A:24 months since delivery date warranty for every heat pump, and 18 months sincedelivery date warranty for every water tank For agency/distributor or any other kind oflong-term cooperation, we can offer longer and better warranty as discussed and con-firmed by both sides.

Q:lf we have a new design of a heat pump, can Langri produce for us? What is the MOQ? A:Yes of course, we offer OEM service for customers, You only need to provide us the technical nformation. Our engineers will design the whole heat pump according to the techni.cal information you provide, and at the same time control the cost and the price. As to the MOQ, it depends on how difficult the OEM project, as well as the possibility this OEMheat pump would be promising.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–4 piece: US $109 / piece
  • 5–9 piece: US $99 / piece
  • 10+ piece: US $89 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fan coil unit?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
