This fan coil unit is published with the manufacturer’s full specification — voltage AC230/220V(AC110V/AC24V Available), type HVAC Systems. Made by Dongying Qinghua Trading Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan Coil Unit
- Model Number: FP-34
- Voltage: AC230/220V(AC110V/AC24V Available)
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Application: Villa
- Feature: Durable
Technical Specifications
| Application | Villa |
|---|---|
| Design Style | Modern |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | 3D model design |
| Model Number | FP-34 |
| Place Of Origin | Shandong, China |
| Brand Name | QH |
| Function | Refrigeration and heating |
| Color | customized |
| Feature | Durable |
| Noise | 37db(A) |
| Water Flow | 319 |
| Voltage | AC230/220V(AC110V/AC24V Available) |
| Type | HVAC Systems |
| Packaging Details | Carton box packing for Duct type Fan Coil Unit Ceiling horizontal concealed fcu |
| Port Of Dispatch | QINGDAO |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 500 pieces per Day |
Product Details

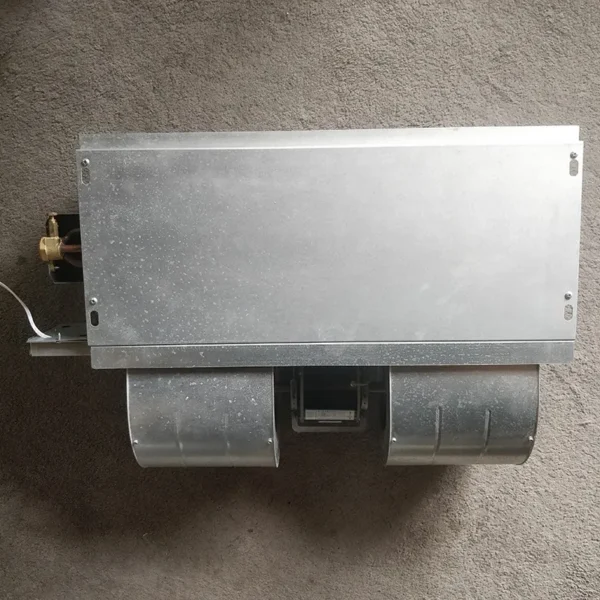

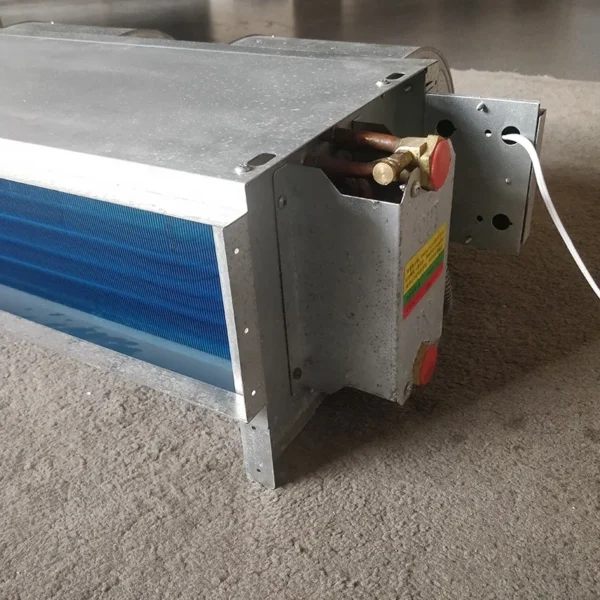

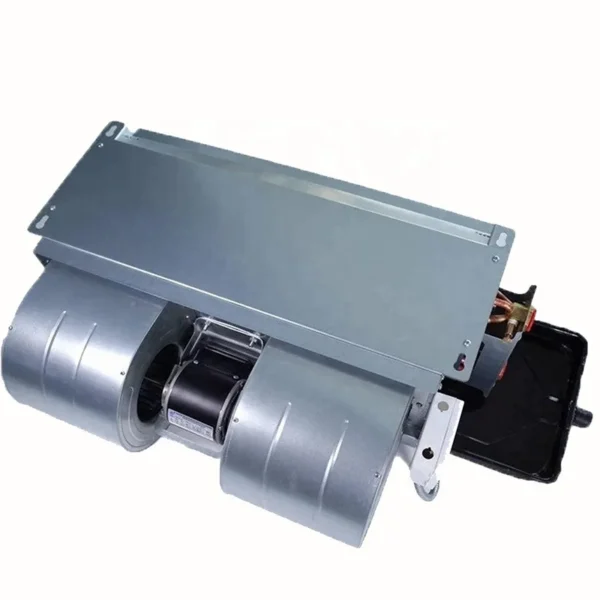

Horizontal Concealed Fan Coil
1. Ultra-thin body design to reduce the thickness of the ceiling.
2. The surface is coated with aluminum-zinc plate for better corrosion resistance.

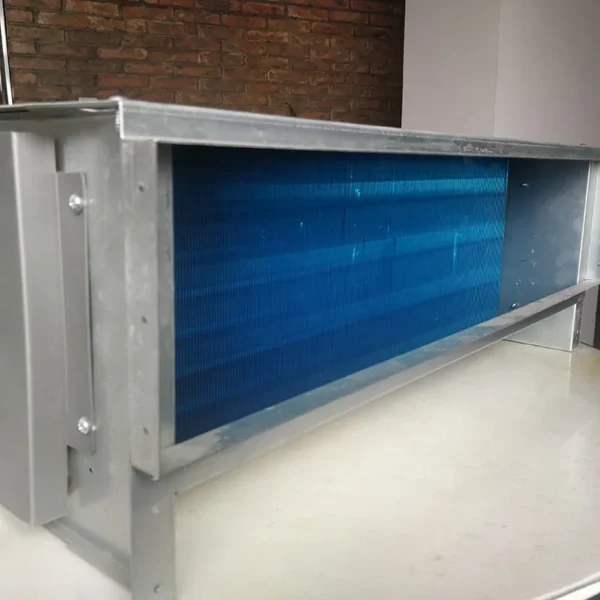

3. Gold fins have better heat dissipation performance.
4. Parts are produced by themselves, with reliable quality and low cost.
Main Feature:
1. Gold cooler with better heat dissipation.
2. Pure copper connecting tube.

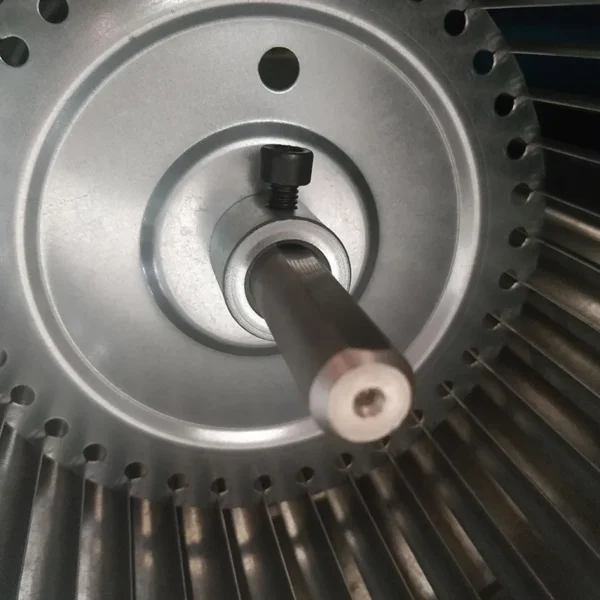

3. DC brushless motor.
The material shell is made of galvanized sheet material, which is more resistant to corrosion and more beautiful.
All the parts of the product are processed by ourselves, and we can guarantee the quality of our products ourselves.
| Model | 34 | 51 | 68 | 85 | 102 | 136 | 170 | 204 | 238 | ||
| Air flow (m3/h) | CFM | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 | 1400 | |
| High speed | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | ||
| Medium speed | 255 | 383 | 510 | 638 | 765 | 1020 | 1275 | 1530 | 1785 | ||
| Low speed | 170 | 255 | 340 | 425 | 510 | 680 | 850 | 1020 | 1190 | ||
| Cooling capacity | High | W | 2247 | 3146 | 4146 | 5056 | 5955 | 7758 | 9657 | 11601 | 13965 |
| BTU | 7669 | 10737 | 14150 | 17256 | 20324 | 26478 | 32959 | 39594 | 47663 | ||
| Medium | W | 1620 | 2440 | 3290 | 4120 | 4850 | 6550 | 8190 | 9730 | 11580 | |
| BTU | 5529 | 8328 | 11229 | 14062 | 16553 | 22355 | 27952 | 33208 | 39523 | ||
| Low | W | 1310 | 2010 | 2650 | 3320 | 3900 | 5300 | 6610 | 7860 | 9350 | |
| BTU | 4471 | 6860 | 9044 | 11331 | 13311 | 18089 | 22560 | 26826 | 31912 | ||
| Heating capacity | High | W | 3251 | 4697 | 6189 | 7747 | 9491 | 11997 | 14732 | 18162 | 22137 |
| BTU | 11096 | 16031 | 21123 | 26441 | 32393 | 40946 | 50280 | 61987 | 75554 | ||
| Medium | W | 2350 | 3520 | 4530 | 6040 | 6850 | 9260 | 11740 | 14140 | 16360 | |
| BTU | 8021 | 12014 | 15461 | 20615 | 23379 | 31604 | 40069 | 48260 | 55837 | ||
| Low | W | 1620 | 2470 | 3130 | 4170 | 4740 | 6500 | 8180 | 9710 | 11290 | |
| BTU | 5529 | 8430 | 10683 | 14232 | 16178 | 22185 | 27918 | 33140 | 38533 | ||
| Surplus pressure of outlet (Pa) | Normal | 0 or 12 | |||||||||
| High static pressure | 30 or 50 | ||||||||||
| Cooling water temperature | 7-12℃ | ||||||||||
| Hot water temperature | 40-60℃ | ||||||||||
| Power supply | AC220V/50Hz | ||||||||||
| Heat Exchanger | Type | copper pipes covered into aluminum fins, fin pitch 2.2mm | |||||||||
| Water supply kg/h | 324 | 482 | 655 | 814 | 936 | 1278 | 1602 | 1915 | 2178 | ||
| Water resistance kPa | 30 | 30 | 30 | 30 | 40 | 40 | 40 | 40 | 50 | ||
| Working pressure | 1.6MPa | ||||||||||
| Low static pressure FCU | Input power w | 37 | 52 | 62 | 76 | 96 | 134 | 152 | 189 | 228 | |
| Motor power w | 10 | 16 | 20 | 25 | 30 | 20×2 | 25×2 | 30×2 | 40×2 | ||
| High static pressure FCU | Static pressrue 30Pa | Input power w | 44 | 59 | 72 | 87 | 108 | 156 | 174 | 212 | 253 |
| Motor power w | 12 | 20 | 25 | 30 | 40 | 25×2 | 30×2 | 40×2 | 50×2 | ||
| Static pressure 50Pa | Input power w | 49 | 66 | 84 | 100 | 118 | 174 | 210 | 250 | 300 | |
| Motor power w | 16 | 25 | 30 | 40 | 50 | 30×2 | 40×2 | 50×2 | 60×2 | ||
| Fan motor quantity | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 4 | 4 | ||
| Noise dB(A) | Low static pressure | ≤37 | ≤39 | ≤41 | ≤43 | ≤45 | ≤46 | ≤48 | ≤50 | ≤52 | |
| High static pressure 30Pa | ≤40 | ≤42 | ≤44 | ≤46 | ≤47 | ≤48 | ≤50 | ≤52 | ≤54 | ||
| High static pressure 50Pa | ≤42 | ≤44 | ≤46 | ≤47 | ≤49 | ≤50 | ≤52 | ≤54 | ≤56 | ||
| Pipe | Inlet/outlet water pipe | 3/4 "internal thread | |||||||||
| Condensation water pipe | 3/4" external thread | ||||||||||
Delivery
TIME OF DELIVERY:within 35 days after receiving deposit .
Payment
1) Support T/T , L/C
2) TERMS OF PAYMENT : 30% in advance,70% before shipment.
Warranty
1) The whole machine for 1 years.
After-sale
During the warranty period, machines which cannot run due to quality problems,Choose the following options.
1) Free replacement of all parts and related parts at the fault place, freight deducted from next order
2) The new machine will be replaced for free in the next order.
Agent support
1) The consultation of other local customers will be forwarded to you, and you will become the exclusive agent for our local business negotiations.
2) No longer set up the same level of agents in any local area.
3) If a local retailer purchases from us, the local agency commission will be given.
Promotion Method
1) After receiving the goods, the evaluation video feedback will give a 0.5% discount on the next order.
2) 2% discount on full payment in one lump sum.
3) Promote our products at local stores, or introduce other local sellers to give 3% discount on the next order.
Ordering and Pricing
- Minimum order quantity: 20 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is AC230/220V(AC110V/AC24V Available). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongying Qinghua Trading Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Dongying Qinghua Trading Co., Ltd. range on HVACR Nexus.
