Fan Coil Unit, Inverter, Ceiling, Ducted, FCU

Key specification for this fan coil unit: power supply 220-240V 1N~50Hz, 3.83 kW. Everything below is reproduced from the factory data sheet. Made by Henan Hualeng Trading Co., Ltd. (2 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Fan Coil Unit

• Model Number: MKT2-V500
• Power Supply: 220-240V 1N~50Hz
• Cooling Capacity: 3.83 kW
• Heating Capacity: 4.84 kW
• Heating Capacity-2: 5.6 kW
• Warranty: 5 year

Technical Specifications

Product Details

Products Description

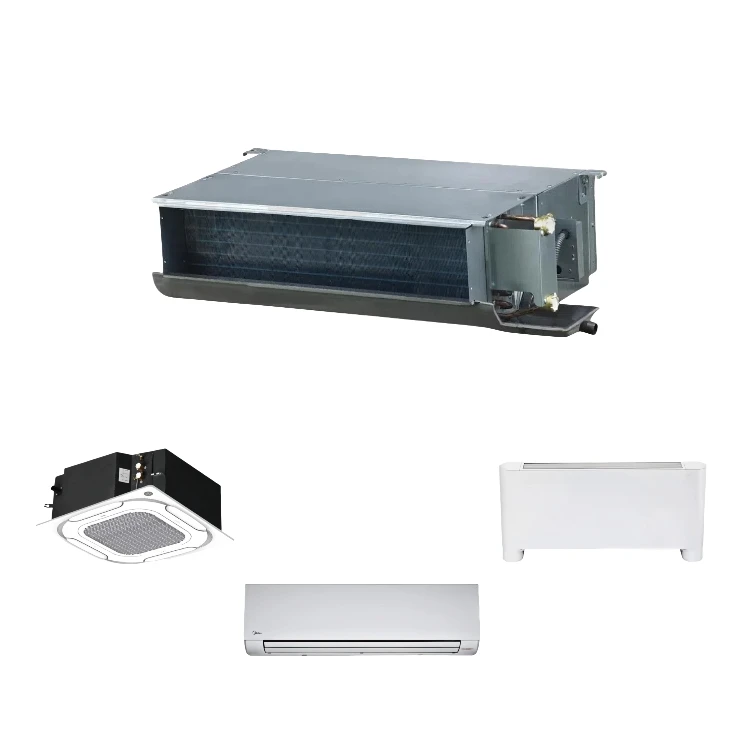

AC Fan Coil Units-Midea Duct Series.

2, 3, or 4 rows for a 2-pipe system, and 3 rows can be customized for a 4-pipe system. Versions for standard, A4, and large difference temperature type. Washable filter: An iron frame filter is standard, and an aluminum frame filter can be customized. Compatible with two types of air return: Back return is standard; bottom return is optional. Left- or right-hand piping connections are easily changed in the field. Available for fresh air intake. EAH is optional (for 2-row, 3-row, and 4-row ducts).

We provide a one-stop service, including VRF drawing design, model selection, installation material calculation, start-up guidance, etc., equipment, and supplying installation material and other parts directly for your project, which makes your VRF projects easier.

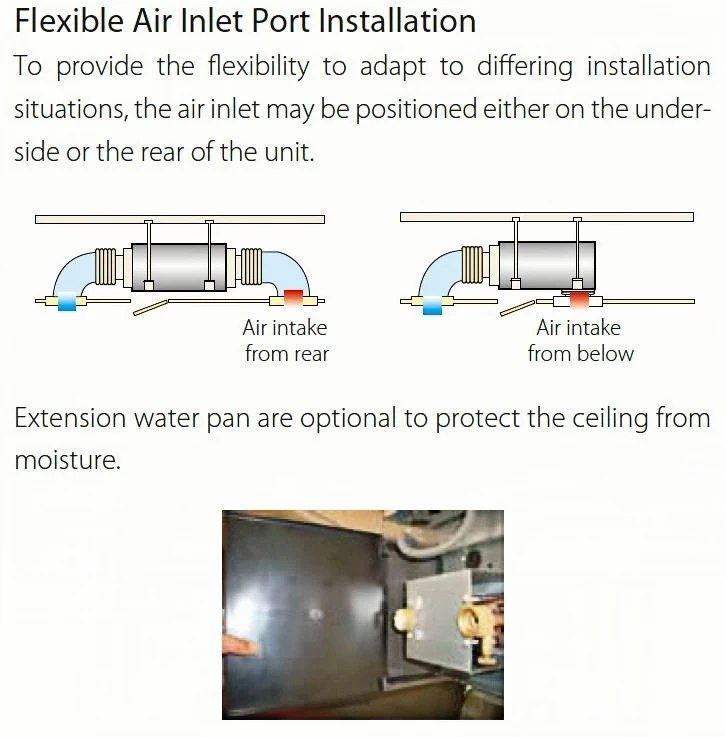

Flexible Air Inlet Port Installation.

To provide the flexibility to adapt to differing installation situations, the air inlet may be positioned either on the underside or the rear of the unit.

Extension water pan are optional to protect the ceiling from moisture.

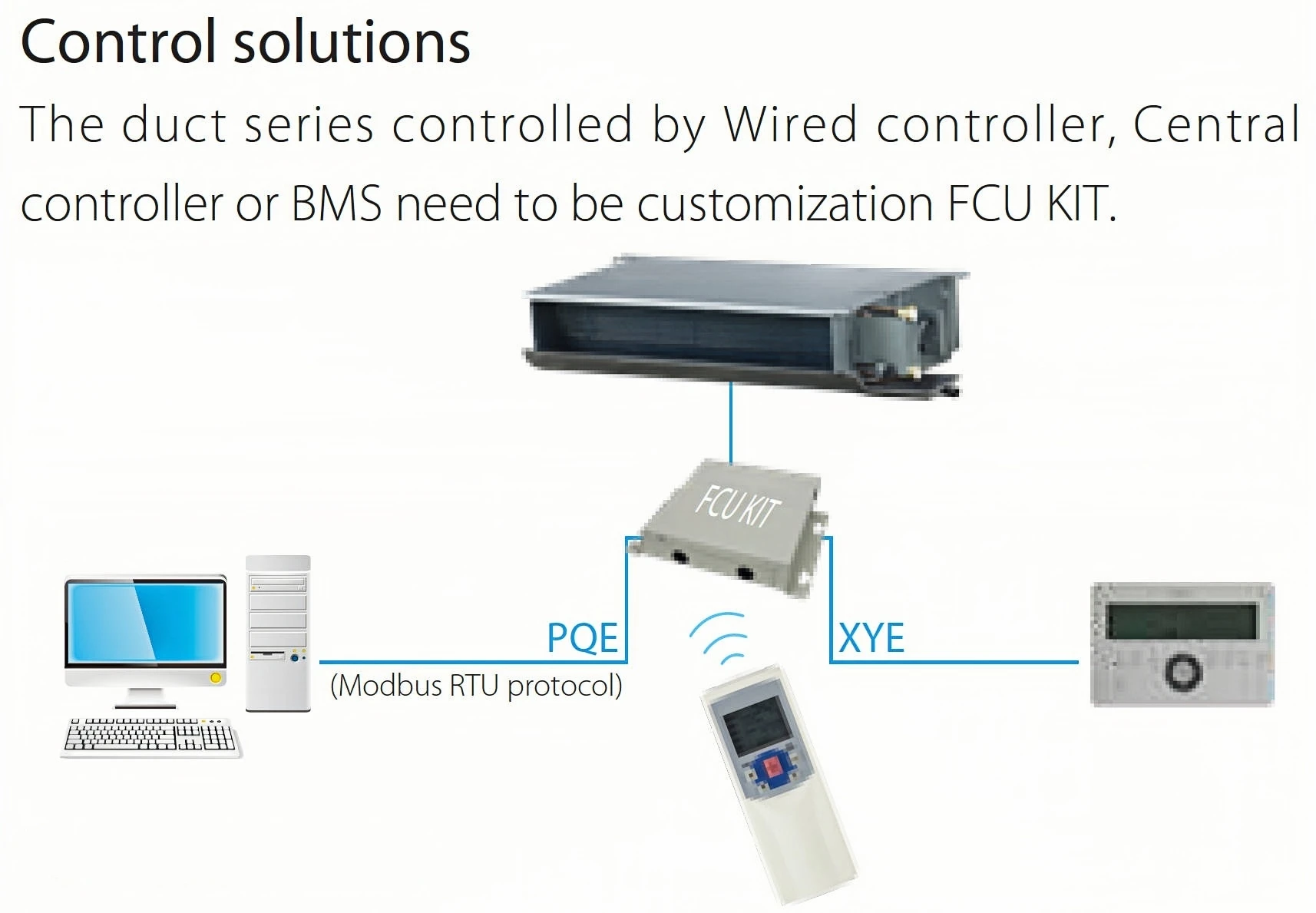

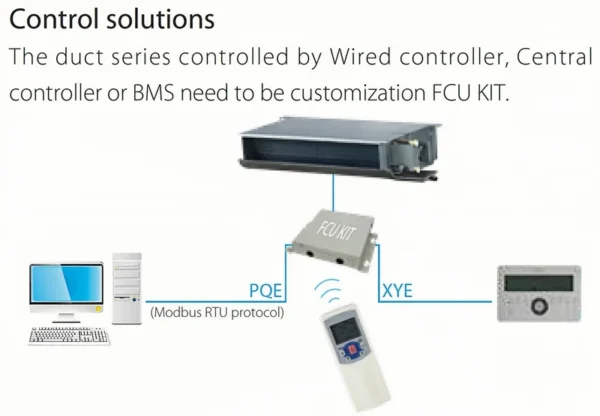

Control solutions.

The duct series controlled by Wired controller, Central controller or BMS need to be customization FCU KIT.

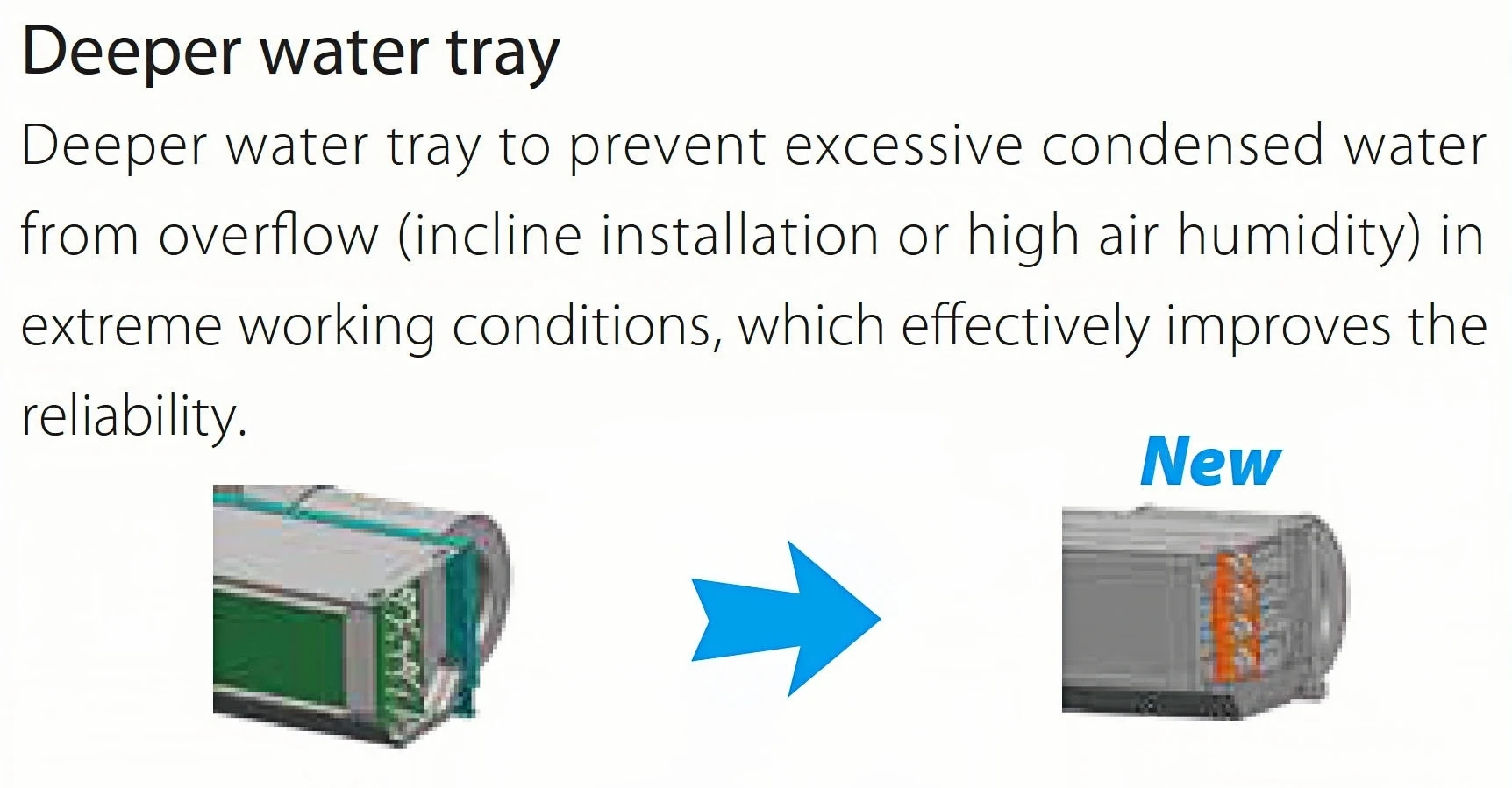

Deeper water tray.

Deeper water tray to prevent excessive condensed water from overflow (incline installation or high air humidity) in extreme working conditions, which effectively improves the reliability.

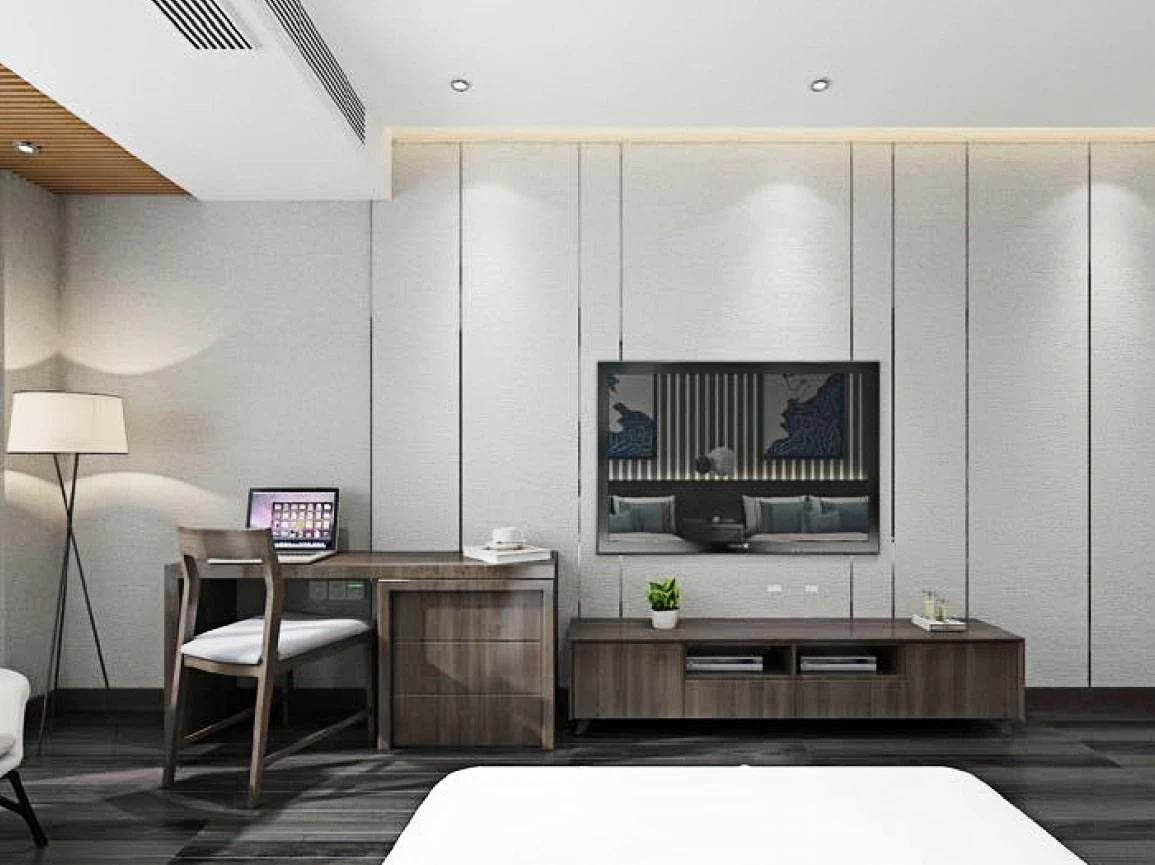

Application

Product packaging

Why Choose Us

1. Experience

With more than 50 years of overseas HVAC project experience, we have successfully completed hundreds of large-scale HVAC projects and have a deep understanding of global HVAC projects.

2. Professional design

Our professional design team is ready to provide you with an AC plan drawing based on your architectural blueprint. In this case, you do not need to find an engineering advisor to design the HVAC layout. Save both time & money for you.

3.Professional selectoion

Based on our diversified commercial air conditioning system, we can select the most suitable model for your project according to the drawings.

4.Providing One-Stop Solution of HVAC System

One-stop service helps save cost and time. Generally including air conditioning Indoor units and outdoor units, control systems, installing accessories (refrigerant copper pipe, UPVC pipes, rubber insulation, hoists, brackets, communication wires, etc.), refrigerant tools (vacuum pumps, cutters, expansion tools, etc.), ventilation grills & diffuser, etc.

5.Technical Support

HVAC commissioning service can be provided accordingly. Air conditioner project engineers can guide and supervise product installation on-site.
We have a global after-sales system with expert service. Ensure your after-sales are worry-free.

Company Profile

Henan Hualeng Trading Co., Ltd.

A professional HVAC&R solution provider, with products covering many types of commercial and residential air conditioners, as well as a variety of commonly used fans, fan coils, air diffusers, air grills, air outlets, air ducts, silencers, and other equipment related to ventilation systems.

Additionally, we are also a leading supplier of central air conditioning and ventilation system products. Specializing in the design, sale, and installation of central air conditioning and ventilation system products, we have a wide range of products to meet various application scenarios and provide customers with complete central air conditioning and ventilation system solutions.

Ordering and Pricing

• Minimum order quantity: 20 set
• Volume pricing:
  • 20–49 set: US $260 / set
  • 50+ set: US $250 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fan coil unit?

The standard minimum order quantity is 20 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the fan coil unit be supplied for my local voltage?

The standard configuration is 220-240V 1N~50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
