The fan coil unit listed here carries power supply 220-240V~ 50Hz, total cooling capacity 7200, documented exactly as the manufacturer publishes it. Made by Tongxing Air Conditioning Technology Co., Ltd. (11 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan Coil Unit
- Model Number: FP-136WM-K
- Power Supply(V-Ph-Hz ): 220-240V~ 50Hz
- Total Cooling Capacity(W): 7200
- Air Flow Volume(M3/H): 1360
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Application | Office Building |
|---|---|
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Free Spare Parts |
| Design Style | Modern |
| Project Solution Capability | graphic design |
| Place Of Origin | Guangdong, China |
| Brand Name | Gree |
| Model Number | FP-136WM-K |
| Total Cooling Capacity(W) | 7200 |
| Power Supply(V-Ph-Hz ) | 220-240V~ 50Hz |
| Air Flow Volume(M3/H) | 1360 |
| Water Flow(M3/H) | 1.3 |
| Sound Pressure Level(DB(A) | 51 |
| Coil Type | Aluminum fin-copper tube |
| Motor Type | Isolation E capacitor startup 3-speed motor |
| Output Of Fanmotor | 162 |
| Outline Dimension (W*D*H) | 1590*295*638 |
| N.W./G.W.(Body,Kg) | 48.5/57 |
| Packaging Details | STANDARD OVERSEA PACKING |
| Port Of Dispatch | ANY PORT |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 boxes per Year |
Product Details

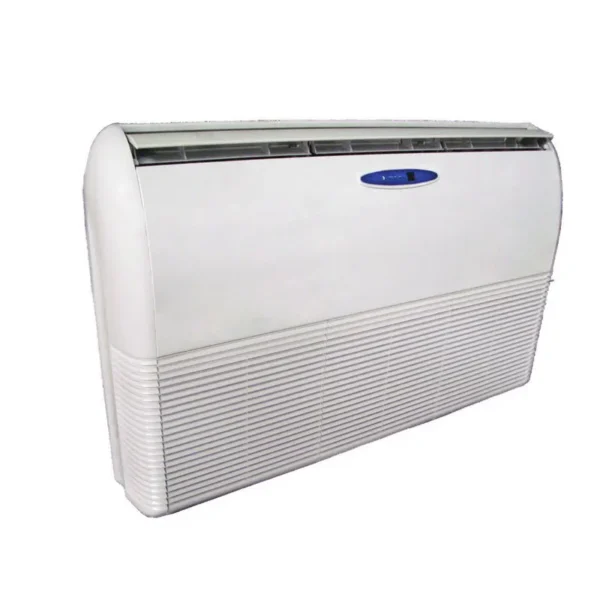

GREE FP series fan coil air conditioners are designed specially to meet the varied requirements of
zone cooling or heating using chilled water or hot water. fan coils can be applied to two or four pipe
systems to satisfy the requirements of a wide variety of air conditioning or heating application. GREE
FCU (Fan coil unit) is available in concealed and exposed versions for ceiling an floor mounted inst-
allation. They offer effective zone control and are especially suitable for use in apartments, hotels,
shopping centers, office buildings and hospitals.
GREE FCU is available four configurations: WA:Concealed Ceiling ;WM-Floor And Ceiling Type ;
XD-Cassette type;B-Wall mounted
FEATURES & BENEFITS
Horizontal Concealed:
* Small enthalpy difference, that is suitable to the place which highly requires the comfort and precision.
* Economize space because of the little height.
* High cooling(heating)capacity and low noise, Adjust the air flow volume with three-speed motor
to satisfy different requirements.
* Drain pan is adhibited with heat preservation material to avoid the coagulate water.
* Improve on the place of the deflation and drain valve to improve the efficiency of heat transfer
and avoid the pipeline freezing in winter.
Floor And Ceiling,Cassette Type,Wall Mounted:
* Novelty style: the panels exposed are so exquisite that make them look like the indoor adorning.
* Adopt a great deal of nonmetal material to make them light and desirable.
* Low noise: Fans are designed by using the principles of dynamics to make sure the air flow volume
and fall the running noise.
* The depurative period protracts 20 times by using excellent filter,no need to clean filter frequently.
* Microcomputer control: The unit will adjust the air flow rate automatically according to the indoor
temperature to satisfy different requirements.
* Economize space because of the little height.
* High cooling(heating)capacity and low noise, Adjust the air flow volume with three-speed motor
to satisfy different requirements.
* Drain pan is adhibited with heat preservation material to avoid the coagulate water.
* Cassette Type & Wall Mounted fan coil units have microcomputer control system, the remote controller has functions as:
* timing on/off display
* fan speed display
* mode display(auto,cool,dry,fan,heat)
* setting temperature display
INSTALLATION
Design the entire air conditioning circuit for free according to your site map.
Engineers can be dispatched to the site to provide equipment installation services.
Quality assurance lifetime:
- lifetime of outdoor units: 30 years
- lifetime of parts: 18 mons-3 years
- Construction project lifetime: 6 mons
Ordering and Pricing
- Minimum order quantity: 10 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is 220-240V~ 50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Tongxing Air Conditioning Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Tongxing Air Conditioning Technology Co., Ltd. range on HVACR Nexus.
