Fan coil unit — cooling capacity 0.9-3.5, refrigerant Water. The complete factory specification follows. Made by Baoding Yuexin Heating And Cooling Equipment Manufacturing Co., Ltd. (8 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan Coil Unit
- Model Number: YG-10, YG-20, YG-30
- Cooling Capacity(Kw): 0.9-3.5
- Heating Capacity(Kw): 1.6-5.7
- Air Flow(M³/H): 265-630
- Refrigerant: Water
- Warranty: 3 Years
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Refrigerant | Water |
| Mounting Type | Wall mounted |
| Compressor Brand | None |
| Fan Motors Type | DC |
| Motor Type | DC Motor |
| Filter Type | Removable filter |
| Key Selling Points | Eco-Friendly, Automatic, Competitive Price, Low Maintenance Cost, Easy To Operate, Remote Monitoring, Long Service Life, Remote Control, Low Noise Level, Energy Saving, Famous Brand Motor, Accurate Temperature Control |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | DC motor, LCD WIFI Thermostat, Self-developed Motherboard, High heat exchange efficiency condenser |
| Place Of Origin | Hebei, China |
| Weight (Kg) | 16 |
| Brand Name | Yesncer or OEM |
| Model Number | YG-10, YG-20, YG-30 |
| Dimension(L*W*H) | 760mm*130mm*575mm-1220mm*130mm*575mm |
| Product Name | Slim Hydronic Fan Coil Unit |
| Cooling Capacity(Kw) | 0.9-3.5 |
| Heating Capacity(Kw) | 1.6-5.7 |
| Noise(DB) | 34-39 |
| Air Flow(M³/H) | 265-630 |

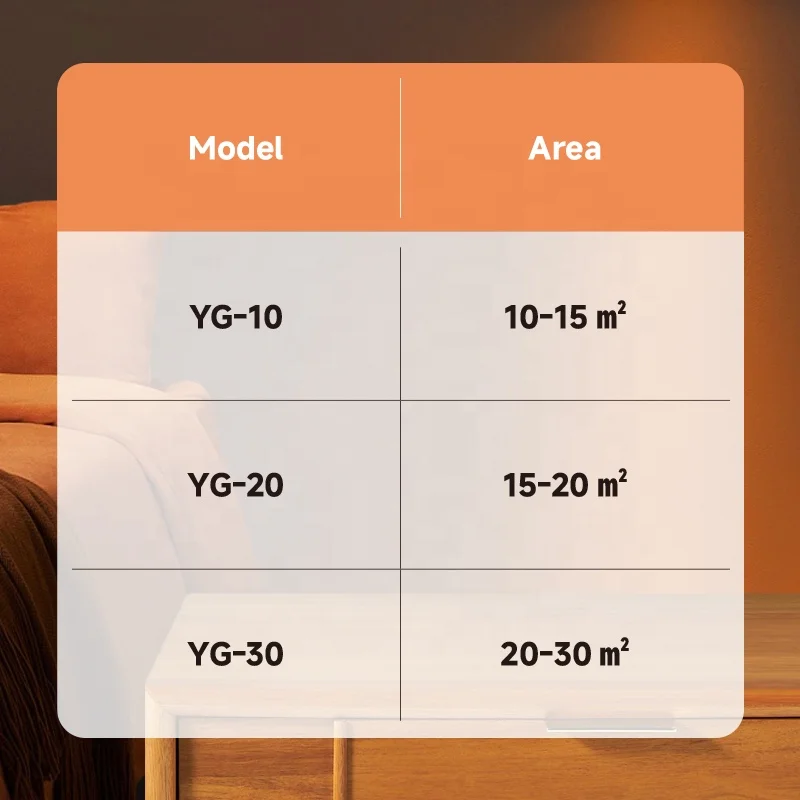

| Applicable Area(㎡) | 10-30 |
| Color | White or OEM |
| Certification | CE ISO ROHS CRAA |
| Installation | Wall mounted |

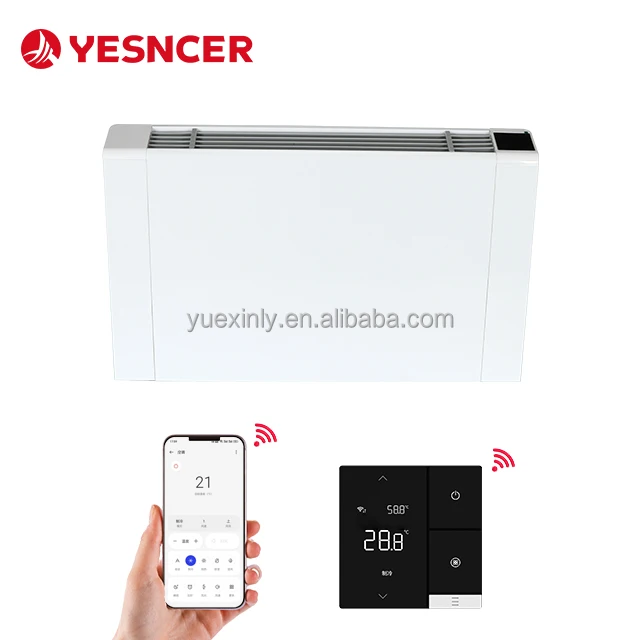

| Control | LCD+Remote |
| Selling Units | Single item |
| Single Package Size | 82X18.5X67 cm |
| Single Gross Weight | 18.000 kg |
Product Details
Welcome to YESNCER
Products Description
Product Paramenters
Model | YG-10 | YG-20 | YG-30 | ||
Voltage Range | AC190~250V,50/60Hz | ||||
Speed Range | 200~2200rpm | ||||
Air Flow(m³/h) | 265 | 420 | 630 | ||
Noise(dB) | 34 | 37 | 39 | ||
Power Input(w) | 14 | 16 | 21 | ||
Cooling Capacity(kw) | 0.9 | 1.7 | 3.5 | ||
Heating Capacity(kw) | 1.6 | 3 | 5.7 | ||

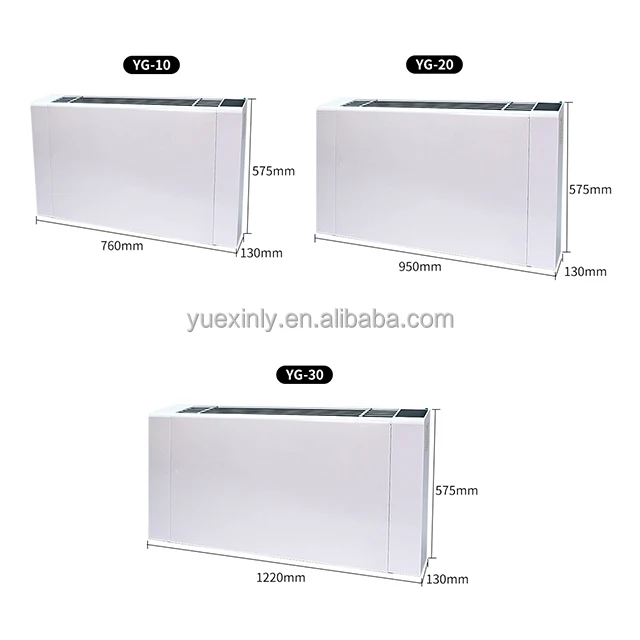

Size L*W*H(mm) | 760*130*575 | 950*130*575 | 1220*130*575 | ||
Company profile
Baoding Yuexin Heating And Cooling Equipment Manufacturing Co., Ltd.
is a professional manufacturer of cooling and heating equipment integrating R&D,manufacturing, sales and after-sales service. It mainly produces fan coil units, water temperature air conditioners,The hot air blower, water conservancy module and air source heat pump cover an area of more than 26,600 square meters (40 acres) and a construction area of 17,000 square meters. The company takes "energy saving and environmental protection" as its mission and is committed to Use technology to save energy in our world, save money and reduce expenses for our customers.
National Comprehensive Enthalpy Difference Performance Laboratory of Air Conditioning Units
The company's local factory has a national standard laboratory. Every data indicator of the products sold is accurate data obtained through rigorous testing to ensure that the products can meet national standards and meet customer needs, and truly achieve Let the data speak for itself and don’t make false propaganda.
Salt spray testing laboratory
The purpose of this laboratory is to test the corrosion resistance of the outer surface of the product. Put the product to be tested into the machine, add prepared salt water to simulate the salt spray environment, and adjust the anti-corrosion treatment of the product appearance after a week of observation.
Semi-anechoic laboratory
The purpose of the experiment is to detect the actual noise value of the product in a quiet environment. In order to ensure a good user comfort experience, all data are true and valid, and are controlled within the noise decibel suitable for human body acceptance, in line with national standards.
Operating power monitoring wall
The purpose of the construction is to run the machine 24 hours a day without interruption for one year to obtain actual power and electricity consumption data, provide real and effective data, and reflect the excellent characteristics of energy saving.
Product production workshop
The company's local factory has more than 100 workers. Each worker undergoes strict professional skills training and assessment before taking up the job to ensure that they can complete production work skillfully and conscientiously, and that they can complete production tasks on time while ensuring the quantity of products. The factory also has professional automation equipmentfor producing various components of fan coil units, which greatly improves production efficiency. It can produce an average of20W+ fan coil units per year, which can fully meet the needs of major projects.
Packaging & delivery
We support product packaging in cartons, wooden pallets, wooden boxes, foam filling, etc. to ensure the integrity of the product. Before transportation, we will also conduct seismic testing of product transportation to ensure that the current packaging method of the product is safe and stable. Regarding product transportation, we support multiple methods such as sea transportation, air transportation, truck, and express delivery. Depending on the destination, you can choose port-to-port or door-to-door service.
Certifications
Core team
We have a strong foreign trade team that can help you solve product problems you encounter. At the same time, our team is young and energetic, with excellent professional skills. I believe we will become good friends.
Many foreign customers and friends who don’t know us have tried to communicate with us, and they all found that their decision was correct. Maybe we only need one face-to-face communication. We welcome you to our beautiful China and our factory , I believe you will be very impressed by us
In April 2023, we will have our own booth at the Shanghai International Refrigeration Exhibition. I believe friends who have been there have seen us. We brought our newly developed products and our best-selling products to this exhibition, and many customers came here because of it. Come, we will participate in more exhibitions in the future and bring more of our more creative products.
I hope you can come then, my friend.
I hope you can come then, my friend.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–199 piece: US $150 / piece
- 200–499 piece: US $145 / piece
- 500+ piece: US $136 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this fan coil unit carry?
It is supplied with CE ISO ROHS CRAA documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
