Key specification for this fan: rated voltage 115/208-230-277V, type Micro Motor. Everything below is reproduced from the factory data sheet. Made by Chikee Motor Idustrial Co., Limited (3 years on the platform, typical reply >24h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan
- Model Number: EC motor
- Rated Voltage: 115/208-230-277V
- Speed(RPM): 200 – 1800 RPM
- Speed: 1800 RPM
- Warranty: 3 months ~ 1 year
- Place Of Origin: Guangdong, China
Technical Specifications
| Commutation | Brushless |
|---|---|
| Speed(RPM) | 200 – 1800 RPM |
| Efficiency | IE 4 |
| Type | Micro Motor |
| Construction | Permanent Magnet |
| Protect Feature | Drip-proof |
| Usage | Fan, Home Appliance |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 4.8A |
| Model Number | EC motor |
| Torque | Requests |
| Place Of Origin | Guangdong, China |
| Brand Name | CHIKEE |
| EFF% | 82% |
| Product Name | ECM MOTOR |
| Application | HVAC |
| Motor Type | Electronic commutation motor |
| Rated Voltage | 115/208-230-277V |
| Isulation | Class B |
| Speed | 1800 RPM |
| Selling Units | Single item |
Product Details

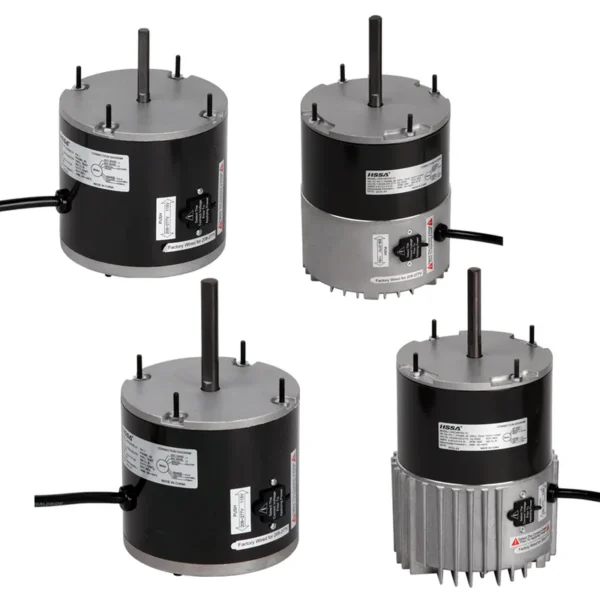

Chikee P/N | Power | Voltage | Poles | Drive Type | Isulation | Speed | Mounting | Efficiency | Compliance |
1562# | 122 W | 115/208-230-277V 60/50Hz | 10 | Direct Drive | Class B | 1800 RPM | Face (horizontal/vertical) | 82.20% | UL1004-07 & electronically-protected L |
1563# | 184 W | 115/208-230-277V 60/50Hz | 10 | Direct Drive | Class B | 1800 RPM | Face (horizontal/vertical) | 83.90% | UL1004-07 & electronically-protected L |
1564# | 245 W | 115/208-230-277V 60/50Hz | 10 | Direct Drive | Class B | 1800 RPM | Face (horizontal/vertical) | 86.40% | UL1004-07 & electronically-protected L |
1565# | 368 W | 115/208-230-277V 60/50Hz | 10 | Direct Drive | Class B | 1800 RPM | Face (horizontal/vertical) | 87.00% | UL1004-07 & electronically-protected L |
1566# | 551 W | 115/208-230-277V 60/50Hz | 10 | Direct Drive | Class B | 1800 RPM | Face (horizontal/vertical) | 87.70% | UL1004-07 & electronically-protected L |
1567# | 735 W | 115/208-230-277V 60/50Hz | 10 | Direct Drive | Class B | 1800 RPM | Face (horizontal/vertical) | 87.90% | UL1004-07 & electronically-protected L |
About us:
Ordering and Pricing
- Minimum order quantity: 280 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan?
The standard minimum order quantity is 280 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan be supplied for my local voltage?
The standard configuration is 115/208-230-277V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Chikee Motor Idustrial Co., Limited, based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Chikee Motor Idustrial Co., Limited range on HVACR Nexus.
See more in EC Motors on HVACR Nexus.
