This flow fire exhaust fan is published with the manufacturer’s full specification — voltage consult the merchant, blade material Nylon/ALU. Made by Nanjing Colorfan Technology Co., Ltd. (3 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Flow Fire Exhaust Fan
- Model Number: P3H
- Voltage: consult the merchant
- Blade Material: Nylon/ALU
- Warranty: 1 year
- Place Of Origin: Jiangsu, China
- Application: Cooling Fan
Technical Specifications
| Warranty | 1 year |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Jiangsu, China |
| Brand Name | ColorfanDele |
| Blade Material | Nylon/ALU |
| Model Number | P3H |
| Application | Cooling Fan |
| Tyoe | Axial flow fan |
| Voltage | consult the merchant |
| Impeller Dia | 173-745 |
| Blade Number | 6-14 |
| Temperature Range | -30℃-150℃ |
| Selling Units | Single item |
| Single Package Size | 100X100X50 cm |
| Single Gross Weight | 50.000 kg |
Product Details
Product Description

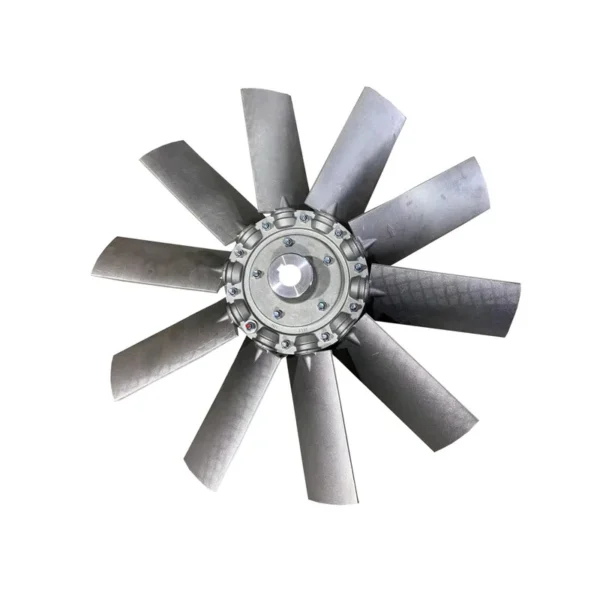

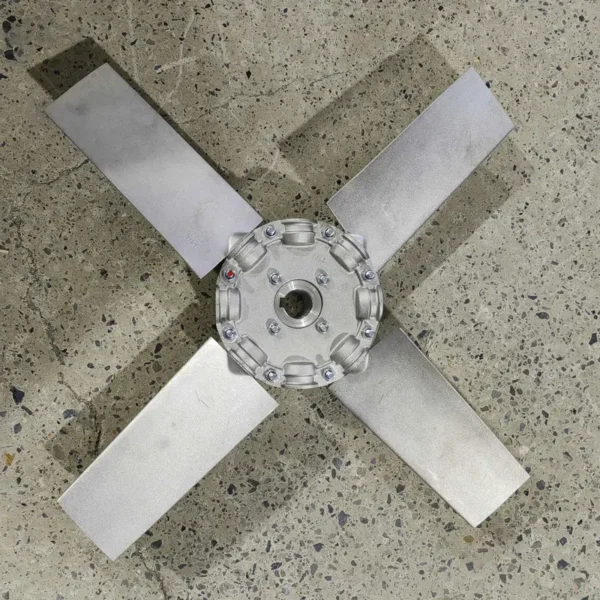

The P2H and P3H series axial fans with optional airfoil blades can be widely used in Applications include HVAC, compressors, and
engine-driven equipment. The dimensions of the blades are designed to ensure that the velocity of the air flow as it passes over
the surface of the blade The distribution over the entire blade surface is kept very uniform, thus achieving a For optimum performance, range of fans is better than one injection molding or stamping. Compared with the fan processed by the art,the fan has the following advantages:
engine-driven equipment. The dimensions of the blades are designed to ensure that the velocity of the air flow as it passes over
the surface of the blade The distribution over the entire blade surface is kept very uniform, thus achieving a For optimum performance, range of fans is better than one injection molding or stamping. Compared with the fan processed by the art,the fan has the following advantages:
-More efficient
-Consumes less power
-Low noise

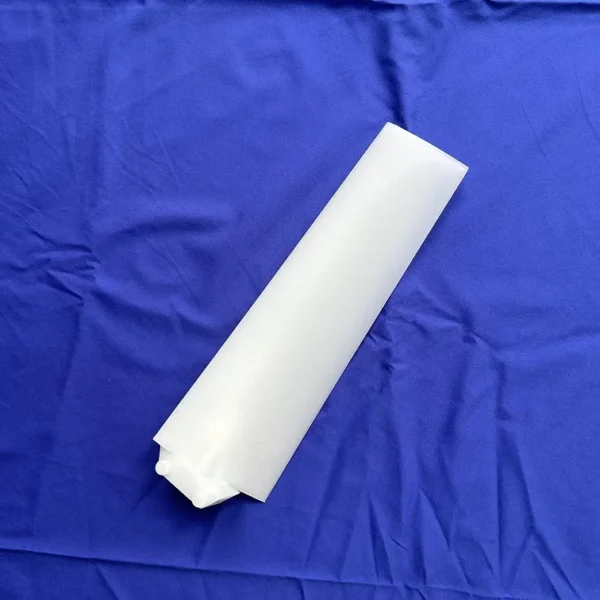

Fans in this series are available in diameters from 141 to 745 mm, with blade deflection angles from 25 ° to 50 ° Adjust to meet the customer's different application requirements . Root of H-shaped blade Locked in the corresponding fan hub to ensure that the blades will not be displaced after installation. Also remains the same. Blade injection molded from high strength thermoplastic or die cast from aluminum alloy It has the following remarkable characteristics:
-Light weight and high
-strength Corrosion resistant
-strength Corrosion resistant
-Optimize the design according to the customer's requirements

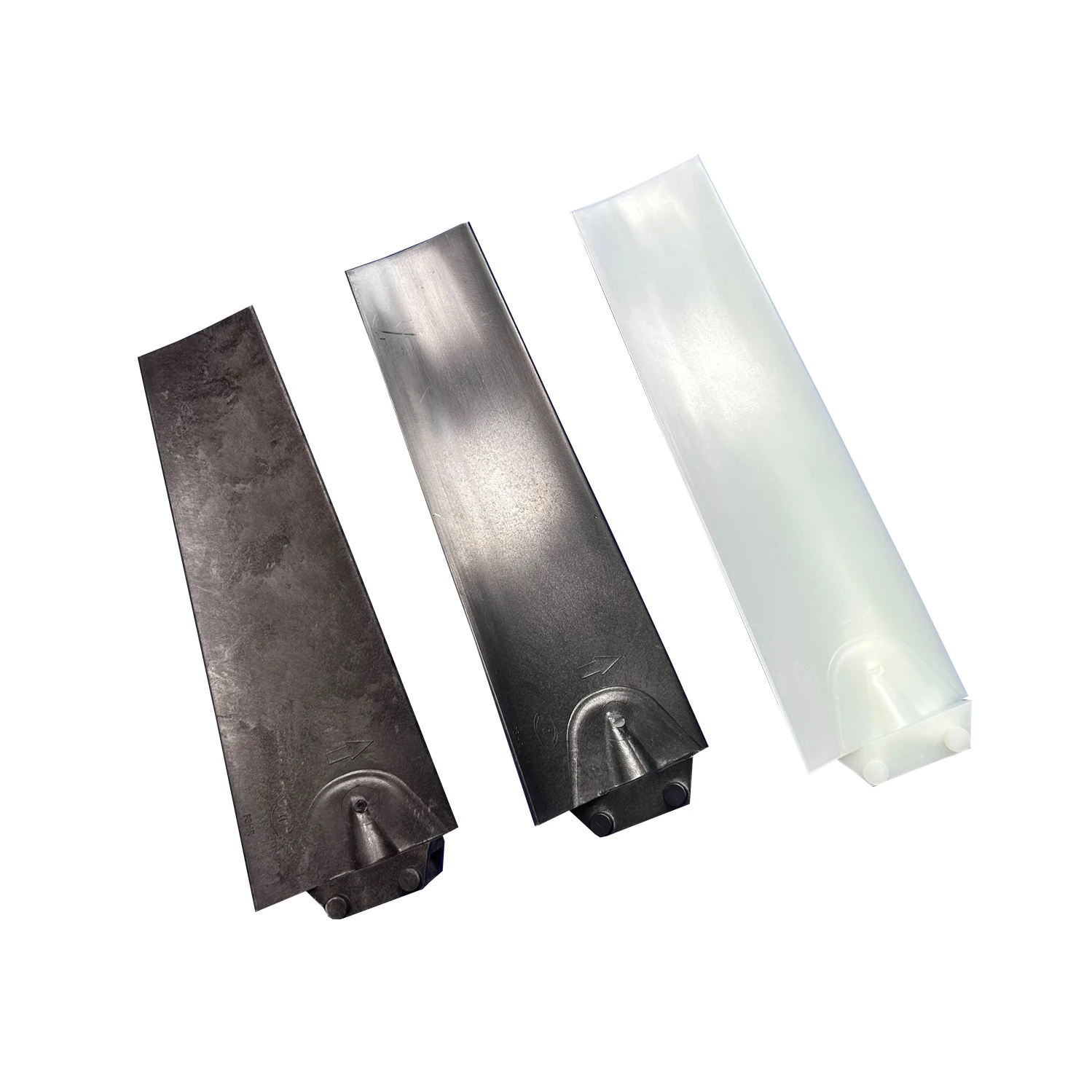

Blade Specs
Symbol | Material | Temperature range | Characteristic | Application |
PA | Nylon6,Black | -40ºC-110ºC | Anti-aging | Standard load |
PAG | Nylon6,Black and white | -40ºC-110ºC | Anti-aging | Heavy load |
PAGST | Nylon6,Black | -40ºC-110ºC | Shock and impact | Strong vilbration occasion |
PACAS | Nylon6,Blue-gray | -30ºC-100ºC | Conductivity Fire resistance | Explosive danger |
ALU | Die-cast aluminum alloy | -40ºC-150ºC | Large temperature range | High temperature |
Fan diameter mm (Minimum-Maximum) | Fan Hub | |||||||||
P2H | P3H | D6 | D5 | s | ||||||
6 | 141-400 | 173-600 | 9 | 30 | 53 | 3 | ||||
8 | 178-437 | 210-637 | 15 | 42 | 68 | 3 | ||||
10 | 216-475 | 248-675 | 25 | 76 | 107 | 3 | ||||
12 | 250-509 | 282-709 | 25 | 125 | 148 | 3 | ||||
14 | 286-545 | 318-745 | 25 | 142 | 170 | 3 | ||||
Connection versions and specs

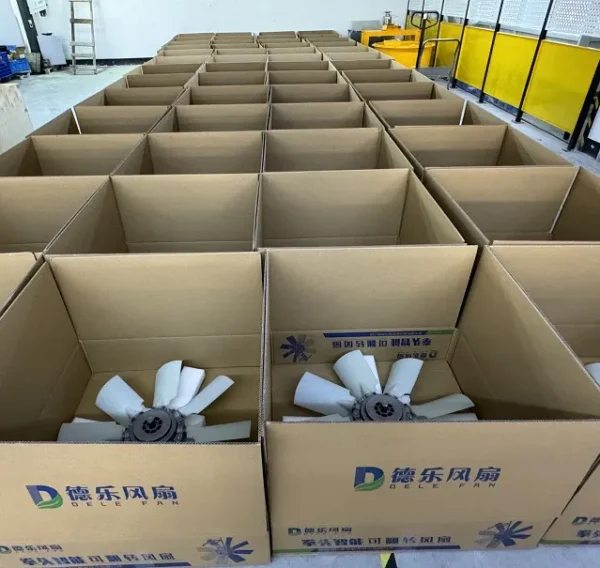

Packaging&Shipping
Company Introduction
Nanjing Colorfan Technology Co.,LTD is specialized in offering axial impellers, which are widely used in construction machinery, agriculture, forestry and plant protection, wind power, plant ventilation, air replacement, fire ventilation, air conditioning equipment, ceramic industry, refrigeration equipment, compressor, condenser, construction machinery, cooling device, dry cooling tower, motor, evaporative cooling tower, forklift, etc.

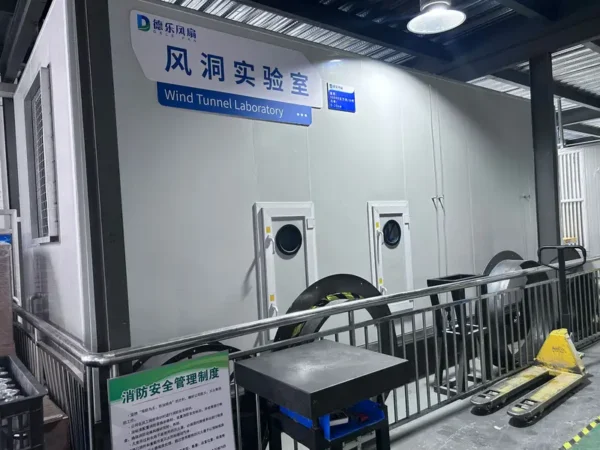

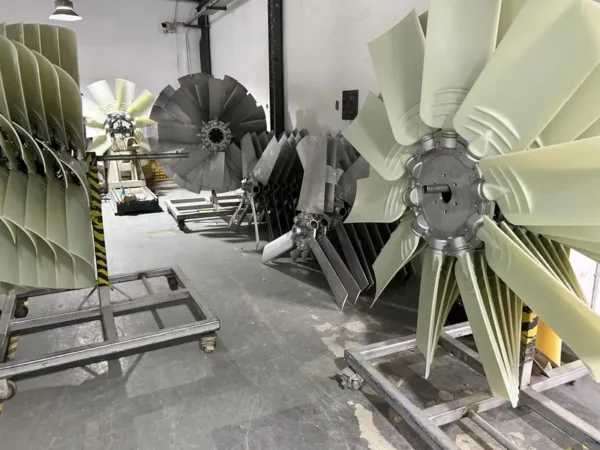

We have over 10 years experienced in producing axial impellers and could always offer the best quality and also the best after-sale services.Our factory has 60 people' team and four departments including fan manufacturing, mould processing, injection molding and wind tunnel test.According to the theory and technology of aerodynamics, the performance of the blade is designed and optimized scientifically. Through many tests, it is ensured that the products provided to all customers could meet their quality requirements.
FAQ
1.How about the dellivery time?
—No matter sample or bulk order, the delivery time would be around 15 days. If you need the customization of the shapeness or color on fan blades, delivery time would be longer accordingly.
2.Can I get a sample piece to test before ordering in a bulk?
2.Can I get a sample piece to test before ordering in a bulk?
—Of course, we support sample service after confirming the detailed blade model, flange and axle sizes and shape. The quality for bulk order would be exactly same as the sample ones.
3.Can you confirm your fan can be replaced on our machines?
3.Can you confirm your fan can be replaced on our machines?
—Yes, all fans can be replaced. We can machine the connection holes and bushings, to confirm the fan can be fitted. Besides, we will balance and match the angle to the power speed to ensure its safety.
4.Do you have a factory?
4.Do you have a factory?
—Yes, our factory is located in Changzhou, JiangSu. We produce and export series of cooling fan, axiel fan, draught fan etc with high-end quality. Our factory has 60 people' team and four departments including fan manufacturing, mould processing, injection molding and wind tunnel test. Products range from fields of engineering machinery, engine, cooling machines, central air-conditioning, refrigeration equipment, screw air compressor, wind power equipment etc.
5.How's your production capacity per year？
—-Annually 300K pieces
6.How to order?
— First, contact our sales, show them the specification or image of what kind of fans you want. Second, our technics will check which model would be most suitable for you. Sales will quote you the detailed price. Third, if all good to you, we will make sample according to your request. Then deal with official order. Our sales will serve you quickly and must reply within 6 hours because of the time difference.
7.Information that customers need to offer.
—
a) Drive mode: motor/engine (offer drawing: power/pole number/rotate speed/axle pole); b) Connection mode: Flange/ Axle (taper bushing); c) Application: For example ventilation, heat ejection, fog gun, graziery; d) Do you want us to install the complete machine (including motor, wind canister etc); e) Your operation point (temperature, height, air volume, air pressure); f) Installation mode: clockwise or anticlockwide g) Blade diameter etc.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this flow fire exhaust fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the flow fire exhaust fan be supplied for my local voltage?
The standard configuration is consult the merchant. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Nanjing Colorfan Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full Nanjing Colorfan Technology Co., Ltd. range on HVACR Nexus.
