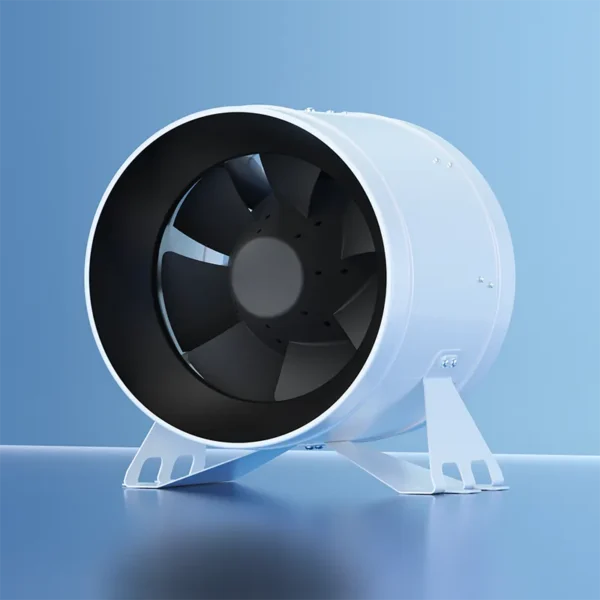

Flow Inline Can Fan, 315mm/300mm, 110-120V, 1757 CFM

Key specification for this flow inline can fan: voltage 110-120V,220-240V, 1757 CFM. Everything below is reproduced from the factory data sheet. Made by Shenzhen Shengshida Electronics Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Flow Inline Can Fan

• Model Number: SE-A315Z
• Power Source: Electric
• Max Power: 320 W
• Voltage: 110-120V,220-240V
• Air Flow: 1757 CFM
• Blade Material: Plastic

Technical Specifications

Product Details

Matters need attention

Speed controller need purchase separately

Product Description

Product Name	Sensdar duct fan	Style	Duct fan
Brand	Sensdar	Colour	Green
Blade materials	PBT	Place of Product	Guangdong Province,China
Housing	Cold rolled steel	Modes of packing	Individual packing
Motor types	EC motor	After sale service	Online support

Features

1. Smallest volume in same size, easy to install in family and factory.

2. EC motor technology, only 50% energy cost compared with AC motor duct fan.

3. Jet engine design on the impeller, largest cubic feet per minute in same products.

4. Various size for choice, 4,5,6,8,10 inch.

5. Ball bearing from NSK, NMB.

6. Fire proof impeller, PBT material.

7. Cold rolled stell housing with anti-rust coloring.

8. Exclusive patent on design and EC technology.

9. Three types controller: 8 speed level controller, Remote controller, Thermal controller.

10. Individual package with expandable polystyrene for safety delivery and retailing.

11. Detected by authoritative organizations, are popular in US,CA,AU,EU area.

Quality Control

1. Full test before delivery

2. Acoustic spectrum analysis for EC motor.

3. Whole sealing silent test room for every made-up articles.

4. Aging test.

5. Controller crash test.

6. Overload test.

7. Impeller blance test.

8. Using temperature test.

After-sales service

Three years limited warranty.

Business Model

1. Do not support OEM/ODM.

2. SigilVentus will recruit limited members as our agent in same area.

3. Offering suggestion retailing price.

3. Withour member fees.

4. MOQ 1 pcs.

Certificate

CCC,CE,ROHS,ETL

FAQ

Q1: Why are your products so expensive?

A1: Five years reserach on EC motor using on Duct fan, finally invented this EC inline duct fan with intelligent controller. All the materials from Duct fan to package, we choose the best quality and promise the ability when you received. Focusing on the intelligent, powerful, enery saving and environment products and best user experience.

Q2: Is there any difference between Sensdar with other exhaust fan?

A2: Traditional exhaust fan with ceiling styles is smaller CFM, lower static pressure. Static pressure is a important factor on fans sucking speed. If there is strong wind outside, traditional exhaust fan may not work perfectly. But our EC inline duct fan, Max speed 5000 RPM with 500 Pa static pressure, no matter what the outside environment and pipe length is, 100% data CFM and sucking rate.

Q3: Why would I buy your duct fan not from others? There are also many styles duct fan in China. A3: EC motor is an uniqute technology which is belonged to our company exclusive patent. At the same size, we have larger air flow, higher air pressure and only half of energy cost than other duct fan. What's more, intelligent controller can help you to control our products with various ways. 8 level speed control match all the speed demands and thermal controller ensure the 24 hours auto using.

Q4: Sensdar noise level is so high, I am afraid of its sound will influence people inside the room.

A4: Our nosie test obey the international test standard, taking one meter test without the pipe. So it may show high level. When you are using in reality, duct fan usually connected with pipe and set up on the attic or ceiling. In this way, people will not influence by this sound. Besides, we do have silenced model for your choice.

Q5: Is it supported if I want to change a controller?

A5: There is no doubt it is ok. Just using another controller connect with the duct fan. Our duct fan support all three styles controller.

Q6: Can I visit your factory?

A6: We are glad to invite you to check our factory if you have time. I can also take photo or video for your reference.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $280 / piece
  • 100–999 piece: US $200 / piece
  • 1000+ piece: US $180 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this flow inline can fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the flow inline can fan be supplied for my local voltage?

The standard configuration is 110-120V,220-240V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Shengshida Electronics Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Shengshida Electronics Co., Ltd. range on HVACR Nexus.
