Centrifugal Fan, FRP, Radial

Name: Centrifugal Fan, FRP, Radial
Brand: Zhaoqing Wanda Tong Environmental Protection Technology Co., Ltd.
SKU: 25908
Price: 255.00 USD
Availability: InStock

$255.00

Centrifugal Fan supplied factory-direct with the manufacturer’s full published specification.

Request a Quote Ask a Technical Question

Reply within one working day
Factory-direct pricing, OEM & ODM accepted
Full specification and test reports supplied

Also listed under

Description
Reviews (0)

This centrifugal fan is listed with the manufacturer’s full published specification. It is produced by Zhaoqing Wanda Tong Environmental Protection Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

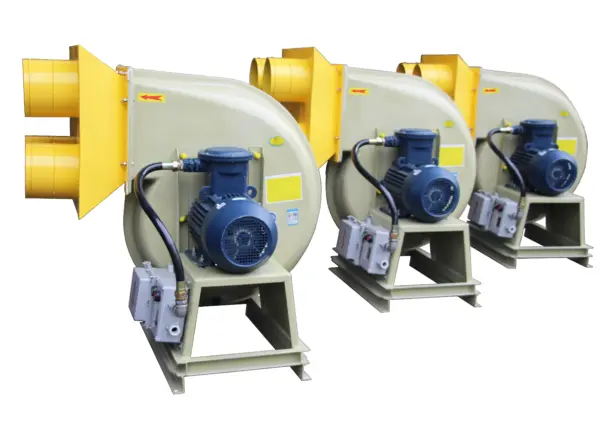

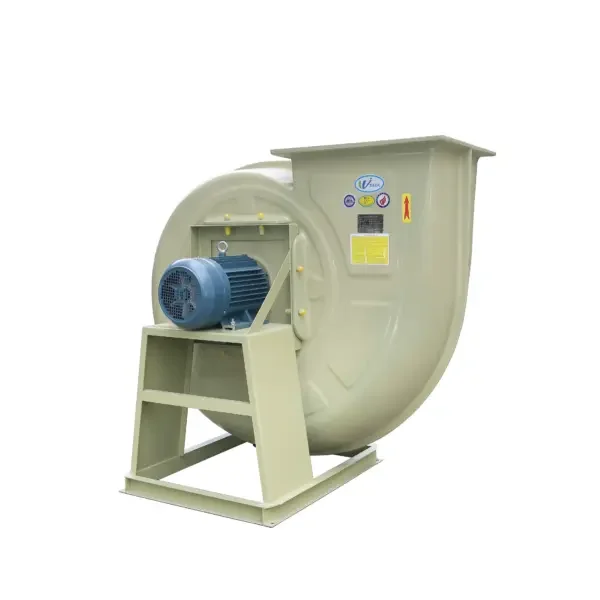

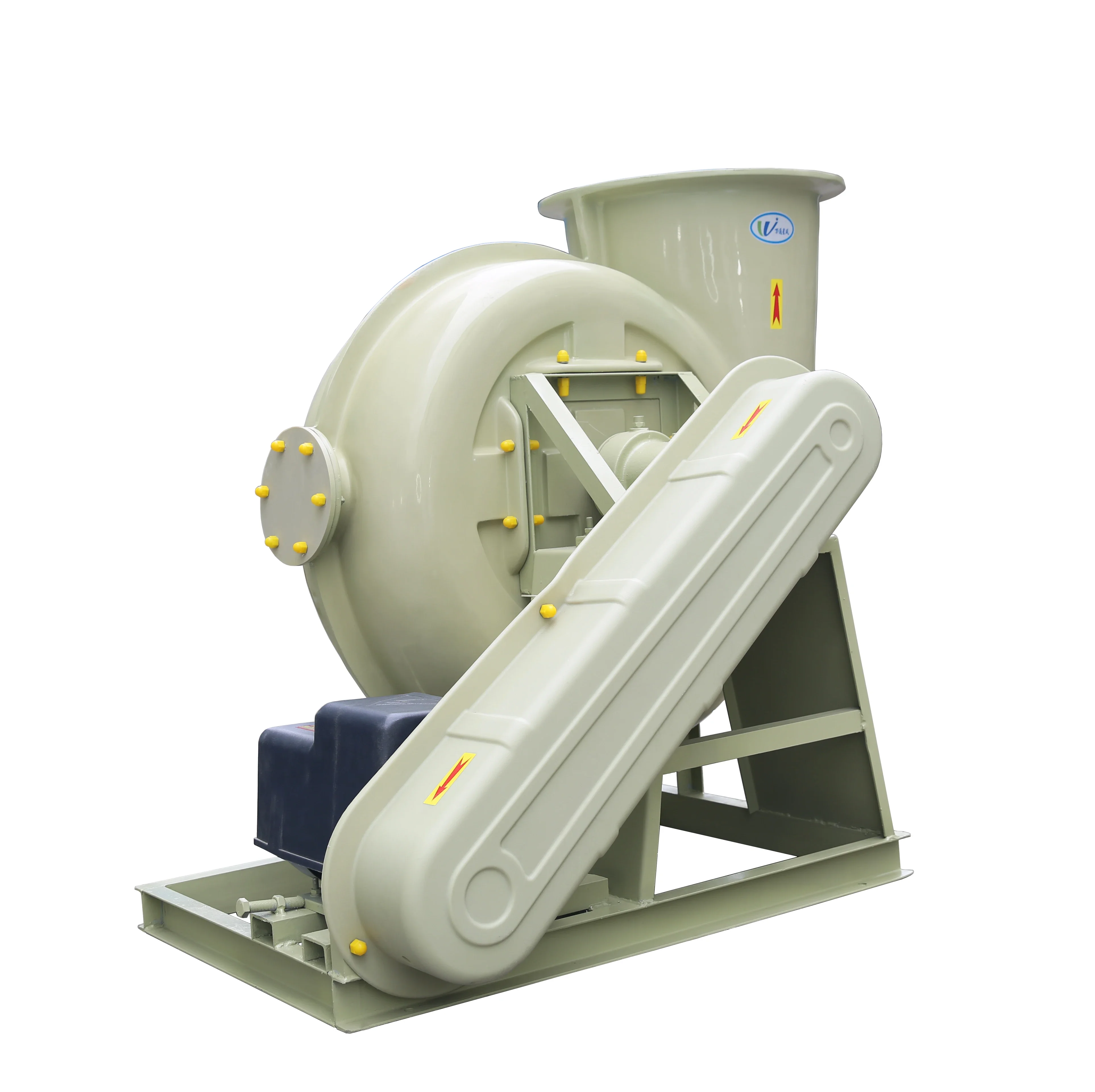

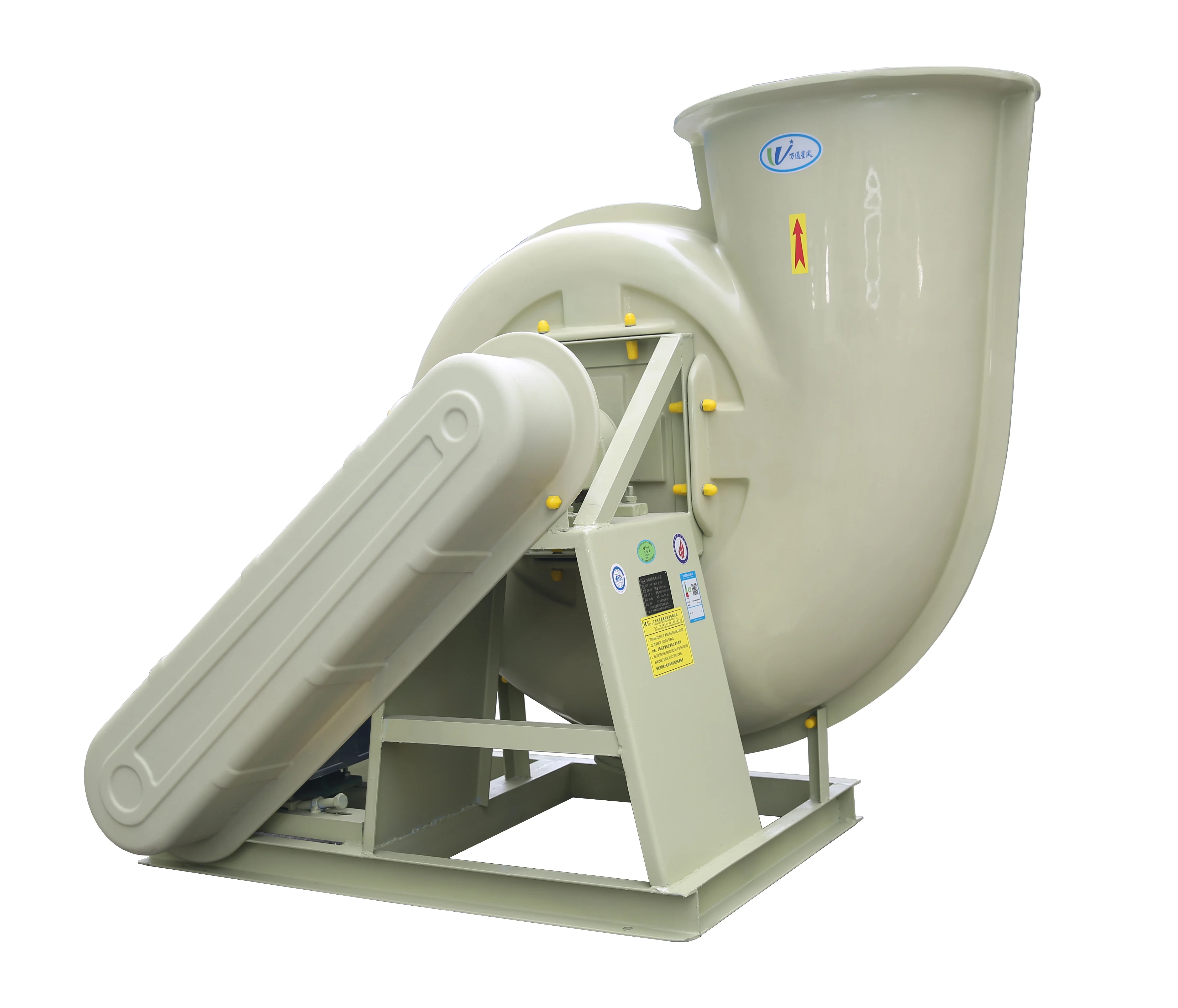

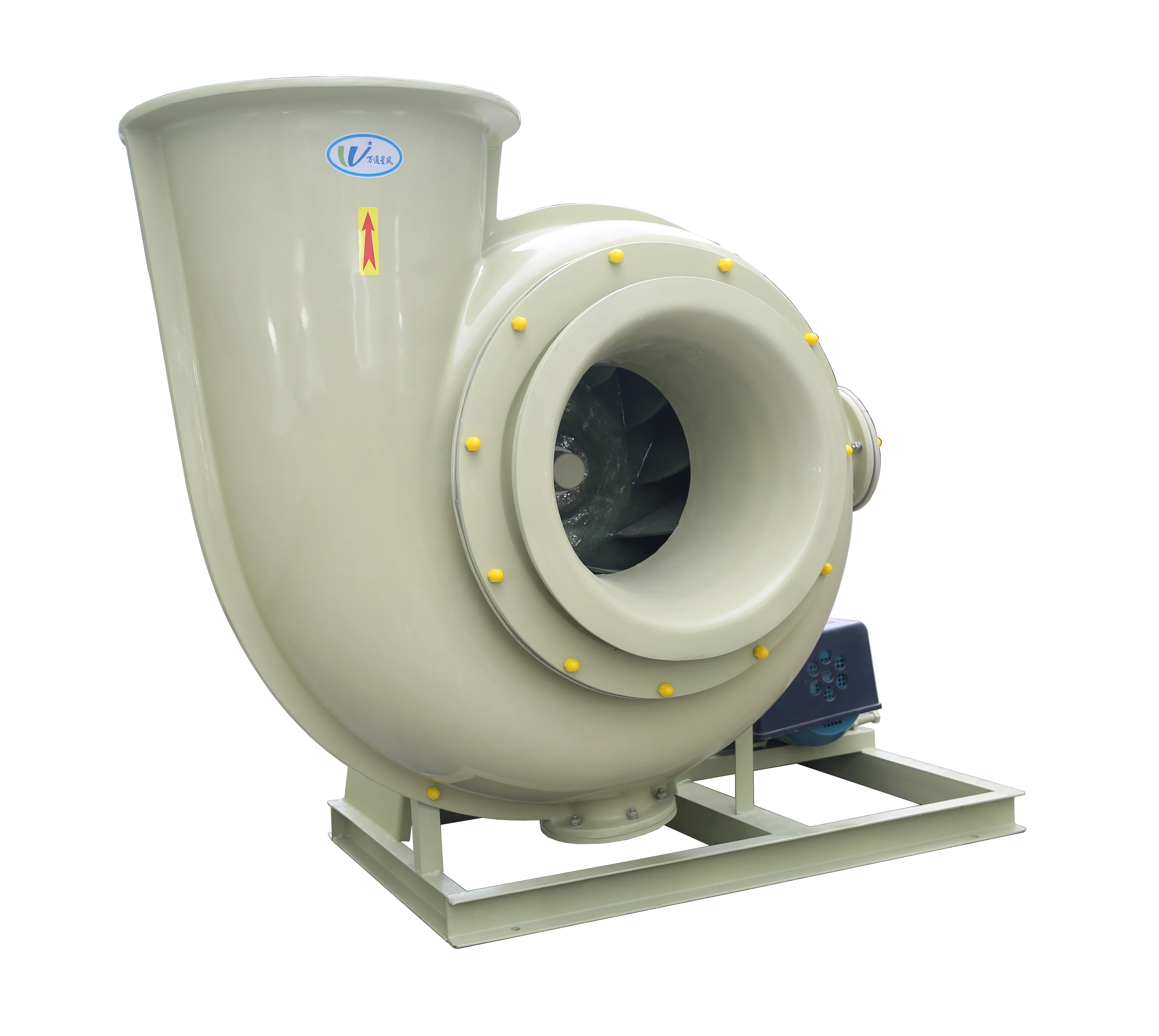

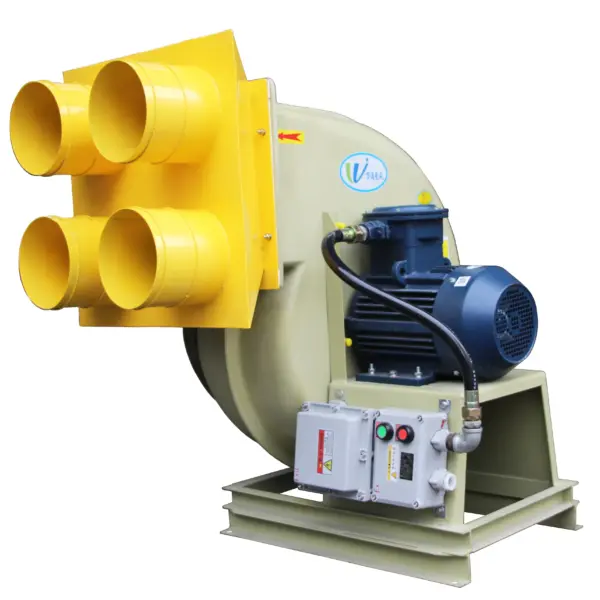

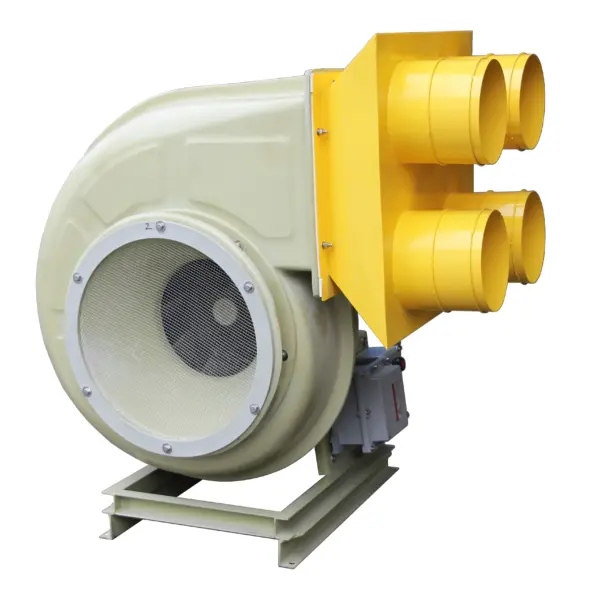

The F4-72 type FRP centrifugal fan is made of glass fiber and resin molding withreference to the performance parameters of the metal 4-72 type fan. The series of fans cantransport corrosive gases containing acid and alkali components and chemical componentsThe aas is not allowed to contain viscous substances, dust and hard particles is less than orequal to 150mg/m’, the gas temperature are less than 80, the relative humidity is less than100%. This series of fans is characterized by high strength, light weight, no ageing, goodcorrosion resistance, low noise and smooth operation. it is an ideal universal anti-corrosionblower, This series of fans are widely used in chemical. electroplating, oxidation, powerplants, laboratory, circuit board, environmental protection equipment and other sitescontaining corrosive gases. BF4-72 type glass FRP explosion-proof centrifugal fan is made from EXdl or EXdll classA and B grade explosion-proof isolation motor according to the customer’s use conditions. ltcan transport inflammable and explosive volatile gases including methane, ethane, propane.styrene, toluene, xylene, carbon monoxide, acetic acid, kerosene, gasoline and furan. Theperformance parameters and installation dimensions are consistent with the F4-72 type FRPcentrifugal fan.

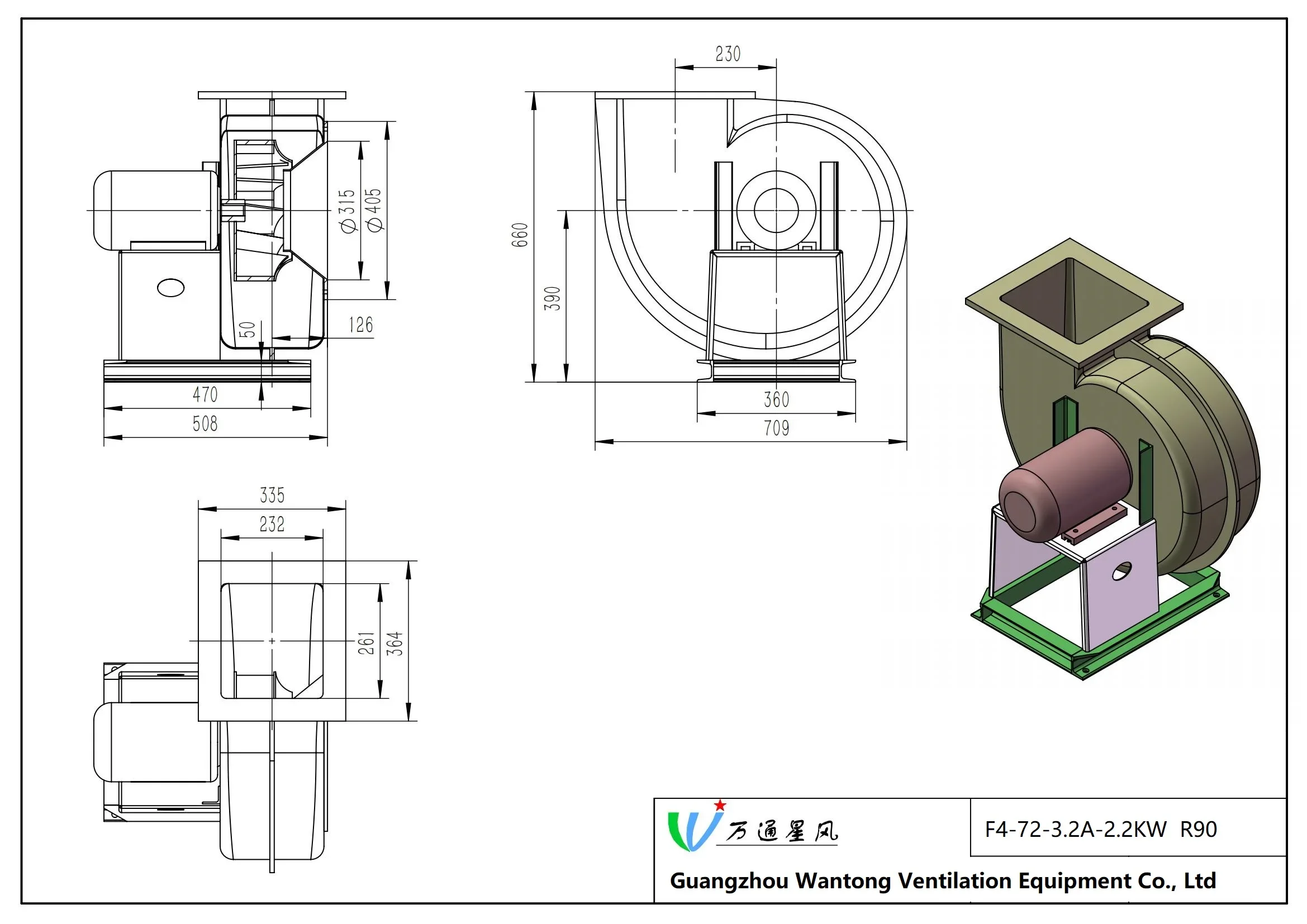

Size(No.)	Power(KW)	Speed(r/min)	Volume Flow(m³/h）	Total Pressure(Pa）
3.2A	2.2	2900	1688-3517	1300-792
3.2A	1.1	1450	844-1758	324-198
