Key specification for this gear motor: type Gear Motor, speed 3500-8000rpm. Everything below is reproduced from the factory data sheet. Made by Shenzhen Dachui Technology Co., Ltd. (3 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Gear Motor
- Model Number: 36ZY
- Speed(RPM): 3500-8000rpm
- Warranty: 3 months ~ 1 year
- Place Of Origin: Guangdong, China
- Protect Feature: Drip-proof
- Type: Gear Motor
Technical Specifications
| Commutation | Brush |
|---|---|
| Speed(RPM) | 3500-8000rpm |
| Efficiency | IE 1 |
| Type | Gear Motor |
| Construction | Permanent Magnet |
| Protect Feature | Drip-proof |
| Usage | Cosmetic Instrument, Home Appliance, Car, Fan, Smart Home, Electric Bicycle, Boat |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 120ma |
| Model Number | 36ZY |
| Torque | 300g.cm(4.17oz.in) |
| Place Of Origin | Guangdong, China |
| Brand Name | OEM |
| Motor Diameter | 36mm |
| Shaft Diameter | 3.17mm |
| Shaft Length | 17mm |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 0.296 kg |
Product Details

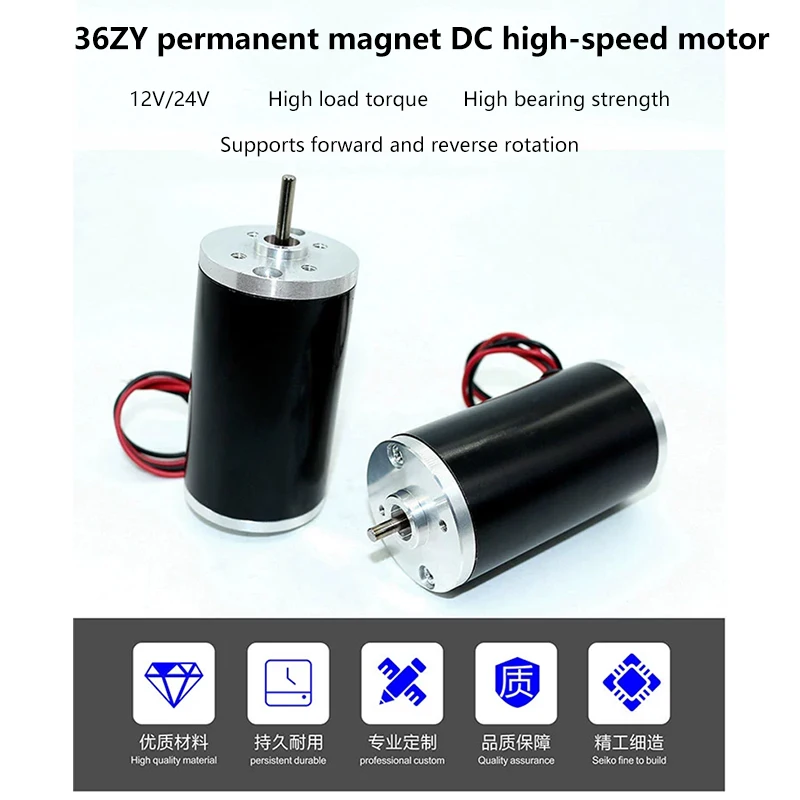

36ZY High Torque High Speed DC Motor 12V24V Micro Forward and Reverse Rotation Motor Speed Control Silent Small Motor
Power: 1-10W
Rated voltage: 12V-24V
No-load current: 120ma-450ma
No load speed: 3500rpm/5000rpm/8000rpm
Motor size: 36 * 62mm
Output shaft diameter:3.175mm
Output shaft lengthh:17mm
Adjustable speed: Yes
Can it be reversed: Yes
Customizable: Yes
Wiring method: The terminal marked in red is connected to the positive pole of the power supply, and the other end is connected to the negative pole, with the motor rotating forward; Reverse connection of positive and negative poles indicates motor reversal!

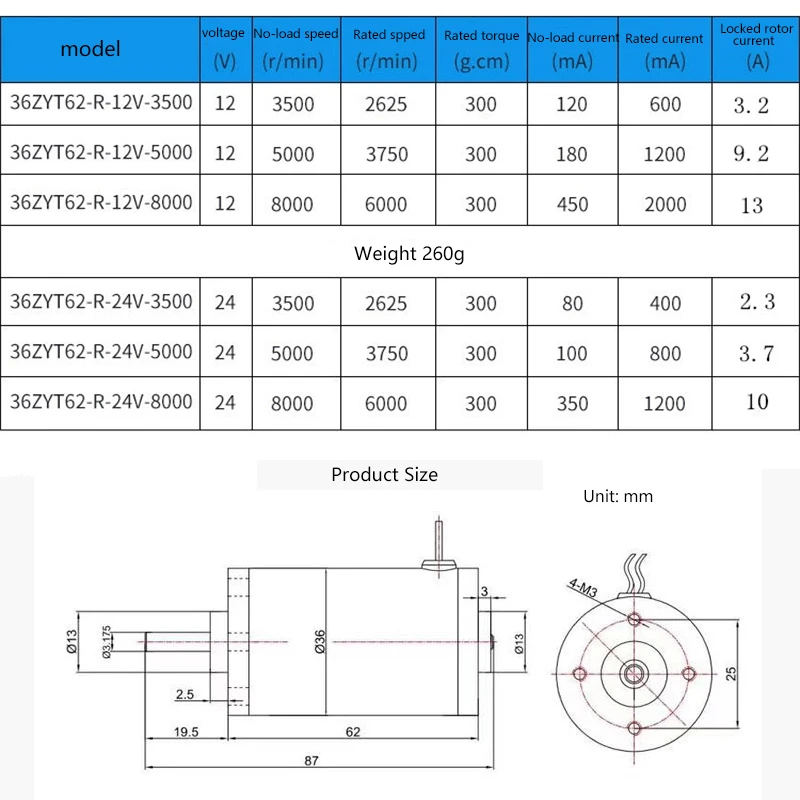

Product Size:

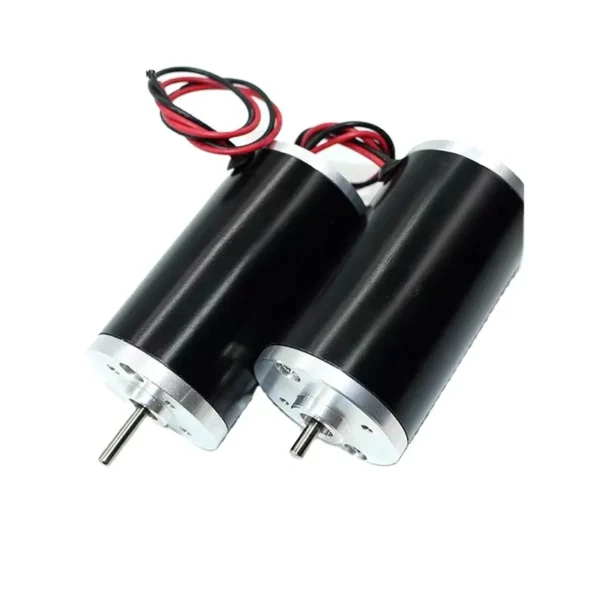

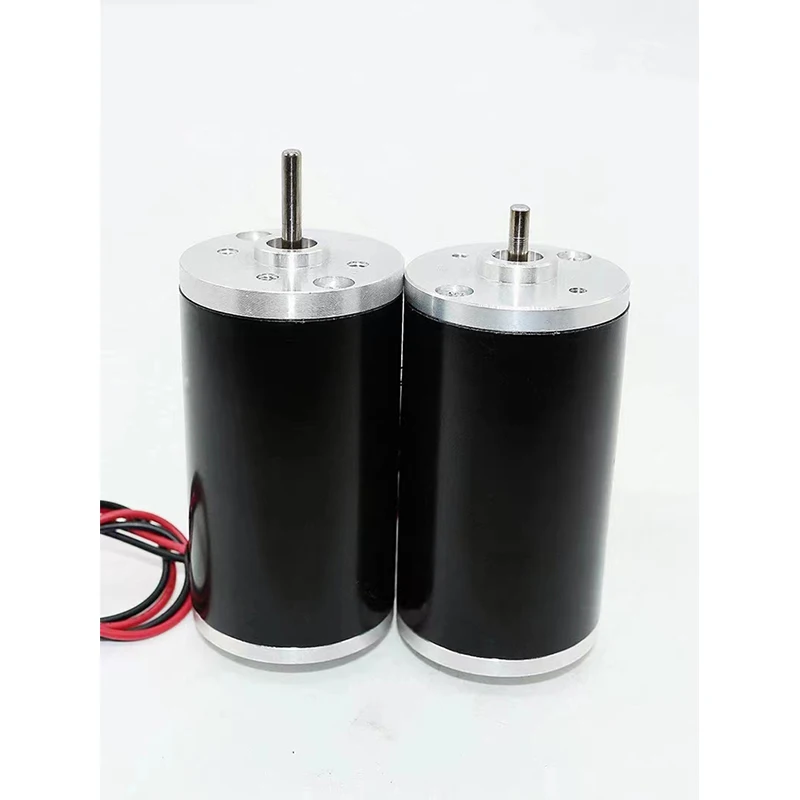

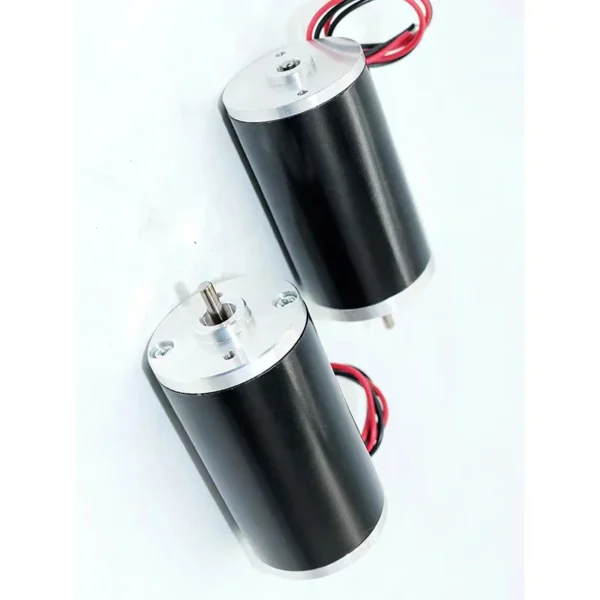

Product Shoots:

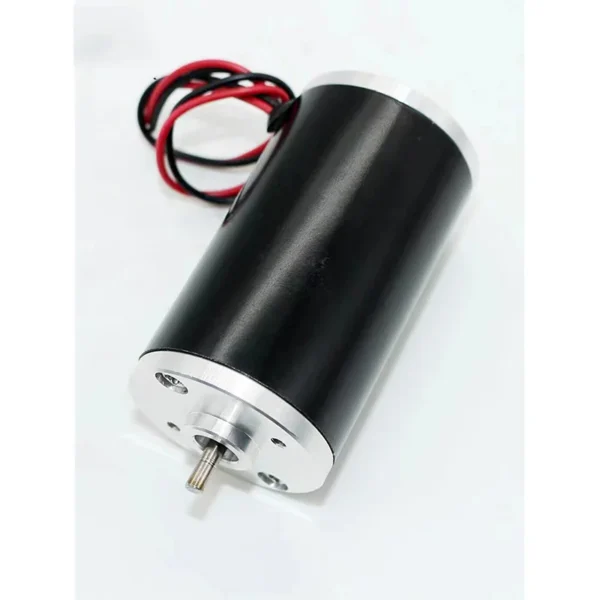

Steel tube motor, durable, circular shaft can be equipped with a gearbox

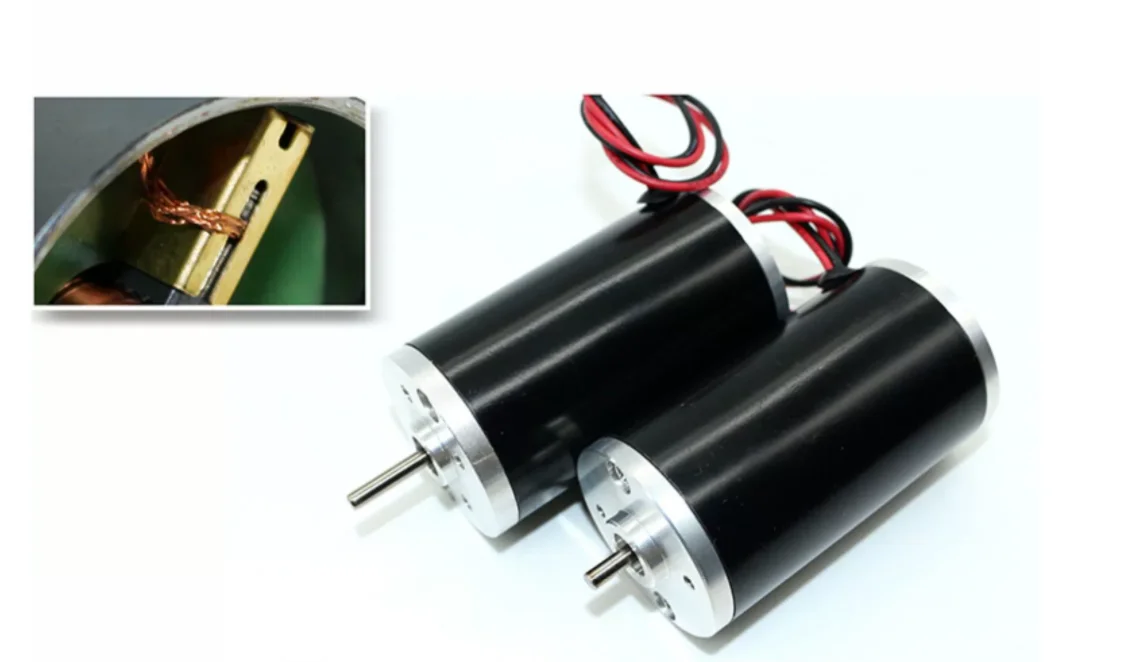

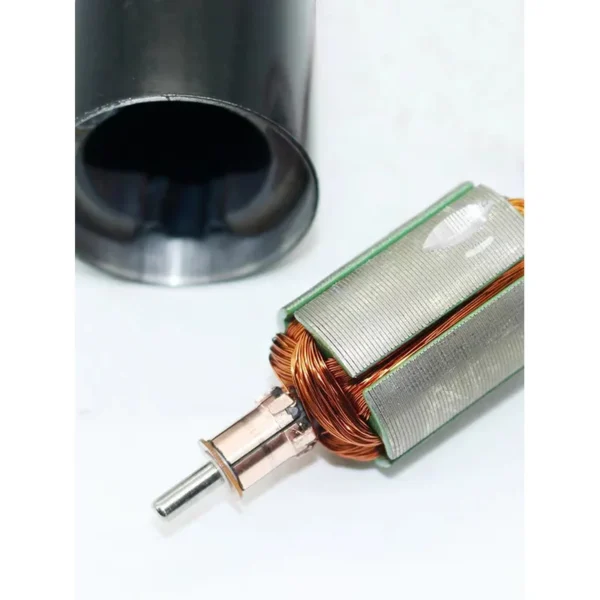

High quality carbon brush, non overheating, low noise, reliable assembly, and no damage.

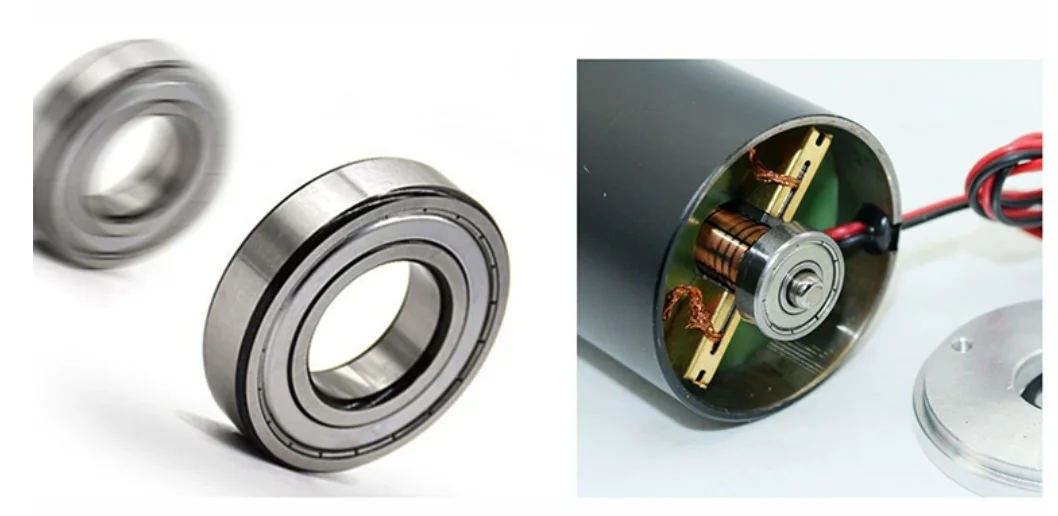

High precision ball bearings, silent, smooth operation, high load, and long service life.

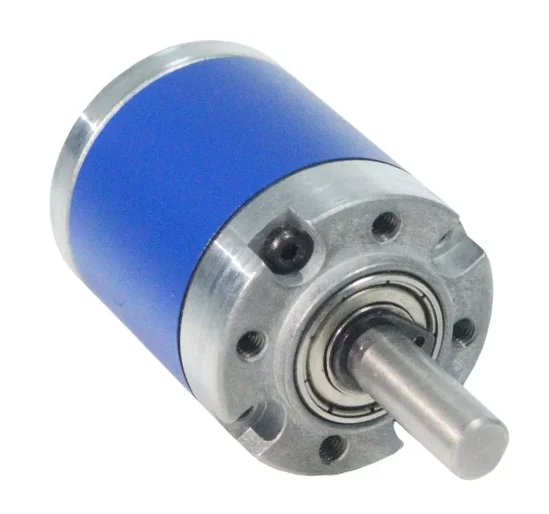

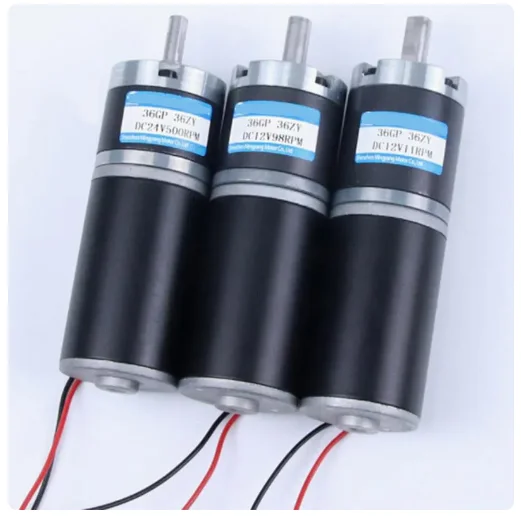

Can be connected to a 36mm gearbox
36-36ZY DC motor
Ordering and Pricing
- Minimum order quantity: 2 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gear motor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
