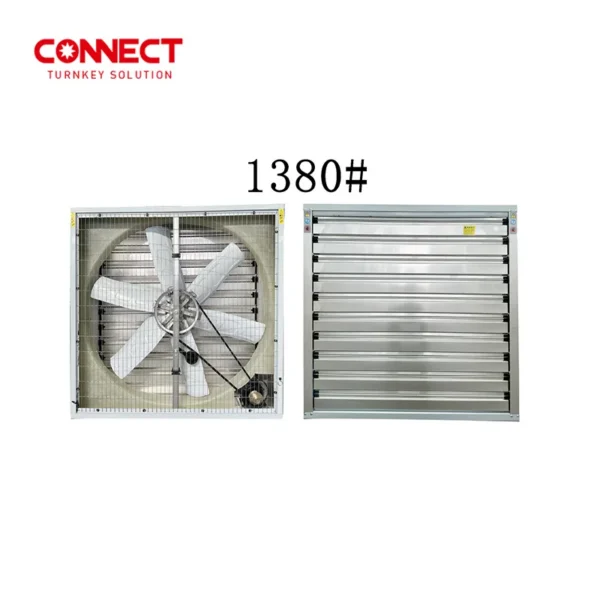

Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - view 2

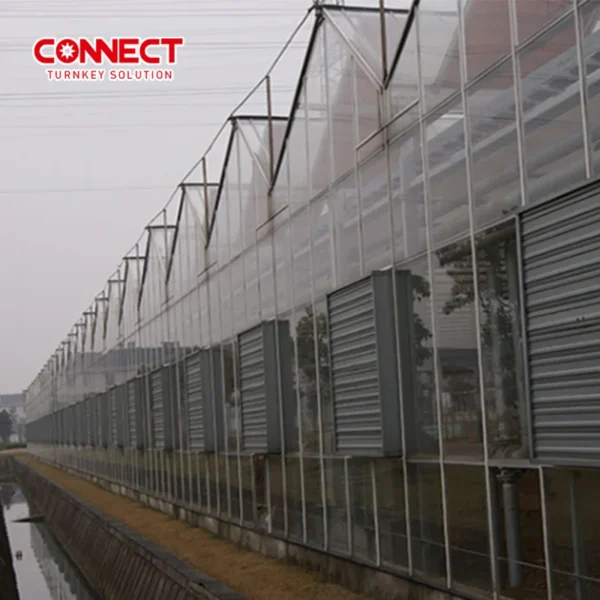

Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - view 3

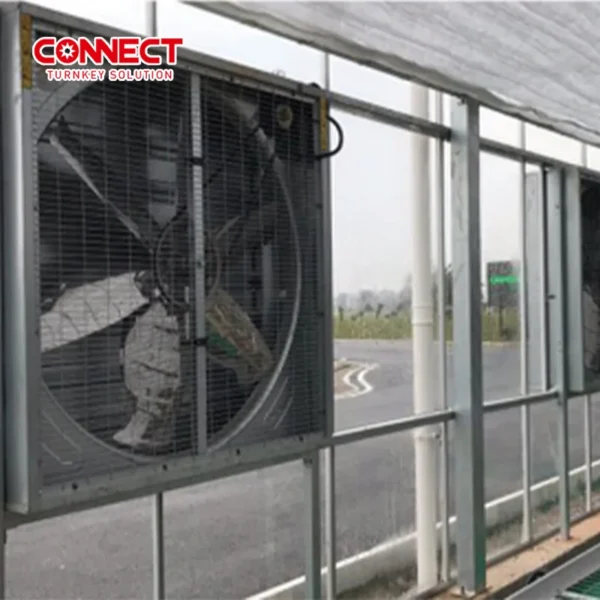

Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - view 4

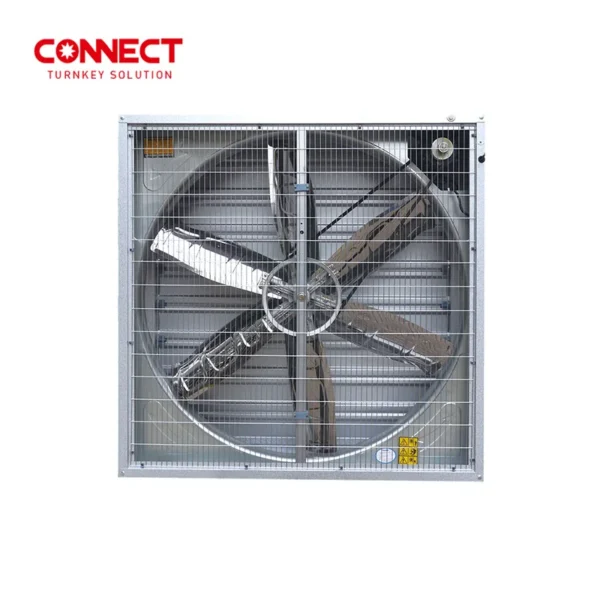

Hammer Ventilation Exhaust Fan, 380V, Wall, Axial

Hammer Ventilation Exhaust Fan — 380 V, power source Electric. Factory-direct from a verified manufacturer, full specification published. Blade Material: Stainless Steel. Type: exhaust fan.

Voltage
380 V
Type
exhaust fan
Blade Material
Stainless Steel
Power Source
Electric
Place Of Origin
Shandong, China
  • Reply within one working day
  • Factory-direct pricing, OEM & ODM accepted
  • Full specification and test reports supplied

Get Factory Pricing

Price, MOQ and lead time direct from the manufacturer. Free, no account needed.

Enquiring about Hammer Ventilation Exhaust Fan, 380V, Wall, Axial

This hammer ventilation exhaust fan is published with the manufacturer’s full specification — 380 V, power source Electric. Made by Ningbo Connect Machinery Equipment Co., Ltd. (2 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Hammer Ventilation Exhaust Fan

  • Model Number: 300 400 500 600 700 800 900 1000 1100 1220 1380 1530
  • Power Source: Electric
  • Voltage: 380 V
  • Blade Material: Stainless Steel
  • Place Of Origin: Shandong, China
  • Type: exhaust fan

Technical Specifications

Blade Diameter 0.2/0.3/0.40/0.5/0.6/0.71/0.75/0.9/1/1.1/1.25/1.4M
Voltage 380 V
Type exhaust fan
Blade Material Stainless Steel
Bearing Type Ball Bearing
Power Source Electric
Place Of Origin Shandong, China
Brand Name CONNECT
Model Number 300 400 500 600 700 800 900 1000 1100 1220 1380 1530
Selling Units Single item
Single Volume 0 cm³
Single Gross Weight 0.0 kg

Product Details

Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 1Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 2
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 3Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 4
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 5Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 6
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 7Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 8
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 9Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 10
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 11Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 12
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 13Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 14
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 15Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 16
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 17Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 18
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 19Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 20
Product Details
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 21Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 22
Model specificati ons
Drive
Blades rotational speedrpm
Motor rotational speedrpm
Total pressure
Noise decibels
High

Width
Thickness
300
Direct
1400
1400
55
≤70
400
400
320
400
Direct
1400
1400
55
≤70
400
400
320
500
Direct
1400
1400
55
≤70
500
500
320
600
Direct
1400
1400
55
≤70
600
620
320
700
Direct
1400
1400
75
≤70
700
700
380
800
Belt
455
1400
60
≤60
800
830
380
900
Belt
455
1400
65
≤65
900
900
380
1000
Belt
445
1400
70
≤70
1000
1000
380
1100
Belt
445
1400
70
≤70
1100
1100
380
1220
Belt
435
1400
73
≤70
1220
1200
380
1380
Belt
435
1400
56
≤70
1380
1380
380
1530
Belt
435
1400
60
≤70
1530
1530
380

Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 23Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 24
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 25Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 26
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 27Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 28
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 29Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 30
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 31Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 32
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 33Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 34
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 35Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 36
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 37Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 38
Product Category
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 39Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 40
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 41Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 42
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 43Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 44
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 45Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 46
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 47Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 48
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 49Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 50
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 51Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 52
FAQ
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 53Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 54
1. how many types of chickens can it be processed? A: It can process broiler ,layers, quails,goose,ducks and pigeon. 2.what is the capacity of this line? A: We supply slaughter lines from 300bph to 1200bph, and if about 100-200bph, we suggest client to take manual slaugter system(electric scalder, drum plucker), and 300-500bph, you can take our compact slaughter line. 3.can it be process different weight of birds? A: of course , but all the birds must be in the range of shackles, if the birds weight is too much different , they will drop from shackles, and the shackle distance is different from different birds. 4.Can you design and install the project for us? A:We have good design and installation department for help you on this project. 5.What is the differences from Manual EV line to Automatic EV line? A: as you know ,manual EV line is working by labors, and it can work with different weight of birds, but automatic line will only process almost same birds. 6.What is the differences from screw chiller to air chiller? A: screw chiller is working with cooling water, so if you want the effect is good, you need arrange water chiller and ice flaker for cooling the normal water into cold water, its okay for the country that water is enough. Air chiller is like a cold room, which uses compressor unit and conveying line to make birds moving in the room, then the cold air meet with carcasses. 7.How is Connect Group? A: Connect Group is a company in China, which have his own trademark, Our group totally have seven companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market. 8: Why we select Connect Group? A:Connect Group is with the best service for the clients..Can you design and install the project for us?
Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 55Hammer Ventilation Exhaust Fan, 380V, Wall, Axial - detail 56

Ordering and Pricing

  • Minimum order quantity: 1 set
  • Ships from: China
  • Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this hammer ventilation exhaust fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Can the hammer ventilation exhaust fan be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Ningbo Connect Machinery Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Ningbo Connect Machinery Equipment Co., Ltd. range on HVACR Nexus.
