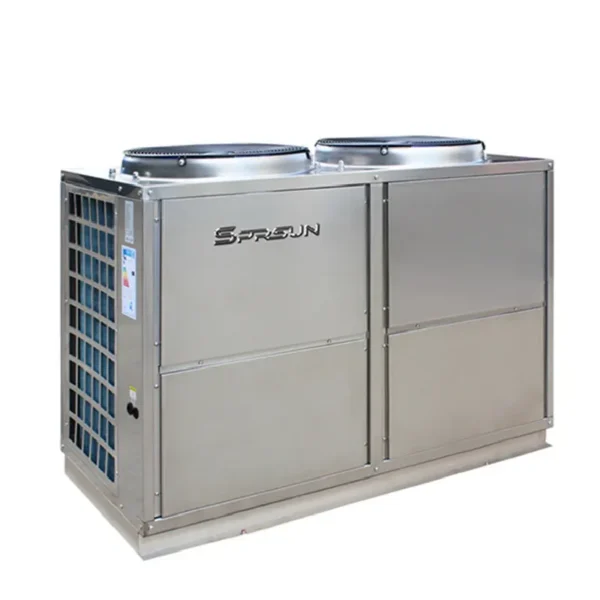

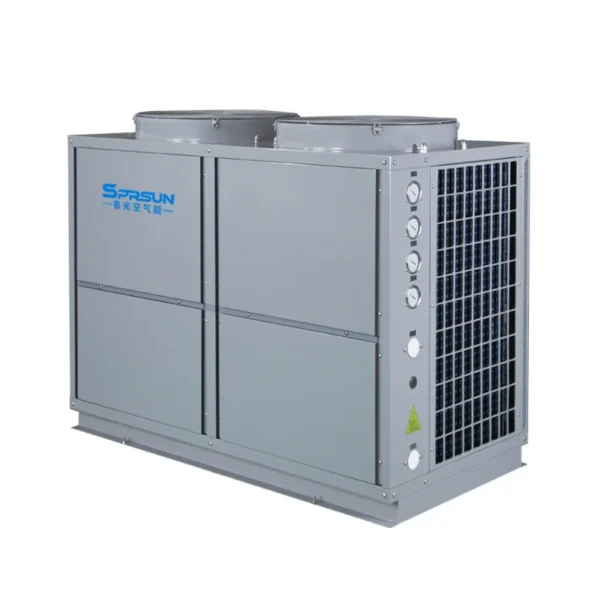

The heat pumps listed here carries 380V/3PH/50HZ, 60 kw, documented exactly as the manufacturer publishes it. Made by Guangzhou Sprsun New Energy Technology Development Co., Ltd. (15 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Heat Pumps
- Model Number: CGY/D-52
- Power Source: Electric, Solar
- Power Supply: 380V/3PH/50HZ
- Heating Capacity: 60 kw
- Housing Material: Galvanized Steel / Stainless Steel
- Refrigerant: R410A
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Application | Hotel, Garage, Commercial |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |
| Housing Material | Galvanized Steel / Stainless Steel |
| Power Source | Electric, Solar |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Overseas Call Centers |
| Place Of Origin | Guangdong, China |
| Brand | SPRSUN |
| Model Number | CGY/D-52 |
| Power Supply | 380V/3PH/50HZ |
| Compressor | Copeland |
| Heating Capacity | 60 kw |
| Refrigerant | R410A |
| COP | 5.13 |
| Max Hot Water Temperature | 40 Deg |
| Working Ambient Temperature | Minus 10C-45C |
| Condenser | Titanium-PVC |
| Function | Hot Water |
| Cooling Function | Optional |
| Certification | CB, ce, GS, CCC |
| Packaging Details | Plywood case |
| Port Of Dispatch | Guangzhou |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 1000 pieces per Month |
Product Details
Constant pool water temperature;
Absorb heat from the air with high COP (up to 5.13);
Automatic control of pool water temperature;
Guaranteed safety: water and electricity are isolated;
Save 65%-80% of the operating costs without pollution to the environment.
Wifi function can be available
Model | CGY/D-52 | |
Power Supply | V | 380~415V/50Hz/3ph |
Refrigerant | R410A | |
Heating Capacity | KW | 60 |
Input Power | KW | 11.7 |
COP | 5.13 | |
Rated Current | A | 22.2 |
Fan Motor Power | W | 800 |
Fan Motor Quantity | Piece | 2 |
Condenser | Titanium Tube in Shell Heat Exchanger | |
Water Flow | L/h | 20636 |
Water Pressure Drop | Kpa | ≤65 |
Net Weight | kg | 325 |
Gross Weight | kg | 345 |
Noise | db | 68 |
Waterproof Grade | IPX4 | |
Electric Shock Proof Grade | I | |
Pipe Size (internal thread) | mm | 75 |
Dimension | mm | 1580*855*1200 |
Packing Dimension | mm | 1700*950*1470 |
*Rated working condition: dry-bulb temp: 24℃; wet-bulb temp: 16℃; cool water temp: 27℃; hot water temp: 29℃.

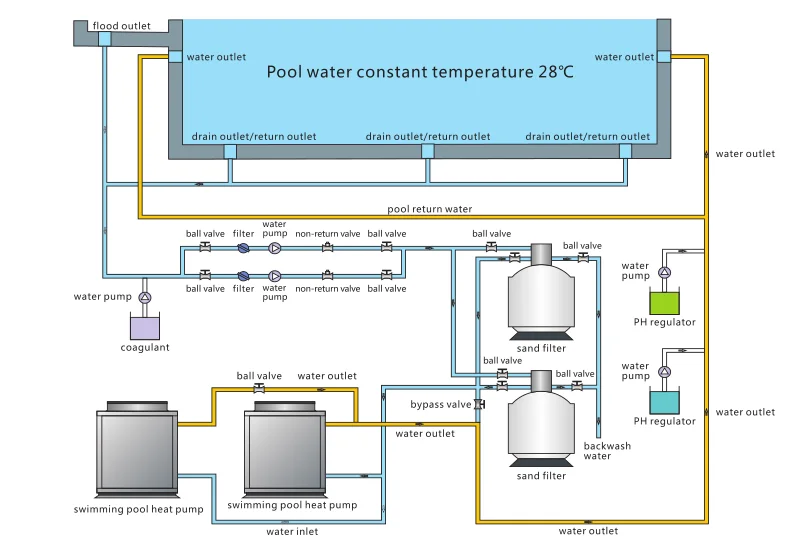

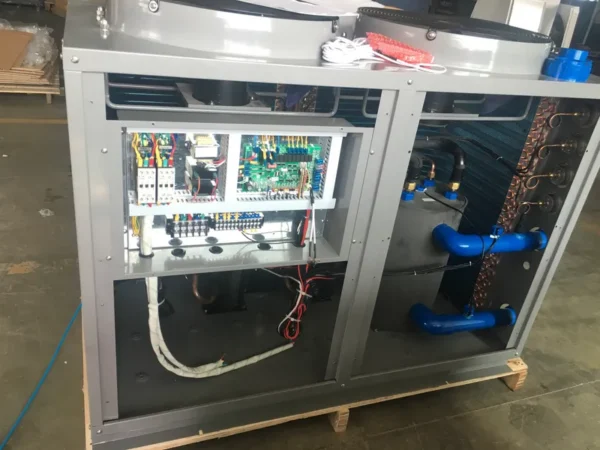

Installation Diagram
Condenser (Copper)
Titanium Tube in shell heat exchanger
Evaporator
Hydropilic aluminum foil and internal thread copper pipe heat exchanger
High Pressure Switch
Compressor
Copeland scroll compressor
Expansion Valve
Danfoss electronic expansion valve
Low Pressure Switch
Controller
SPRSUN multiple function controller
AC Contactor & Thermal Relay
Brand: Eaton
4-way Valve
Brand: SANHUA

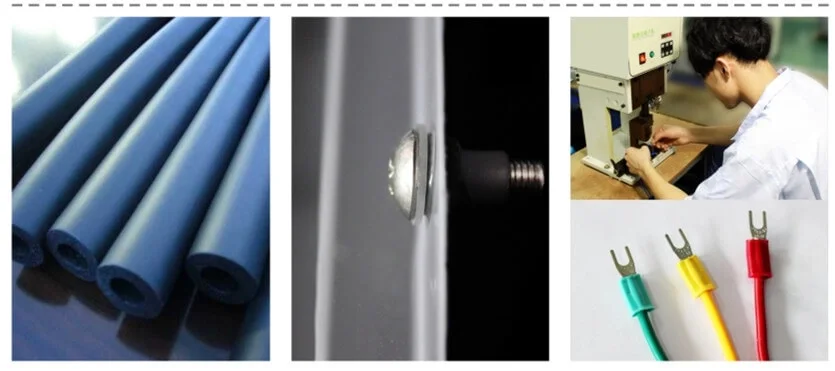

Anti-corrosion: Aluminum edging
Exellent Welding Guarantee No Leakage: Four-way valve welding protection
User-friendly Design: Ram design using machine wire
Reliability of the Connection: Adopt automatic stamping machine from Taiwan

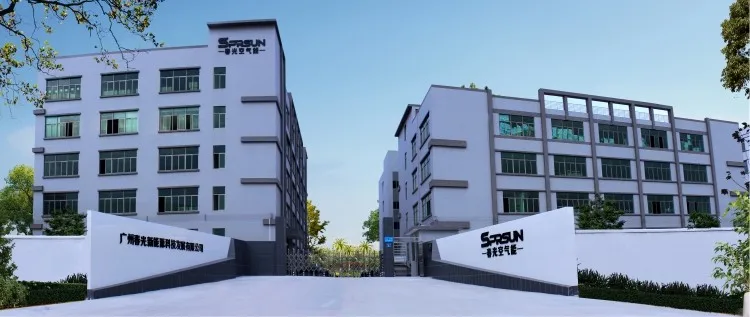

SPRSUN – Professional Heat Pump Manufacturer since 1999
As one of the Top 10 brand in China's heat pump industry, SPRSUN has been in the heat pump industry for 20 years. With a strong R&D center and 6 production lines, we are specialized in producing air to water heat pumps and other high efficient heat pumps for the HVAC market. Our products are welcome all over the world, such as Germany, Sweden, Serbia, Turkey, Czech, Russia, Vietnam, Australia, South Africa and so on.

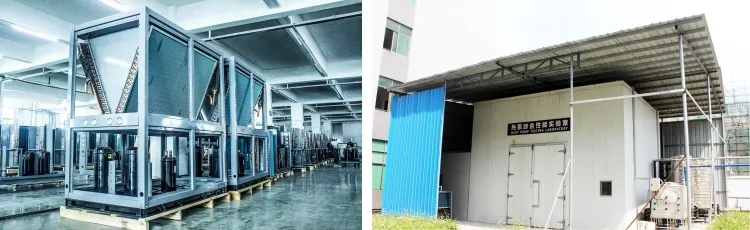

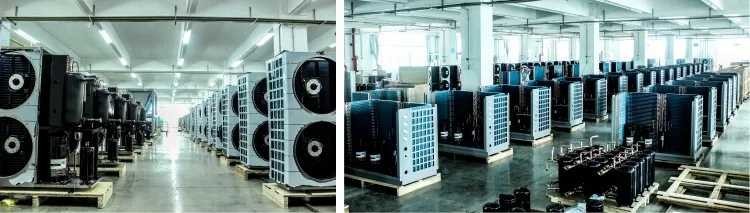

Workshop
6 Production Lines & 1 National Standard Heat Pump Testing Lab

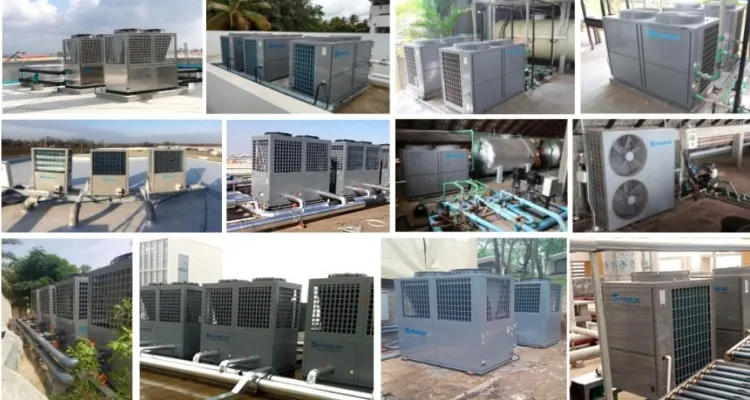

Projects Worldwide
Focusing on hot water, heating and cooling, SPRSUN is built up to meet customers'special energy saving needs with advanced technology support from Germany while ISO9001 and ISO14001 have been obtained. Our heat pump products are produced based on EN14511 standard with CE, CB, SAA, ETL and ERP certificates.

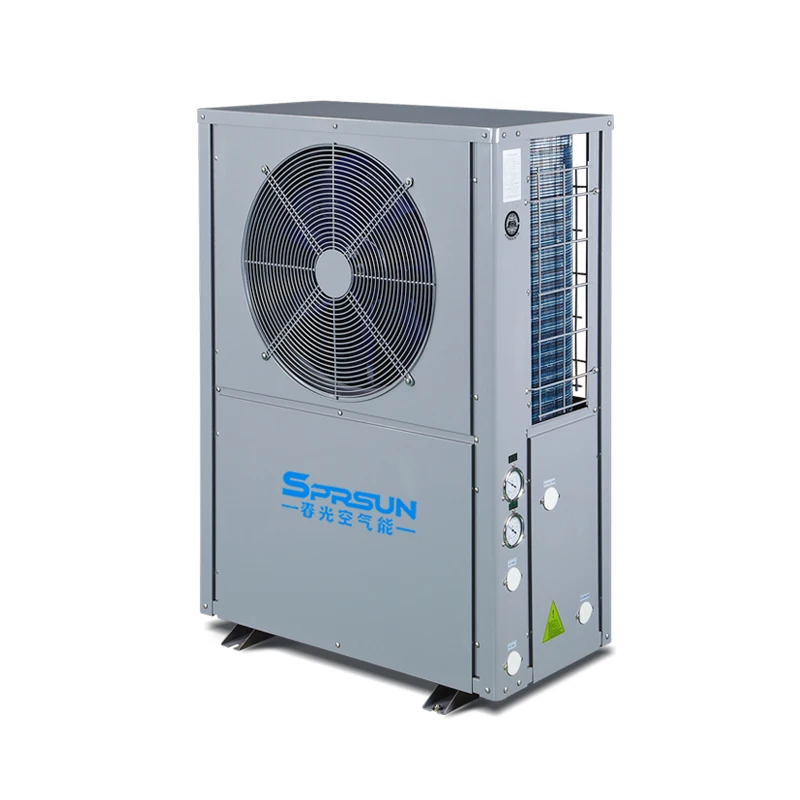

Evi Air Source Heat Pump
House Heating / Hot water
Working temp. -25 to 43°C

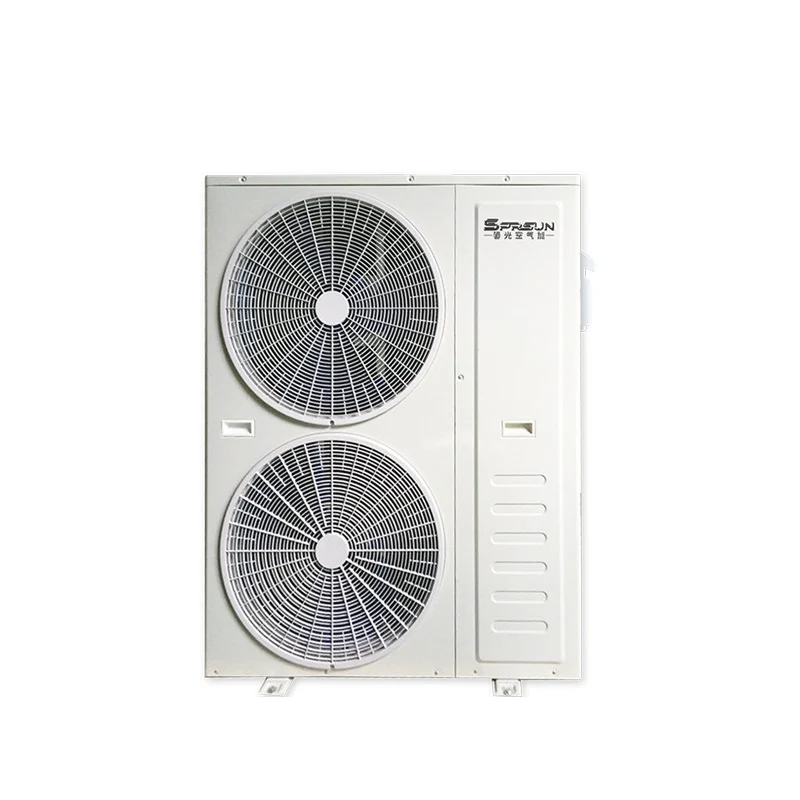

Air Water Heat Pump
7KW to 70KW
Domestic Monoblock heat Pump

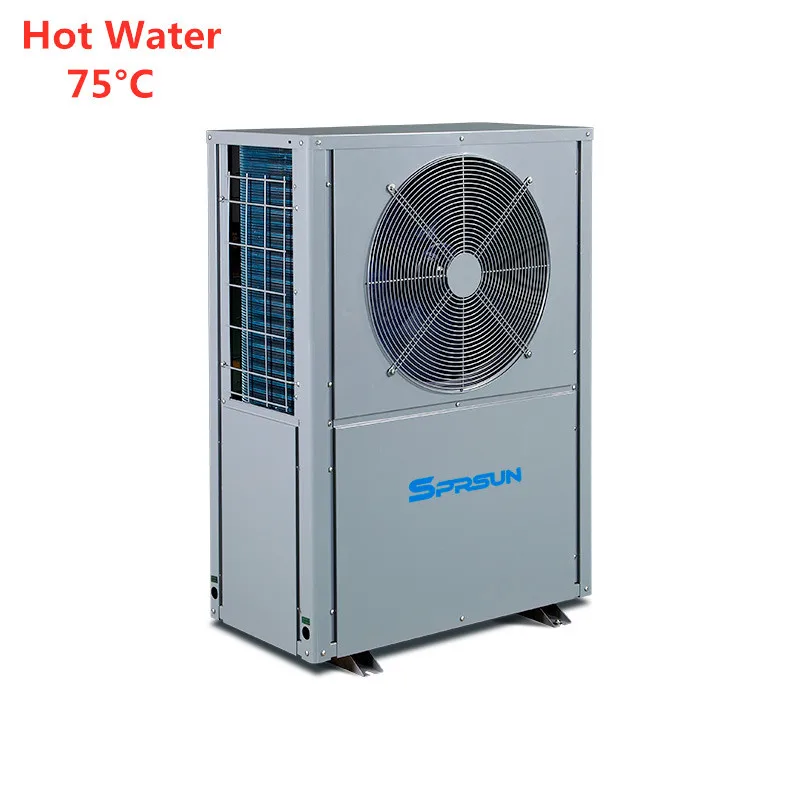

Air Source high temp. heat pump
Max. outlet water can reach 75-80C
For commercial use like Spa .factory

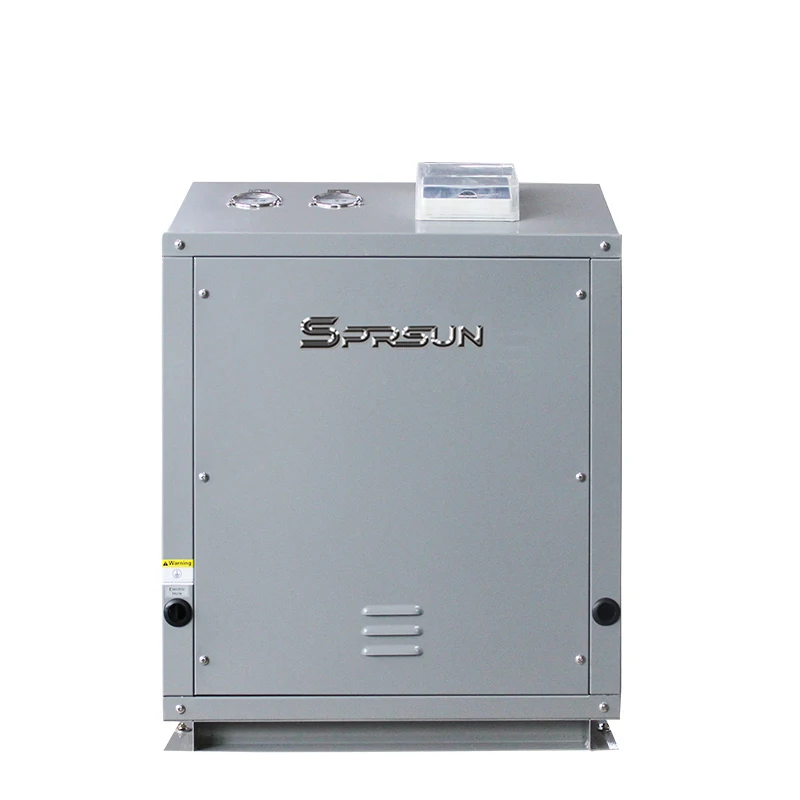

Geothermal Heat Pump
Water to water heat pump
COP can reach 5.24
DC Inverter Heat Pump
Can be used efficiently under ambient temperature -12 degree
Q1 Are you a manufacturer?
A: Yes, we are a professional heat pump manufacturer since 1999, with experienced and improved R&D, production, sales and service supply.
Q2: What are your main products?
A: Our main products include air source heat pumps, water/ground source heat pumps, swimming pool heat pumps, high temperature heat pumps, EVI heat pumps for cold area and so on.
Q3: How to place an order?
A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our catalogue, quotation and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing service?
A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and according to your special needs.
Q5: Can I apply to become your heat pump distributor/reseller?
A: Yes, we are currently looking for more heat pump distributors/resellers across the globe, who can distribute our heat pump products in their local countries.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–49 piece: US $4000 / piece
- 50–499 piece: US $3500 / piece
- 500+ piece: US $2999 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heat pumps?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this heat pumps carry?
It is supplied with CB, ce, GS, CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the heat pumps be supplied for my local voltage?
The standard configuration is 380V/3PH/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
