This heating air heat pump is published with the manufacturer’s full specification — 220V/1PH/50HZ, 16kw. Made by Nulite New Energy (guangzhou) Co., Ltd. (7 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Heating Air Heat Pump
- Power Source: Electric
- Power Supply: 220V/1PH/50HZ
- Heating Capacity: 16kw
- Housing Material: Plastic
- Refrigerant: R32
- Warranty: 2 Years
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 16kw |
| Energy Efficiency Rating | Class A +++ |
| Application | Commercial, Household |
| Refrigerant | R32 |
| Storage / Tankless | Instant / Tankless |
| Compressor | Twin Rotatary Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Plastic |
| Feature | Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving, Safe, High Efficiency |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement |
| Operating Language | English |
| Packaging Types | wooden box |
| Place Of Origin | Guangdong, China |
| Brand | NULITE NEW ENERGY |
| Function | Pool water heating&cooling |
| Heat Exchanger | Titanium Heat Exchanger |
| Expansion Valve | Emerson Electric Expansion Valve |
| Power Supply | 220V/1PH/50HZ |
| Sound Level | 21~45 dba |
| Net Size | 935*378*660mm |
| Net Weight(Kg) | 65kgs |
| Use | Swimming Pool Heater Cooler |
| Selling Units | Single item |
| Single Package Size | 99X46X79 cm |
| Single Gross Weight | 70.0 kg |
Product Details
Nulite R32 High COP Low noise 50Hz/60Hz
WIFI control DC Inverter Swimming Pool Heat Pump /solar water heater
WIFI control DC Inverter Swimming Pool Heat Pump /solar water heater
◆ Research shows that a suitable pool heat pump can save 65% to 70% of heating capacity compared to other heating equipment, so it is important to learn the main affected factors !
1. Two function：heating/cooling water
2. ASHP Heating Capacity: 8kw、10kw、16kw、18kw、21kw、25kw、28kw、32kw、38kw、42kw
3. Advised Pool volume: from 7.6m³ ~ 160m³
4. High COP: staggering swimming pool heat pump can magnify 1 kw power consumed to 4.36-16.6 kw of heat output
5. WIFI function
6. Famous brand DC Invert rotory Compressor is beneficial to enhance the performance, accuracy of controlling temp while is environmentally friendly.
7. Optional apprearance and customized service .
8. Best Selling Market: Europe Market（Especially in Germany, Poland, Czech Republic, Slovakia, Hungary, Spain,France,Austria,Sweden, Lithuania, Estonia, Latvia, Denmark, Netherlands, etc.), North America, South Korea.
9. Key components: Famous brand inverter compressors,4 ways valve,Louvered corrugated fins,DC fan motors,Smart controller,Smart Wi-Fi Control,Optional Appearance,Optional Display,Optional Refrigerants
Product parameter
Nulite mini SPA pool Air Source Heat Pump
1. ASHP Heating Capacity: 3KW, 4KW, 5KW, 6.5KW.
2. Advised pool volume: 5~15，10~20，12~22，12~25 m³
3. High COP: Mini pool heat pump can magnify 1 kw power consumed to 3.29 – 5.05 kw of heat output
(conditions: Air 15℃ Water 26℃ /Humidity 70% or Air 26℃ Water 26℃ / Humidity 80%).
4. Ambient Temp of Using: 7~43 °C.
5. Certification: ISO9001, CE, ROHS.
6. Use GMCC Rotary Compressor.
Product advantages
1. High Efficiency

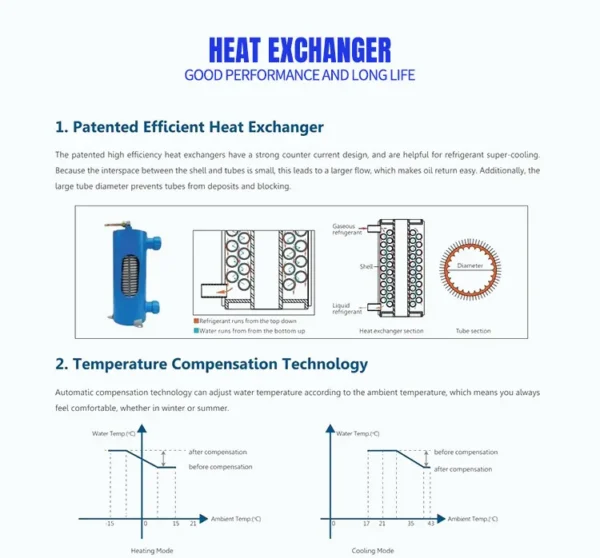

The hydrophilic coating decreased the frosting possibility. The high eficiency titanium tube in shell heat pump changer has intermal thread to cause turbulence when the refrigerant is flowing through, which results in excellent high eficiency.

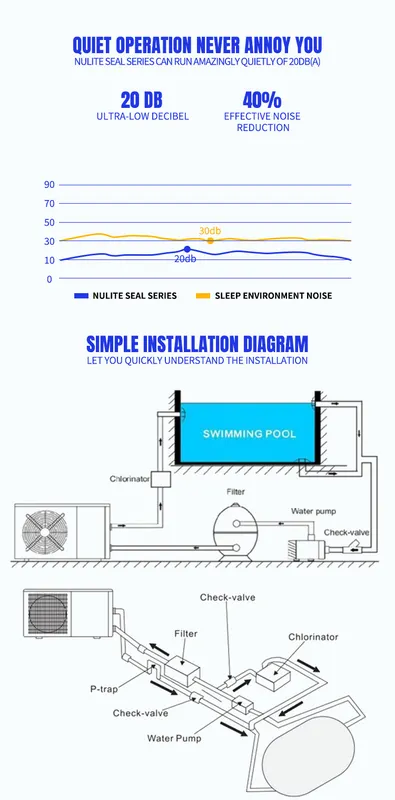

2. Quiet Operation never annoy you Thanks to Nulite engineers ' elaborate design and constant effort to reduce the noise, Nulite Seal series can run amazingly quietly of 20dB(A) in sleep mode. 3. Fast Heating By adopting the brushless DC fan motor and inverter compressors, Nulite Seal series can smartly adjust the speed of compressors and fan motors according to the temperature of air and water temperatures, which enables the heat pumps to heat your pooll fast.
4. Constant Water Temperature
5. Soft Start Nulite Seal series achieve completely soft switching at the start-up stage from an intensity of 0A to 28A(at maximum), while the normal ON/OFF heat pumps start in a current intensity over three times higher, which will greatly impact the family electricity system. 6. Heating & Cooling By utilizing 4 ways valve, Nulite Seal series provide both heating and cooling mode to create more posibility for pool enjoyment.
7. Smart Wi-Fi control Remote control is more convenient
Installation cases and packing
You can rest assured of the safety and integrity of fast shipping transportation.
Customer Feedback
Why choose & trust us
✦ Top Scale Manufacturer, 100,000 + machines were exported in 2022
✦ Fast shipping, support for a variety of payment/logistics methods
✦ Secure after-sales service : Trained engineers are on hand to provide technical support. Any question will be answered and assisted within 12 hours.
✦ Fast shipping, support for a variety of payment/logistics methods
✦ Secure after-sales service : Trained engineers are on hand to provide technical support. Any question will be answered and assisted within 12 hours.
✦ -25℃ Super Low Ambient Stable Working
✦ Low Noise，High Efficiency，Easy WIFI Controlling
✦ Low Maintainess Cost, Long Service Life up to 15 Years+
✦ Low Maintainess Cost, Long Service Life up to 15 Years+
✦ NuLite，established in 2003,which is a national high-tech enterprise for HVAC products.
✦As heat pump factory，We have developed advanced & unique technology and takes the leads of Floor Heating EVI & Inverter Heat Pump，wifi heat pump，heat pump water，air to water heat pump,Wärmepumpe，heatpump heating，power world heat pump , Swim Pool Heat Pump, Central Hot Water Heat Pump, Fan Coil Unit and Geothermal Heat Pump.
✦We Have R32，R410A，R134A，R407 Refrigerant Available. The advanced R290 monoblock heat pump /pompa ciepła monoblock r290 series will be available soon ！
✦ We have 5 manufacturing bases located in Guangdong province.
✦ Last in 2022, we exported more than 100,000 units heat pumps all around the world.
Production factory
FAQ
Q: Where is your factory located?
A: Our company is located in Huadu District, Guangzhou City, Guangdong Province, China.
Q: Air to water heat pump is heating faster?
A:Air to water heat pump heating rate according to the water temperature and outdoor temperature. Summer inlet water temperature and outdoor temperature are high,so heating faster. In winter inlet water and outdoor temperature are lower so the heating is slow.
Q: How much the air to water heat pump power consumption?
A: Mainly influenced by outdoor temperature. When the outdoor temperature is lower, the heating time is longer,the power consumption is more,and vice versa.
Q: What are the benefits of heat pump?
A: There are five main benefits of dual system, safety, long lifespan, low maintenance and eco-friendly.
Q: Can it be used if it rains?
A: The air to water heat pump only influence of the outdoor temperature and inlet water temperature, not affected by rain.This is the most obvious advantages compared with the solar energy heater.
A: Our company is located in Huadu District, Guangzhou City, Guangdong Province, China.
Q: Air to water heat pump is heating faster?
A:Air to water heat pump heating rate according to the water temperature and outdoor temperature. Summer inlet water temperature and outdoor temperature are high,so heating faster. In winter inlet water and outdoor temperature are lower so the heating is slow.
Q: How much the air to water heat pump power consumption?
A: Mainly influenced by outdoor temperature. When the outdoor temperature is lower, the heating time is longer,the power consumption is more,and vice versa.
Q: What are the benefits of heat pump?
A: There are five main benefits of dual system, safety, long lifespan, low maintenance and eco-friendly.
Q: Can it be used if it rains?
A: The air to water heat pump only influence of the outdoor temperature and inlet water temperature, not affected by rain.This is the most obvious advantages compared with the solar energy heater.
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shippment. AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
Please feel free to contact us right now ↓
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–9 set: US $899 / set
- 10–49 set: US $830 / set
- 50+ set: US $799 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heating air heat pump?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the heating air heat pump be supplied for my local voltage?
The standard configuration is 220V/1PH/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Nulite New Energy (guangzhou) Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Nulite New Energy (guangzhou) Co., Ltd. range on HVACR Nexus.
