Key specification for this heating cooling heat pump: 10KW, power source Electric. Everything below is reproduced from the factory data sheet. Made by Jiangsu Micoe Solar Energy Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Heating Cooling Heat Pump
- Model Number: MMPH9D1
- Power Source: Electric
- Heating Capacity: 10KW
- Housing Material: Stainless Steel
- Refrigerant: R32/R290
- Warranty: 2 Years
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A+++ |
| Application | Outdoor, Hotel, Commercial, Household |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |

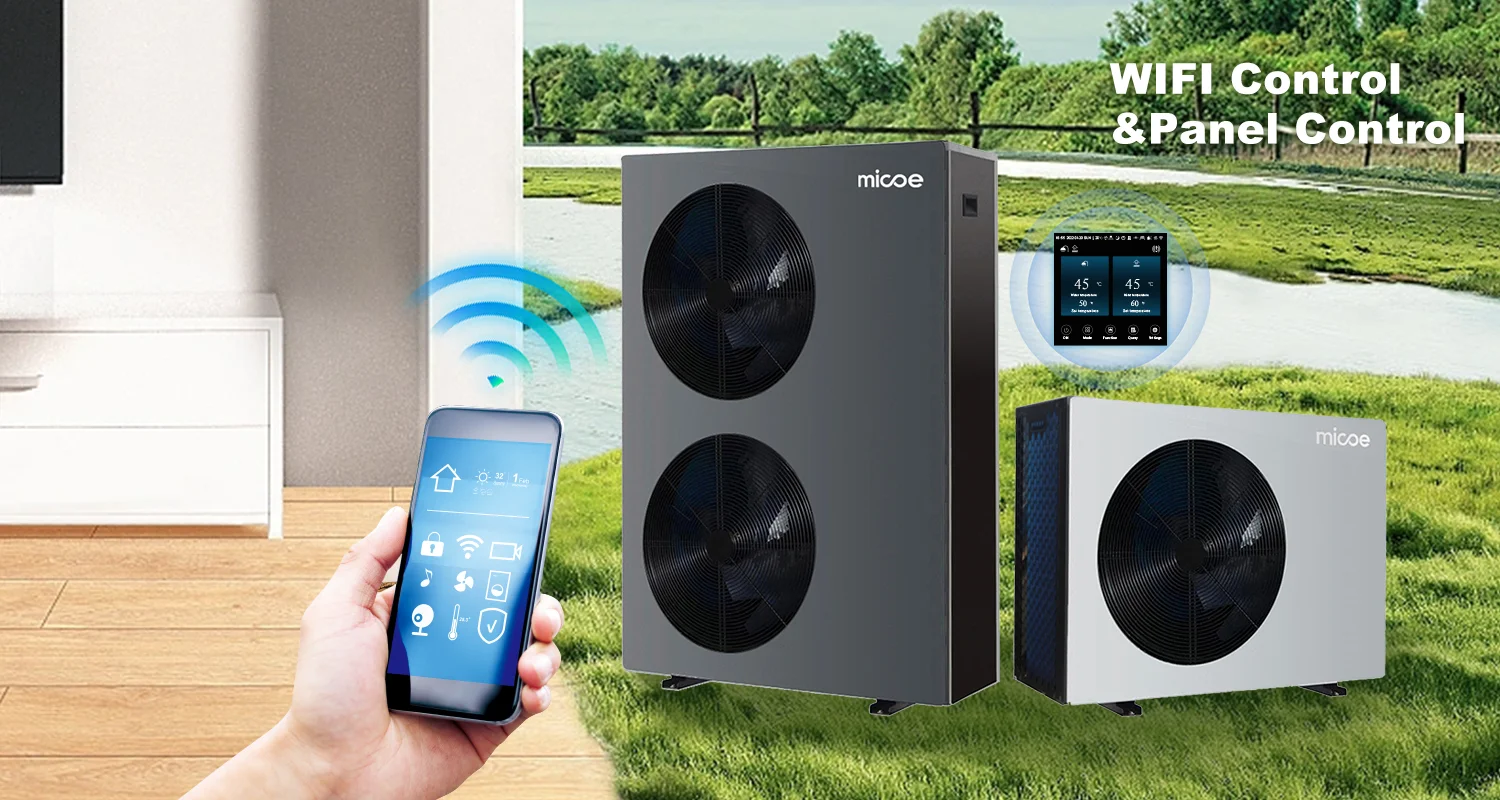

| App-Controlled | Yes |
| Housing Material | Stainless Steel |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Operating Language | English |
| Private Mold | Yes |
| Place Of Origin | Guangdong, China |
| Brand | Micoe |
| Model Number | MMPH9D1 |
| Function | House Heating Cooling Hot Water |
| Refrigerant | R32/R290 |
| Heat Exchanger | Titanium Heat Exchanger |
| Compressor | MitsubishI* Inverter Twin Rotary Compressor |
| Heat Source | Air Source 75%+electricity25% |
| Product Name | EVI DC Inverter R290 Air |
| Heating Capacity | 10KW |
| Certification | CCC |
| Keyword | Air Source Heat Pump Hot Water Heater |
| Use | Bathroom |
| Selling Units | Single item |
| Single Package Size | 128X170X70 cm |
| Single Gross Weight | 225.0 kg |
Product Details
VR
Product Description

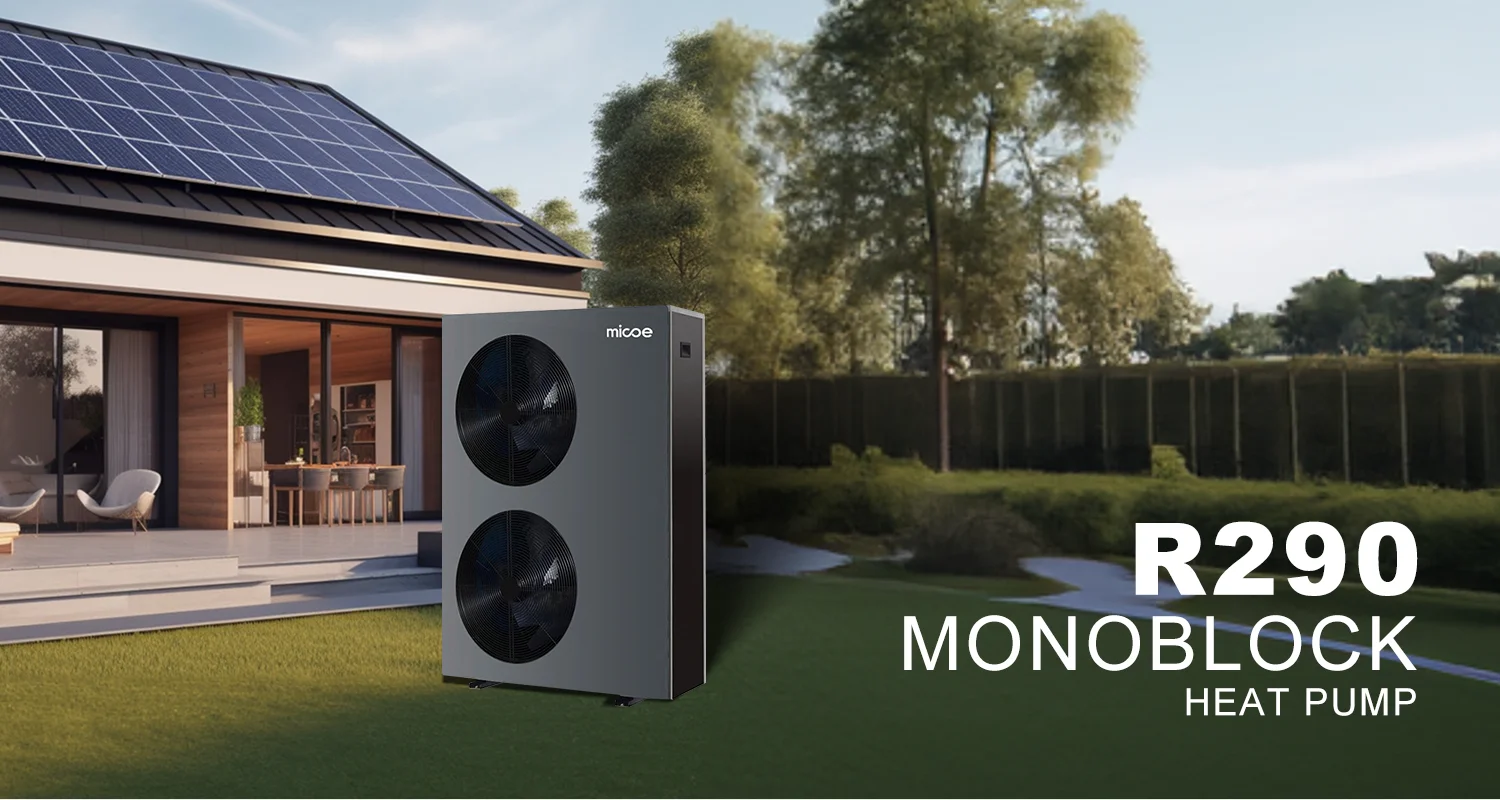

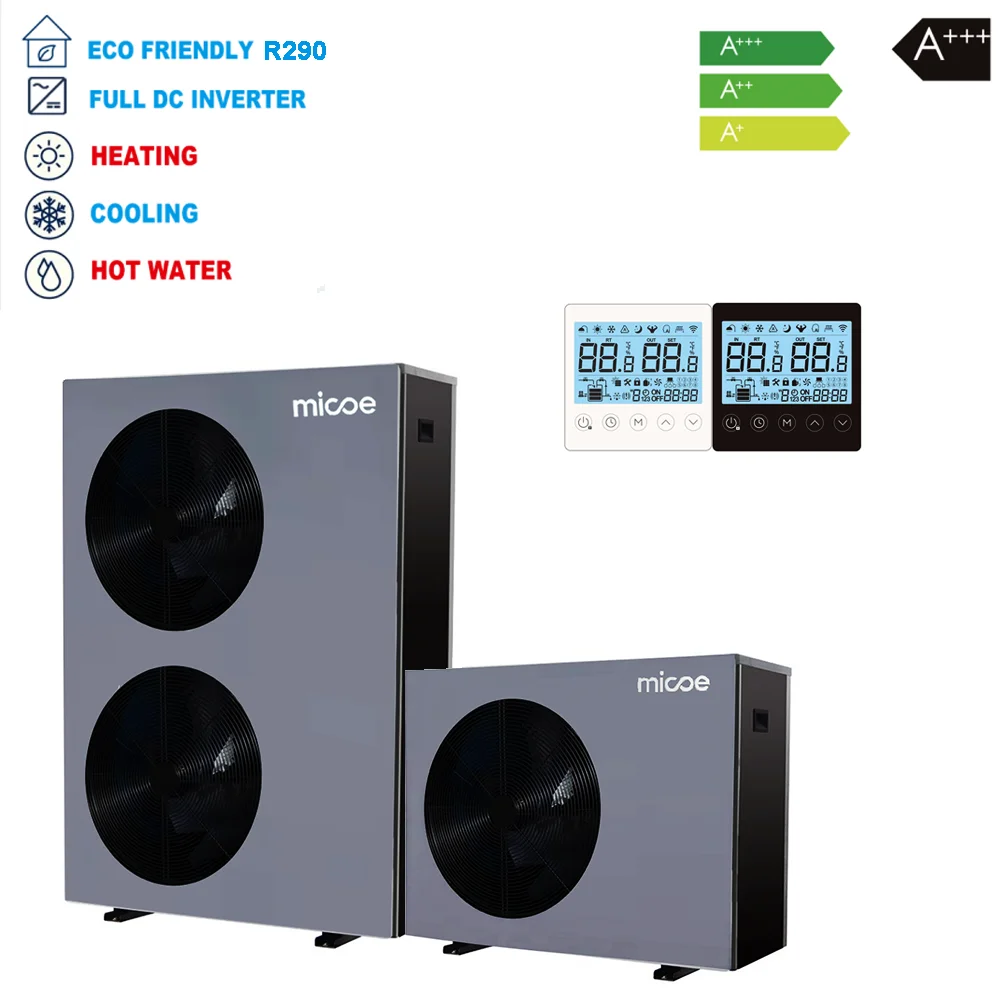

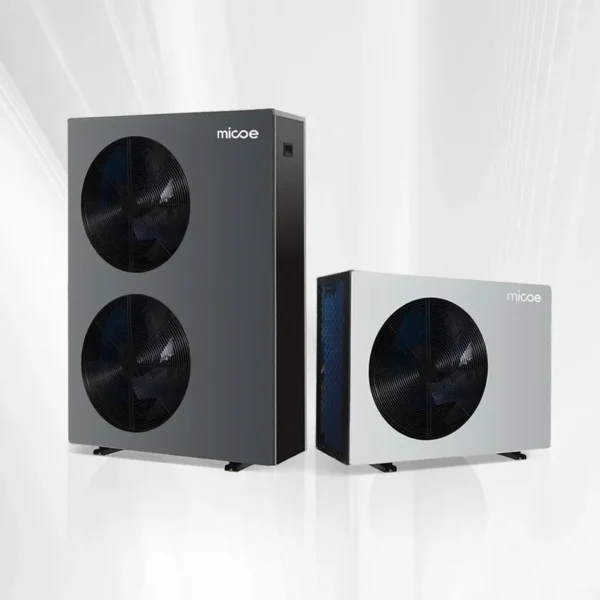

MICOE has developed the R290 air-to-water heat pump – Three in one Series, which reduces carbon emissions to the environment and curbs global warming. This refrigerant contributes to the reduction of carbon emissions and helps achieve the global goal of carbon neutrality by having many advantages such as low carbon emissions and high efficiency.
Product Description.

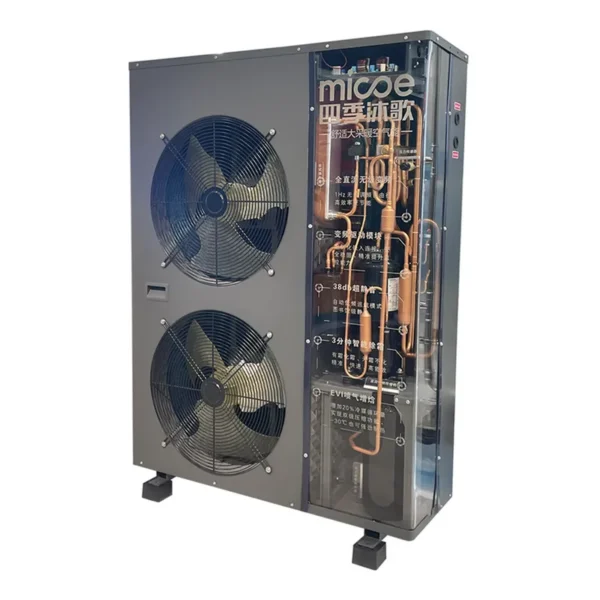

1. Full DC stepless(1Hz) inverter technology: high efficiency and more energy-saving ;
2. High-Efficiency A+++ Energy Level , higher water temp. outlet up to 75 ℃ ；
3. EVI technology: stable Running at -30℃ Ambient Temperature ;
4. 38dB low frequency silent cruise technology: ultra-silence
5. Low noise levelSpecial design of air system which can work in super quiet condition with low noise level of 39db.
6. Famous Brand Water Pump Built-In .
2. High-Efficiency A+++ Energy Level , higher water temp. outlet up to 75 ℃ ；
3. EVI technology: stable Running at -30℃ Ambient Temperature ;
4. 38dB low frequency silent cruise technology: ultra-silence
5. Low noise levelSpecial design of air system which can work in super quiet condition with low noise level of 39db.
6. Famous Brand Water Pump Built-In .

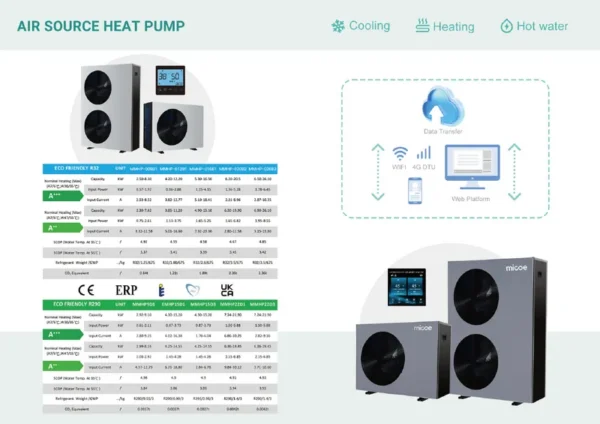

Product Paramenters
Model: | Unit | R290- 9 | R290-15-1 | R290-15-3 | R290-22-1 | R290-22-3 | ||||||
Nominal Heating( Max) (A7/6℃, W30/35℃) | Heating Capacity | kW | 2.92-9.10 | 4.30-15.2 | 7.24-21.90 | |||||||
Power Input | kW | 0.61-2.11 | 0.87-3.73 | 1.50-5.88 | ||||||||
Current Input | kW | 2.80-9.25 | 4.02-16.38 | 1.78-6.04 | 6.86-30.25 | 2.82-9.16 | ||||||
COP | W/W | 4.31-5.66 | 4.07-5.57 | 6.36-19.45 | ||||||||
Nominal Heating( Max) (A7/6℃, W30/35℃) | Heating Capacity | kW | 2.99-8.16 | 4.25-14.55 | 6.36-19.45 | |||||||
Power Input | kW | 1.03-2.92 | 1.45-4.28 | 2.15-6.85 | ||||||||
Current Input | kW | 4.57-12.79 | 6.71-18.80 | 2.84-6.78 | 9.84-30.12 | 3.71-10.60 | ||||||
COP | W/W | 2.79-3.46 | 2.83-3.45 | 2.84-3.57 | ||||||||
(A7/6℃, W30/35℃) | Heating Capacity | kW | 1.38-5.70 | 3.65-11.04 | 4.55-17.20 | |||||||
Power Input | kW | 0.67-2.44 | 1.12-3.97 | 1.85-7.31 | ||||||||
Current Input | kW | 3.06-10.27 | 5.18-17.44 | 1.97-6.30 | 8.47-32.1 | 2.99-11.26 | ||||||
COP | W/W | 2.47-3.35 | 2.45-3.30 | 2.45-3.30 | 2.42-3.27 | 2.42-3.27 | ||||||
ERP Level( Outlet water temp. at 35℃) | / | A+++ | A+++ | A+++ | A+++ | A+++ | ||||||
ERP Level( Outlet water temp. at 55℃) | / | A++ | A++ | A++ | A++ | A++ | ||||||
SCOP(Outlet water temp. at 35℃) | / | 4.83 | 4.77 | 4.74 | 4.81 | 4.79 | ||||||
SCOP(Outlet water temp. at 35℃) | / | 3.71 | 3.77 | 3.70 | 3.72 | 3.71 | ||||||
Rated input power | kW | 3.50 | 5.40 | 5.85 | 7.50 | 10.50 | ||||||
Rated input current | A | 15.00 | 25.00 | 10.00 | 35.00 | 17.00 | ||||||
Refrigerant Type/ Charge/ GWP | / | R290/0.55/3 | R290/1.05/3 | R290/1.4/3 | ||||||||
Rated water flow | m3/h | 1.00 | 2.06 | 3.10 | ||||||||
Fan quantity | / | 1 | 2 | |||||||||
Fan motor type | / | DC inverter | ||||||||||
Company Profile
Founded in 2000, MICOE has become a leading brand in the solar thermal industry with main business of SOLAR WATER HEATER and AIR SOURCE HEAT PUMP. As a cooperative partner of China Space and a high-tech enterprise, MICOE is Listed in Shanghai A-Share Stock Market (Stock code 603366SH) specialized in researching, developing and applicating renewable energy, providing comfortable hot water and space heating. Nowadays MICOE is the largest manufacturer and seller of SOLAR WATER HEATER and AIR SOURCE HEAT PUMP in the industry, exporting to more than 100 countries and areas. Making sunshine brighter, air fresher, water cleaner is the sustainable developing strategy of MICOE.

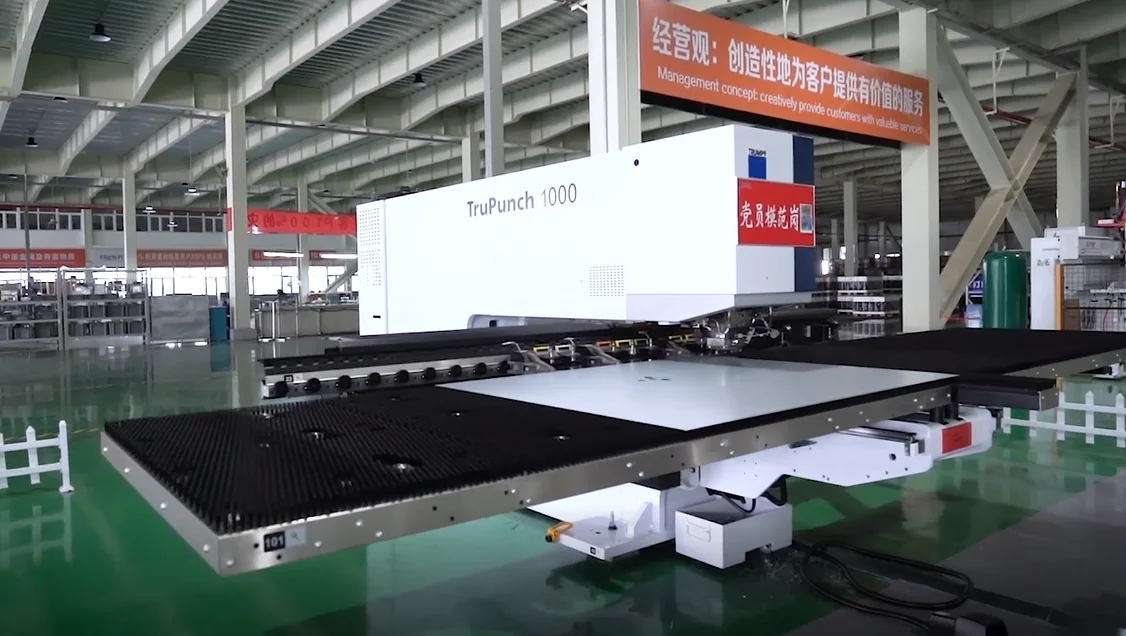

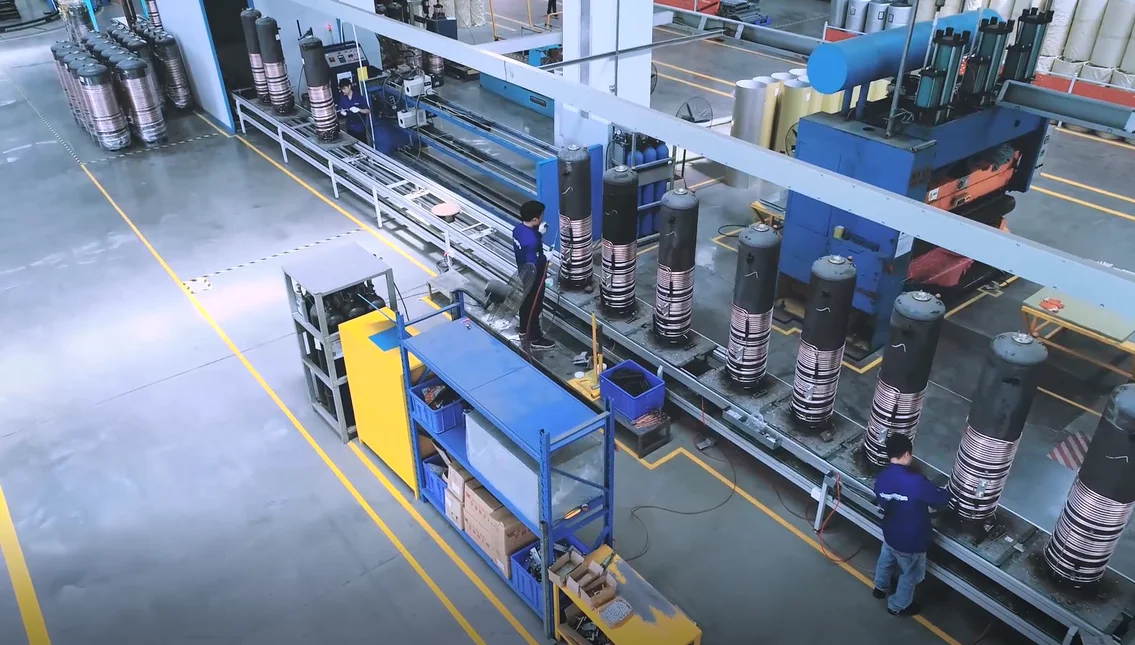

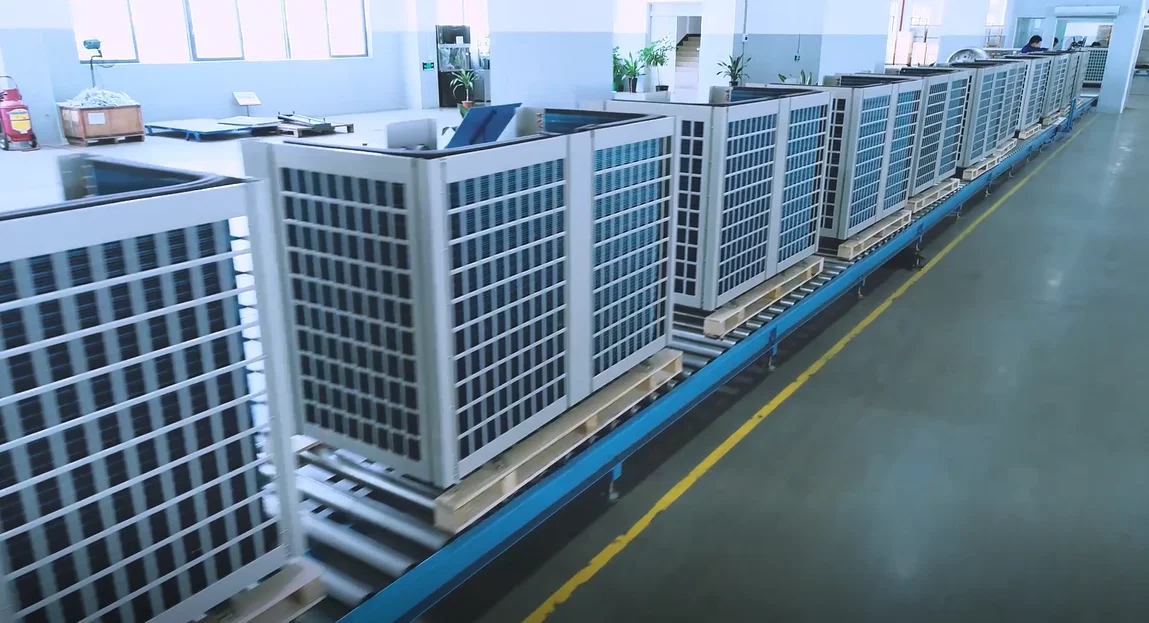

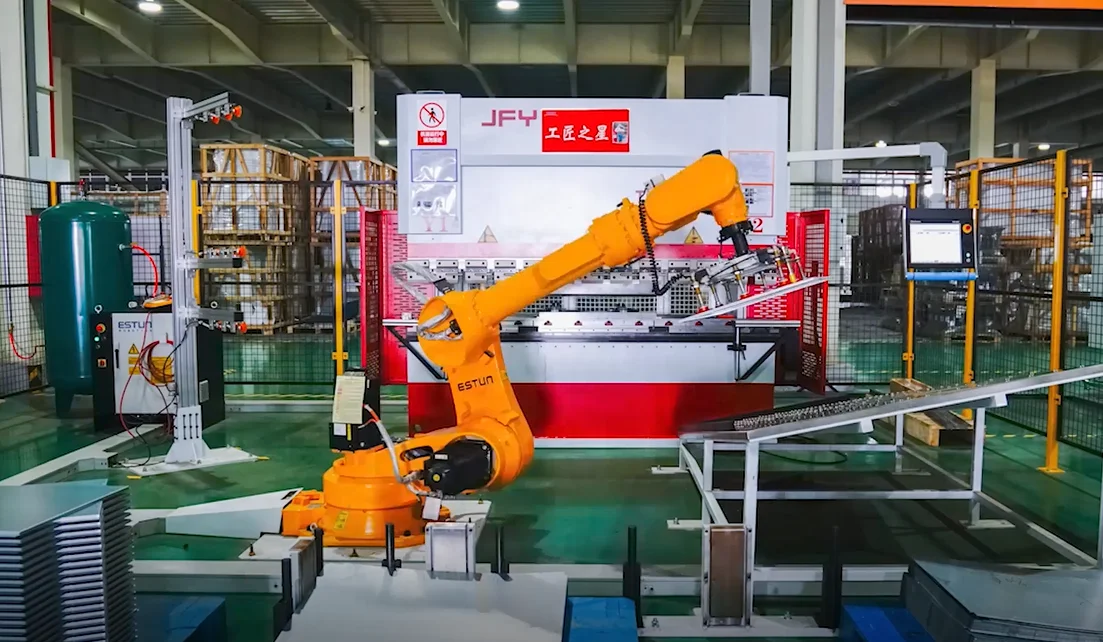

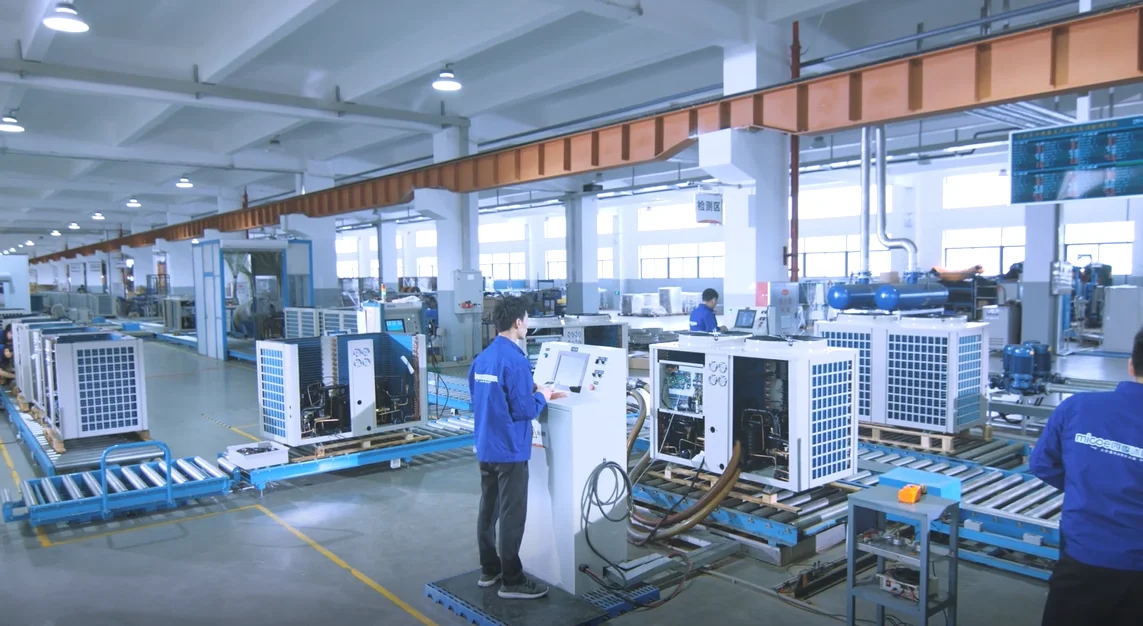

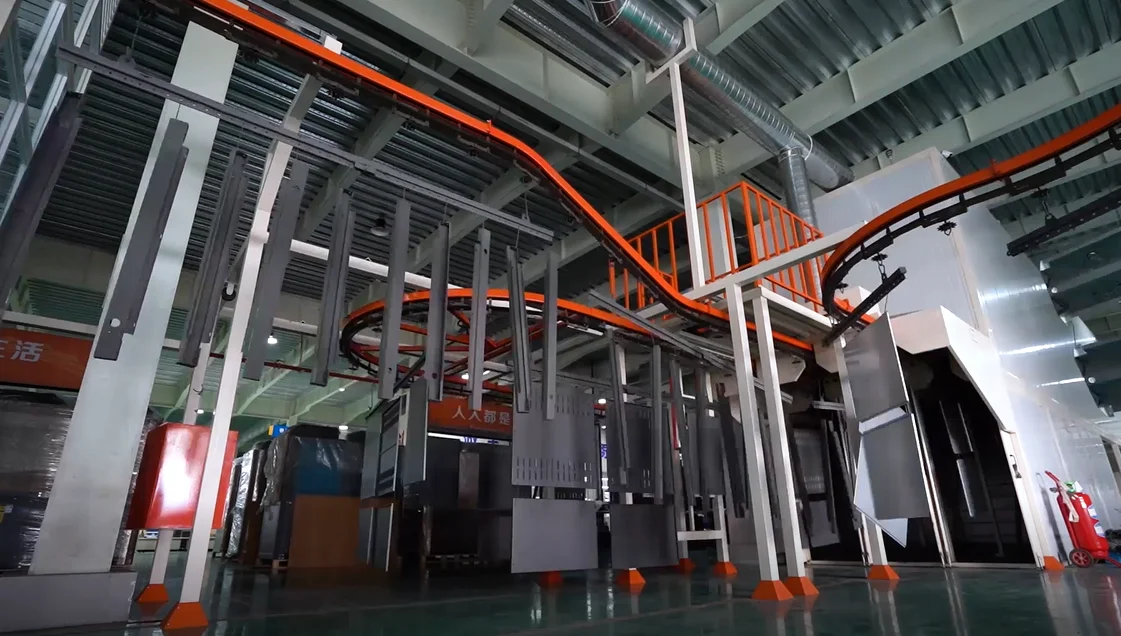

Micoe production base is over 100,000㎡ with a production capacity of 80,000 sets of heat pumps per month, and we have invested USD2 millions to build the most advanced testing labs which can test up to 300KW machines under extremely cold climate -45℃.
R&D Capabilities
Micoe has invested USD2 millions to build the most advanced testing labs which can test up to 300KW machines under extremely cold climate -45℃.
Micoe has the one and only solar simulator in China, which is only 3 set in the whole world.
Certifications
Micoe has multiple certifications of our products such as CE, EMC, SICC, Solar Keymark, RoHos and so on. Our customers can have it conveniently to save money and time.
Please feel free to contact us for more information about certifications.
Please feel free to contact us for more information about certifications.
Exhibition
FAQ
Q: How many years have your company been in heat pump industry?
A: We are a leading manufacturer for solar water heaters, heat pump since 1999 in China.
We MICOE has full experience in the field of heat pumps for more than 18 years. MICOE has kept growing rapidly during these years.
Q: Do you accept OEM& ODM?
A: Yes. We can produce MICOE standard products under clients' brand, modify the products to satisfy client's personalized
requirements and work together with clients to design and produce a totally new products.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
Q: What others products do you have?
Heat pump water heater, solar water heater,Water Purifier ,Gas & Electric Water heaters Etc.
Language Spoken: English, Chinese, Spanish, Korean
A: We are a leading manufacturer for solar water heaters, heat pump since 1999 in China.
We MICOE has full experience in the field of heat pumps for more than 18 years. MICOE has kept growing rapidly during these years.
Q: Do you accept OEM& ODM?
A: Yes. We can produce MICOE standard products under clients' brand, modify the products to satisfy client's personalized
requirements and work together with clients to design and produce a totally new products.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
Q: What others products do you have?
Heat pump water heater, solar water heater,Water Purifier ,Gas & Electric Water heaters Etc.
Language Spoken: English, Chinese, Spanish, Korean
Sales Manager | Jackie Niu | ||||||
Moblie/WhatsApp/WeChat | +86 195 0449 0821 | ||||||
Email | jackie@micoe.com | ||||||
Address | No199, South Yingzhou Road, 222043 Lianyungang, China | ||||||
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–49 set: US $1299 / set
- 50+ set: US $1220 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heating cooling heat pump?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this heating cooling heat pump carry?
It is supplied with CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Micoe Solar Energy Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Micoe Solar Energy Co., Ltd. range on HVACR Nexus.
