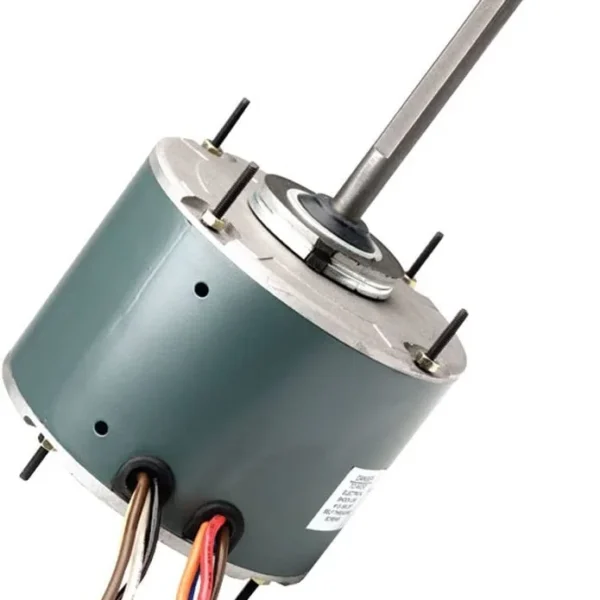

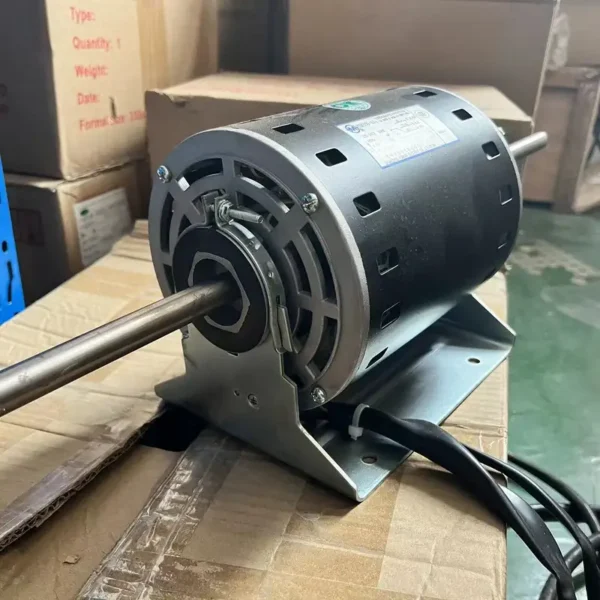

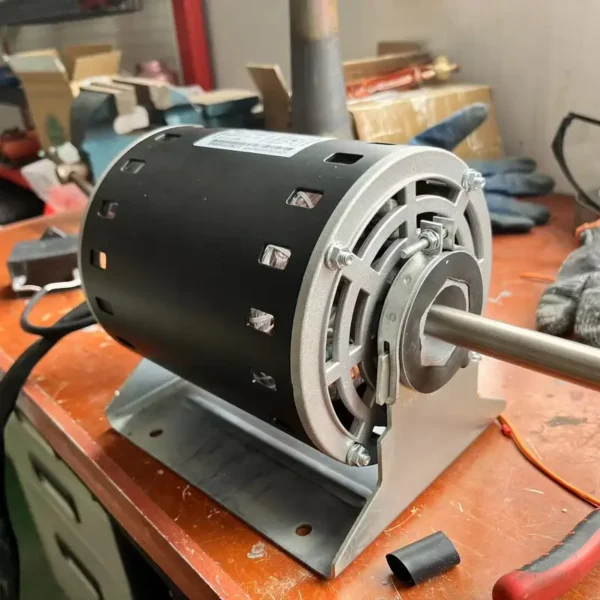

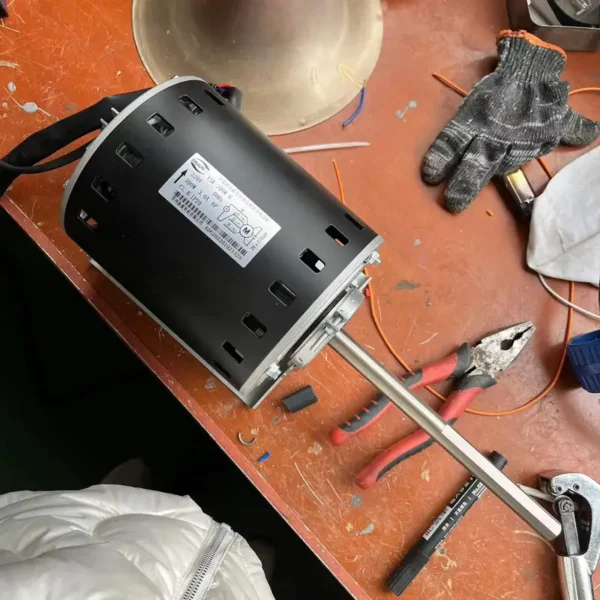

The hvac system condenser listed here carries material Copper wire, type Asynchronous Motor, documented exactly as the manufacturer publishes it. Made by Changzhou Kang Tian Motor Co., Ltd. (4 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Hvac System Condenser
- Model Number: YSK/YDK
- Input Power: custom
- AC Voltage: 110/220/230V/380V
- Material: Copper wire
- Rated Speed: 3speed/custom
- Warranty: 3 months ~ 1 year
Technical Specifications
| Phase | Single-Phase |
|---|---|
| AC Voltage | 110/220/230V/380V |
| Type | Asynchronous Motor |
| Protect Feature | Drip-proof |
| Efficiency | Good |
| Warranty | 3 months ~ 1 year |
| Model Number | YSK/YDK |
| Brand Name | KT |
| Place Of Origin | Jiangsu, China |
| Frequency | 50/60HZ |
| Product Name | AC electric fan motor |
| Application | Air Supply System/Refrigerator fan motor/CROSS FLOW FAN |
| Model | YSK/YDK/YSF |
| Rated Speed | 3speed/custom |
| Certification | CCC/CE/ISO9001 |
| Material | Copper wire |
| Noise | ≤34db(A) |
| Input Power | custom |
| Protection Class | B,F |
| Packaging Details | Standard Export Carton. Each product is Packed in the blister/foam bag, then put in the color carton box/Standard export carton, and we can do OEM acc to clients’ requirements!! |
| Selling Units | Single item |
| Single Package Size | 51X30X30 cm |
| Single Gross Weight | 7.5 kg |
Product Details
* 1075rpm
* reversible rotation
* semi-enclosed construction
* continuous air over
* multi-horse application
* PSC
* operating temp 32F-104F
* 3 speeds
* 2-1/4" -2-1/2" res.rings
* thermal protection
Model | Power(HP) | Voltage(V) | Speed | RPM | Amps | ROT | Protect Feature | Bearing |
YDK-370-6M | 1/2 | 115 | 3 | 825 | 7 | reversible | open vent | ball |
YDK-250-6M | 1/3 | 115 | 3 | 825 | 6.7 | reversible | open vent | ball |
YDK-180-6M | 1/4 | 115 | 3 | 825 | 4.4 | reversible | open vent | ball |
YDK-150-6M | 1/5 | 115 | 3 | 825 | 3.2 | reversible | open vent | ball |
YDK-120-6M | 1/6 | 115 | 3 | 1075 | 2.4 | reversible | open vent | ball |
YDK-370-6MA | 1/2 | 208-230 | 3 | 1075 | 3.9 | reversible | open vent | ball |
YDK-250-6MA | 1/3 | 208-230 | 3 | 1075 | 3.6 | reversible | open vent | ball |
YDK-180-6MA | 1/4 | 208-230 | 3 | 1075 | 2.5 | reversible | open vent | ball |
YDK-150-6MA | 1/5 | 208-230 | 3 | 1075 | 1.8 | reversible | open vent | ball |
YDK-120-6MA | 1/6 | 208-230 | 3 | 1075 | 1.3 | reversible | open vent | ball |
YDK-550-6M | 3/4 | 115 | 3 | 1075 | 9.1 | reversible | open vent | ball |
YDK-370-6MB | 1/2 | 115 | 3 | 1075 | 6.8 | reversible | open vent | ball |
YDK-250-6MB | 1/3 | 115 | 3 | 1075 | 5.5 | reversible | open vent | ball |
YDK-180-6MB | 1/4 | 115 | 3 | 1075 | 3 | reversible | open vent | ball |
YDK-150-6MB | 1/5 | 115 | 3 | 1075 | 2.3 | reversible | open vent | ball |
YDK-550-6MA | 3/4 | 208-230 | 3 | 1075 | 3.9 | reversible | open vent | ball |
YDK-370-6MC | 1/2 | 208-230 | 3 | 1075 | 3.6 | reversible | open vent | ball |
YDK-250-6MC | 1/3 | 208-230 | 3 | 1075 | 3 | reversible | open vent | ball |
YDK-180-6MC | 1/4 | 208-230 | 3 | 1075 | 2.3 | reversible | open vent | ball |
YDK-150-6MC | 1/5 | 208-230 | 3 | 1075 | 2 | reversible | open vent | ball |
Product Features:
2. KT AC motor is up to 85% efficiency, power factor 0.5~0.6 .
3. KT AC motor motor can be variable speed, multi speeds or single speed.
4. KT AC motor uses sensorless vector field-oriented control(FOC), lower material cost and smaller failure rate
because of no hall sensor, higher efficiency, lower noise, smoother performance curves.
Class B/F available.
Model | Electrical Rating | RATED LOAD | ||||||
Speed | Current | Power | Capacitor | |||||
Model | V/Hz | rpm | A | W | μF | |||
YSK-120W-6P | 220V/50Hz | 850/750/650 | 1.2 | 120 | 6 | |||
YSK-150W-6P | 220V/50Hz | 850/750/650 | 1.3 | 150 | 8 | |||
YSK-200W-6P | 220V/50Hz | 900/800/700 | 1.8 | 200 | 10 | |||
YSK-250W-6P | 220V/50Hz | 900/800/700 | 2.2 | 250 | 10 | |||
YSK-300W-6P | 220V/50Hz | 920/810/730 | 2.7 | 300 | 10 | |||
YSK-370W-6P | 220V/50Hz | 930/820/730 | 3.3 | 370 | 12 | |||
YSK-550W-6P | 220V/50Hz | 900/820/730 | 5.0 | 550 | 15 | |||
YSK-750W-6P | 220V/50Hz | 900/820/730 | 6.5 | 750 | 20 | |||
YSK-120W-4P | 220V/50Hz | 1150/1000/850 | 1.1 | 120 | 8 | |||
YSK-150W-4P | 220V/50Hz | 1150/1000/850 | 1.2 | 150 | 8 | |||
YSK-200W-4P | 220V/50Hz | 1200/1050/900 | 1.6 | 200 | 12 | |||
YSK-250W-4P | 220V/50Hz | 1200/1050/900 | 2 | 250 | 12 | |||
YSK-300W-4P | 220V/50Hz | 1200/1050/900 | 2.5 | 300 | 15 | |||
YSK-450W-4P | 220V/50Hz | 1250/1100/950 | 3.6 | 450 | 18 | |||
YSK-550W-4P | 220V/50Hz | 1250/1100/950 | 4.7 | 550 | 20 | |||
YSK-750W-4P | 220V/50Hz | 1300/1150/1000 | 6.0 | 750 | 25 | |||
Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured
according to customers requirements. The products of 100-120V,200-240V,50/60Hz can also be supplied as requested.
We are based in Jiangsu, China, start from 2014,sell to Domestic Market(60.00%),Western Europe(20.00%),North America(5.00%),Eastern Asia(5.00%),Southern Europe(5.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air conditioning motor,Fan coil motor,Fan motor,DC brushless motor,Centrifugal fan
4. why should you buy from us not from other suppliers?
Our engineering team is engaged in design of micro-motor for more than 15 years. We are capable to design and manufacture motors according to customer's requirements and we also provide ODM and OEM services.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50–999999 piece: US $37 / piece
- 1000000+ piece: US $30 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this hvac system condenser?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this hvac system condenser carry?
It is supplied with CCC/CE/ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the hvac system condenser be supplied for my local voltage?
The standard configuration is 110/220/230V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
