Hydraulic oil that runs hot loses viscosity, degrades seals and oxidises into varnish — which is why a hydraulic oil cooler is the cheapest life extension available for any hydraulic system that works hard. The DC12V and DC24V options let it mount directly on mobile plant with no inverter. Aluminium construction handling 115gpm across -40C to 180C, with machinery test report and video outgoing inspection.
Key Features of This Hydraulic Oil Cooler
- Voltage: AC220V/AC380V/DC12V/DC24V
- Flow Capacity: 115gpm
- Material: Aluminium
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Heat Exchanger Type: Plate Heat Exchanger
Technical Specifications
| Material | Aluminium |
|---|---|
| Key Selling Points | Competitive Price |
| Voltage | AC220V/AC380V/DC12V/DC24V |
| Heat Exchanger Type | Plate Heat Exchanger |
| Flow Capacity | 115gpm |
| Working Temperature Range | -40℃-180℃ |
| Core Components | Pump |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shandong, China |
| Weight (KG) | 2 |
| Selling Units | Single item |
| Single Package Size | 27X23.5X15 cm |
| Single Gross Weight | 7.000 kg |
|

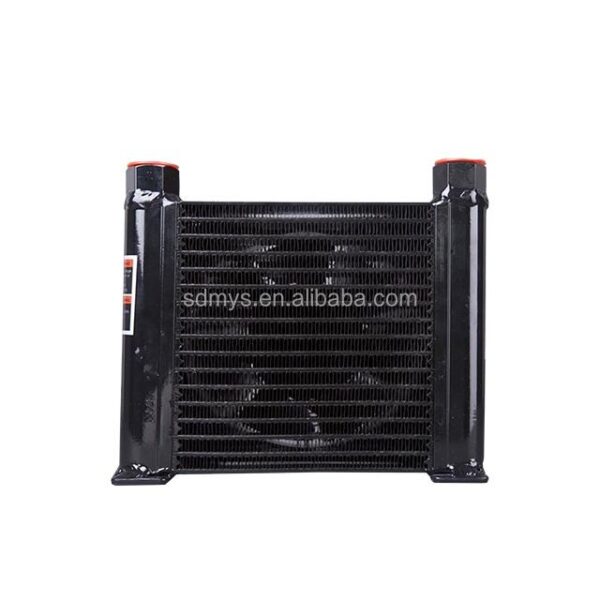

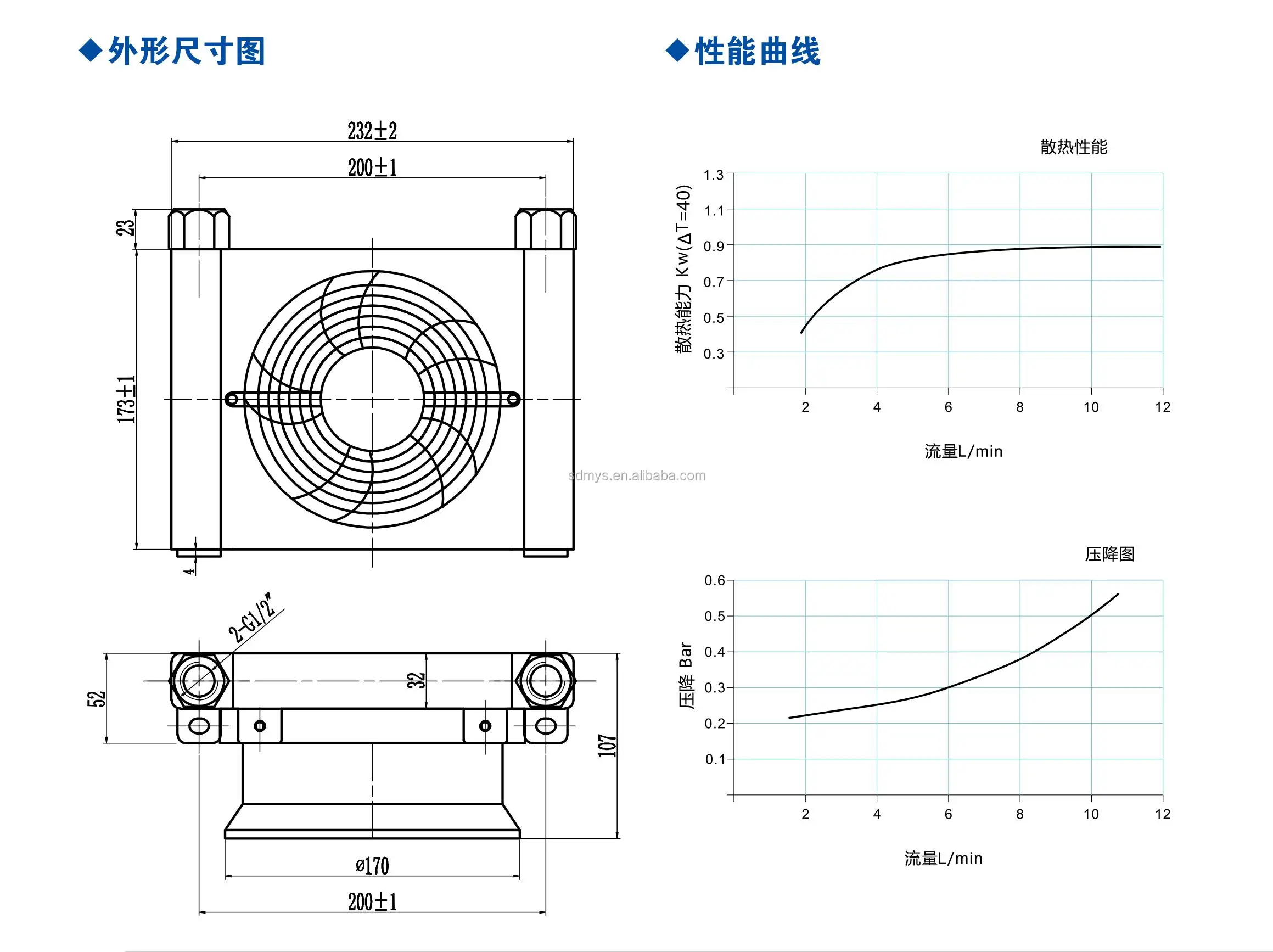

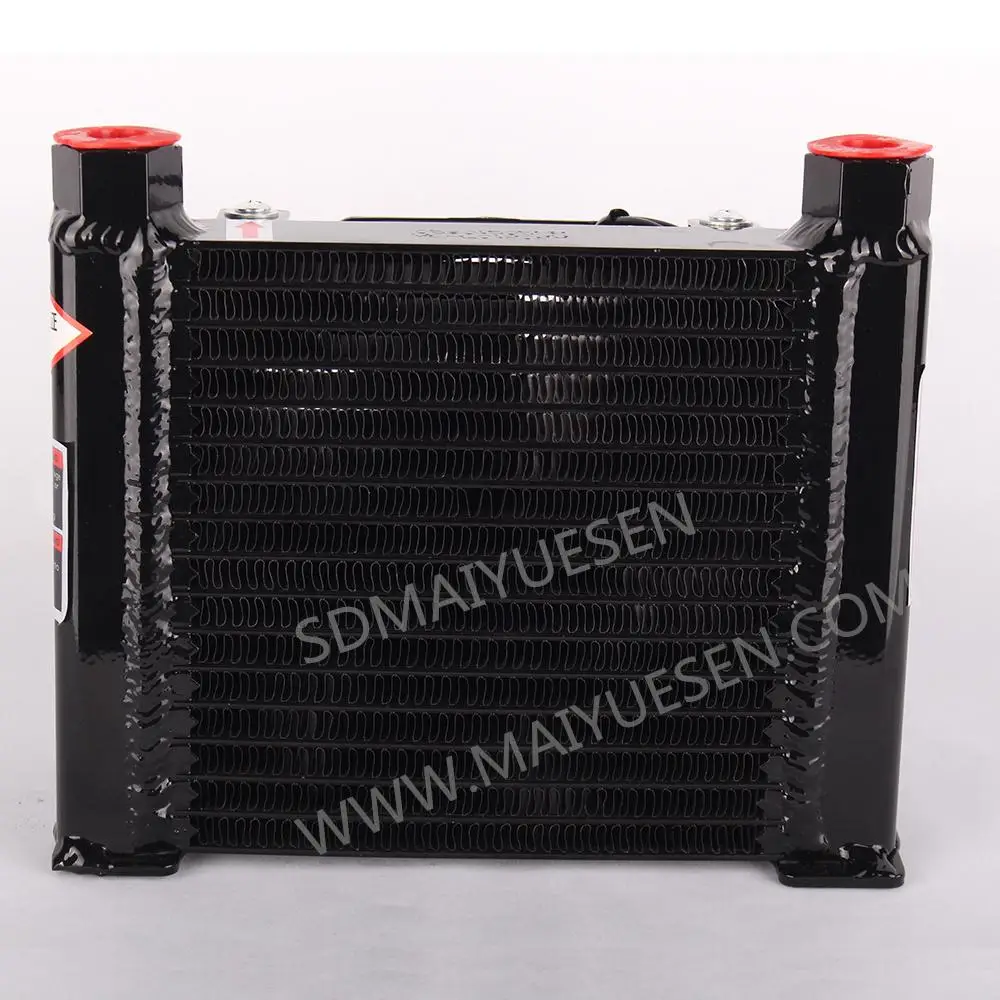

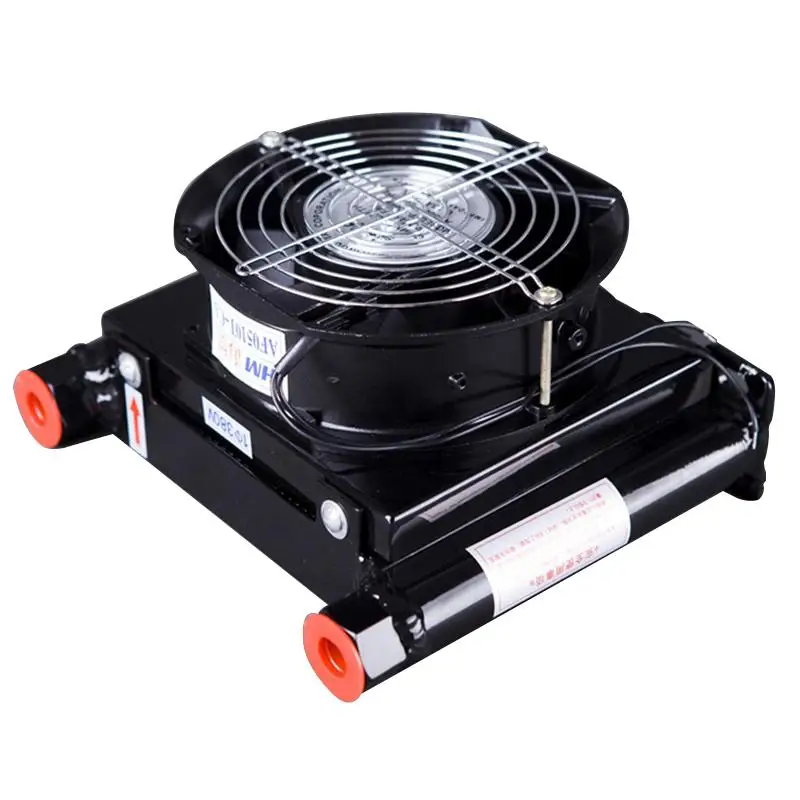

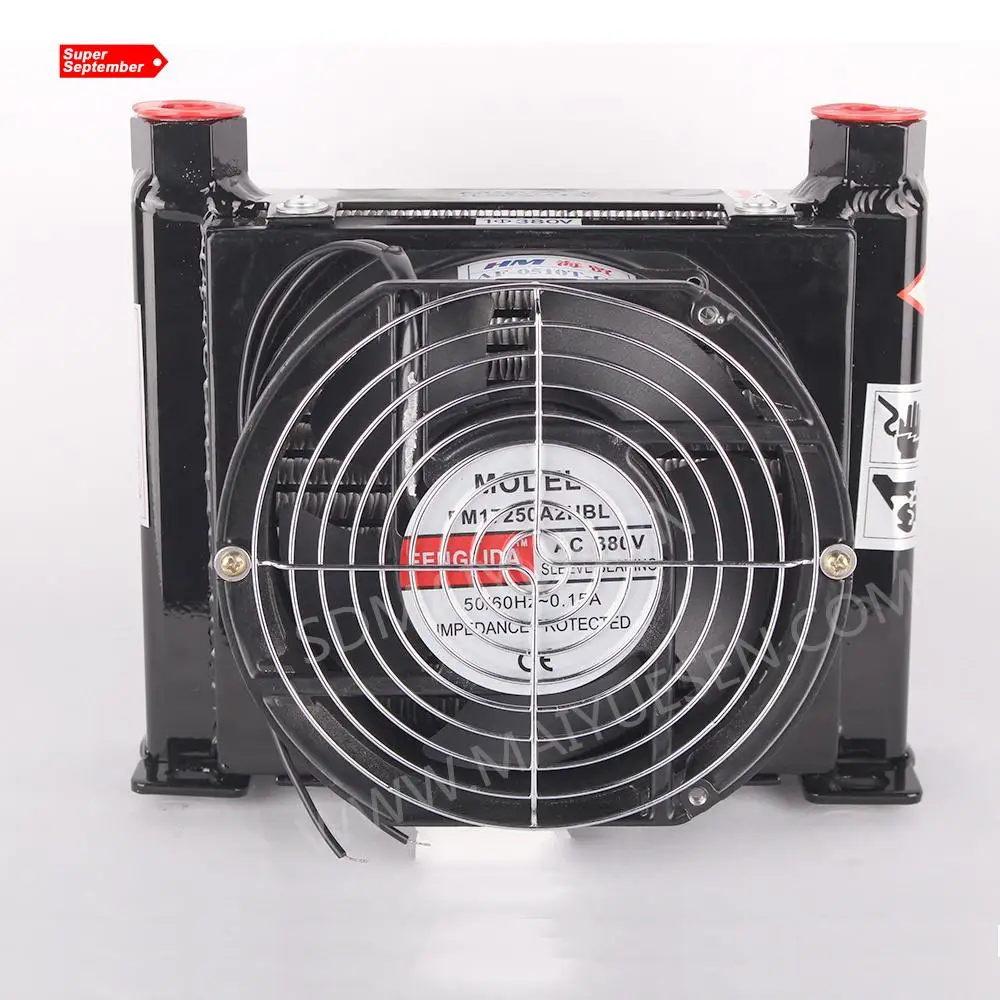

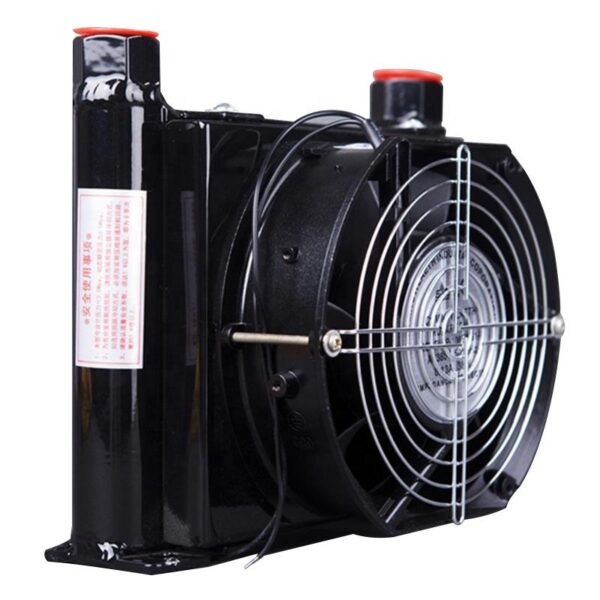

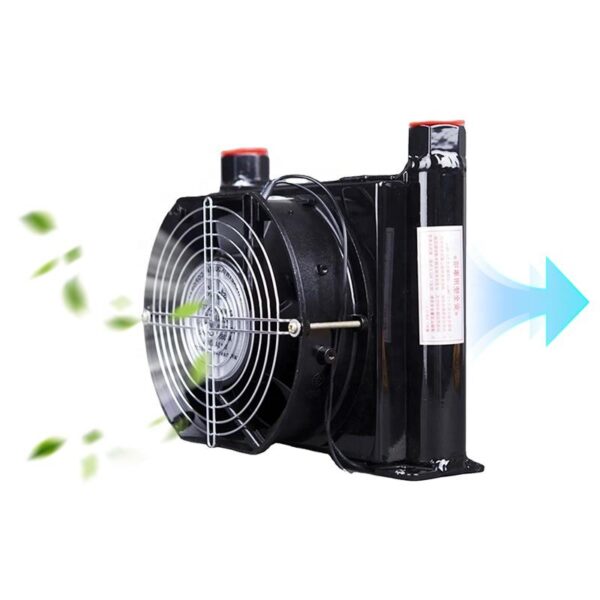

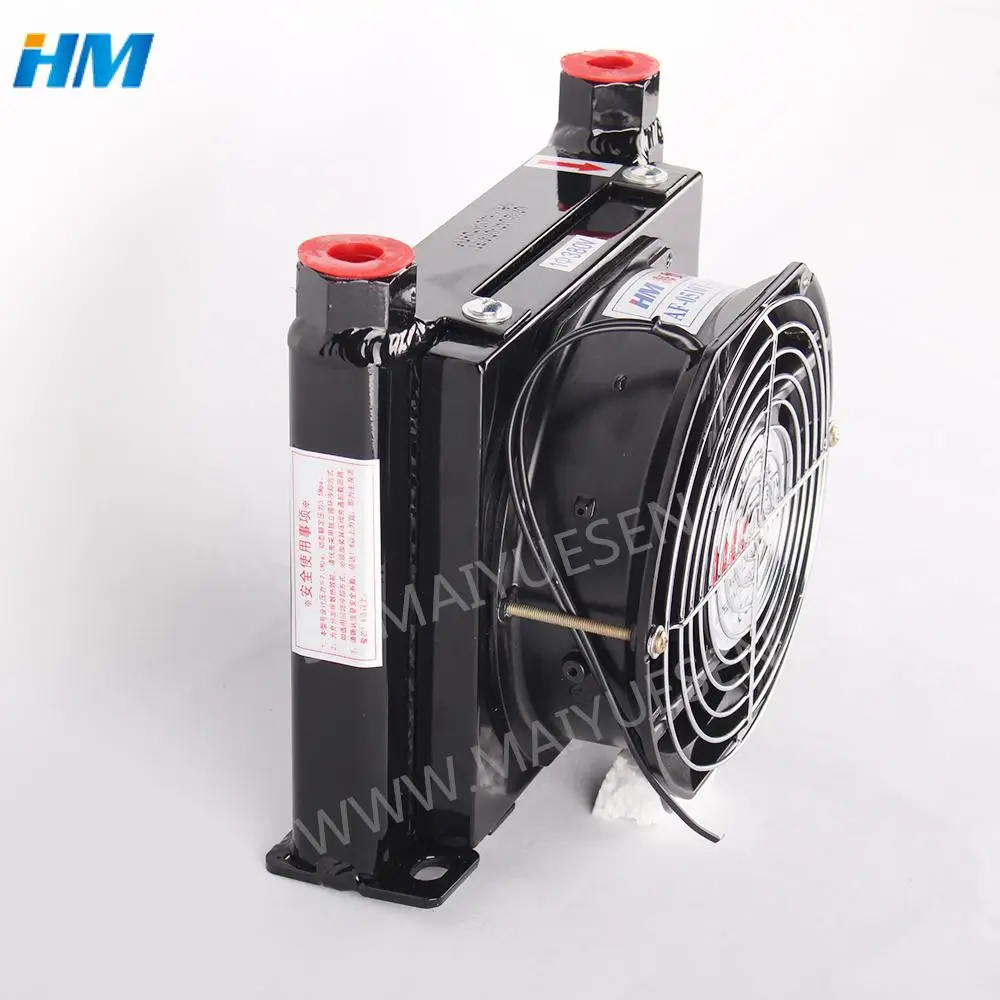

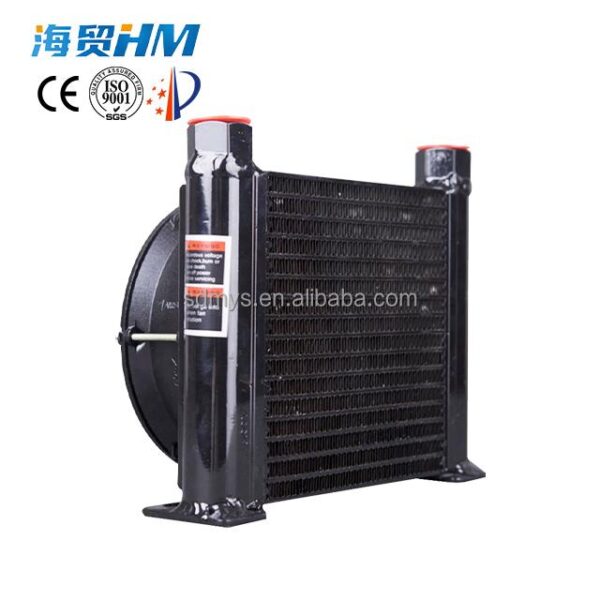

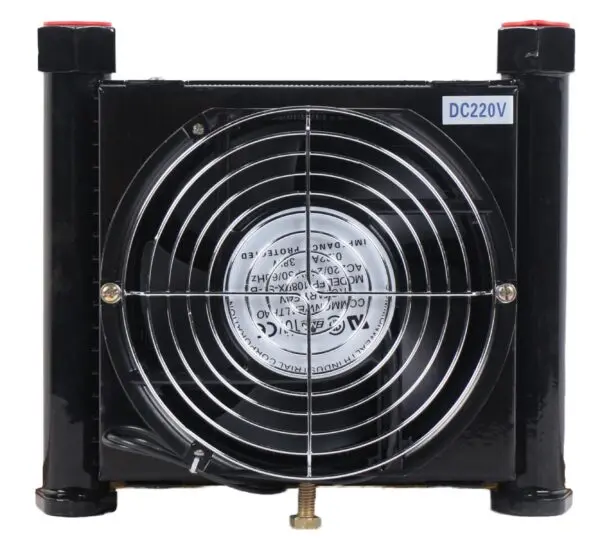

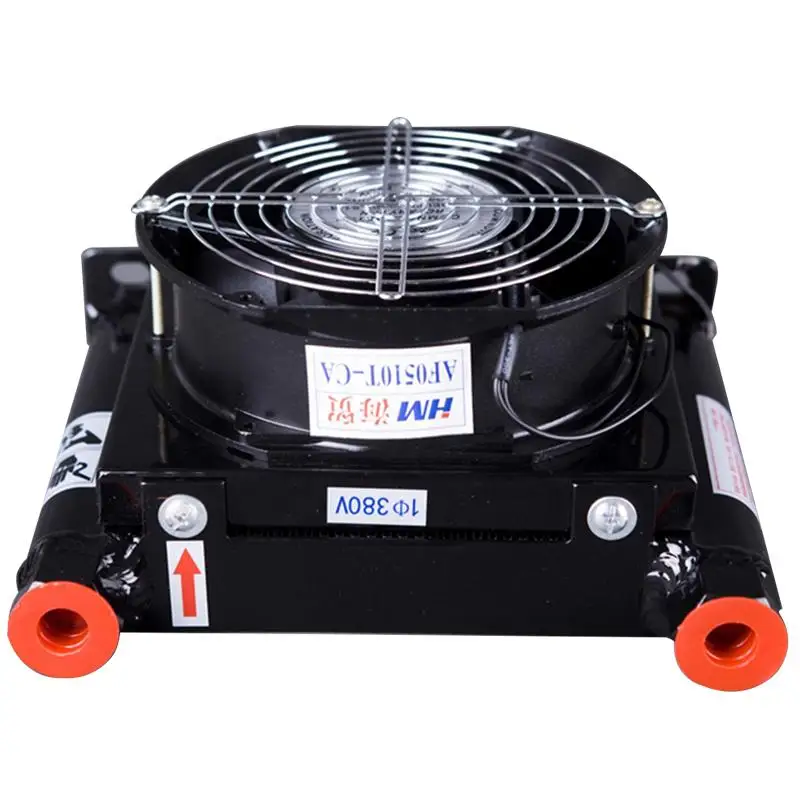

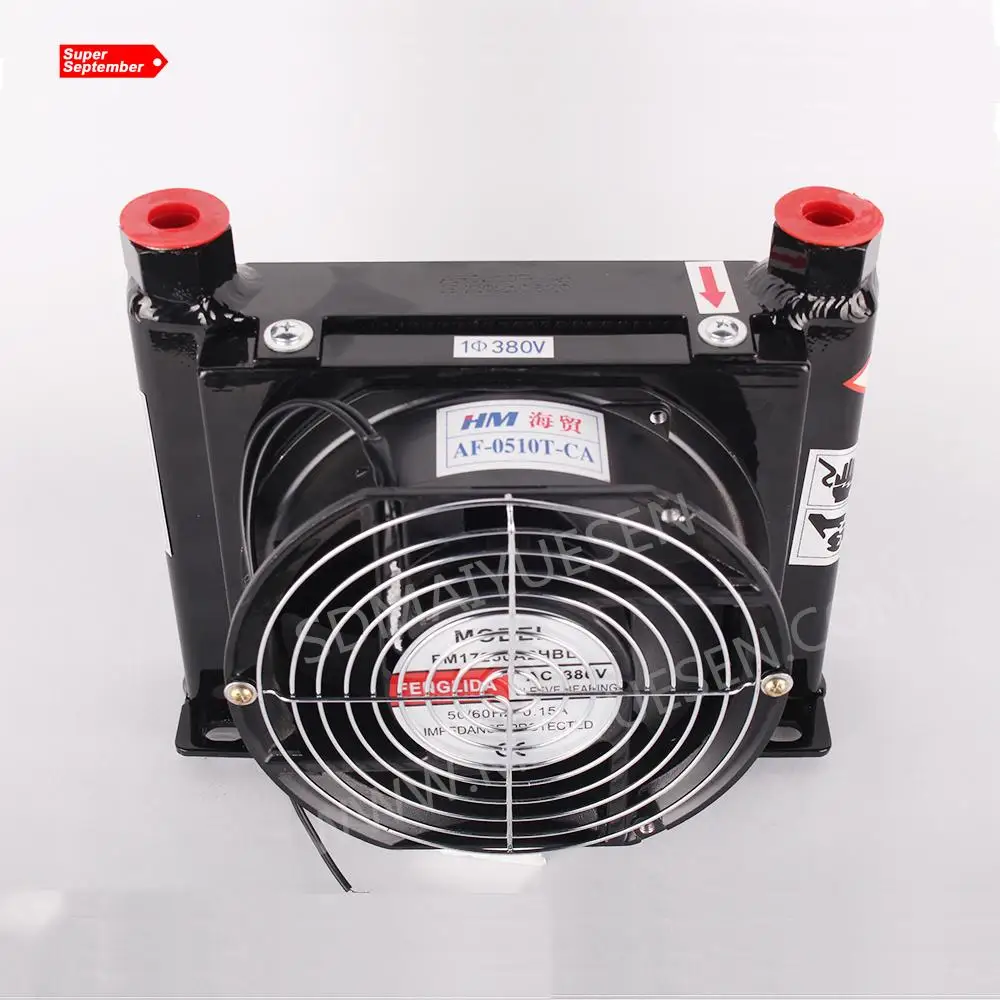

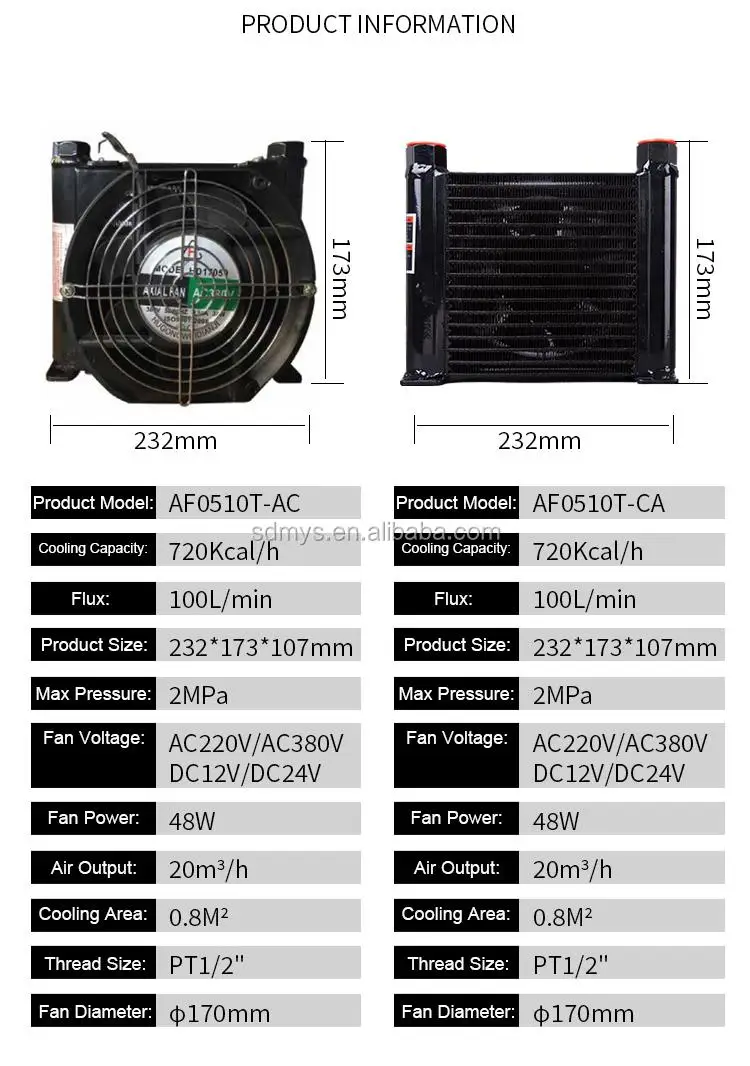

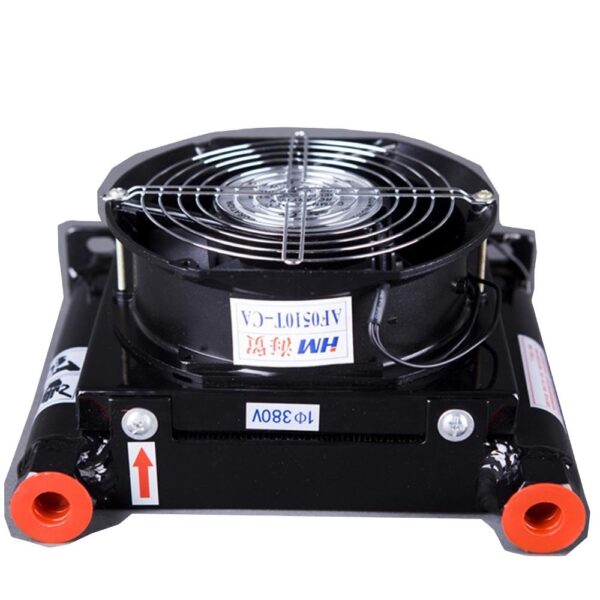

AF0510T aluminum oil cooler radiator Paramenters
|
||||||
|
Model
|
AF0510T
|
Cooling Capacity
|
720Kcal/h
|
|||
|
Rate Of Flow
|
10L/min
|
Package Size
|
27*23.5*15cm
|
|||
|
Max Pressure
|
2MPa
|
Fan Voltage
|
AC220V/AC380V
DC12V/DC24V
|
|||
|
Fan Power
|
48W
|
Air Output
|
200M3/h
|
|||
|
Cooling Area
|
0.8M2
|
Thread size
|
PT1/2”
|
|||
|
Blade diameter
|
φ170mm
|
|||||
first choice for Weichai Power, Futian Group, Shifeng Group, Hongwuhuan Group, etc.
COMPANY PROFILE

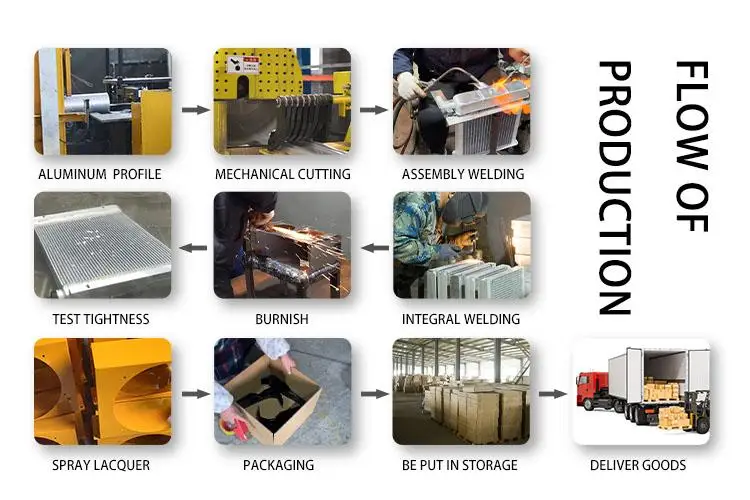

PROCESS OF FLOWSHEET

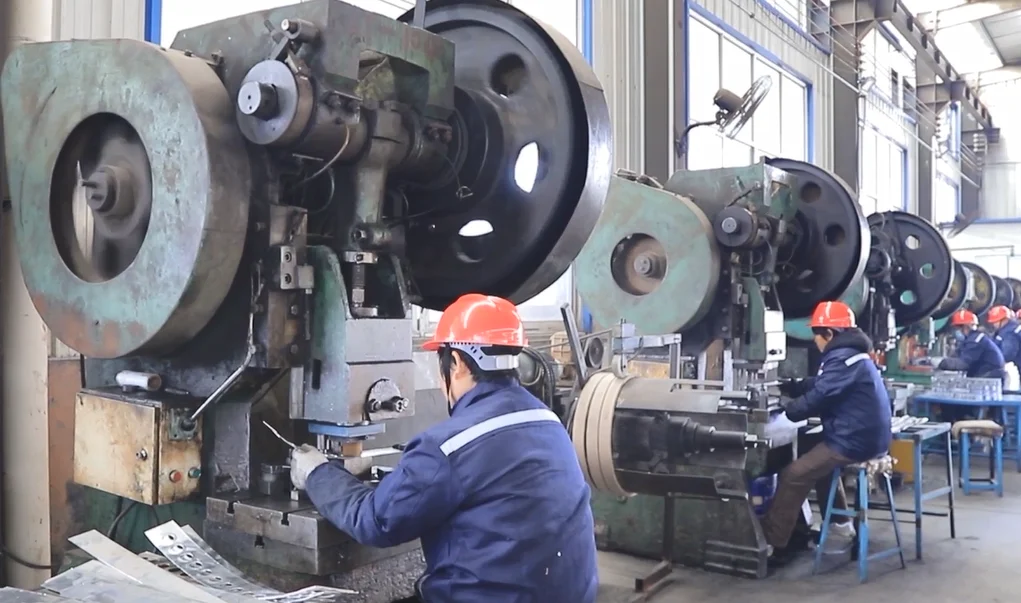

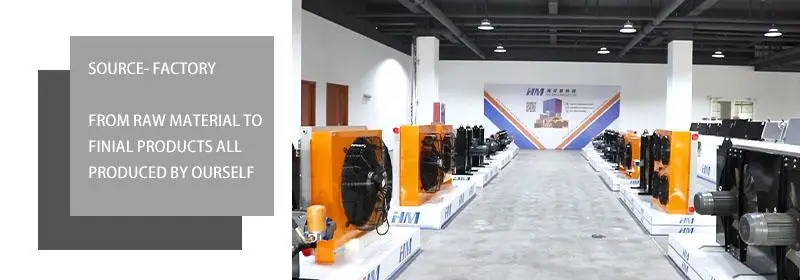

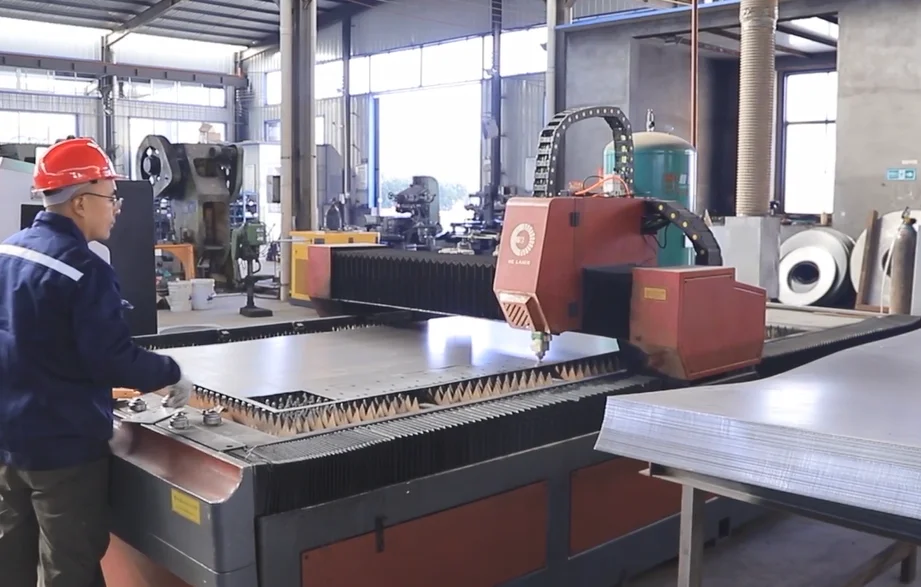

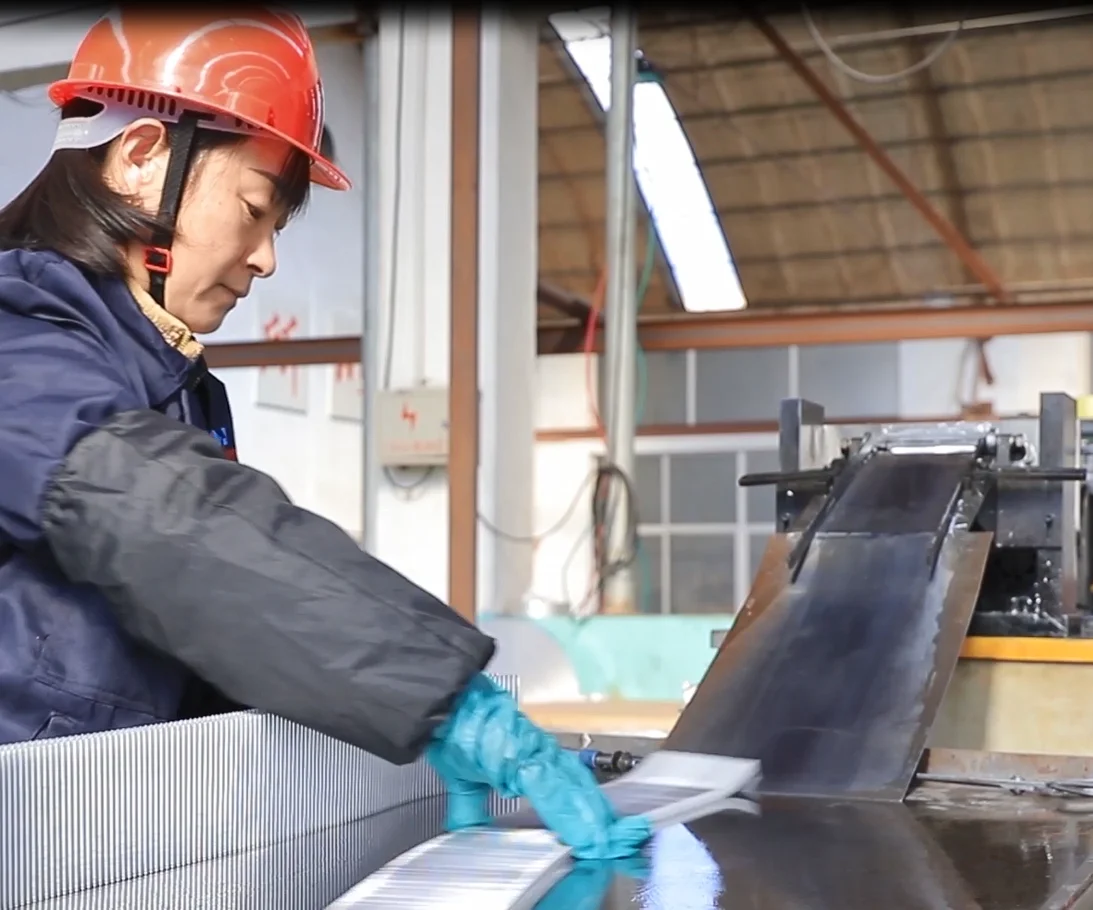

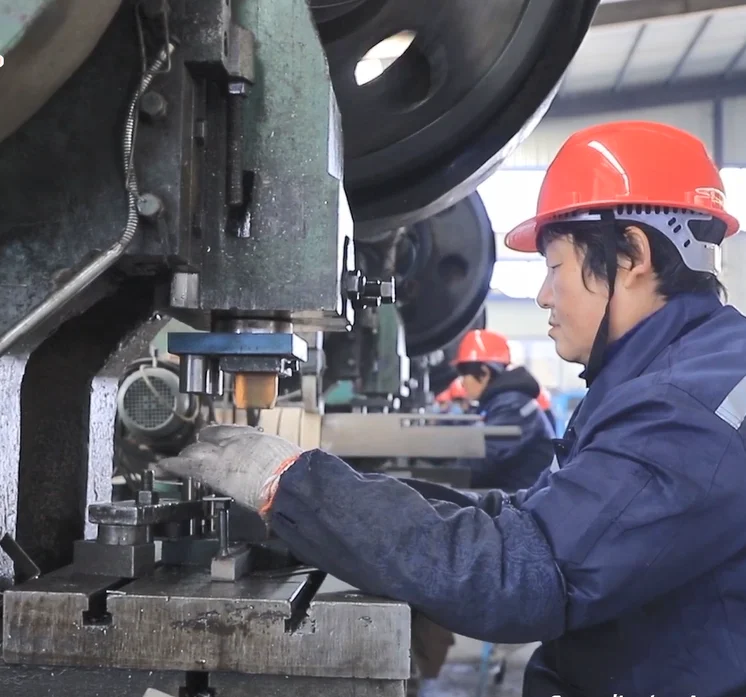

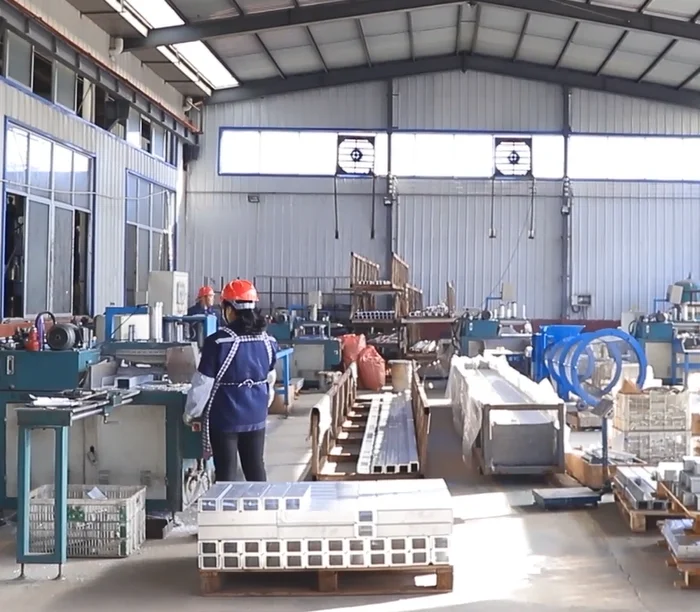

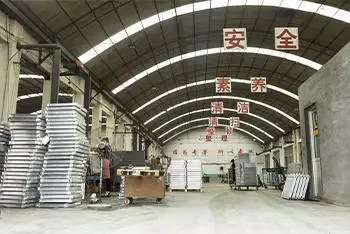

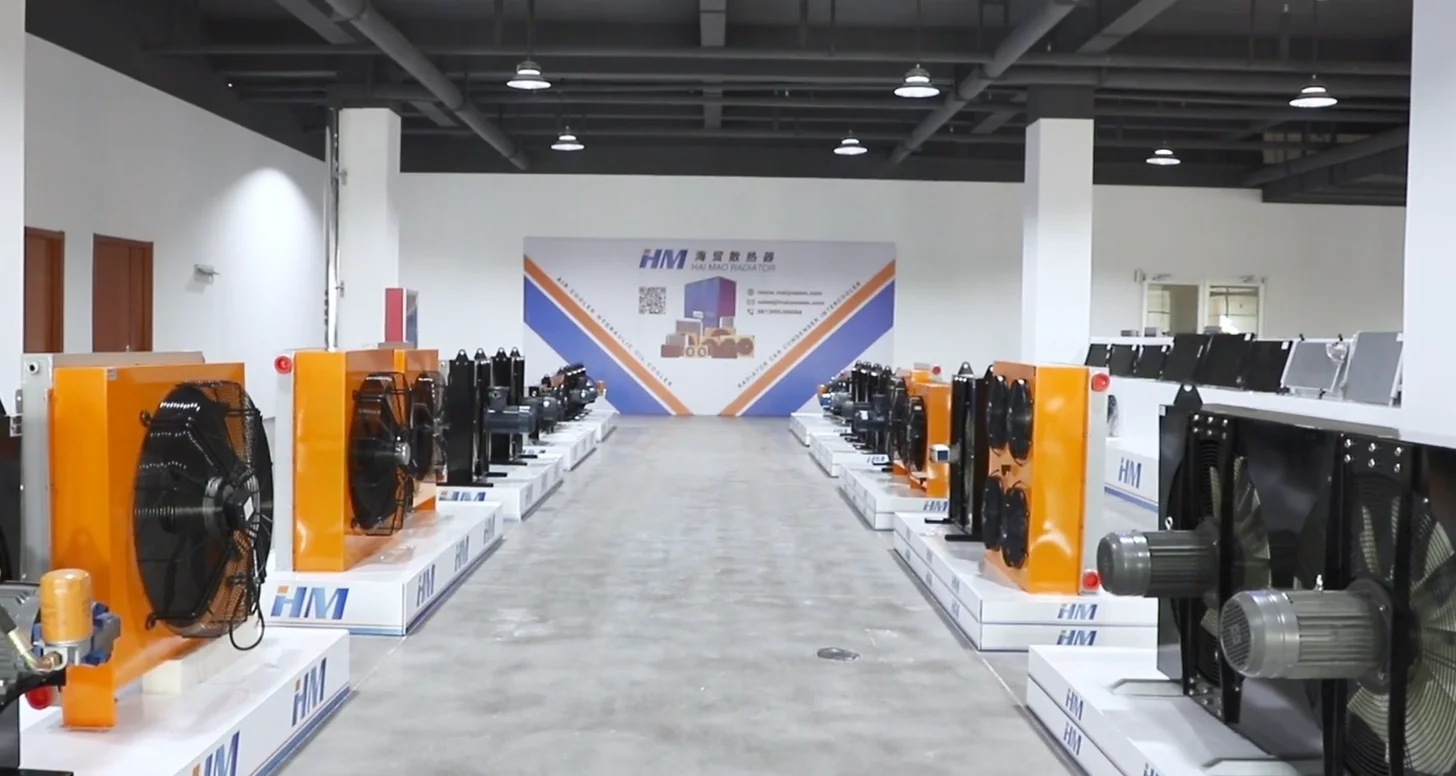

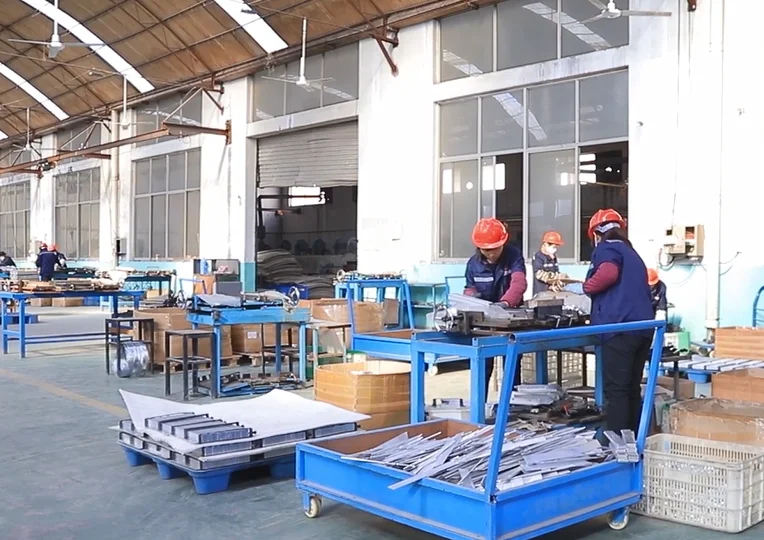

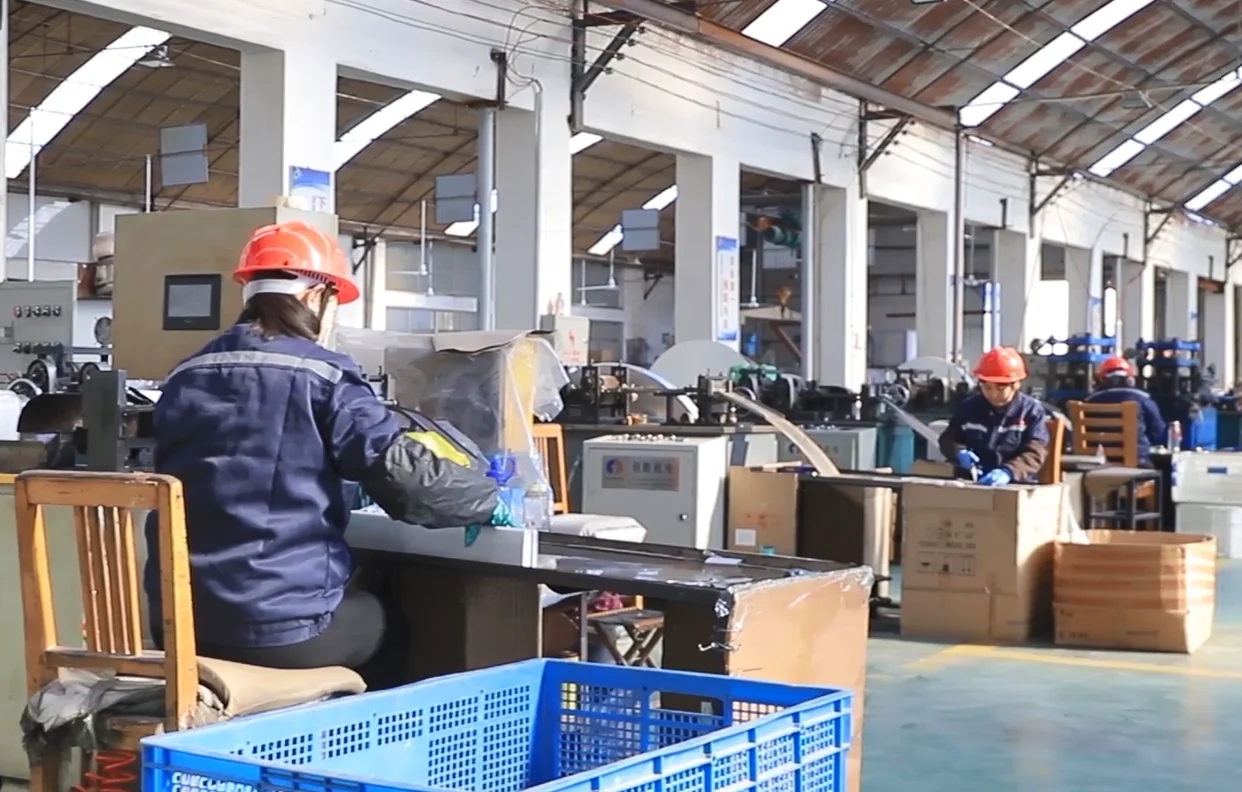

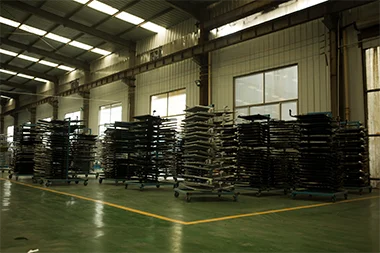

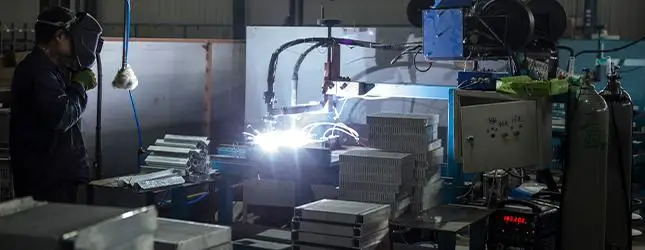

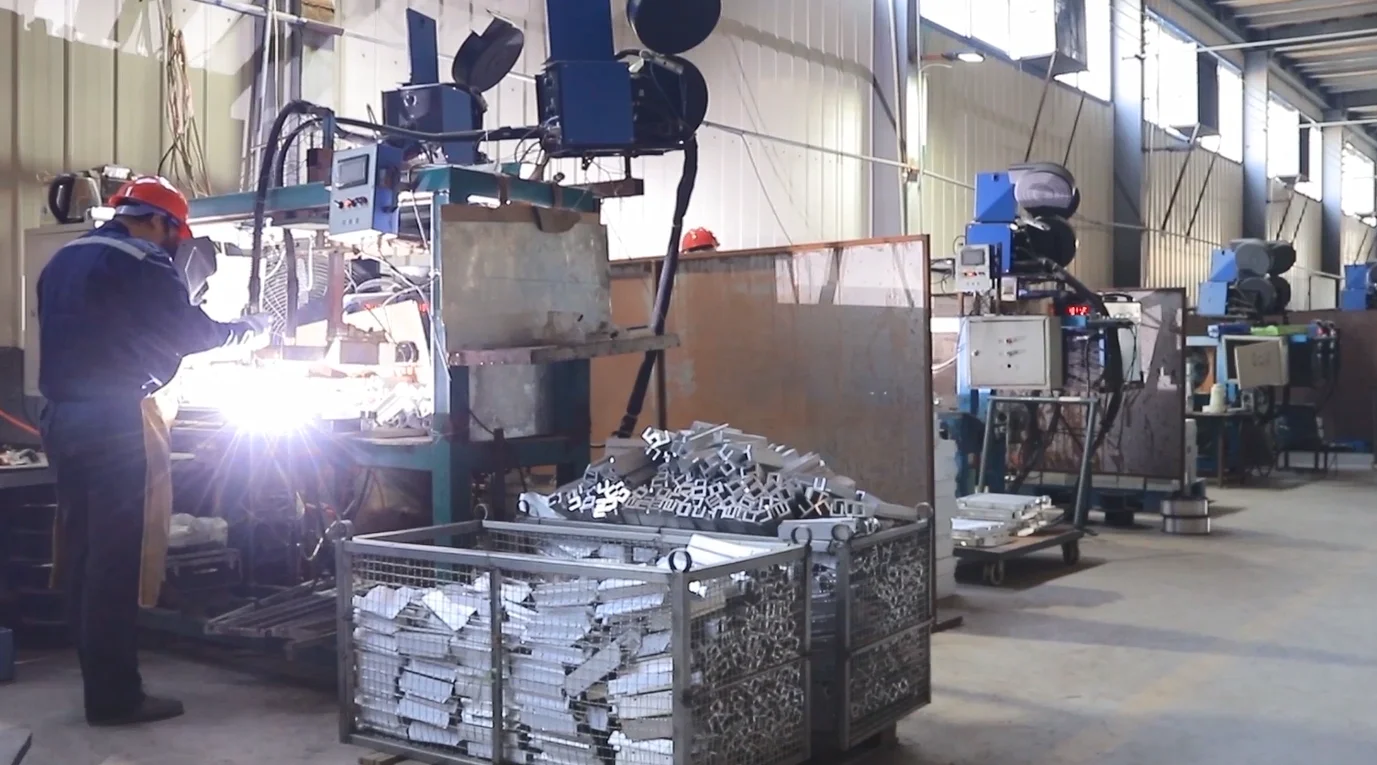

ACTUAL FACTORY SHOOTING
APPLICATION

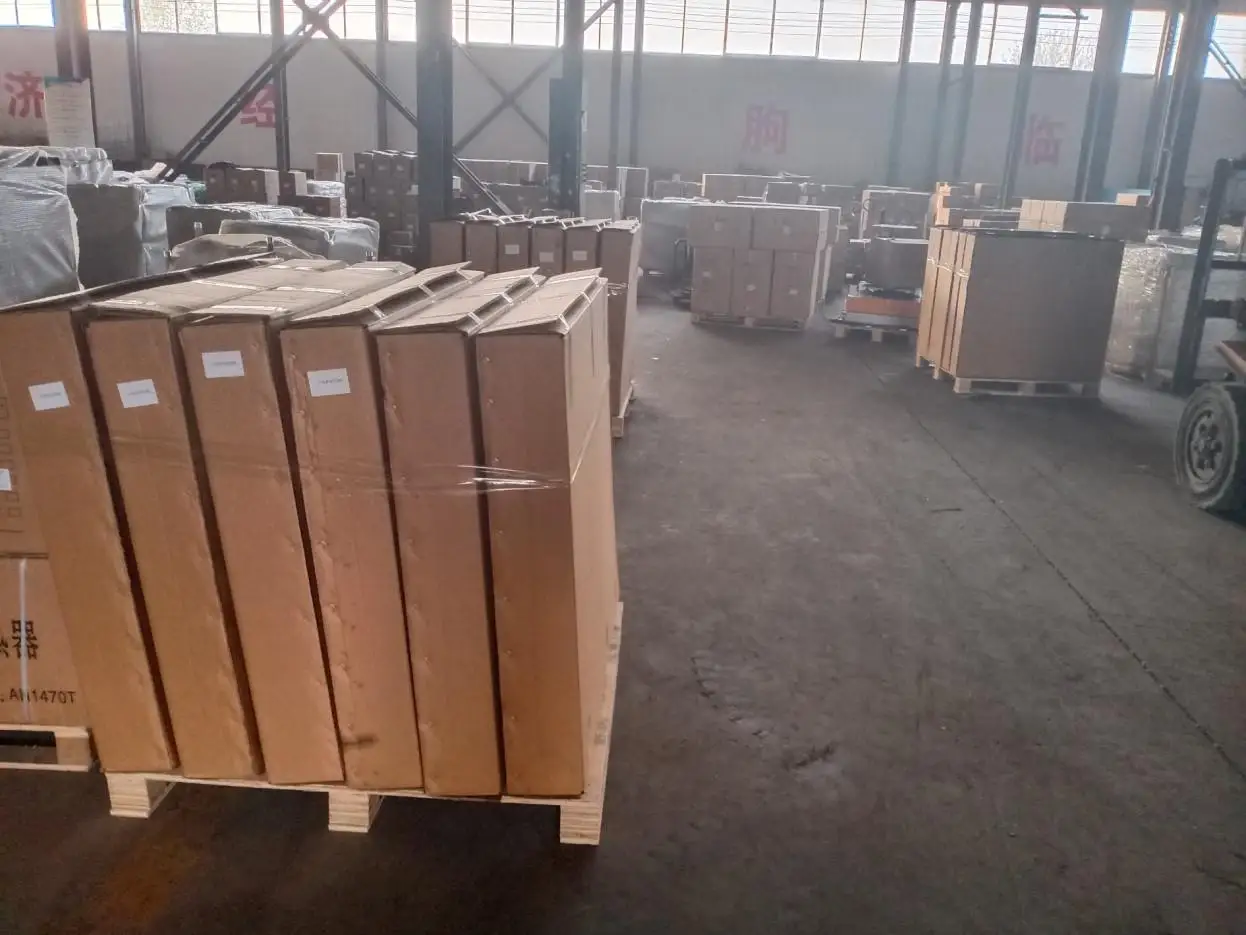

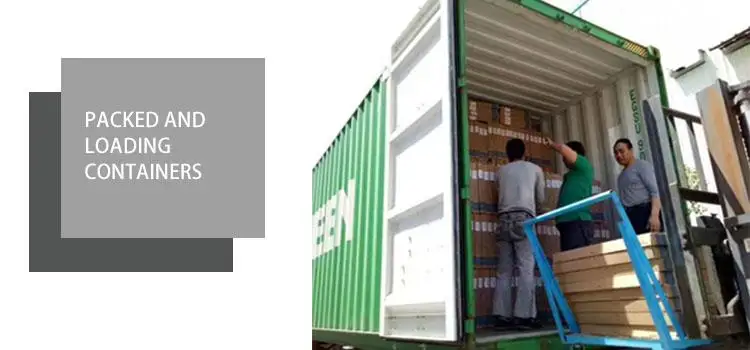

PRODUCT PACKAGING

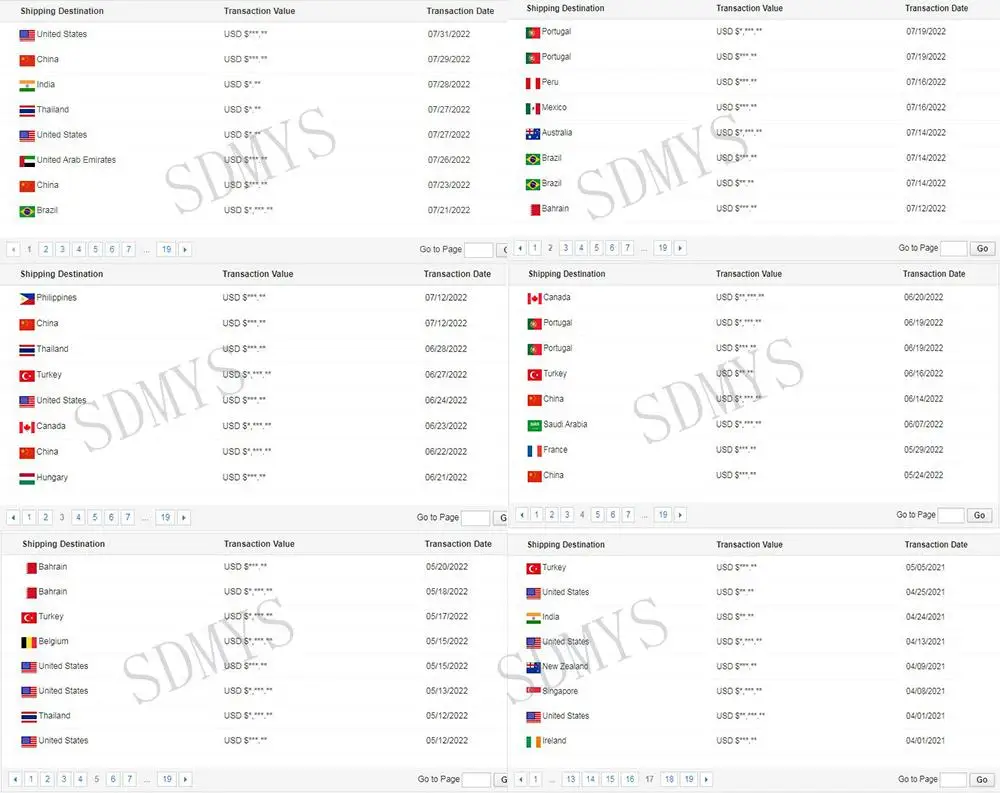

CUSTOMER PRAISE
CUSTOMER PHOTOS
CONTACTS
Frequently Asked Questions
What is the minimum order quantity for this hydraulic oil cooler?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this hydraulic oil cooler?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is AC220V/AC380V/DC12V/DC24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This hydraulic oil cooler is produced by Myusen Aluminum Products (liaocheng) Co., Ltd.. Browse the full Myusen Aluminum Products (liaocheng) Co., Ltd. range on HVACR Nexus.

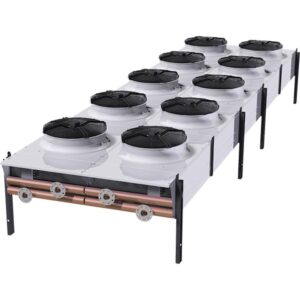

See more in Dry Cooler on HVACR Nexus.
