The ice machine listed here carries 415V/50Hz/3Phase, 1200 W, documented exactly as the manufacturer publishes it. Made by Guangzhou Icesource Co., Ltd. (17 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ice Machine
- Model Number: ABI
- Power: 1200 W
- Voltage: 415V/50Hz/3Phase
- Ice Storage Capacity: depends
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Ice Shape | ICE BLOCK |
|---|---|
| Ice Storage Capacity | depends |
| Voltage | 415V/50Hz/3Phase |
| Power | 1200 W |
| Compressor Brand | Bitzer |
| Key Selling Points | Easy To Operate, Automatic, High-Accuracy, Competitive Price, High Productivity, Long Service Life, Energy Saving, Famous Brand Motor, Famous Brand PLC |
| Application | Commercial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1500 |
| Brand Name | CBFI |
| Model Number | ABI |
| Dimension(L*W*H) | 40feet container load |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Compressor | Germany Bitzer/America Copeland |
| Ice Maker | Food grade material/nickel plated copper |
| Solenoid Valve | Italy Castal |
| PLC | Germany Siemens |
| Electric Components | Korea LG |
| Cooling Way | Water cooling/Air cooling/Evaporative cooling |
| Ice Block Cans | SS304 |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 10.000 kg |
Product Details
Production Description

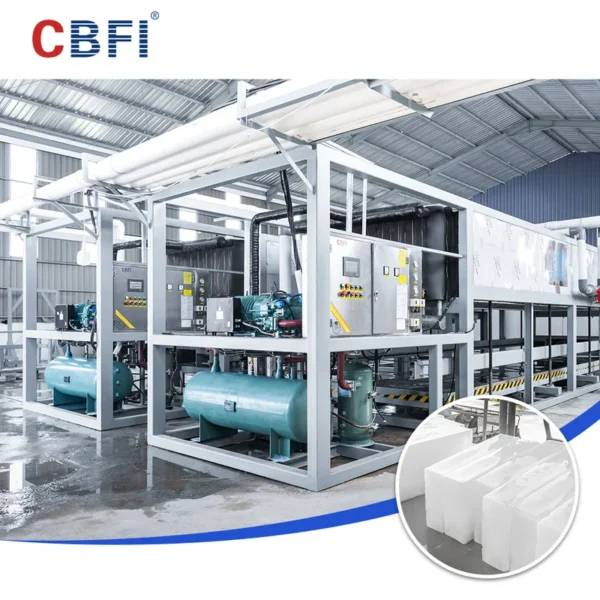

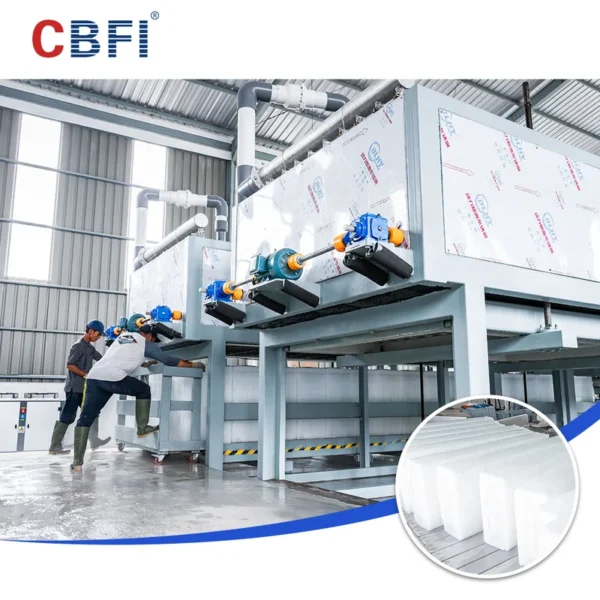

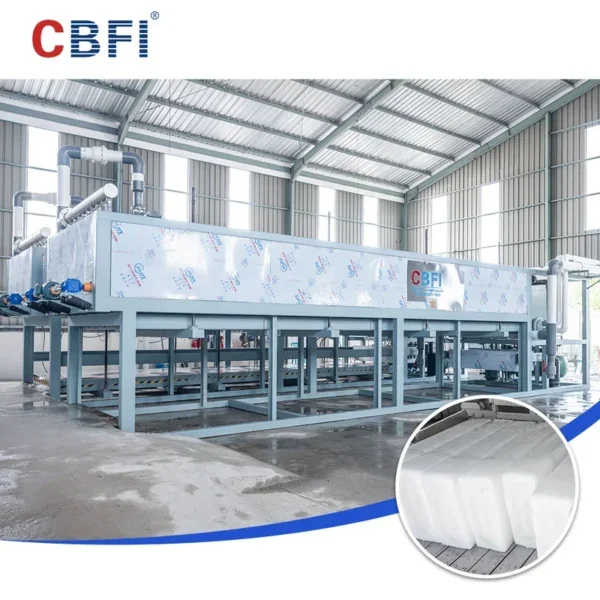

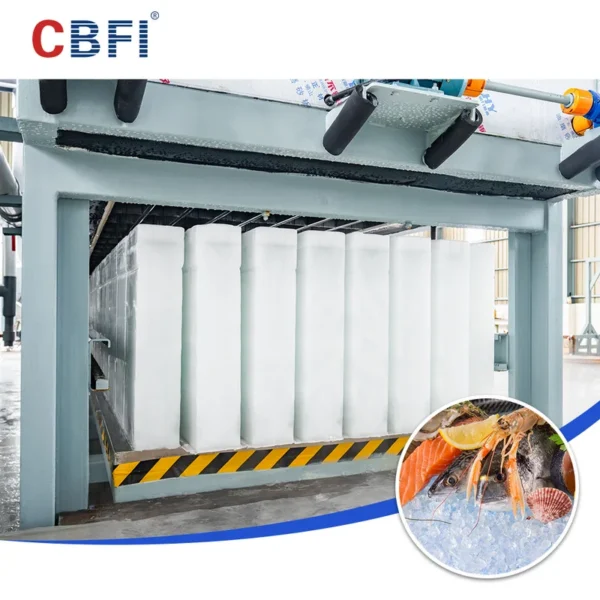

CBFI Direct Cooling Ice Machine
The direct cooling ice machine is highly automatic, automatic water supply, automatic ice making, automatic ice harvest, need nomanual operation. The direct cooling ice machine does not need to use brine water. The ice mold does not need to be replaced afterlong time service. The equipment is safe and environmentally friendly, and the ice blocks are clean and hygienic, which can meet the food standard. Modular design, simple operation, small area occupation, easy installation, you can begin ice production as soon as connected to water and electricity.
The direct cooling block ice machine is a block ice (ice brick) production equipment. The direct cooling ice machine evaporator adopts high-efficiency heat-conducting aluminum alloy material, which directly exchanges heat with the refrigerant, has low freezing temperature and fast ice making speed. Ice cubes melt slowly.
Product Feature
● Big daily Capacity
● Machine power supply: 3 phase industrial power supply
● PLC controlling system, very easy to use.
● Automatic operation to save your labor work
● Compact design to save your area need.
● The direct cooling block ice machine is easy to operate, easy to transport, and low in cost. Because it is direct refrigeration, ice is hygienic, clean and edible. Compared to other types of products, there is no need to use brine, no ice contamination problems.
● The direct cooling block ice machine uses fresh water to make ice, and the water is directly frozen into ice. You don't need to add other items, only water and electricity are needed to make ice.
● Machine power supply: 3 phase industrial power supply
● PLC controlling system, very easy to use.
● Automatic operation to save your labor work
● Compact design to save your area need.
● The direct cooling block ice machine is easy to operate, easy to transport, and low in cost. Because it is direct refrigeration, ice is hygienic, clean and edible. Compared to other types of products, there is no need to use brine, no ice contamination problems.
● The direct cooling block ice machine uses fresh water to make ice, and the water is directly frozen into ice. You don't need to add other items, only water and electricity are needed to make ice.
Product at a Glance
Machine Assembly
Guangzhou Icesource Co., Ltd. has a professional engineer team that can provide customers with customized services; an experienced after-sales service team can help customers provide machine installation and online use instructions. In addition, experienced workers can guarantee the quality of every machine that leaves the factory.
Product Parameters
Direct Cooling Block Ice Machine Parameters | ||||||||||||||
No. | Cooling Capacity (kw) | Power (kw) | Lift Motor (kw) | Weight of Ice (kg) | Ice Size | Machine Size | ||||||||
L*W*H (mm) | L*W*H (mm) | |||||||||||||
ABI 30 | 30.9 | 10.33 | 4 | 10 | 240*100*500 | 3100*1650*2000 | ||||||||
15 | 280*120*500 | 3400*1725*2000 | ||||||||||||
ABI 50 | 61.8 | 20.5 | 5.5 | 20 | 260*120*730 | 4350*2310*2250 | ||||||||
25 | 320*120*730 | 4500*2165*2250 | ||||||||||||
No. | Cooling Capacity (kw) | Power (kw) | Lift Motor (kw) | Ice Size | Machine Size | |||||||||
L*W*H (mm) | Compressor unit L*W*H (mm) | Evaporator L*w*H (mm) | ||||||||||||
95.8 | 32.22 | 7.5 | 25 | 320*120*730 | 6450*2600*2250 (one-piece) | |||||||||
11 | 30 | 310*150*730 | 2400*1700*2000 | 4900*2110*2250 | ||||||||||
ABI 150 | 142.4 | 47.8 | 11 | 30 | 310*150*730 | 2950*2000*2250 | 5550*2460*2250 | |||||||
40 | 410*150*730 | 2950*2000*2250 | 5550*2460*2250 | |||||||||||
ABI 200 | 185.4 | 61.5 | 15 | 40 | 410*150*730 | 3025*2200*2250 | 6800*2460*2600 | |||||||
50 | 350*180*950 | 3025*2200*2250 | 3800*2560*2600 | |||||||||||
ABI 300 | 249.9 | 85.5 | 22.5 | 40 | 410*150*730 | 3325*2200*2500 | 6800*2460*2250*3 | |||||||
50 | 350*180*950 | 3325*2200*2500 | 6800*2460*2250*3 | |||||||||||
1.Operating conditions: ambient temperature 32℃, water supply temperature 20℃. Due to the continuous updating of product technology, if the data is changed, it will be reflected in the quotation plan. The above data is for reference only, which is subject to actual conditions. 2.The above information is according to water cooled condenser spec. Size of machine is without cooling tower, cooling tower usually install in the outside. 3.Operating condition: water temperature: 23 Cent degree, evaporate temperature:-12 Cent degree, condensing temperature 40 Cent degree, reference valve under 50 Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature. | ||||||||||||||
Product Applicaton

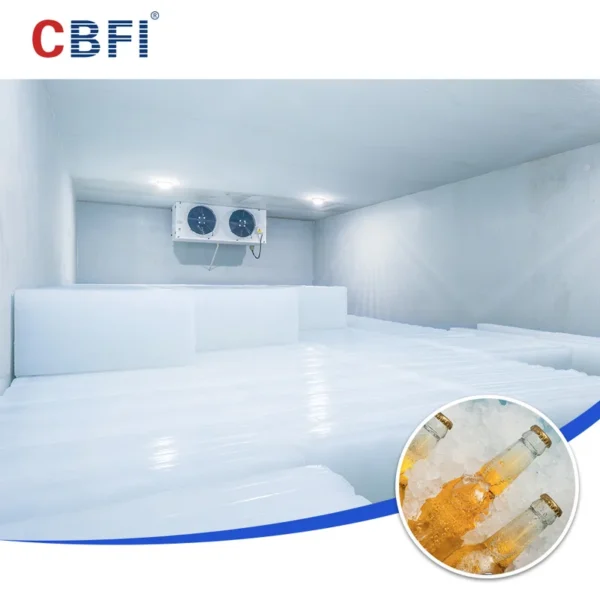

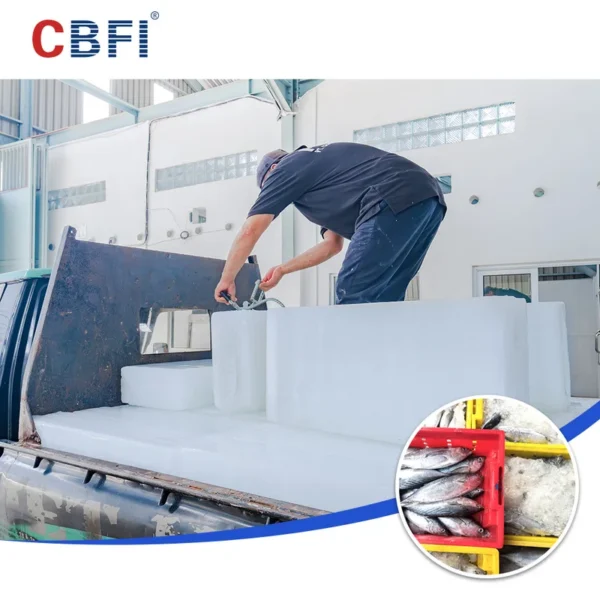

Ice factory of the ports and docks, refresh for aquatic products, cooling, distance transportation，fishery, food preservation, special areas of cooling, ice sculpture.
Contact Us
Company Information
Guangzhou Icesource Co., Ltd. (trademark CBFI), a pioneer in the large-scale fluorine refrigeration and ice making equipment industry, is an innovative and entrepreneurial high-tech enterprise that integrates research, design, manufacture, sales, and after-sales .The main products are block ice machine, tube ice machine, cube ice machine, flake ice machine, plate ice machine, cold room, intelligent cold room unit, ice machine supporting equipment and fully automated ice plant. Products are widely used in food, retail, fruits and vegetables, aquatic products, chemicals, medical, construction, minerals and other fields for cooling, storage and preservation.
The company was established in 2010, and the research and development started in 2004. Since the establishment of the company, it has continuously increased investment in product research and development. All sales products are independent research and development products. By April 2018, there were 2 invention patents, 21 utility model patents, 1 appearance patent, and 9 invention patents and 6 utility model patents are under examine and verify.
The company was established in 2010, and the research and development started in 2004. Since the establishment of the company, it has continuously increased investment in product research and development. All sales products are independent research and development products. By April 2018, there were 2 invention patents, 21 utility model patents, 1 appearance patent, and 9 invention patents and 6 utility model patents are under examine and verify.
The company has set up showcases in the Philippines and Malaysia, mainly to provide customers with a comprehensive and systematic platform for understanding the company's ice machine. At the same time, it can also provide customers with technical guidance and after-sales service for equipment use.
The company has been engaged in the research and development of refrigeration equipment since 2004. At present, the company's research and development team has more than 60 people, and can provide customers with product customization services. Has a number of patented technologies. The equipment is energy-saving, high-quality, high-efficiency, and stable, and has been favored by many domestic and foreign catering, fishery, and medical industries.
The company has set up showcases in the Philippines and Malaysia, mainly to provide customers with a comprehensive and systematic platform for understanding the company's ice machine. At the same time, it can also provide customers with technical guidance and after-sales service for equipment use.
The company has a dedicated after-sales service team that can help customers complete the installation and use of the ice machine through telephone, video or installation workers to the site. The complete service system from product production, transportation, installation, commissioning to commissioning has enabled our company to cooperate with many companies. Guangzhou Transportation Group, Beijing Olympic Games, World Expo, Master Kong, Wang Lo Kat, etc. are all customers of our company. Rich trading experience is worthy of your trust.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $50000 / set
- 5+ set: US $30000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 415V/50Hz/3Phase. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
