The industrial axial cooling fan listed here carries voltage Other, DC24V/48V, blade material Stainless Steel, documented exactly as the manufacturer publishes it. Made by Shenzhen Topfan Technology Development Co., Ltd. (17 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

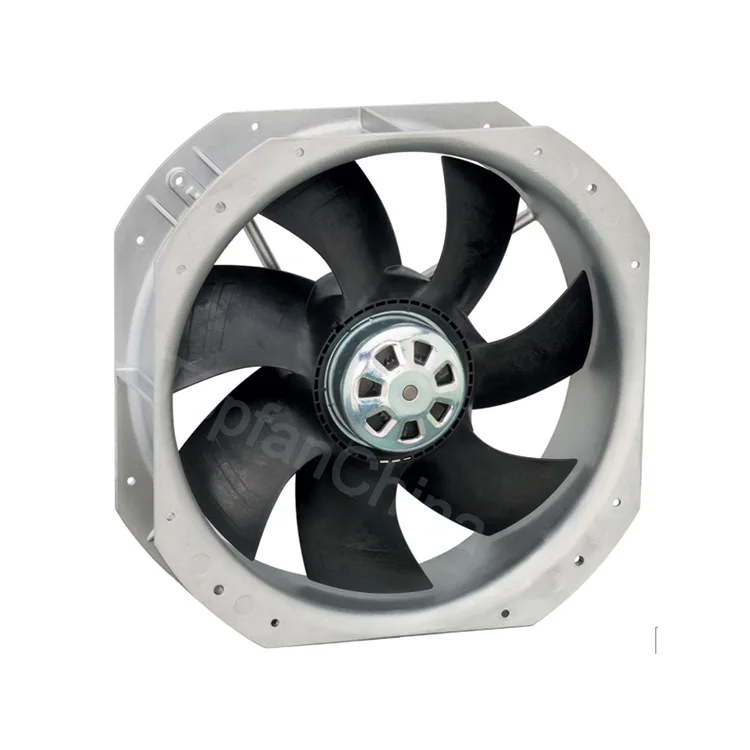

Key Features of This Industrial Axial Cooling Fan
- Model Number: MX22580ABH2
- Voltage: Other, DC24V/48V
- Blade Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: inverter, transformer cooling, air ventilation, etc.
Technical Specifications
| Voltage | Other, DC24V/48V |
|---|---|
| Blade Material | Stainless Steel |
| Electric Current Type | DC |
| Mounting Type | Free Standing |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | TOPFAN |
| Model Number | MX22580ABH2 |
| Product Name | Axial Flow Fan |
| Application | inverter, transformer cooling, air ventilation, etc. |
| Size | 225x225x80mm |
| Usage | solar generator internal components |
| Keyword | Exhaust Cooling Fan |
| Motor | Brushless External Rotor Motor |
| Bearing Type | Dual Ball Bearing |
| Type | Axial Flow Axhaust Fan |
| Name | Industrial Axial Flow Ventilation Exhaust Fan |
| Selling Units | Single item |
| Single Package Size | 29X29X9 cm |
| Single Gross Weight | 2.5 kg |
Product Details

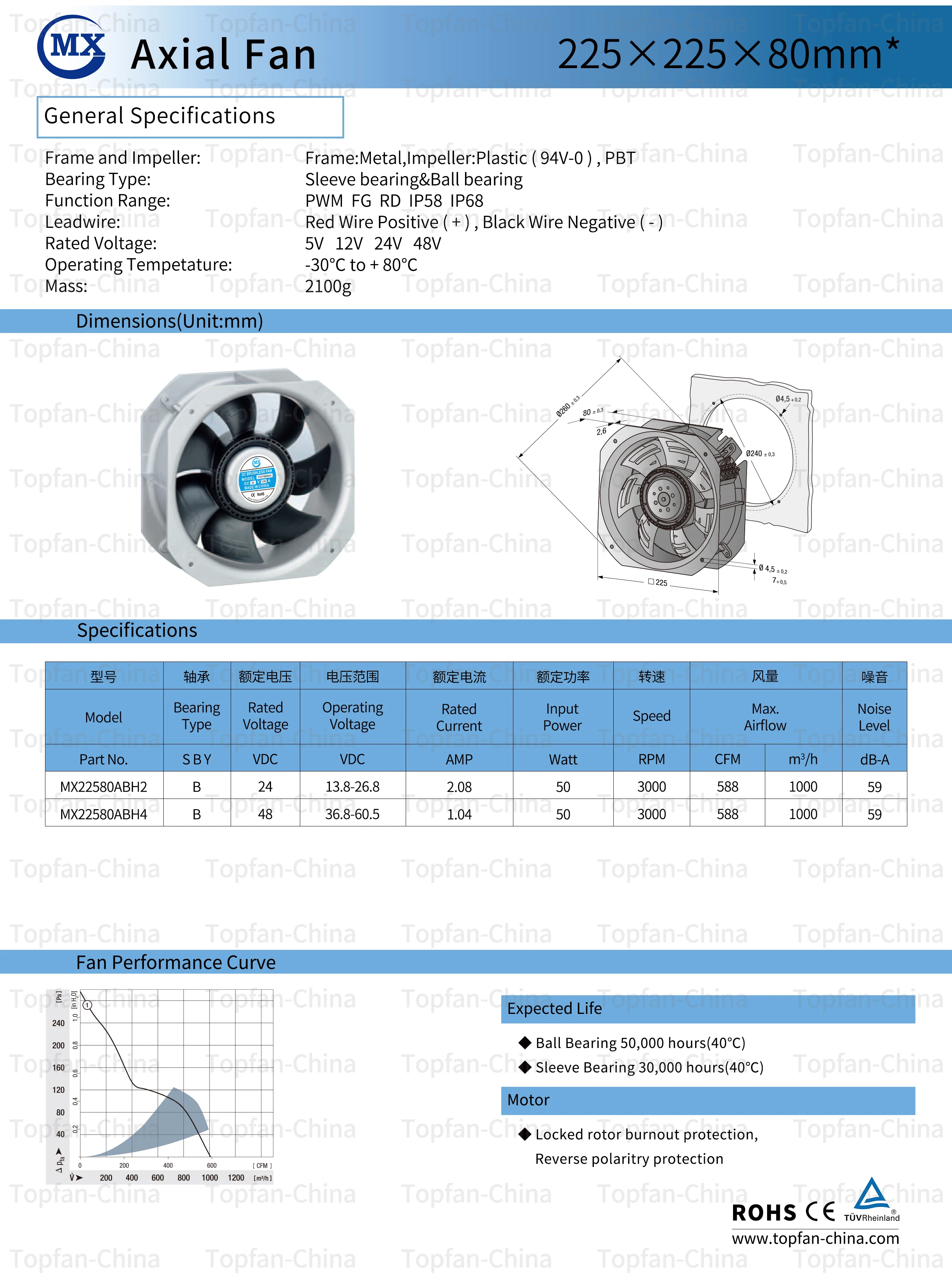

Model | Bearing Type | Rated Volt | Operating Volt | Rated Current | Input Power | Speed | Max. Airflow | Max. Static Pressure | Noise Level | ||||||||
Part No. | S B Y | VDC | VDC | AMP | Watt | RPM | CFM | m³/h | dB-A | ||||||||
MX22580ABH2 | B | 24 | 13.8-26.8 | 2.08 | 50 | 3000 | 588 | 1000 | 59 | ||||||||
MX22580ABH4 | B | 48 | 36.8-60.5 | 1.04 | 50 | 3000 | 588 | 1000 | 59 | ||||||||
More Models | Other RPM/CFM/Voltage/Current…please contact us see the specification for more details. | ||||||||||||||||
– Material: aluminum frame
Impeller: plastic 94v-0,PBT
– Direction of air flow: Exhaust over struts
– Direction of rotation: Counterclockwise,
looking towards rotor
– Connection: AWG 18, 20, UL 1007, TR 64;
speed signal and control input:
AWG 22, UL 1007, TR 64
– Highlights: Highly efficient and smoothly
operating fan drive
Housing
– Possible special versions:
(See chapter DC fans – specials)
– Speed signal
– Go / NoGo alarm
– Alarm with speed limit
– External temperature sensor
– Internal temperature sensor
– PWM control input (standard)
– Analog control input
– Multi-option control input
– Moisture protection
– Salt spray protection
– Degree of protection: IP 54
Product Name | DC Axial Fan |
Brand | MX topfan/OEM/ODM |
Frame and Impeller | iron metal stainless steel |
Bearing Type | Sleeve bearing&Ball Bearing |
Function Range | PWM FG RD IP58 IP68 |
Leadwire | Red Wire Positive(+)，Black Wire Negative(-) |
Rated Voltage | 110V 115V 120V 220V 230V 240V 380V 400V… |
Operating Tempetature | -30℃ to +80℃ |
Product Applications | Household Appliances/Machine/Aeronautical/Power equipment, etc |
Product Name | DC AC EC Axial Fan |
More Sizes | 15mm 17mm 18mm 20mm 25mm 30mm 35mm 36mm 38mm 40mm 45mm 50mm 52mm 60mm 70mm 80mm 92mm 120mm 125mm 127mm 136mm 140mm 150mm 160mm 172mm 200mm 220mm 225mm 254mm 280mm …… |
Material | Metal & Plastic |
Bearing Type | Ball Bearing & Hydraulic Bearing & Sleeve Bearing |
Voltage | DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V… |
Function Range | PWM FG RD IP58 IP68 |
Applications | Household Appliances/Machine/Aeronautical/Power equipment, etc |
Product Name | Backward Curved Centrifugal Fan |
More Sizes | 70mm 100mm 133mm 150mm 175mm 190mm 225mm 250mm 280mm …… |
Impeller Material | PA6 + GF / Aluminum Alloy / Plastic |
Voltage | DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V… |
Mode Of Operation | S1 |
Protection Class | IP55 / IP54 / IP44 PWM FG RD IP58 IP68 |
Insulation Class | F |
Operation Temperature | -30℃ to +80℃ |
Techniacal Feature | Control input 0-10VDC / PWM, Tech ouput , Locked-rotor protection . Reverse Polarity Over-voltage protection Soft Start Protection |
Product Name | DC AC EC Centrifugal Blower |
More Sizes | 18mm 20mm 25mm 30mm 35mm 40mm 50mm 51mm 52mm 60mm 75mm 77mm 81mm 85mm 93mm 97mm 120mm 140mm …… |
Material | Housing – Galvanized Metal Impeller – Galvanized Metal & Plastic |
Motor Type | AC Capacitor Motor , DC/EC brushless external rotor motor |
Voltage | DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V… |
Function Range | PWM FG RD IP58 IP68 |
Applications | split air conditioner , air curtains , cooling, etc |
Product Name | Forward Centrifugal Fan-single inlet without housing |
Diameter of impeller: | 150mm 160mm 180mm 200mm 246mm …… |
Material | Housing – Galvanized Metal Impeller – Galvanized Metal |
Voltage | DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V… |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–199 piece: US $69.69 / piece
- 200–1999 piece: US $67.07 / piece
- 2000+ piece: US $61.61 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial axial cooling fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial axial cooling fan be supplied for my local voltage?
The standard configuration is Other, DC24V/48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Topfan Technology Development Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shenzhen Topfan Technology Development Co., Ltd. range on HVACR Nexus.
