Key specification for this industrial ventilation exhaust fan: 380V,220V,230V,415V or as your request, power source Electric. Everything below is reproduced from the factory data sheet. Made by Qingzhou Huayi Temperature Control Equipment Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Ventilation Exhaust Fan
- Model Number: HYZ-1380, HYZ-1220, HYZ-1530
- Power Source: Electric
- Voltage: 380V,220V,230V,415V or as your request
- Material: Stainless Steel
- Blade Material: Stainless Steel
- Frame Material: 275 qalvanized sheet
Technical Specifications
| Blade Diameter | 1250mm/1270mm/50in |
|---|---|
| Voltage | 380V,220V,230V,415V or as your request |
| Speed | 20m/s |
| Type | Wall-Mounted Axial Fan |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Mounting Type | Free Standing |
| Bearing Type | Oil Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | HUAYI |
| Model Number | HYZ-1380, HYZ-1220, HYZ-1530 |
| Product Name | Belt driven exhaust fan for broiler chicken house poultry farm |
| Application | Poultry House Greenhouse Animal Husbandry |
| Outline Size | 1530mm/1380mm/1220mm/1000mm/900mm/800mm/600mm/480mm |
| Motor | 100% Copper Motor/ Taiwan Xizi Motor/Siemens Motor |
| Fan Type | Wall Air Fan |
| Frame Material | 275 qalvanized sheet |
| Certification | CCC/CE/IS09001 |
| Selling Units | Single item |
| Single Package Size | 90X90X40 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Product Description

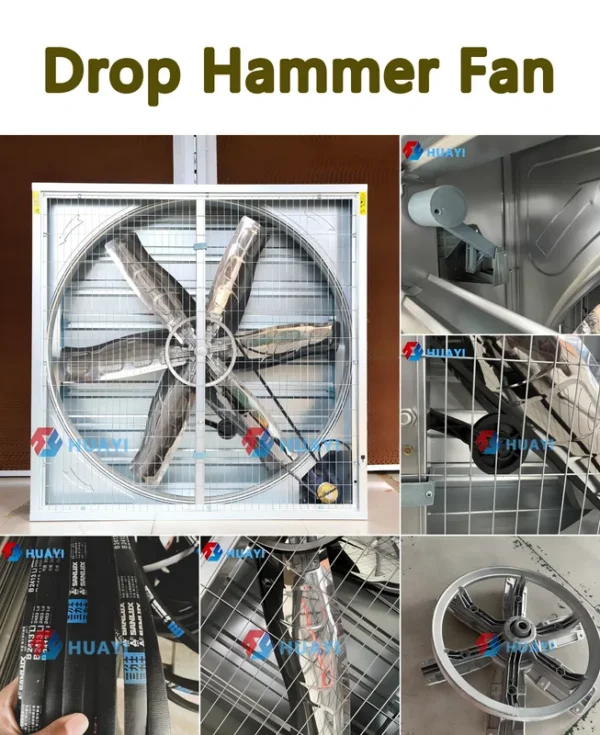

Advantages of Heavy hammer type negative pressure ventilation fan industrial cooling fan for greenhouse poultry exhaust
1) Blade is made of the stainless steel, molded, big air volume, no distortion, no broken.
2) Fan house adopt double-mesh design, light weight, elegant appearance, easy to install. 3) Round protection grill, heavy duty, protect fan blades, safety and steady. 4) Adopt the handle as new inset design from our engineer, easy for carry, transport and
installation.Also it has no effect on the appearance.
Main Features of Heavy hammer type negative pressure ventilation fan industrial cooling fan for greenhouse poultry exhaust
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits
with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble,
quality assured.Belt Drive, Big airflow
4) Wall-Mounting fan , easy installation and maintenance
Details Images
Sepeclfcation | Blade Diameter(mm) | Blade Rotationnal Speed（rpm） | Motor Rotational （rpm） | Airflow （M3/h） | Noise （db） | Import Power (KW) | LWH (mm) |
HYZ-480 | 380 | 1400 | 1400 | 3000 | ≤70 | 0.18 | 480*480*380 |
HYZ-600 | 500 | 1400 | 1400 | 5600 | ≤70 | 0.37 | 600*600*380 |
HYZ-800 | 710 | 660 | 1400 | 17500 | ≤65 | 0.37 | 800*800*400 |
HYZ-900 | 750 | 630 | 1400 | 20000 | ≤65 | 0.55 | 900*900*400 |
HYZ-1000 | 900 | 610 | 1400 | 24800 | ≤65 | 0.75 | 1000*1000*400 |
HYZ-1100 | 1000 | 600 | 1400 | 32000 | ≤65 | 0.75 | 1100*1100*400 |
HYZ-1220 | 1100 | 460 | 1400 | 38000 | ≤63 | 0.75 | 1220*1220*400 |
HYZ-1380 | 1270 | 457 | 1400 | 42000 | ≤63 | 1.1 | 1380*1380*400 |
HYZ-1530 | 1400 | 320 | 1400 | 55000 | ≤63 | 1.5 | 1530*1530*400 |
Frame with Plastic Handle

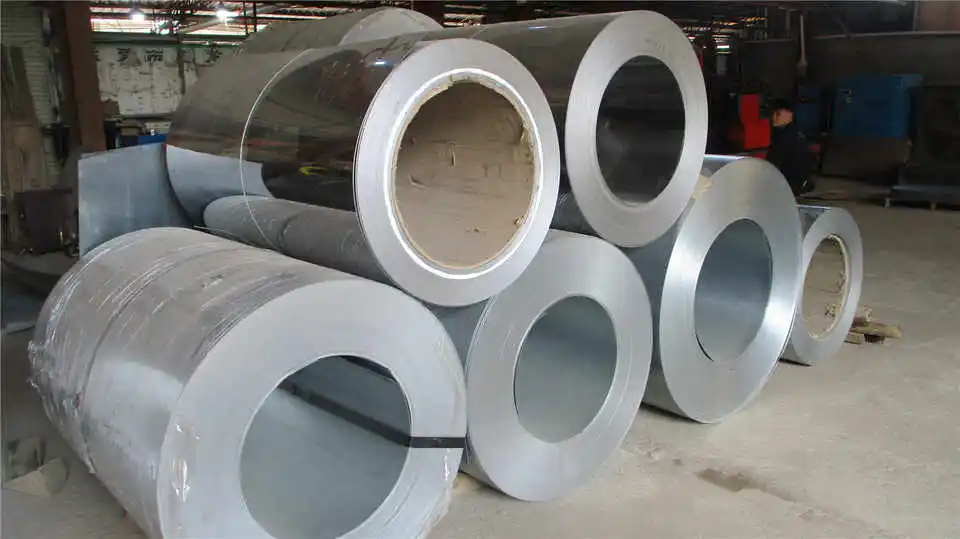

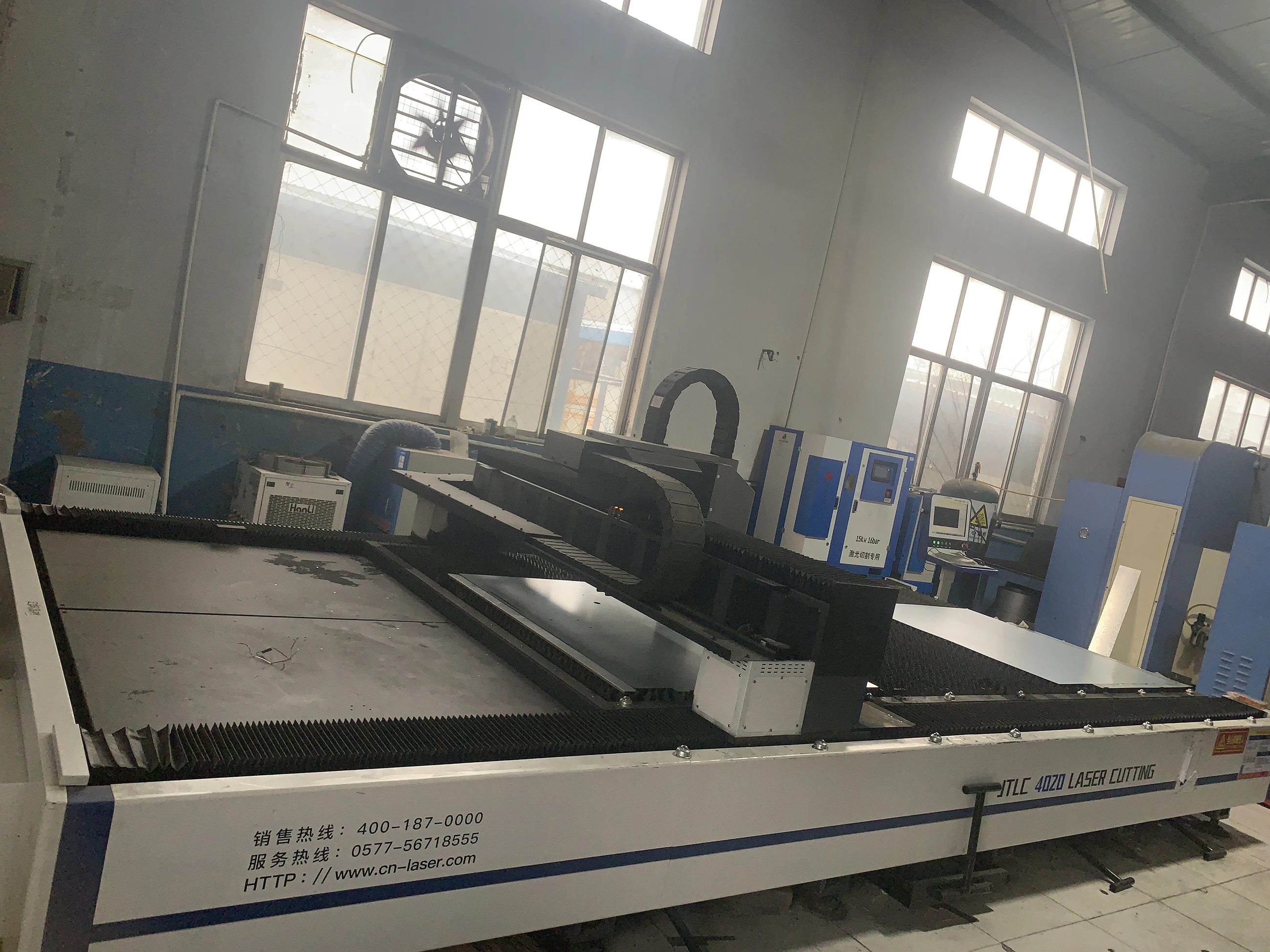

1. Frame: Hot Galvanized sheet with zinc thickness of 275g/m2, high anti-corrosion performance 2. Plastic Handle, easy to carry , Convenient to load Advantage: HUAYI has the advanced complete CNC machine and laser cutting machine. Auto punching and bending, the accuracy of the hole is 100%,easy to assemble.

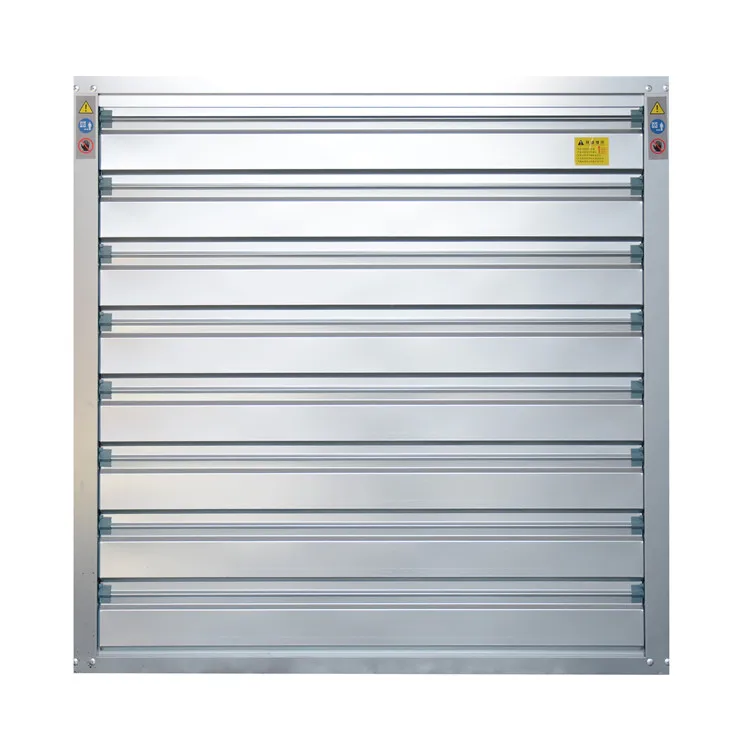

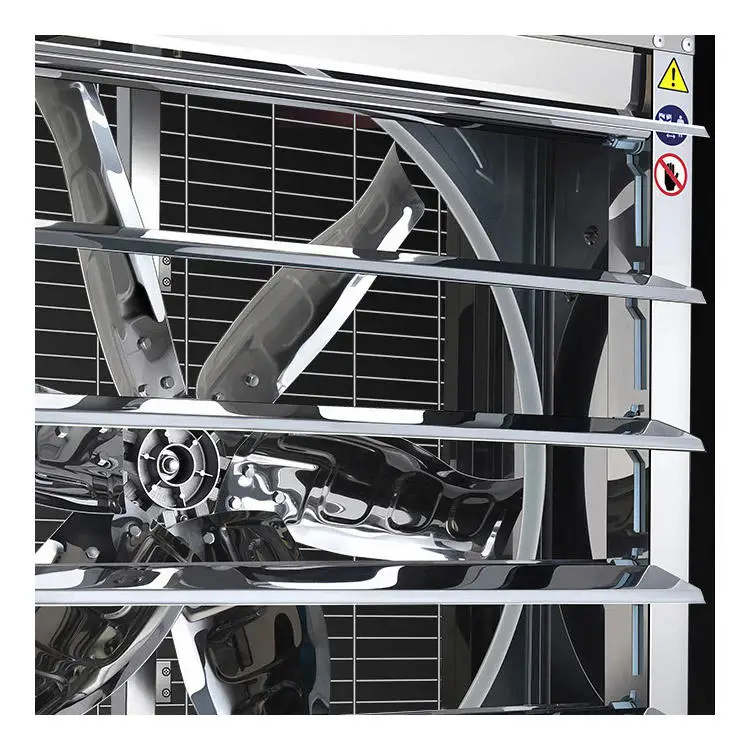

Fan Shutters
1. Material: Hot Galvanized sheet with zinc thickness of 275g/m2
2. Shutter Fixed Parts: High quality nylon.
Advantage:
High anti-corrosion performance, open flexibly, long service life, no deformation ,no rust, running stable.
2. Shutter Fixed Parts: High quality nylon.
Advantage:
High anti-corrosion performance, open flexibly, long service life, no deformation ,no rust, running stable.

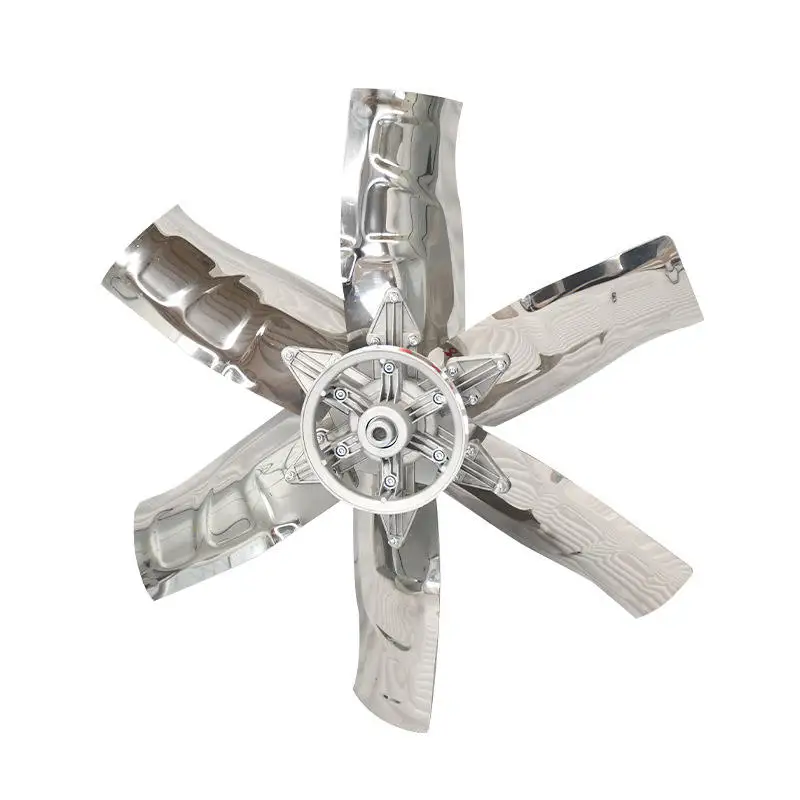

Fan blades
1. Material : Krupp 430 stainless steel or 304 S.S, thickness 1.2mm 2. Diameter: 1250mm Advantage: Large air flow, no deformation, no fracture, no dust, attractive and durable. Note:Blade material also have galvanized sheet, aluminum alloy for option

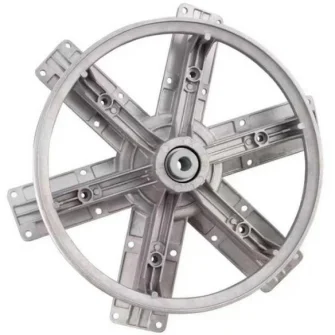

Belt pulley and angle
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stabilityAdvantage: Light weight, Low vibration ,attractive appearance.

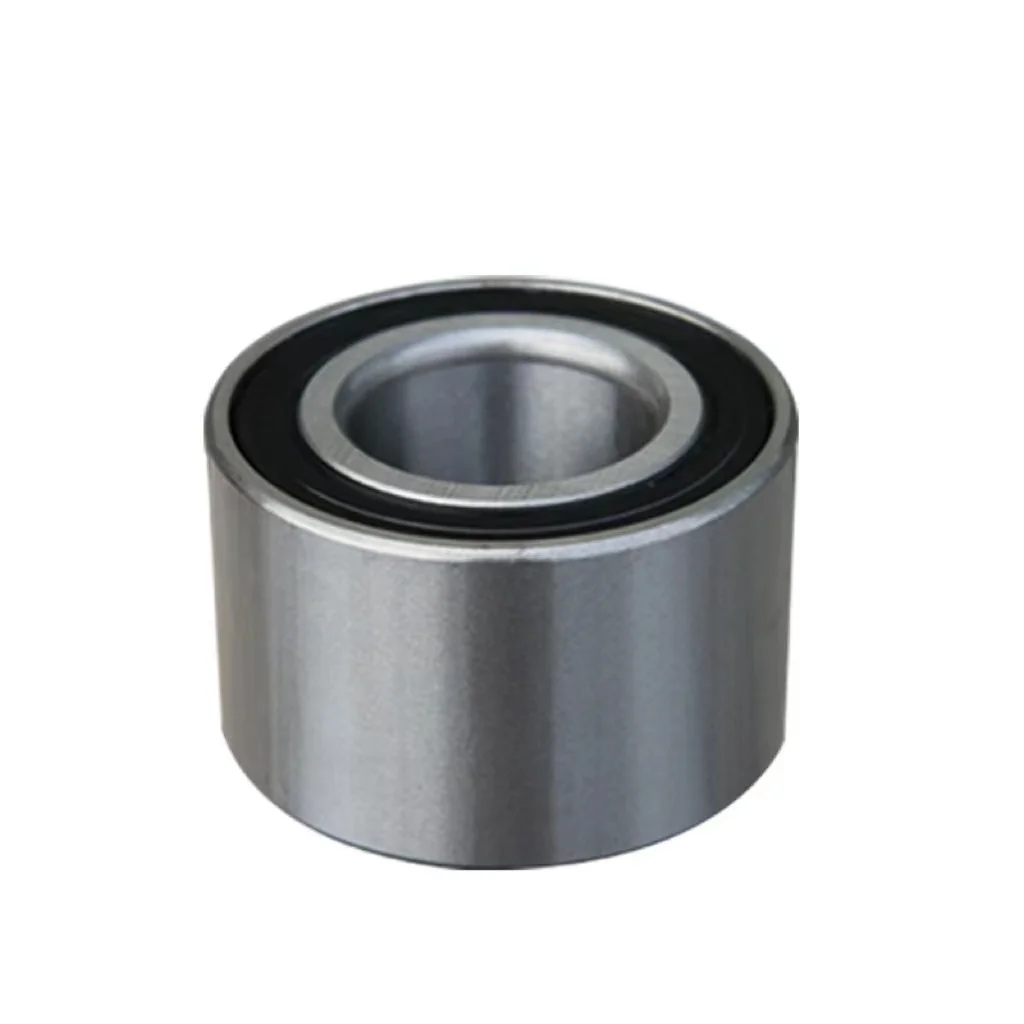

Bearing
Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.
Advantage:
High strength, low noise, free maintenance and long service life.

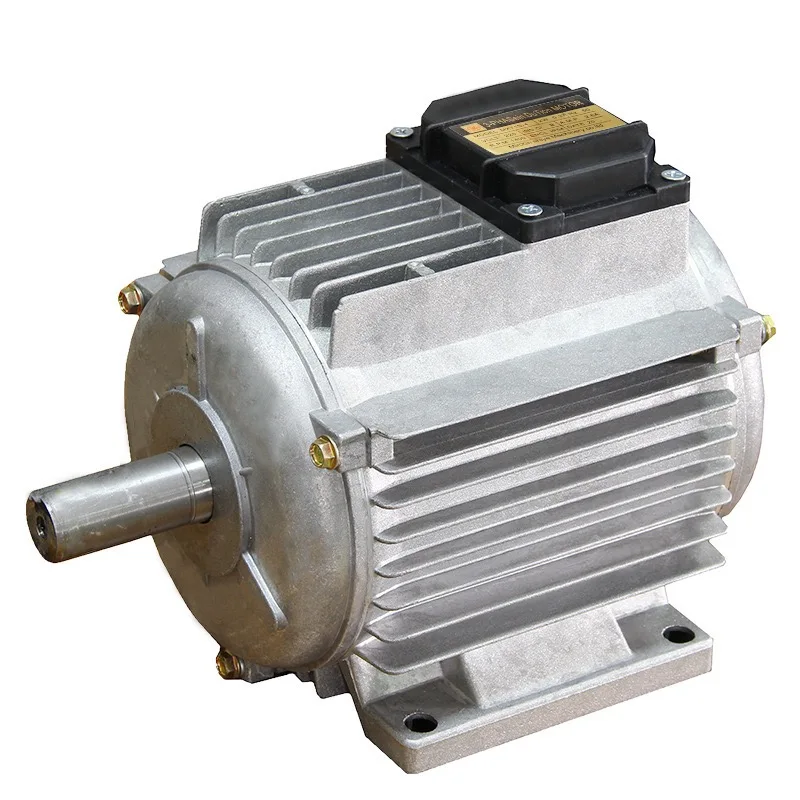

Motor
1. Brand: Chinese famous motor, XIZI Siemens motorror Laoyite brand 2.Motor Protection Grade: IP55 Insulation Class: F grade100% copper wire.Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

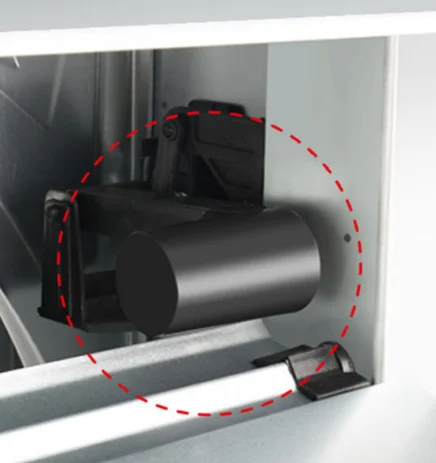

Gravity SystemMaterial
Material: High quality Nylon PA66 Advantage:It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume Under the action of heavy hammer, the fan blade can be 90 degrees perpendicular to the fuselage, which is not affected by theoutside wind and has less noise.

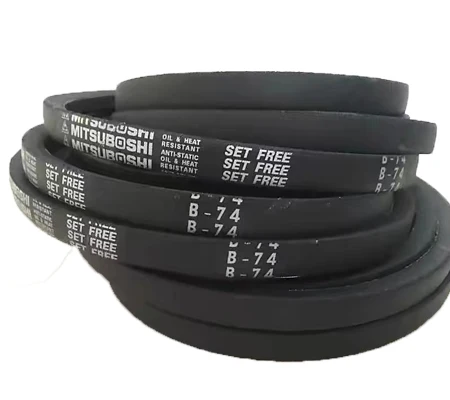

Belts
Temperature Dropping Fan Greenhouse Fan Poultry house Fan for Cooling Greenhouse/Chicken house/ RestaurantWe have Chinese belt and Japanese Mitsubishi brand belt for customer choice. Long service life and no repairModified B type belt,so that service life increase 3 times than Type A

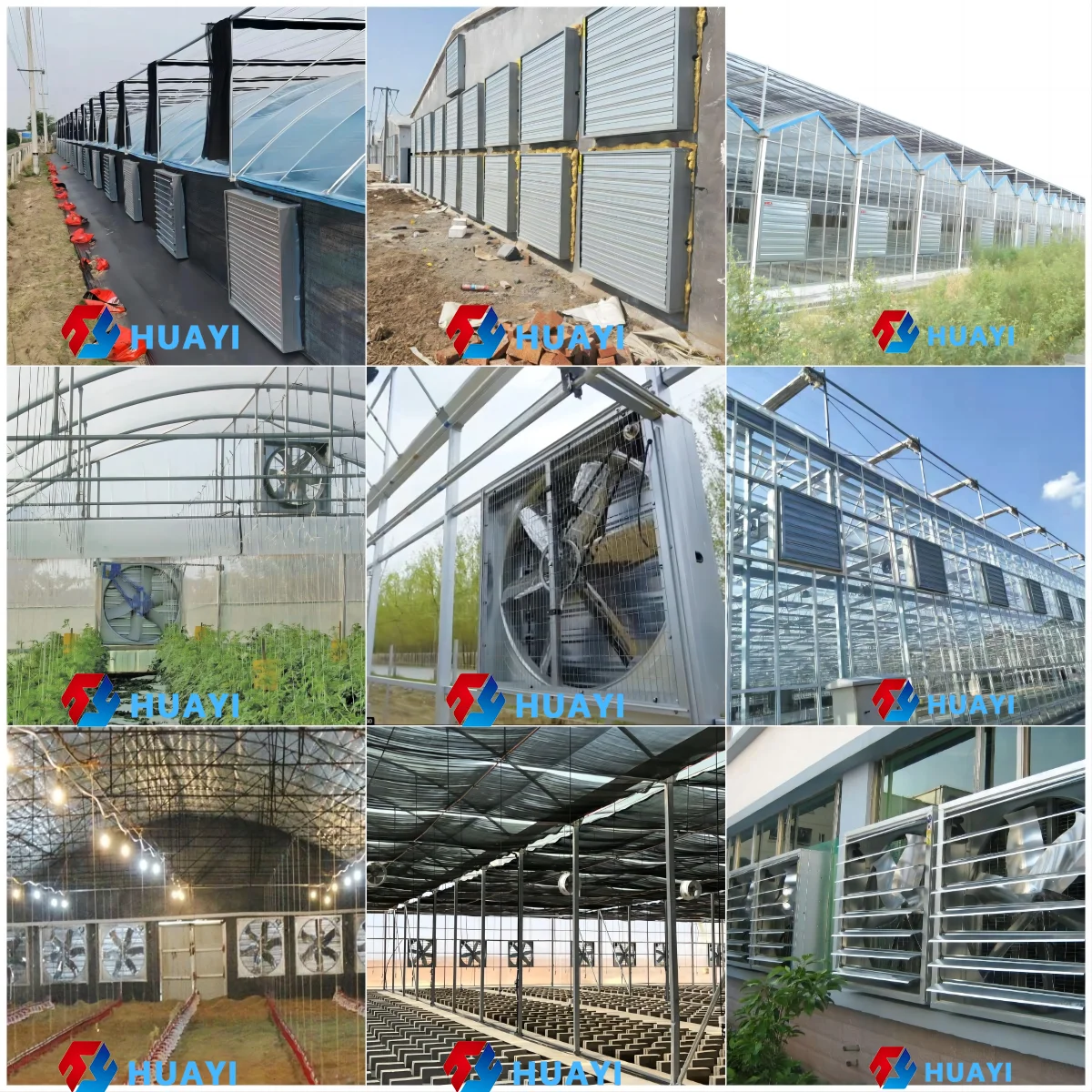

Case Display

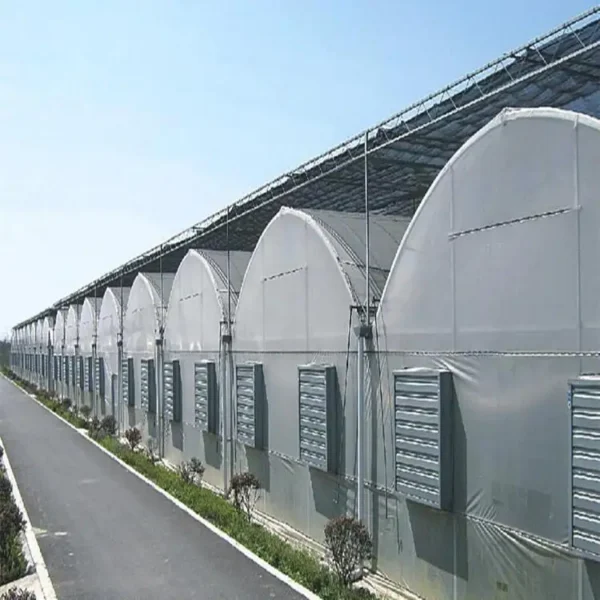

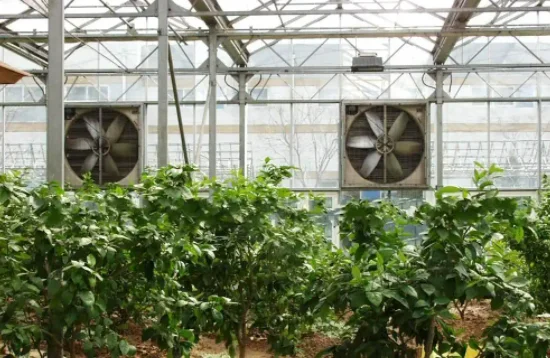

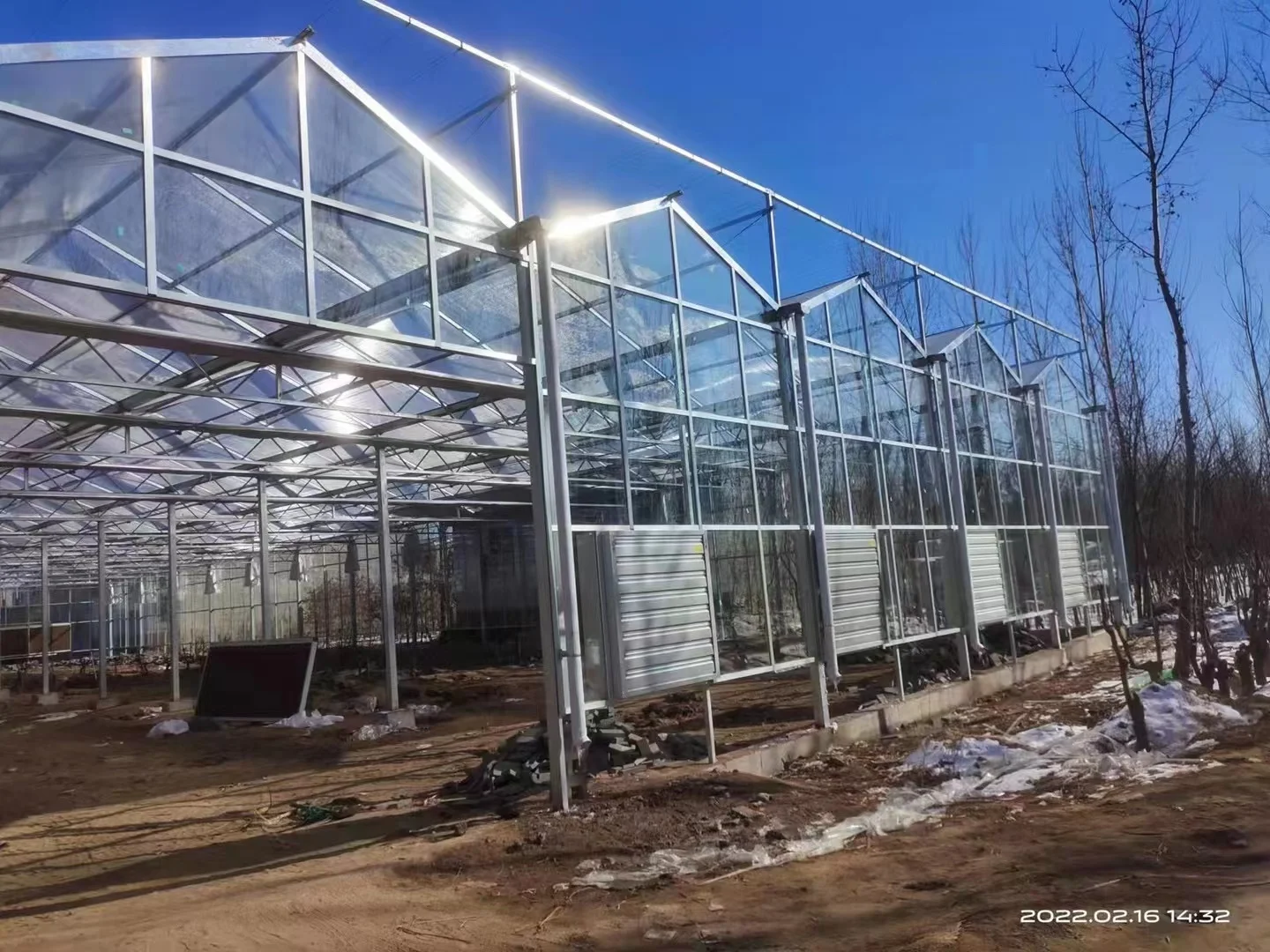

Agriculture use
garden greenhouse,fruit vegetable greenhouse,agricultural greenhouse

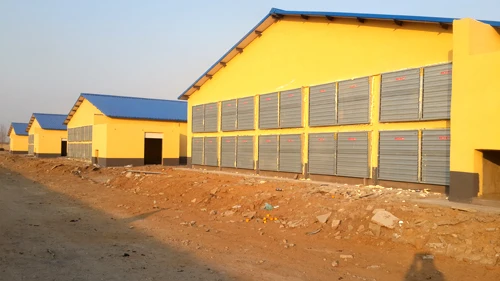

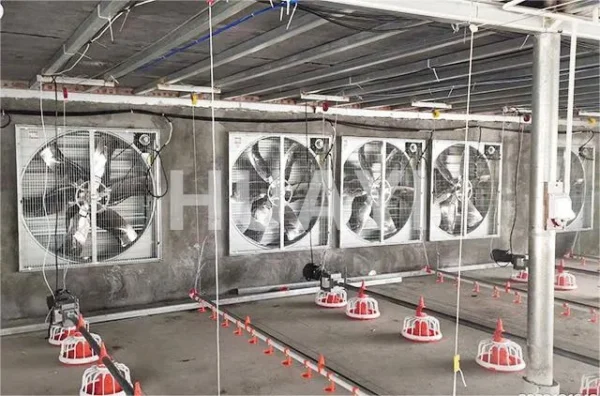

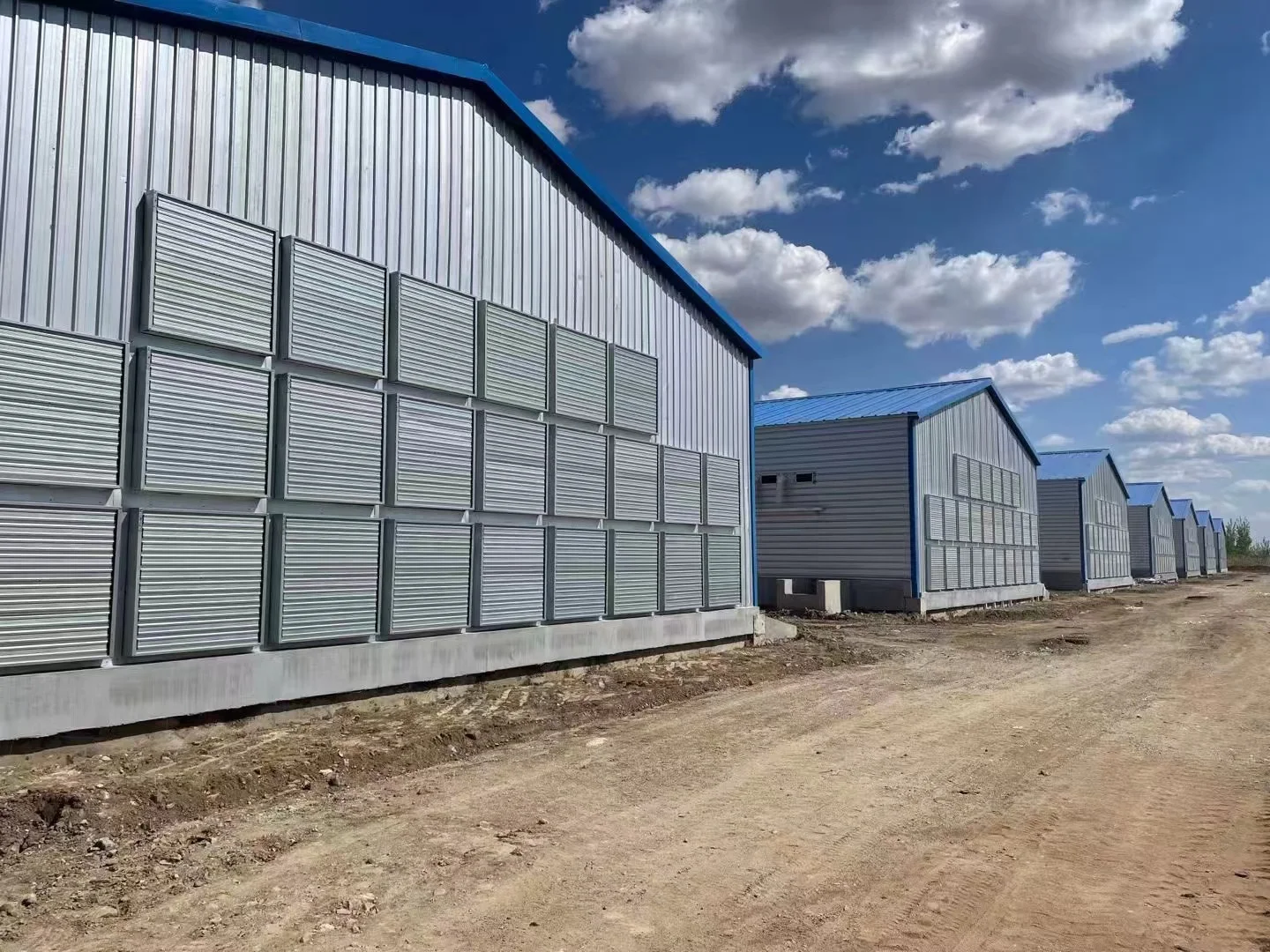

Poultry use
chicken house, poultry house, bird house, cow house

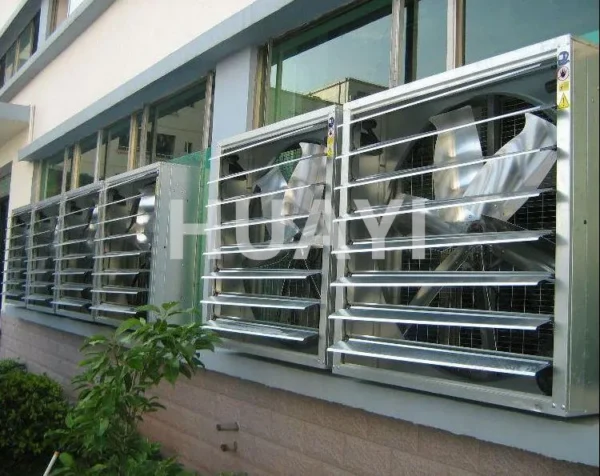

Industrial use
Industrial workshop, warhouse etc for clear and cooling air
Company Profile
Qingzhou Huayi Temperature Control Equipment Co., Ltd is a professional company engaged in the research and design of temperature control equipment. we devotes ourselve to the scientific and technological development of ventilation and cooling equipment, heating equipment and animal husbandry machinery, adopts advanced CAD software technology to design new products, and continuously builds energy-saving.technologies.We are a new type of workshop ventilation and cooling equipment, standardized livestock House, gardening greenhouse ventilation and cooling, heating equipment, the production of "HUAYI" brand products six series of more than 20 specifications, the main products include cooling pad, animal husbandry fan, negative pressure fan, gardening fan, circulation fan, roof exhaust fan, axial flow fan and so on, which can be widely used in agriculture, flowers, animal husbandry, plant, textile,coal mine, chemical industry, shopping malls and supermarkets, medicine, grain,vegetables, timber and other industries. Our products are exported to domestic and foreign markets.We strive to create products with good performance and excellent price. We do OEM or ODM service. No matter customize pattern, logo, package. All of our products have passed strict quality control and been issued certification of CE,ISO9001. Our products are exported all over the world and widely recognized and trusted by users.We welcome potential partners both at home and abroad contact and visit us for future business relationships and mutual success!
Why Choose Us
Long Standing History
15 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 50 automatic machines and 10 production lines, lower product cost for our customers.
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
15years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 400mm to 1530mm, ventilation capacity ranges from 1000CFM to 40000CFM.
Fast Delivery
The production efficiency is high. Our daily output is 1000 pieces. Most of our customers can deliver within 7 days, and some can deliver within one day or three days.

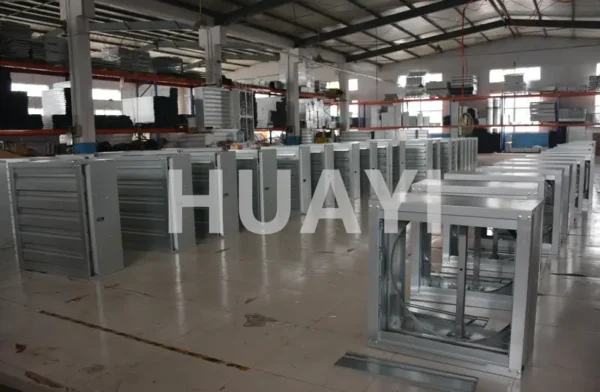

Complete Product Line

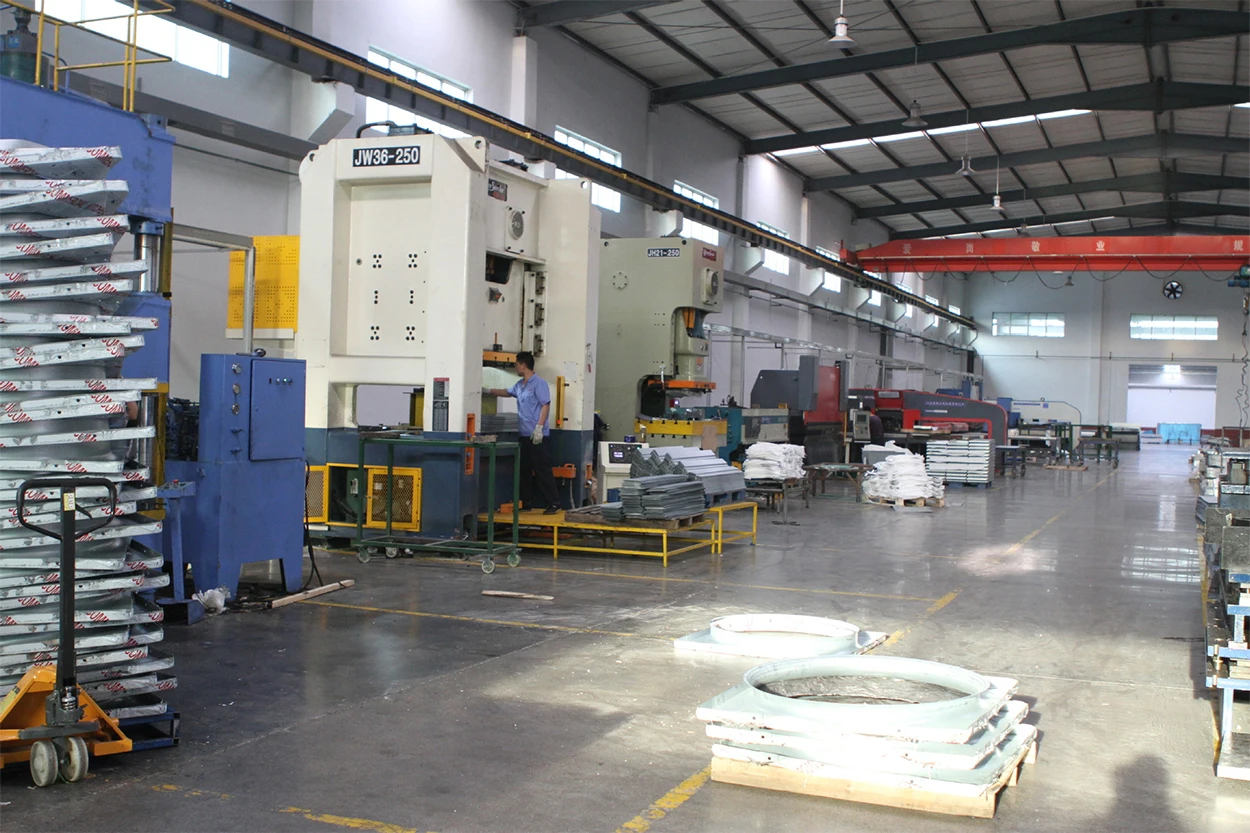

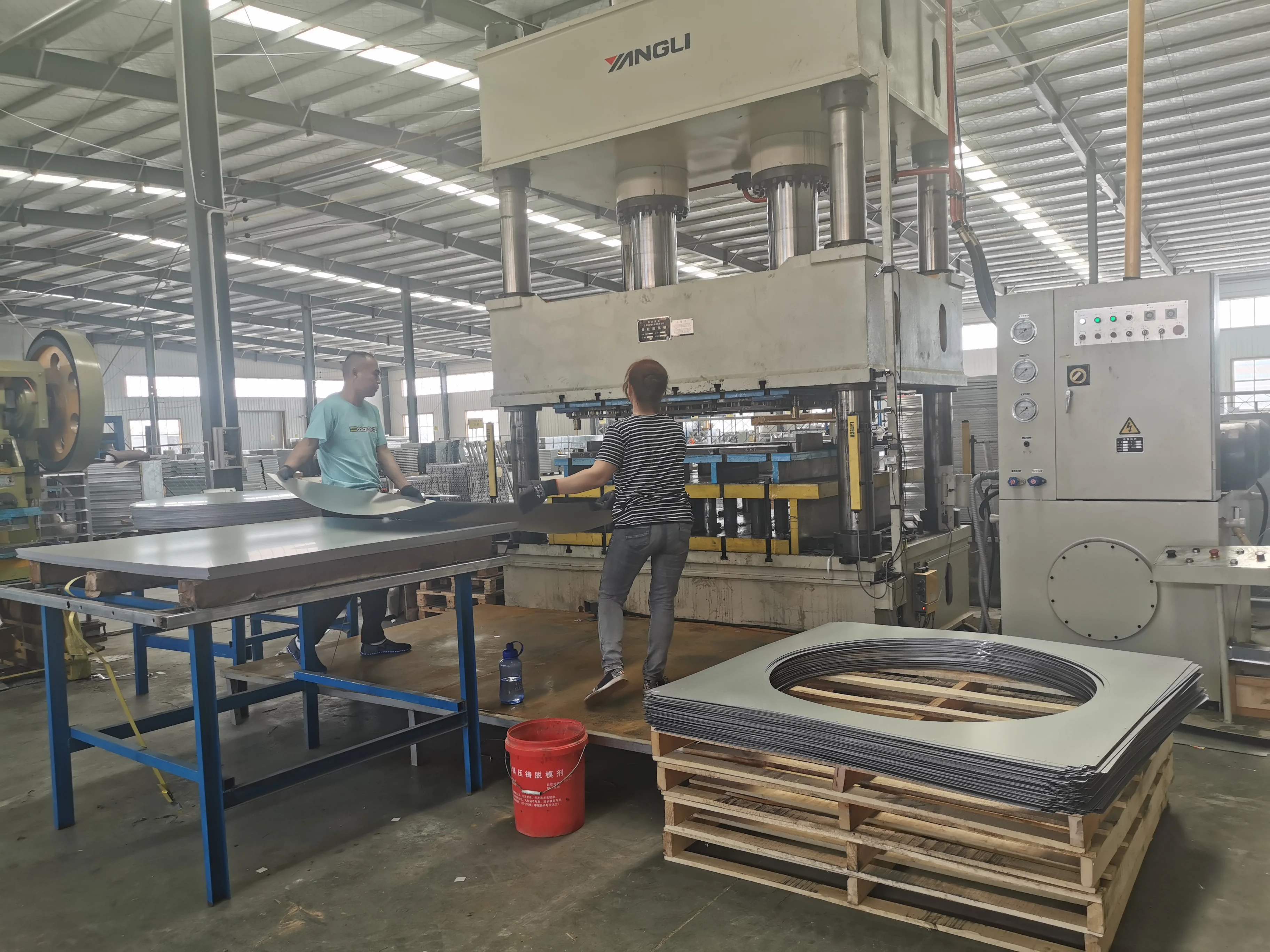

95%of the fan parts are produced in our own facility,we handle from coil sliding and folding, laser welding, CNC machining and assembly to ensure high precision of each part and higher performance of the exhaust fans
Professional Trustworthy
The products of our company have been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”HUAYI''
Packaging&Shipping
Unassembled Exhaust Fan Parts
unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.

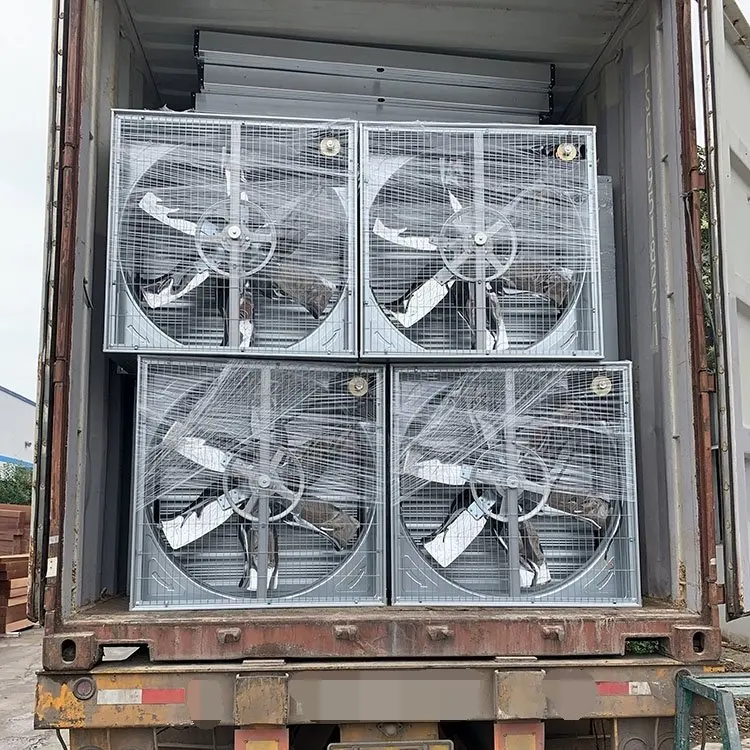

Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
FAQ
Q1. Are you a factory or trading company?
A1:We are a professional and acomprehensive poultry farm equpment supplier integrating
R&D, production and sales founded on 2015. OEM and ODM are welcomed.
R&D, production and sales founded on 2015. OEM and ODM are welcomed.
Q2. What payment methods do you accept?
A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q3:What about the delivery time?
A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.
Q4:Do you provide free sample?
A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again, we will return the last sample freight.
Q5.May I visit your factory?
A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.
Q6: Can you guarantee your quality?
A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production, fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.
Q7: How do you ensure my right if I’m going to place the order?
A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible. Besides, 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–99 set: US $100 / set
- 100+ set: US $80 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial ventilation exhaust fan?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this industrial ventilation exhaust fan carry?
It is supplied with CCC/CE/IS09001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the industrial ventilation exhaust fan be supplied for my local voltage?
The standard configuration is 380V,220V,230V,415V or as your request. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Huayi Temperature Control Equipment Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Huayi Temperature Control Equipment Co., Ltd. range on HVACR Nexus.
