Inline Duct Exhaust Fan, Axial, 110V, Electric

This inline duct exhaust fan is published with the manufacturer’s full specification — 110V/220V, power source Electric. Made by Taizhou Qiou Mechanical And Electrical Co., Ltd. (3 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Inline Duct Exhaust Fan

• Model Number: HF-125
• Power Source: Electric
• Voltage: 110V/220V
• Material: Plastic
• Blade Material: Plastic
• Speed: 2800 RPM

Technical Specifications

Product Details

Product Description

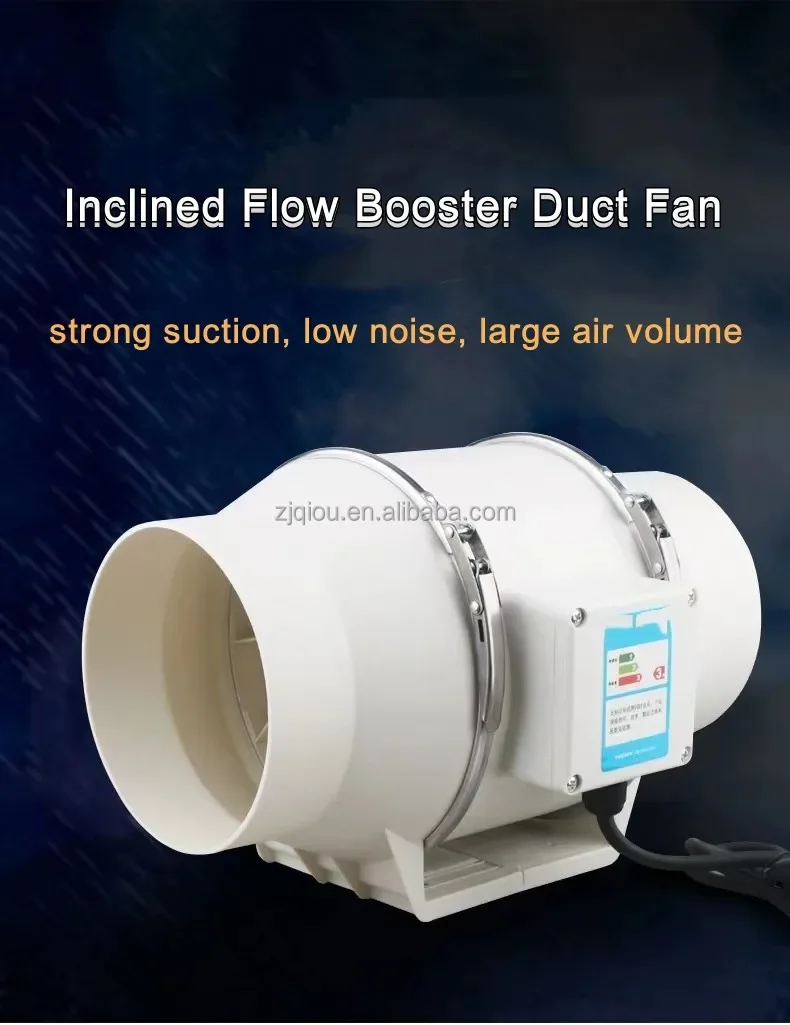

Hot Sale High Air Pressure Centrifugal Fan Inline Duct Exhaust Fan Silent Mixed Flow Ventilation Booster Pipeline Fan

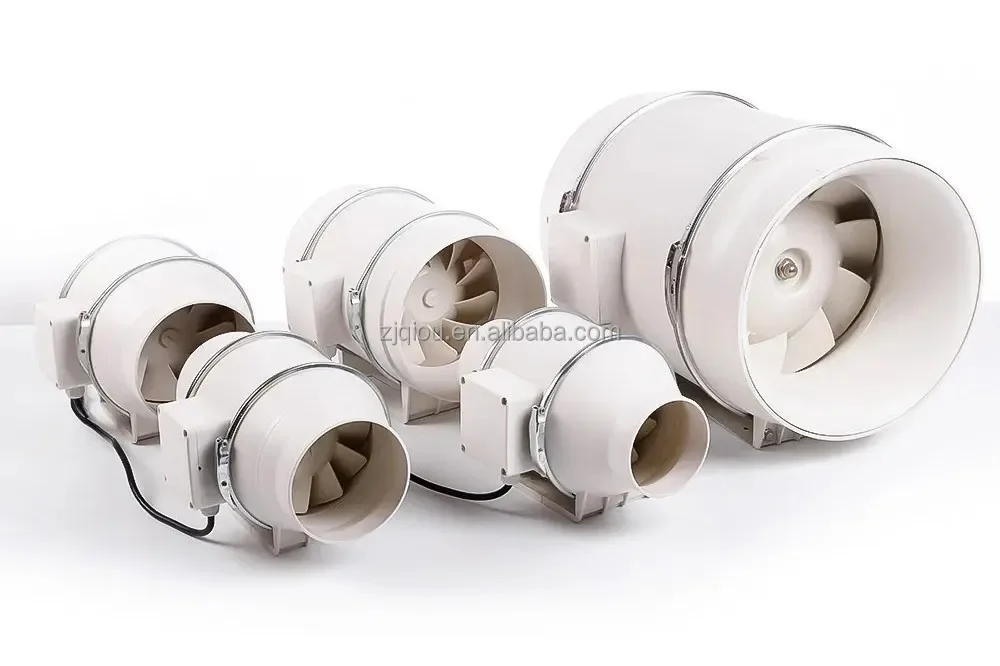

HF in-line duct fan blows strong wind offering effective ventilation effect in low noise.Perfect for removing damp moist air, odors and airborne pollutants from bathrooms, shower rooms, kitchen,hydroponic room and other internal living spaces.

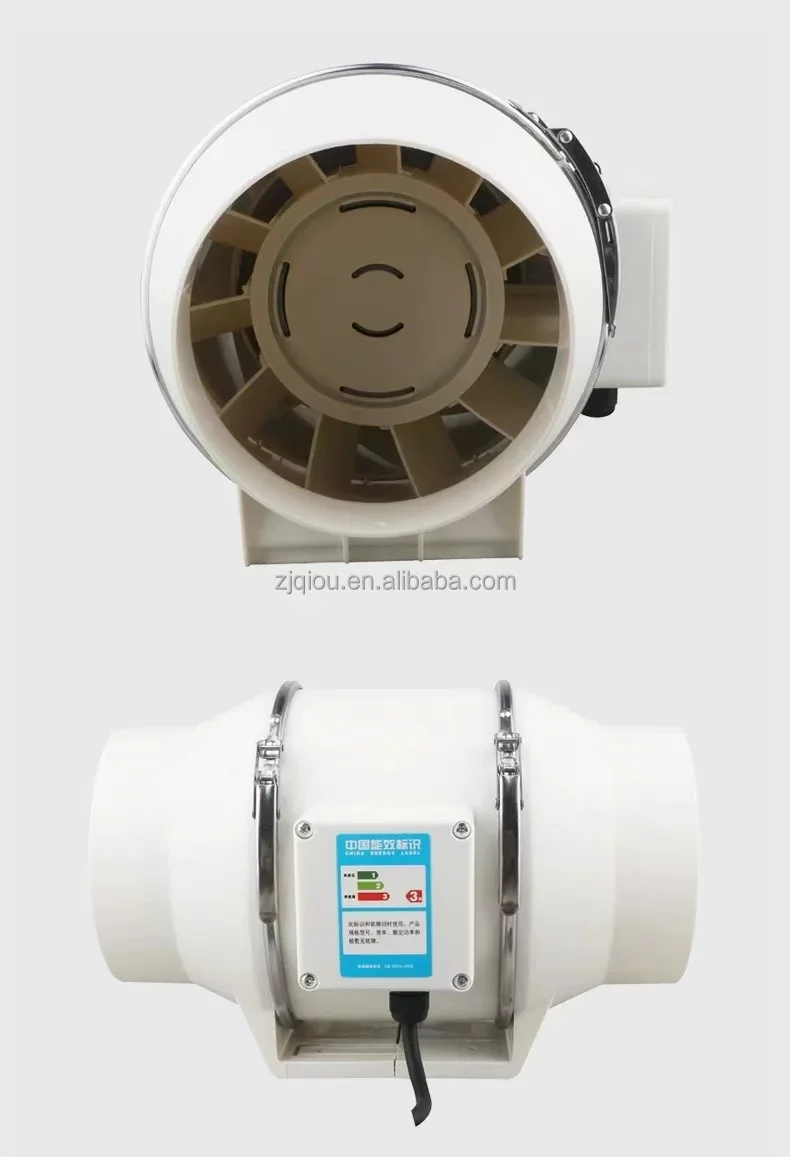

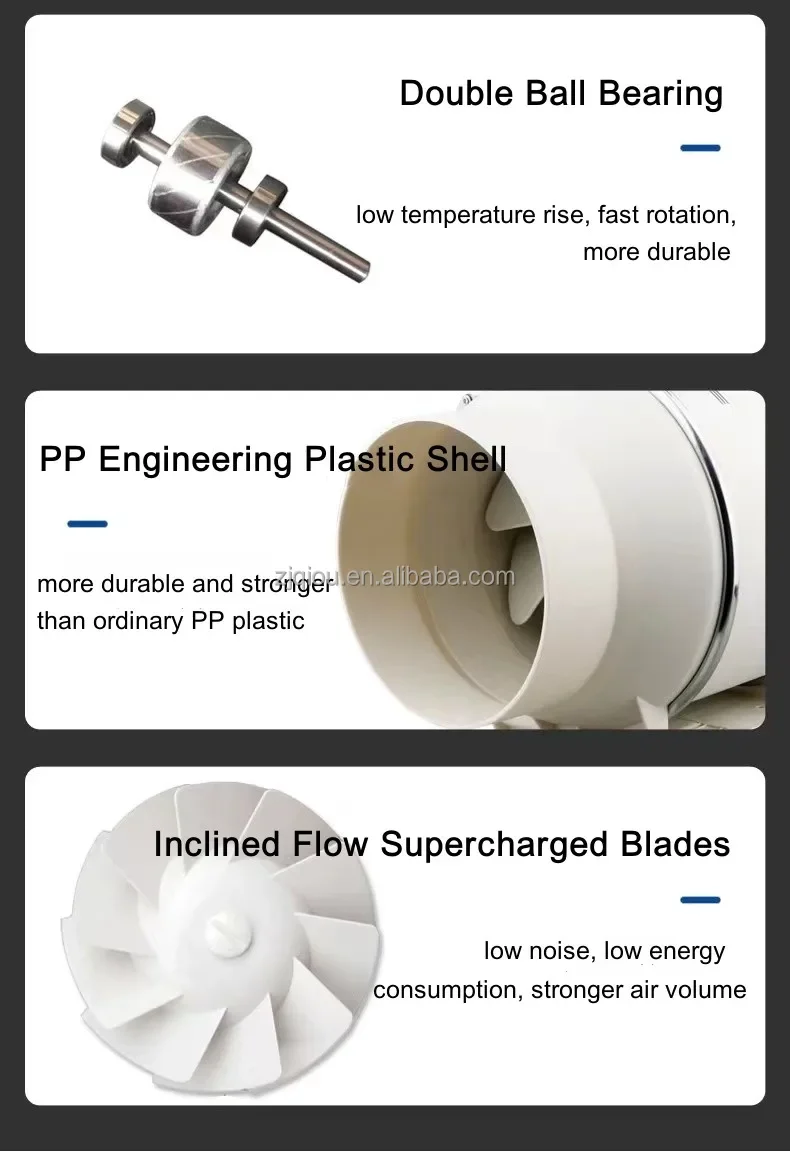

* The fan body is made of high-grade plastic material, with high efficient and mixed-flow ABS impeller
* Suitable for the places with the requirements of low noise and high static pressure in the ceiling duct

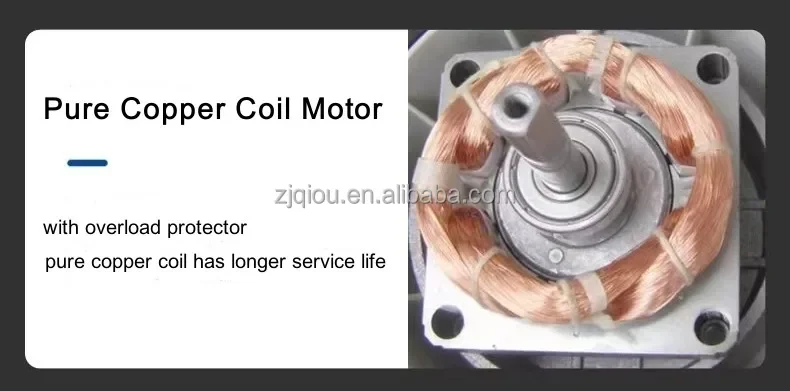

* Good heat dissipation performance aluminum cover combine with sealed ball bearing motor, long life with low energy consumption
* Equip the removable fastener between fan casing and outlet/inlet, maintenance and cleaning are available
* Operating temperature range -20°C-50°C
* Long working life over 50000hours
* Insulation Class B
* Enclosure class IP44
* Perfect for homes, apartments, office, public place, hotel , gym and etc.
* This inline duct fan includes a plug,we also customize the pther plug type.

Specification

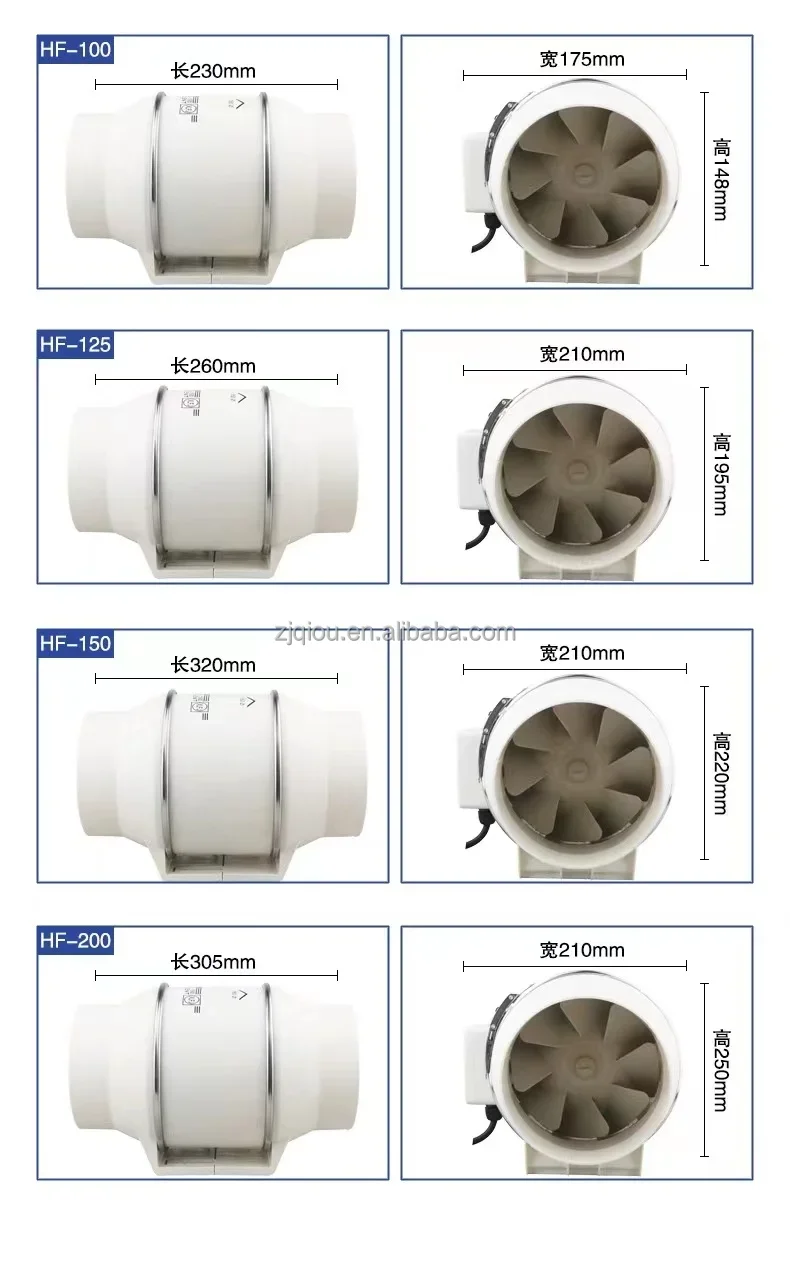

Model	Power	Air Flow	Pressure	Voltage	Frequency	Speed	Noise

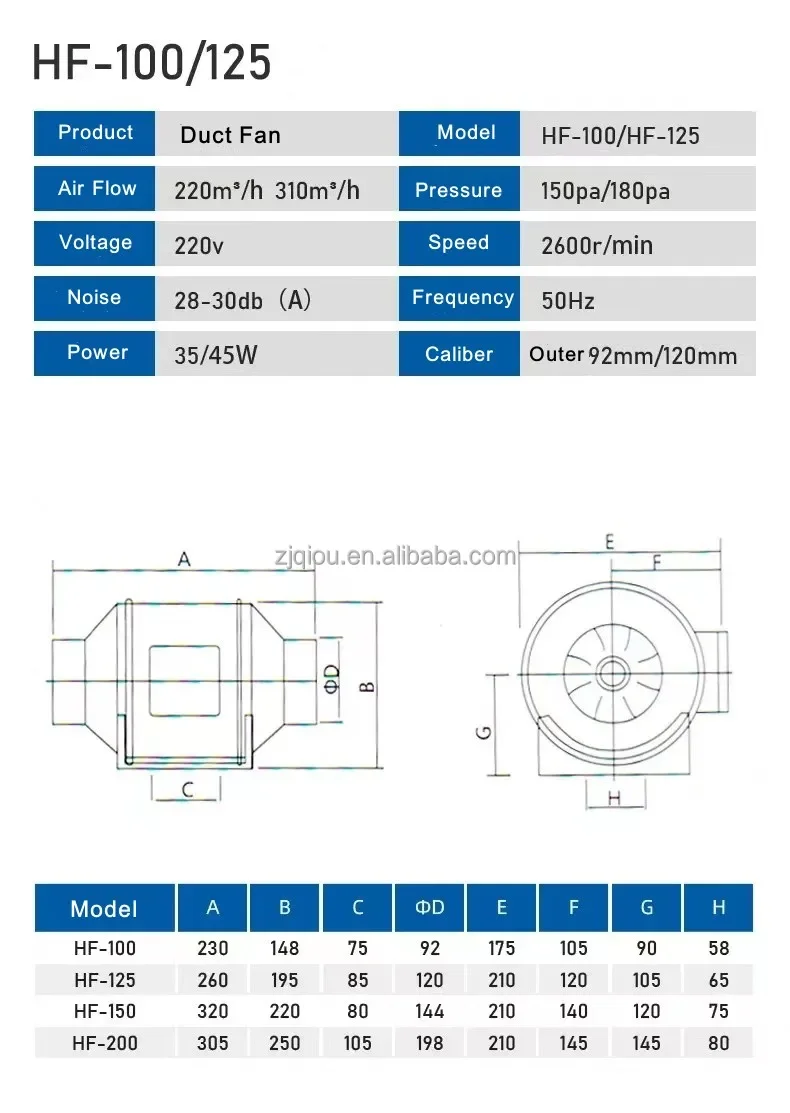

HF-100	35W	220m3/h	150Pa	110V/220V	50/60Hz	2600rpm	28dBA
HF-125	45W	310m3/h	180Pa					2600rpm	30dBA

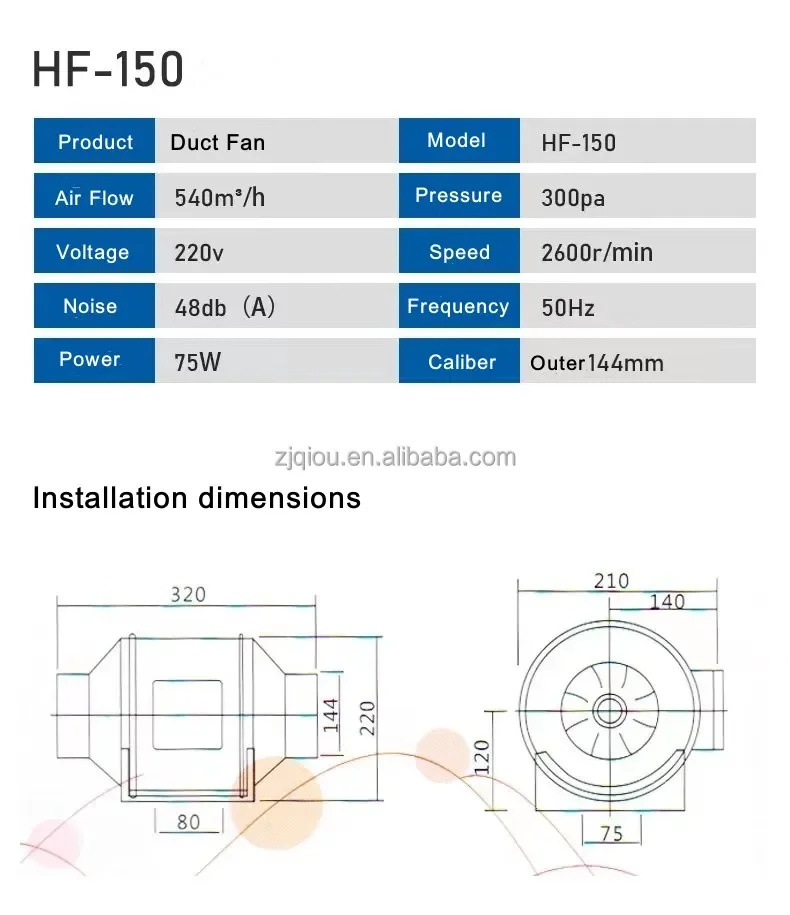

HF-150	75W	540m3/h	300Pa					2600rpm	48dBA

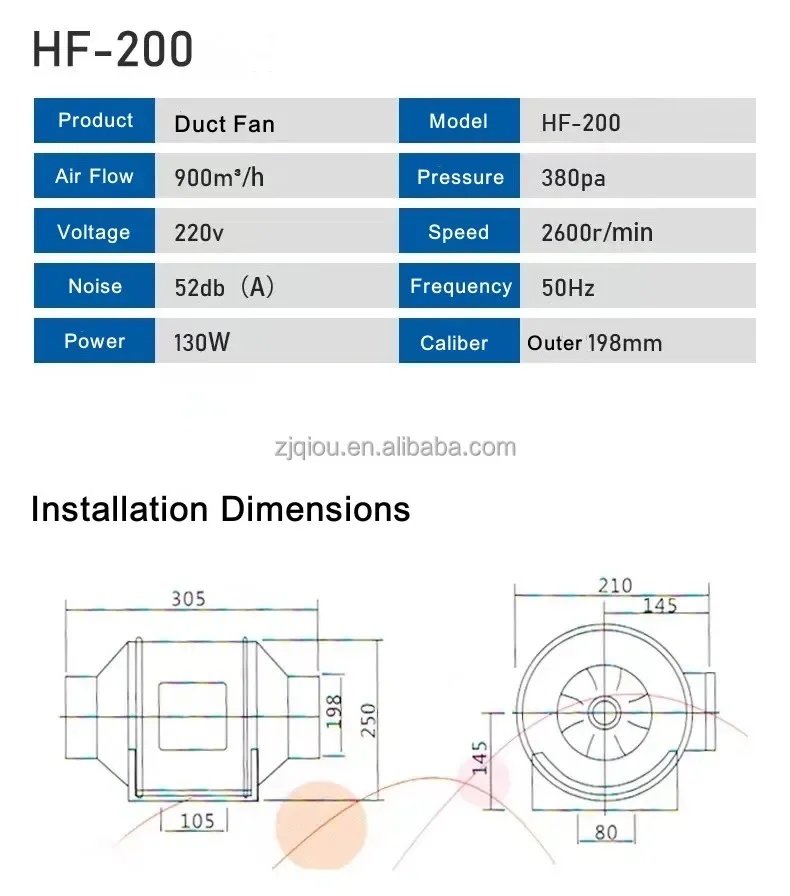

HF-200	130W	900m3/h	380Pa					2600rpm	52dBA
HF-250	225W	1450m3/h	480Pa					2450rpm	53dBA
HF-315	320W	2900m3/h	630Pa					2500rpm	60dBA

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Taizhou Qiou Mechanical and Electrical Co., Ltd. is engaged in the field of electric motor, axial fan, blower,centrifugal fan,industrial fan, exhaust fan and other fans. With over 10 years of experience in the design,development,and manufacture of the fans and motors,we export to over 30 countries and regions. High quality, prompt delivery, superior service and competitive prices are always assured. Developing business based on the quality is the tenet we have always held. Besides the products listed in our catalogs, we also offer OEM services. Feel free to reach us for any customized fans and motors solutions. We sincerely wish to cooperate with clients and friends worldwide to build a brilliant future together!

FAQ

Q: How about the quality guarantee period? A: One year. Q: What tests do your products need to go through? A: Air pressure flow test – Flame retardant test of plastic shell – High temperature resistance test – Low temperature test -Noise test – Stacked – Water proof – Drop destructive test. Q: Can you provide samples? A: After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable. Q: Do you accept OEM or ODM orders? A: Yes, we accept OEM and ODM from customers. Q: How long is your delivery time? A: Small quantity is around 5-7 working days after receiving the prepayment. Large quantity orders need to negotiate the delivery time. Q: How are you going to ship my order? A: Usually, for sample order we will ship by express like EMS, DHL, FedEx, UPS, special-line logistic. For bulk order, we will ship by sea or air to your destination sea port or airport. If you have own freight forwarder, we can deliver the goods to them as well.    Q: When can I get the quotation? A: We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on other chat tools or call us directly.   Q : What are your terms of payment? A : Generally, 30% T/T in advance, 70% balance before shipment.The common way is by T/T. We can also accept other payment.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $16.5 / piece
  • 100–499 piece: US $14 / piece
  • 500+ piece: US $11.5 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this inline duct exhaust fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the inline duct exhaust fan be supplied for my local voltage?

The standard configuration is 110V/220V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Taizhou Qiou Mechanical And Electrical Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full Taizhou Qiou Mechanical And Electrical Co., Ltd. range on HVACR Nexus.
